DTC B1085
›
Inspection Outline
Inspection Outline

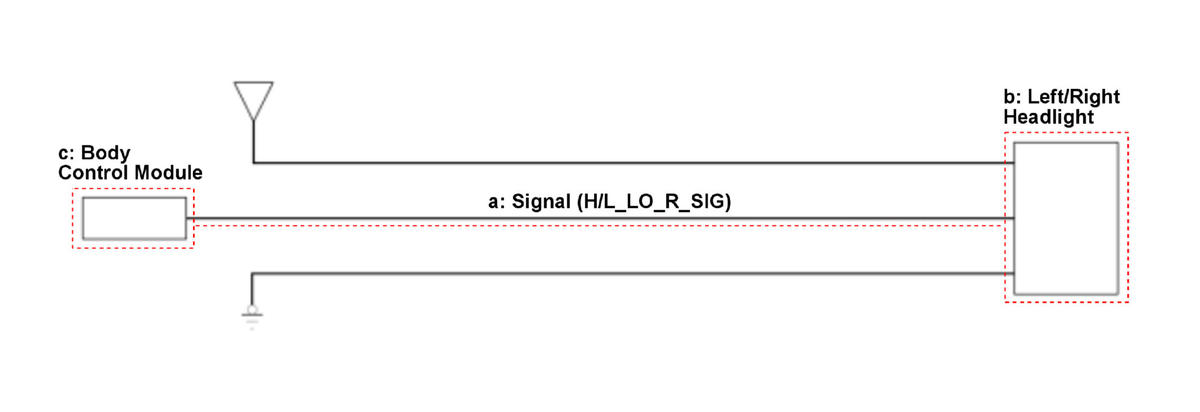

The components to be tested are indicated by a dotted line.
Courtesy of HONDA, U.S.A., INC.
Inspection Items
Work Items
a
External Circuit
H/L_LO_R_SIG Shorted Wire Inspection
b
Headlight
Headlight Inspection
c
Body Control Module
Body Control Module Inspection
Courtesy of HONDA, U.S.A., INC.
