Inspection Outline

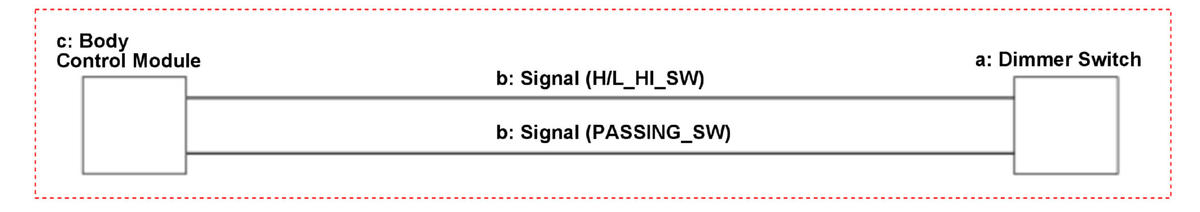

- The components to be tested are indicated by a dotted line.
| Inspection Items | Work Items | |
|---|---|---|
| a | Dimmer Switch | Do the Dimmer Switch Test |
| b | External Circuit | H/L_HI_SW, PASSING_SW Shorted Wire Inspection |
| c | Body Control Module | Body Control Module Inspection |
