Troubleshooting
›
Keyless Buzzer Circuit Troubleshooting
›
Inspection Outline

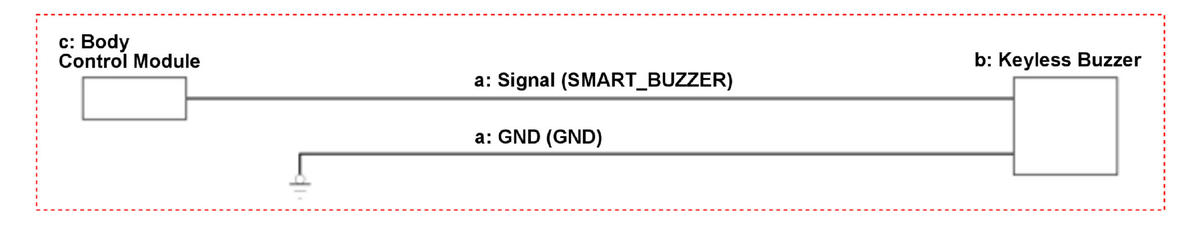

Inspection Outline
The components to be tested are indicated by a dotted line.
Courtesy of HONDA, U.S.A., INC.
Inspection Items
Work Items
a
External Circuit
SMART_BUZZER, GND Circuit Inspection
b
Keyless Buzzer
Keyless Buzzer Inspection
c
Body Control Module
Body Control Module Inspection
Courtesy of HONDA, U.S.A., INC.
