DTC U3003-68
›
Inspection Outline
Inspection Outline

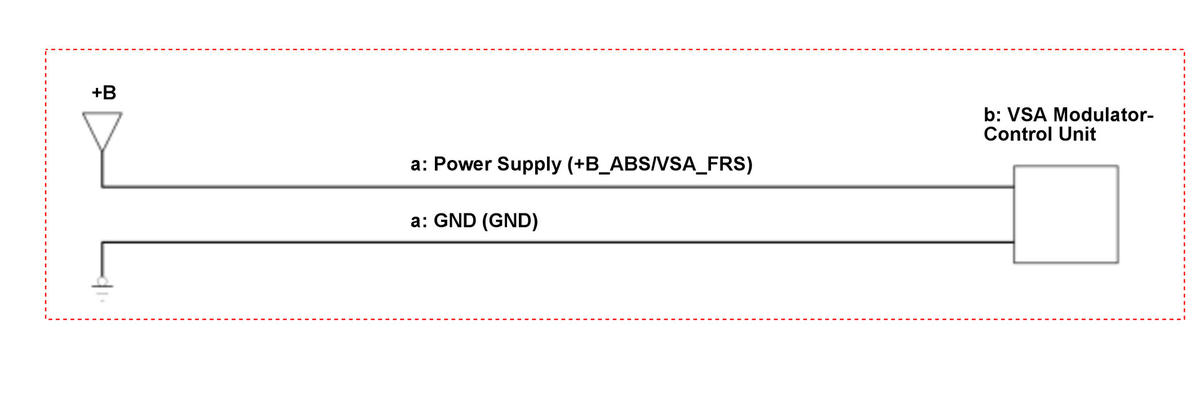

The components to be tested are indicated by a dotted line.
Courtesy of HONDA, U.S.A., INC.
Inspection Items
Work Items
a
External Circuit
+B_ABS/VSA_FRS, GND Circuit Inspection
b
VSA Modulator-Control Unit
Courtesy of HONDA, U.S.A., INC.
