VSA System Description
Overview
The VSA system stabilizes the vehicle behavior by controlling the braking force and engine torque.
Control Unit Operation

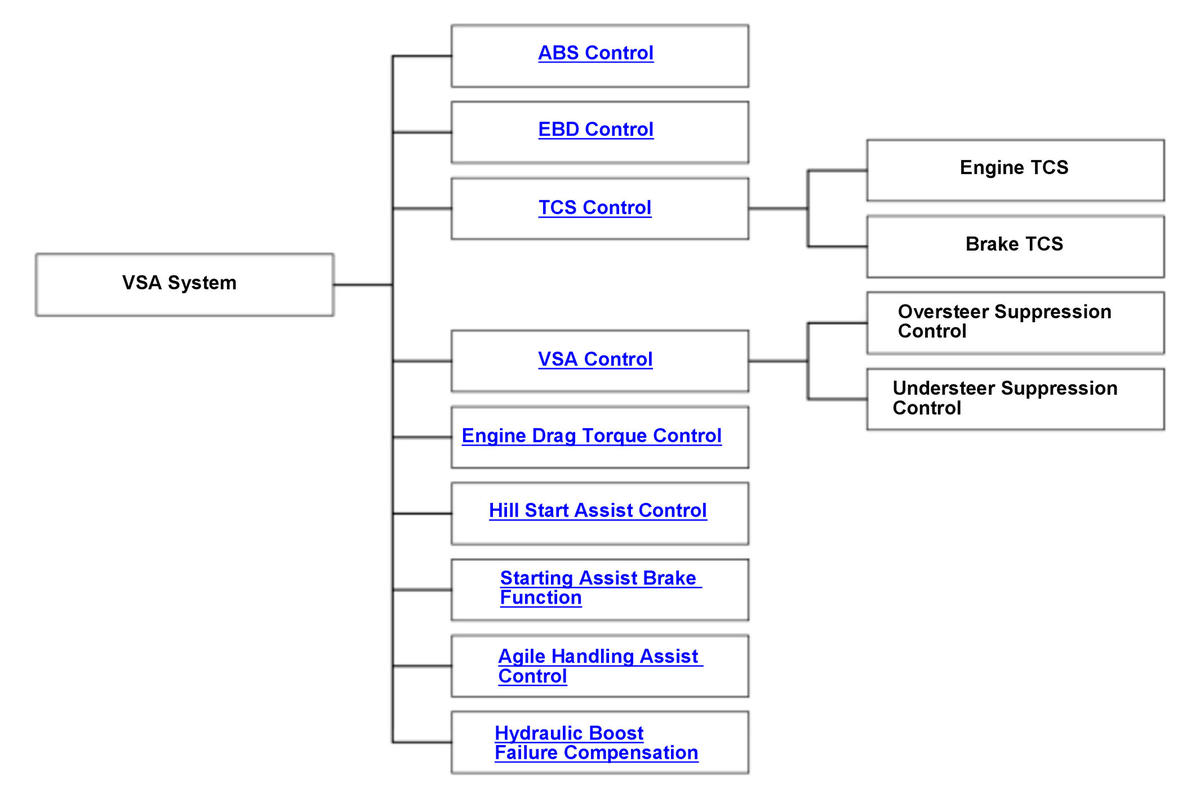

The VSA system performs the following controls.
Integrated Dynamics System
The TCS control and the agile handling assist control are changed by the integrated dynamics system mode shown below. When the integrated dynamics system is in the INDIVIDUAL mode, the VSA system can be customized separately by the INDIVIDUAL settings (VSA system is included in Suspension setting).
| VSA System | Integrated Dynamics System Mode | |||
|---|---|---|---|---|
| COMFORT | NORMAL | SPORT | SPORT+* | |
| Engine TCS Control | Less wheel slip | Increased wheel slip | ||
| Brake TCS Control | Less wheel slip | |||
| Agile Handling Assist Control | Standard setting | Increased control setting | ||
*: 3.0 L engine
