Repair Procedure

How to use this manual .

NOTE:

Clean the disassembled parts with solvent, then dry the disassembled parts with compressed air. Do not wash the rubber parts with solvent.

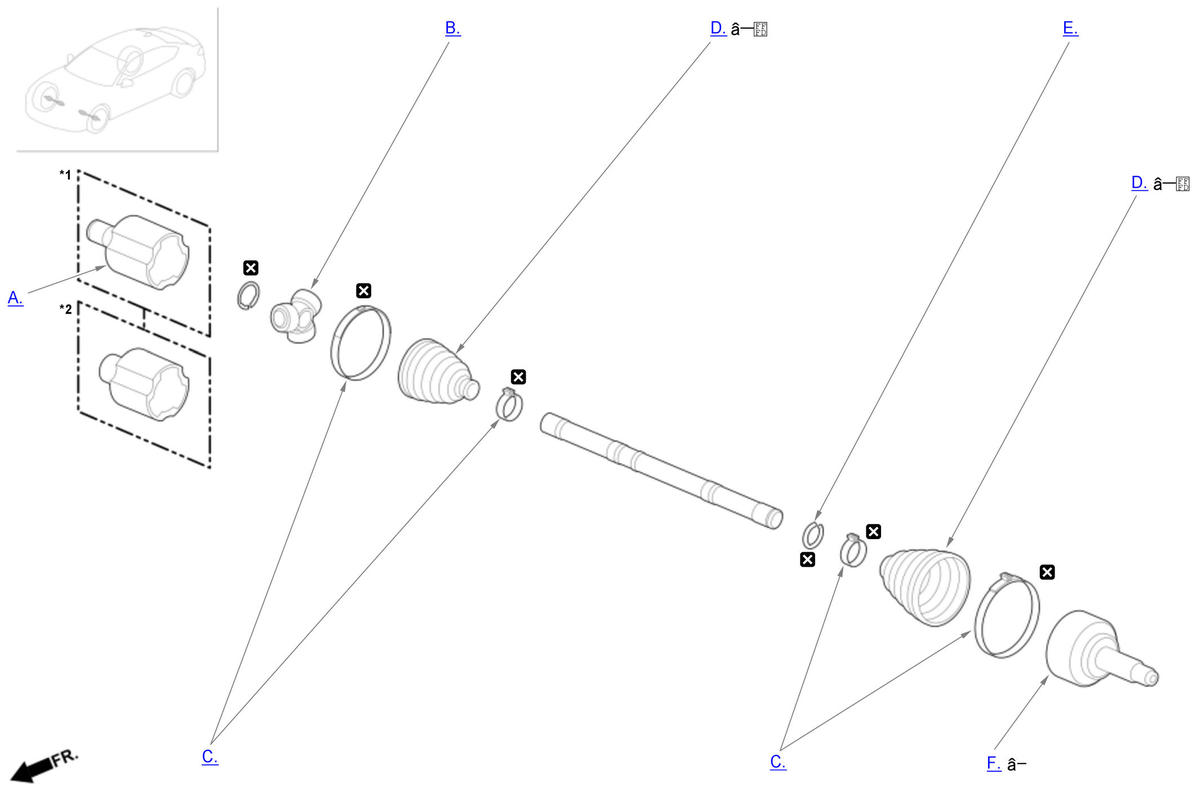

GHH561368Courtesy of HONDA, U.S.A., INC.
: Torque, N.m (lbf.ft) : Replace : Warning/Caution : Inspection/Adjustment *: Learning : SPL Tool : Required Removal
*1: Left

*2: Right
  1. A.-

    Key Information

    NOTE:  For the removal and installation procedure, refer to Service Precautions and the sub procedure below.



    Sub-Procedure

    Installation

    Lubricant Specifications

    Position Specified Amount
    Left 190 - 210 g (6.70 - 7.41 oz)
    Right 180 - 200 g (6.35 - 7.05 oz)
  2. B.-

    Key Information

    NOTE:  For the removal and installation procedure, refer to Service Precautions .

  3. C.-

    Key Information

    NOTE:  For the removal and installation procedure, refer to Service Precautions and the sub procedure below.

    Sub-Procedure

    Installation

    Ear Clamp Details

    Standard Value
    Width 1.0 - 4.0 mm (0.039 - 0.157 in)
  4. D.-

    Key Information

    NOTE:  For the removal and installation procedure, refer to Service Precautions .

    After Installation

  5. E.-

    Sub-Procedure

    ? Installation

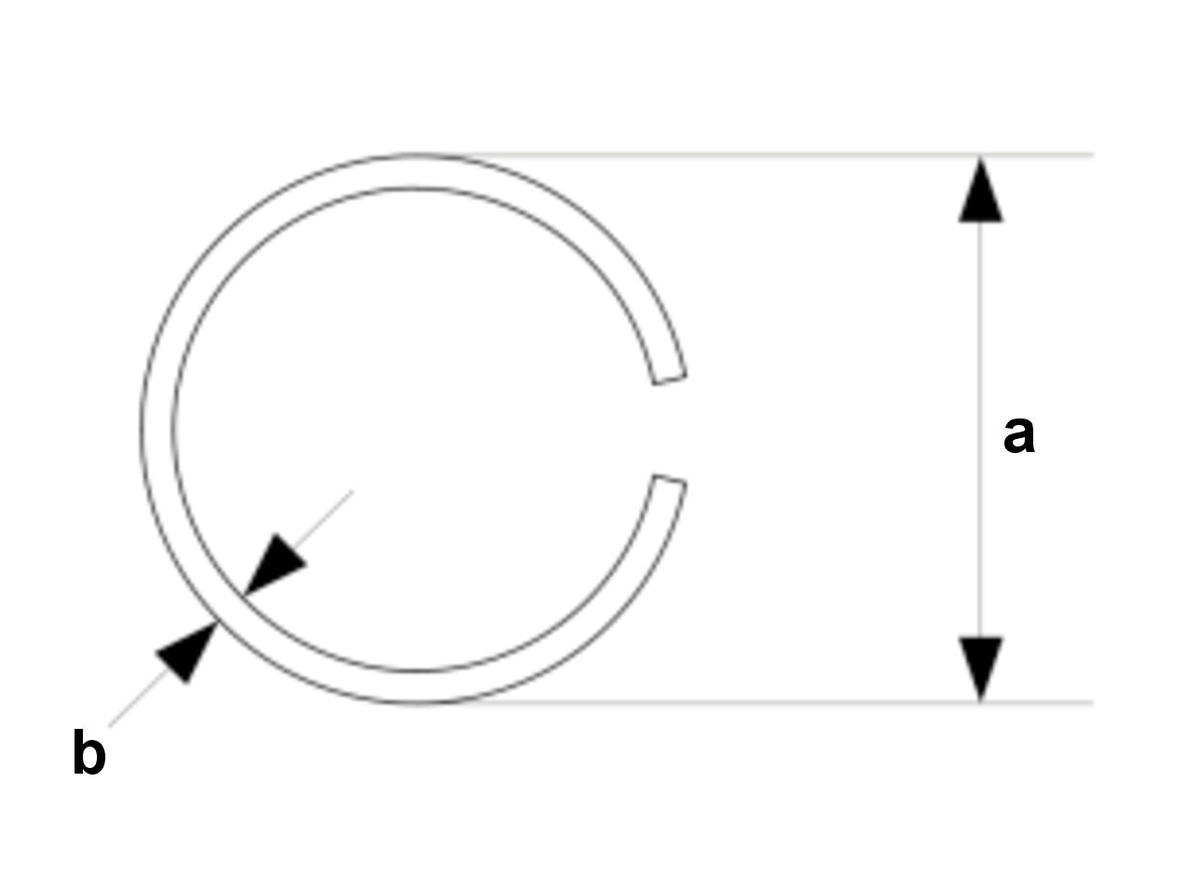

    • Make sure to check the size of a new stop ring.

    Specifications

    Standard Value
    2.0 L Engine a 31.2 mm (1.228 in)
    b 2.0 mm (0.079 in)
    3.0 L Engine a 32.0 mm (1.260 in)
    b 2.0 mm (0.079 in)
    GHH561369Courtesy of HONDA, U.S.A., INC.
  6. F.-

    Key Information

    NOTE:  For the removal and installation procedure, refer to Service Precautions and the sub procedure below.

    Sub-Procedure

    Removal

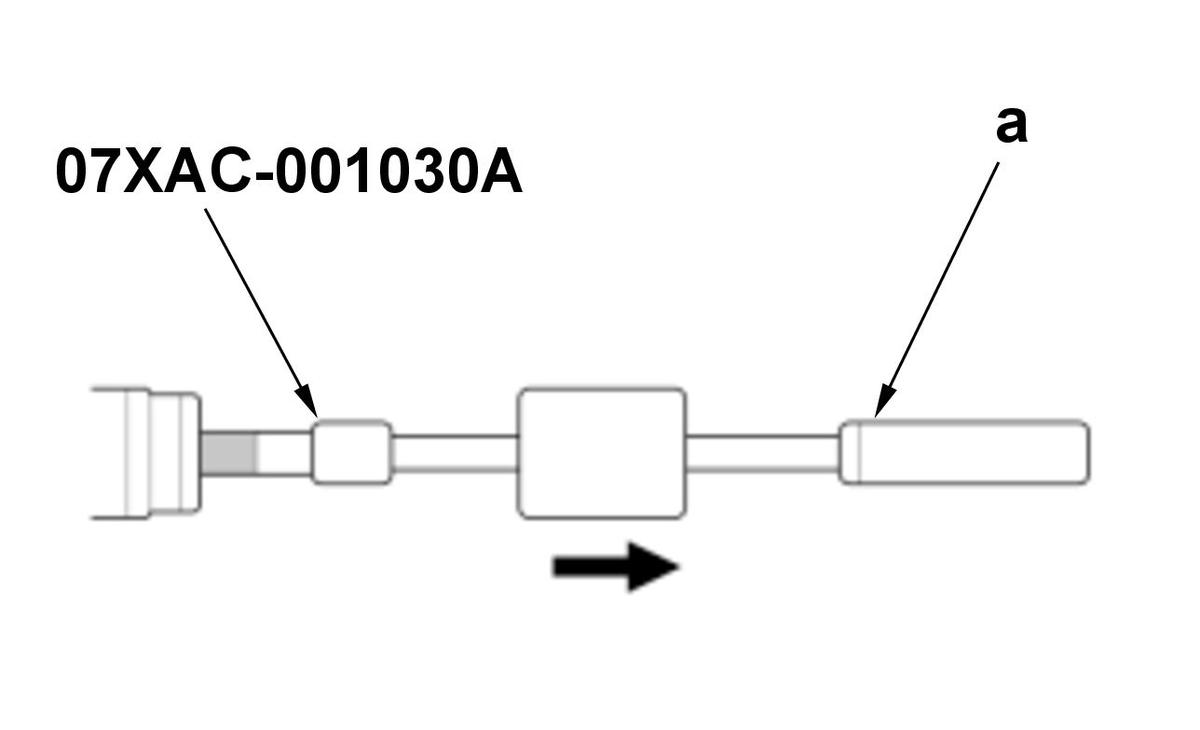

    • Refer to the figure.

    Tool Details

    Name
    a 5/8"-18 UNF slide hammer (Commercially Available)
    GHH561370Courtesy of HONDA, U.S.A., INC.

    Installation

    • Pack the outboard joint with the joint grease included in the new outboard boot set.

    Lubricant Specifications

    Type Specified Amount
    2.0 L Engine 150 - 170 g (5.29 - 6.00 oz)
    3.0 L Engine 190 - 210 g (6.70 - 7.41 oz)
