Fuse/Relay Box Connector Locations

12 Volt Battery Terminal Fuse Box

Socket	Ref	Terminal	Connects to
T2	1	---	12 volt battery terminal cable
T4	2	---	12 volt battery terminal cable
T6	5	---	Left side wire harness
T7	4	---	Left side wire harness
T8	3	---	Left side wire harness

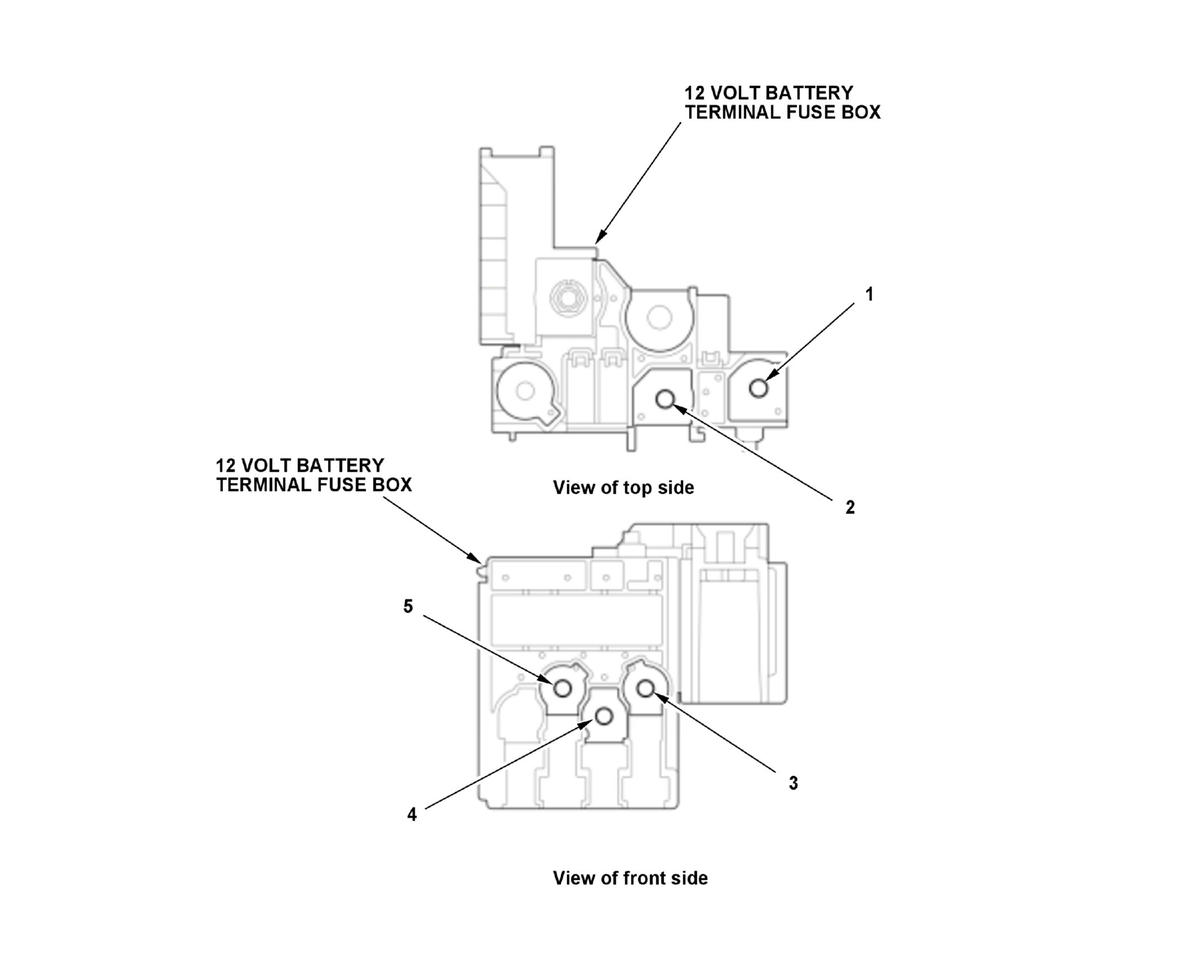

Fig 1: 12 Volt Battery Terminal Fuse Box Component Locations

Courtesy of HONDA, U.S.A., INC.

Fuse Holder A

Socket	Ref	Terminal	Connects to
T9	2	---	12 volt battery terminal cable
T10	7	---	ACG +B cable
T11	3	---	12 volt battery terminal cable
T12	6	---	ACG +B cable
T13	5	---	Jump start cable (ACG)
T14	4	---	Jump start cable (+B)
T15	1	---	Engine compartment wire harness

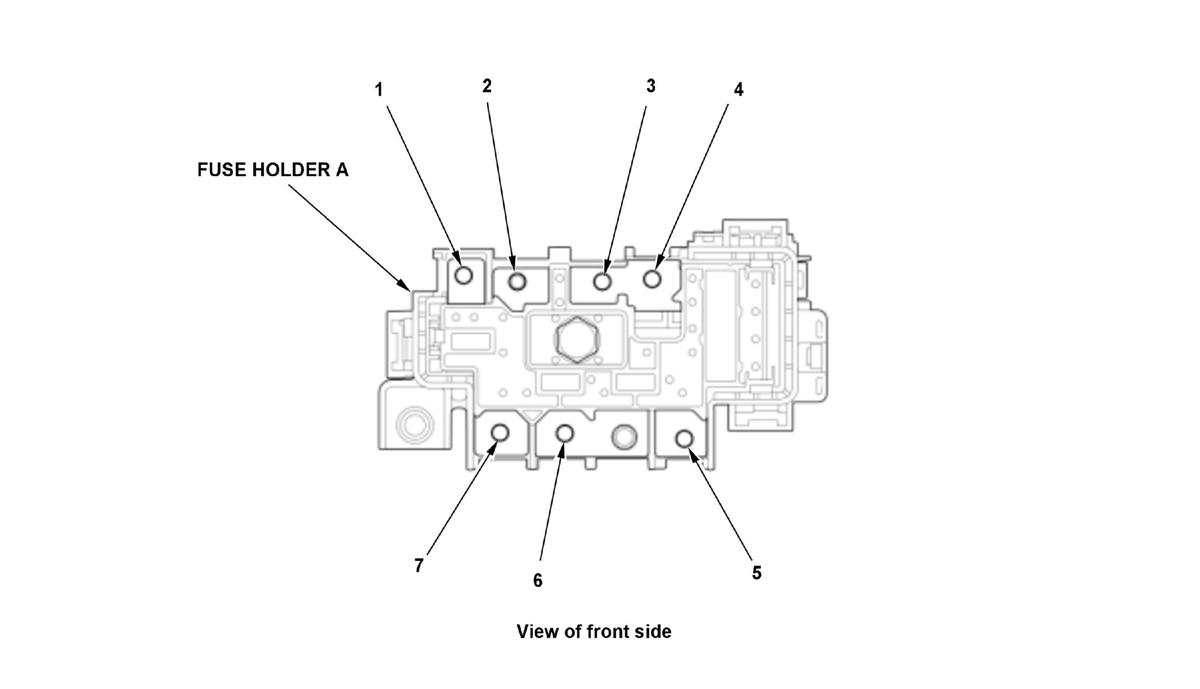

Fig 2: Fuse Holder A Component Location

Courtesy of HONDA, U.S.A., INC.

Under-Dash Fuse/Relay Box

Socket	Ref	Terminal	Connects to
A	1	22	Left side wire harness
B	2	10	Left side wire harness
C (optional connector)	3	4	Engine compartment wire harness
D	4	27	Engine compartment wire harness
E	5	1	Not used
F	6	4	Dashboard wire harness
G	7	12	Dashboard wire harness
H	8	20	Dashboard wire harness
K	9	22	Dashboard wire harness
M	10	2	Not used

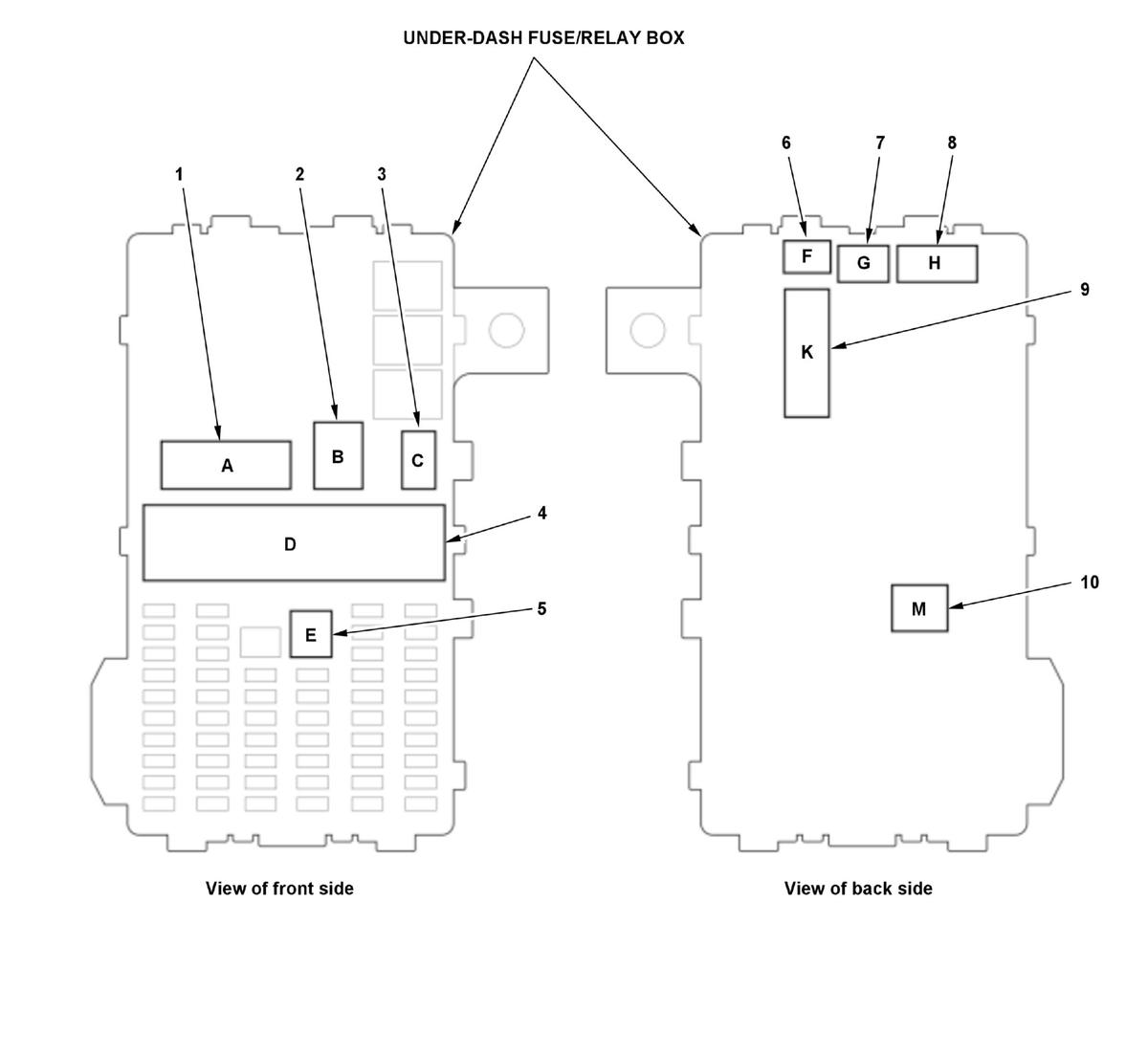

Fig 3: Under-Dash Fuse/Relay Box Component Location

Courtesy of HONDA, U.S.A., INC.
