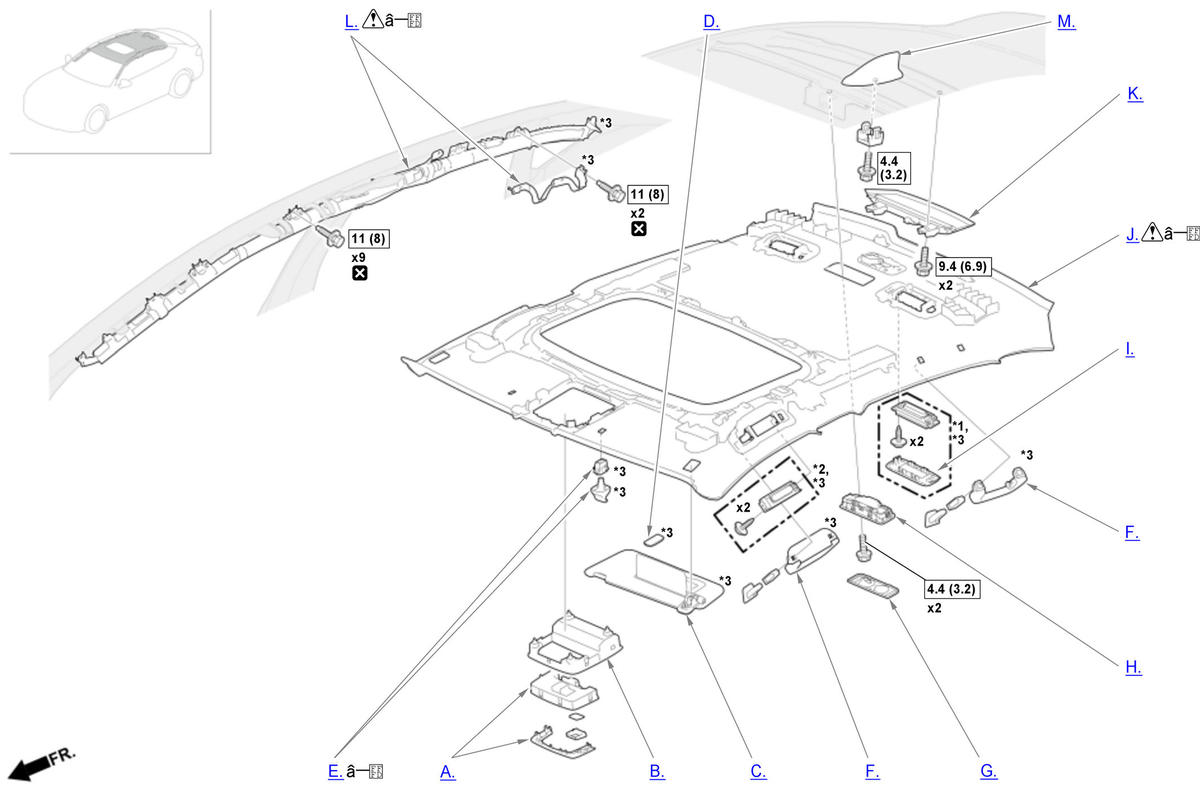

Repair Procedure

How to use this manual .

Courtesy of HONDA, U.S.A., INC.

: Torque, N.m (lbf.ft)

: Replace

: Warning/Caution

: Inspection/Adjustment

*: Learning

■: SPL Tool

: Required Removal

Courtesy of HONDA, U.S.A., INC.

: Torque, N.m (lbf.ft)

: Replace

: Warning/Caution

: Inspection/Adjustment

*: Learning

■: SPL Tool

: Required Removal

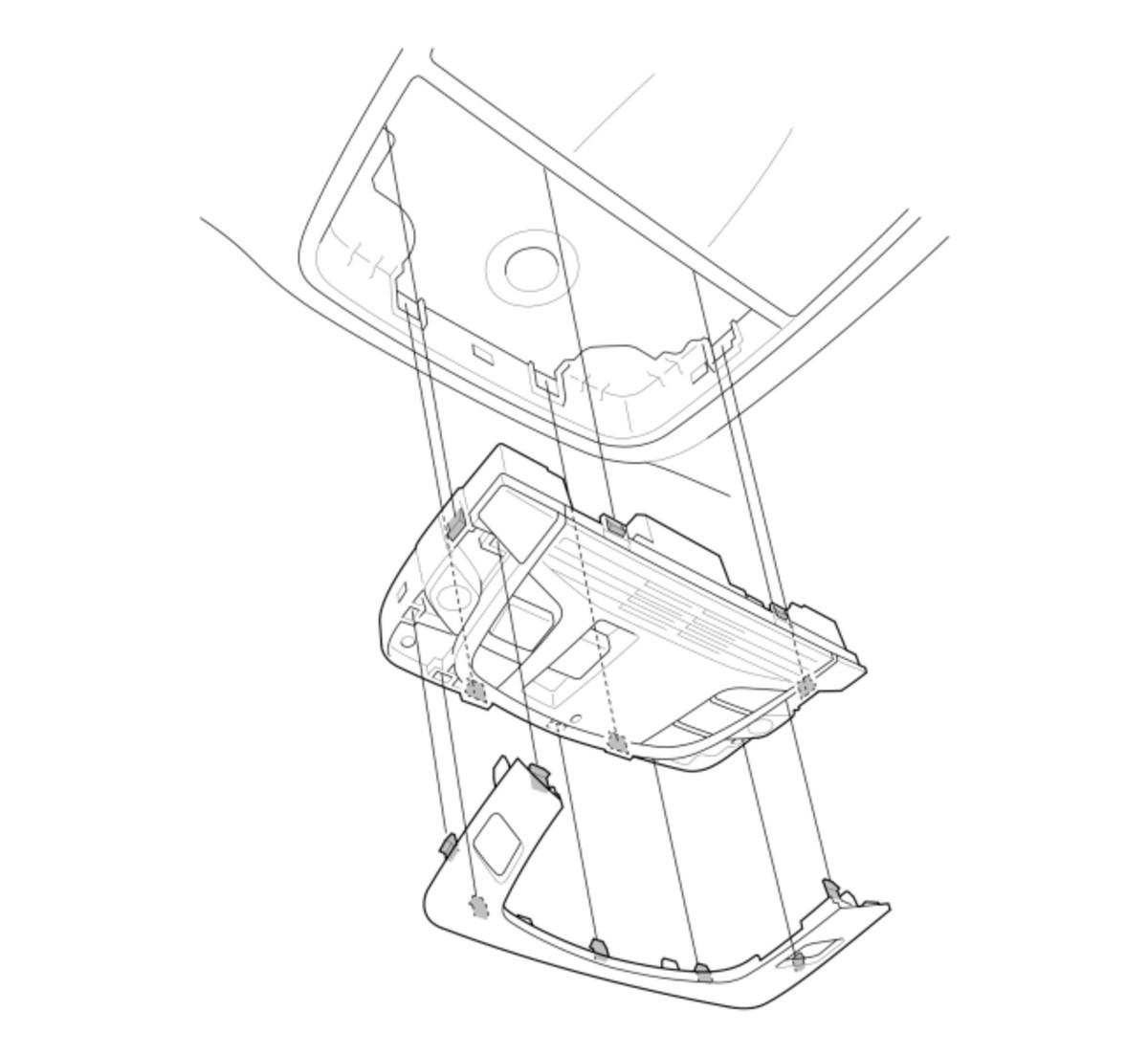

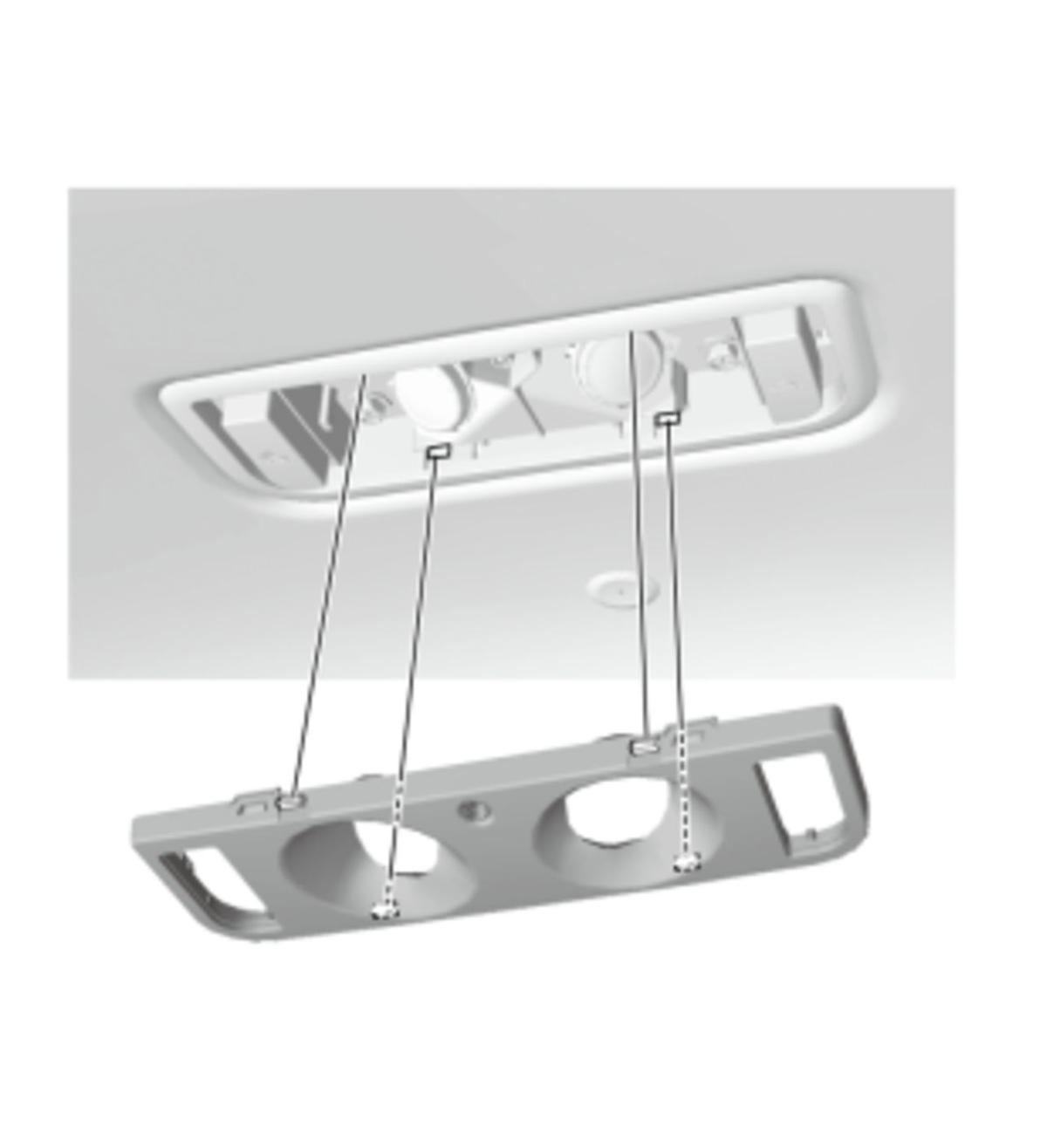

1. A.-

   Courtesy of HONDA, U.S.A., INC.

2. B.-

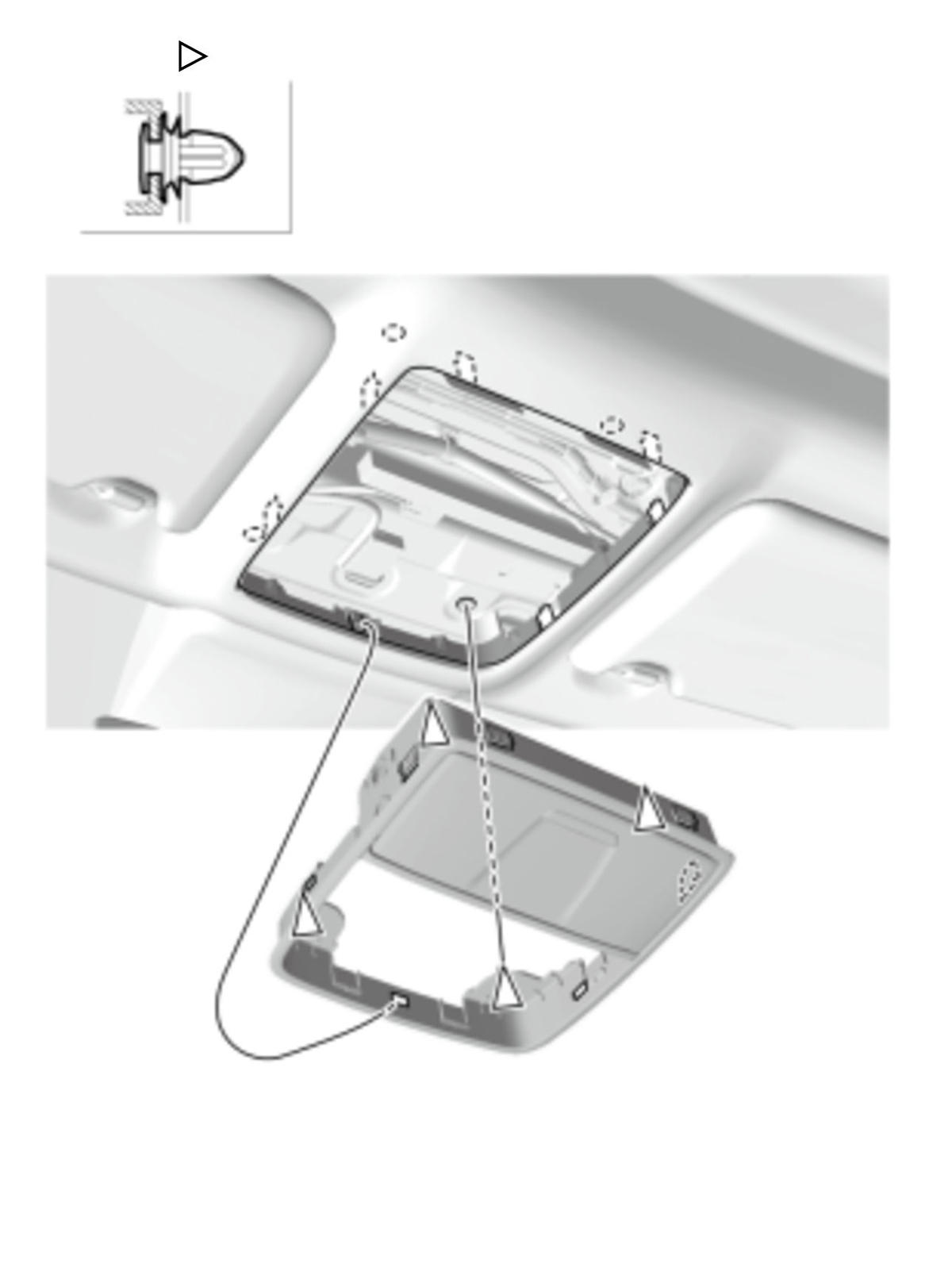

   Courtesy of HONDA, U.S.A., INC.

3. C.-

   Sub-Procedure

   Removal

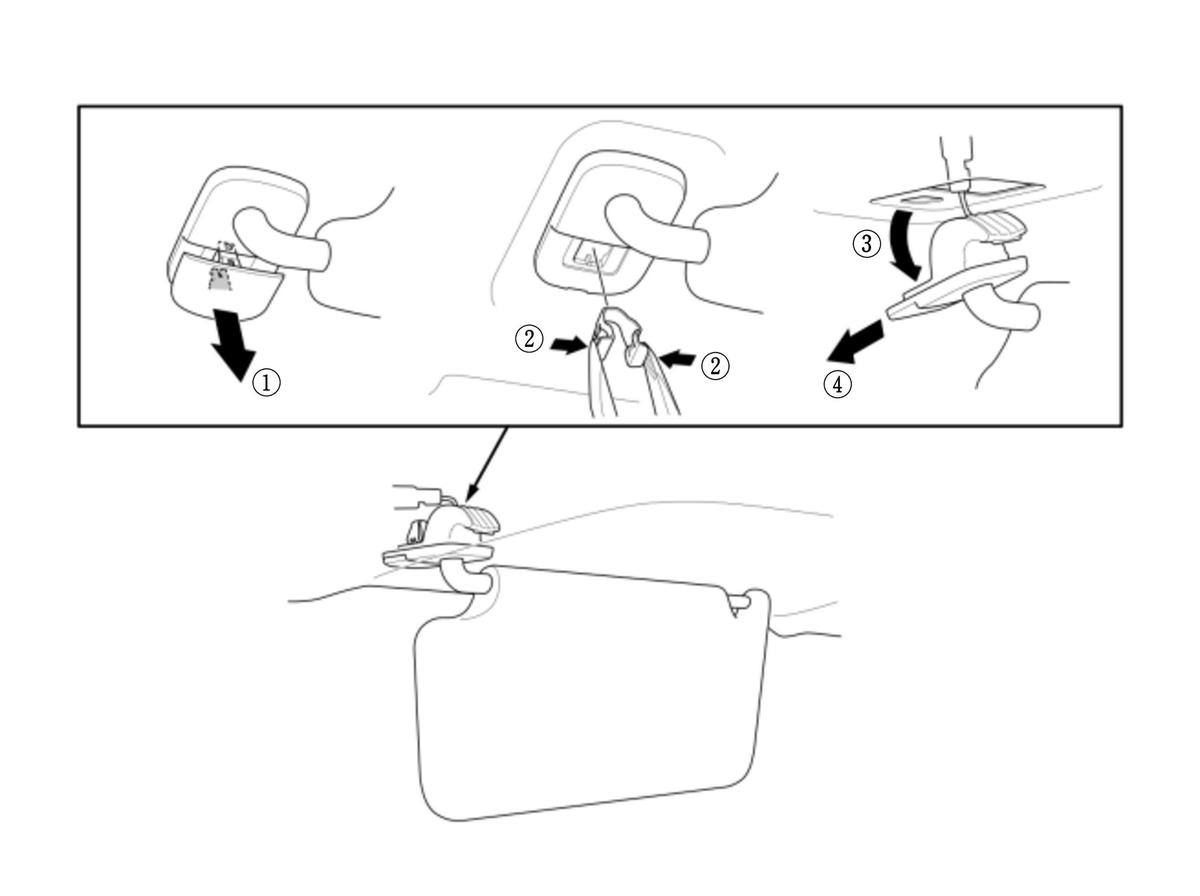

   Figure 1

   • Refer to the figure 1.

   Courtesy of HONDA, U.S.A., INC.

   Installation

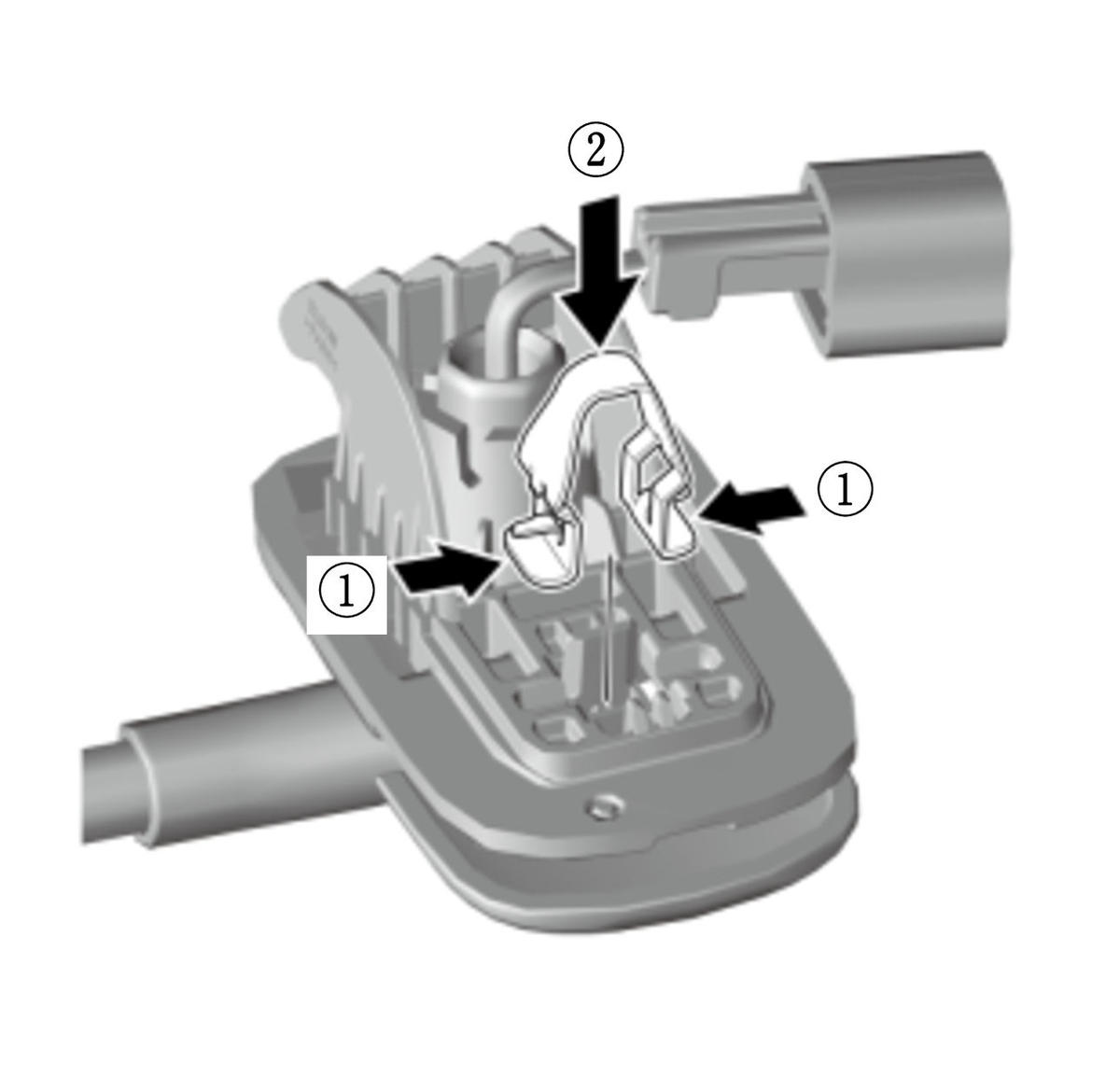

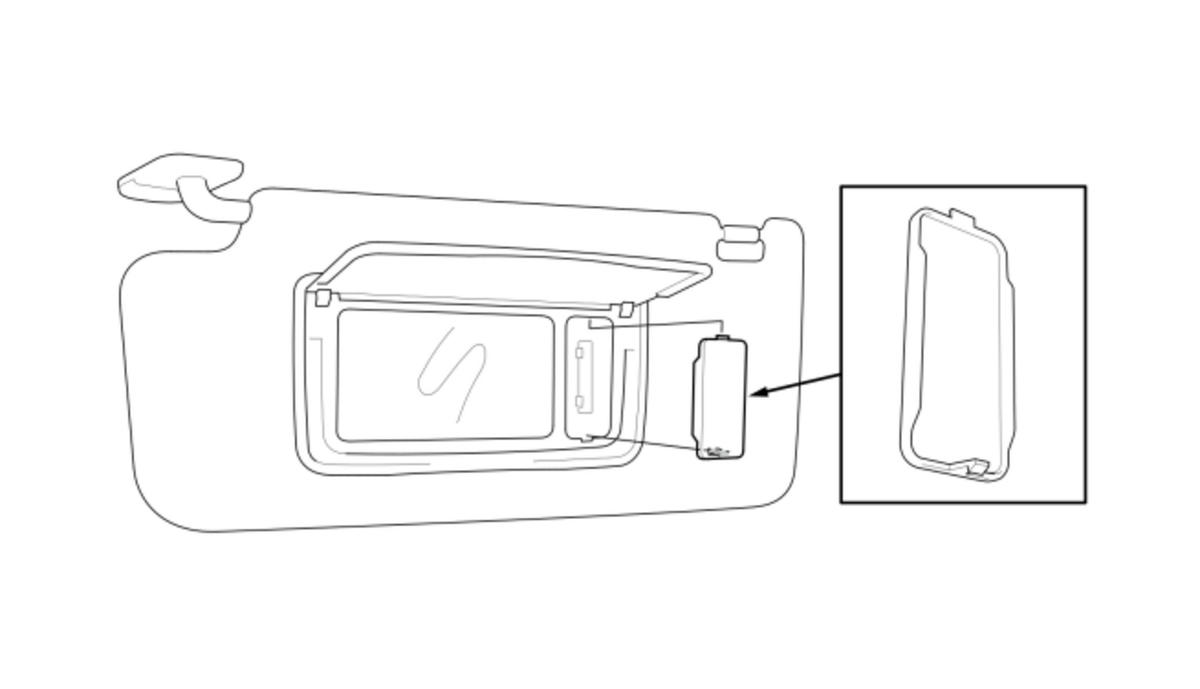

   Figure 2

   • Refer to the figure 2.
   • After Inspecting the sunvisor, install the sunvisor.

   Courtesy of HONDA, U.S.A., INC.

4. D.-

   Courtesy of HONDA, U.S.A., INC.

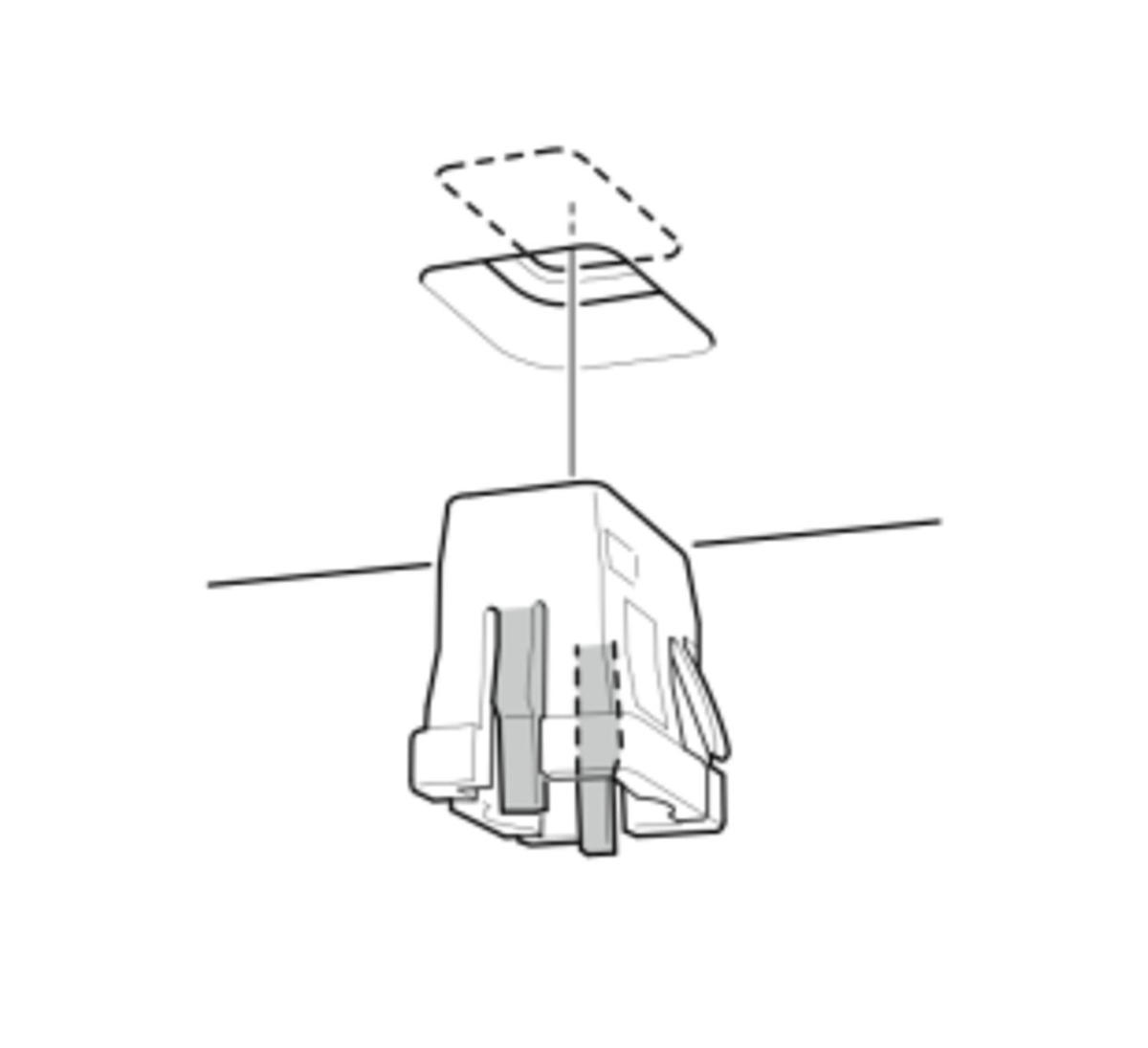

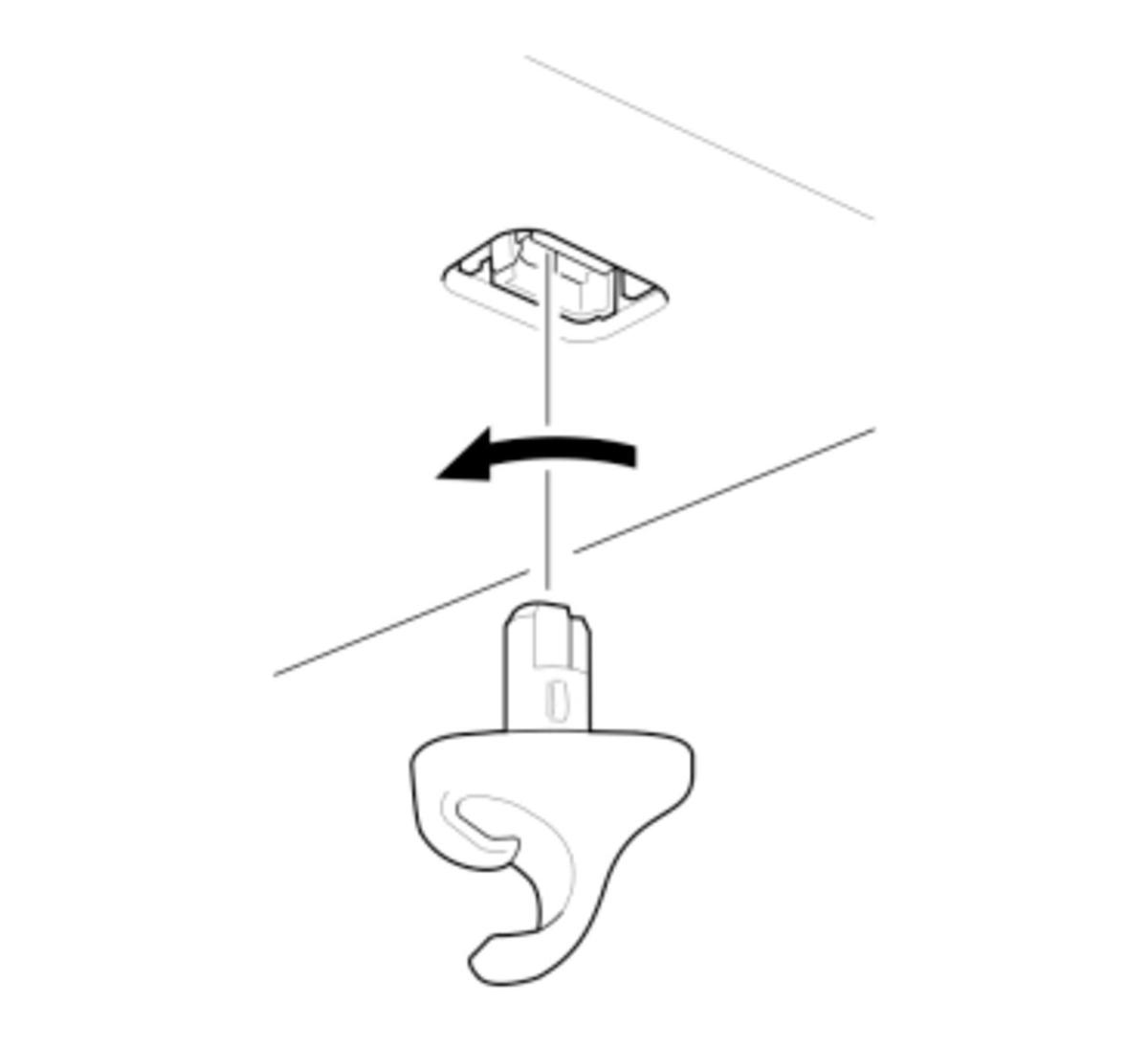

5. E.-

   Sub-Procedure

   Figure 1

   Courtesy of HONDA, U.S.A., INC.

   Figure 2

   Courtesy of HONDA, U.S.A., INC.

   Removal

   • Refer to the figure 1 and 2.

   Installation

   • After Inspecting the sunvisor holder, install the sunvisor holder.

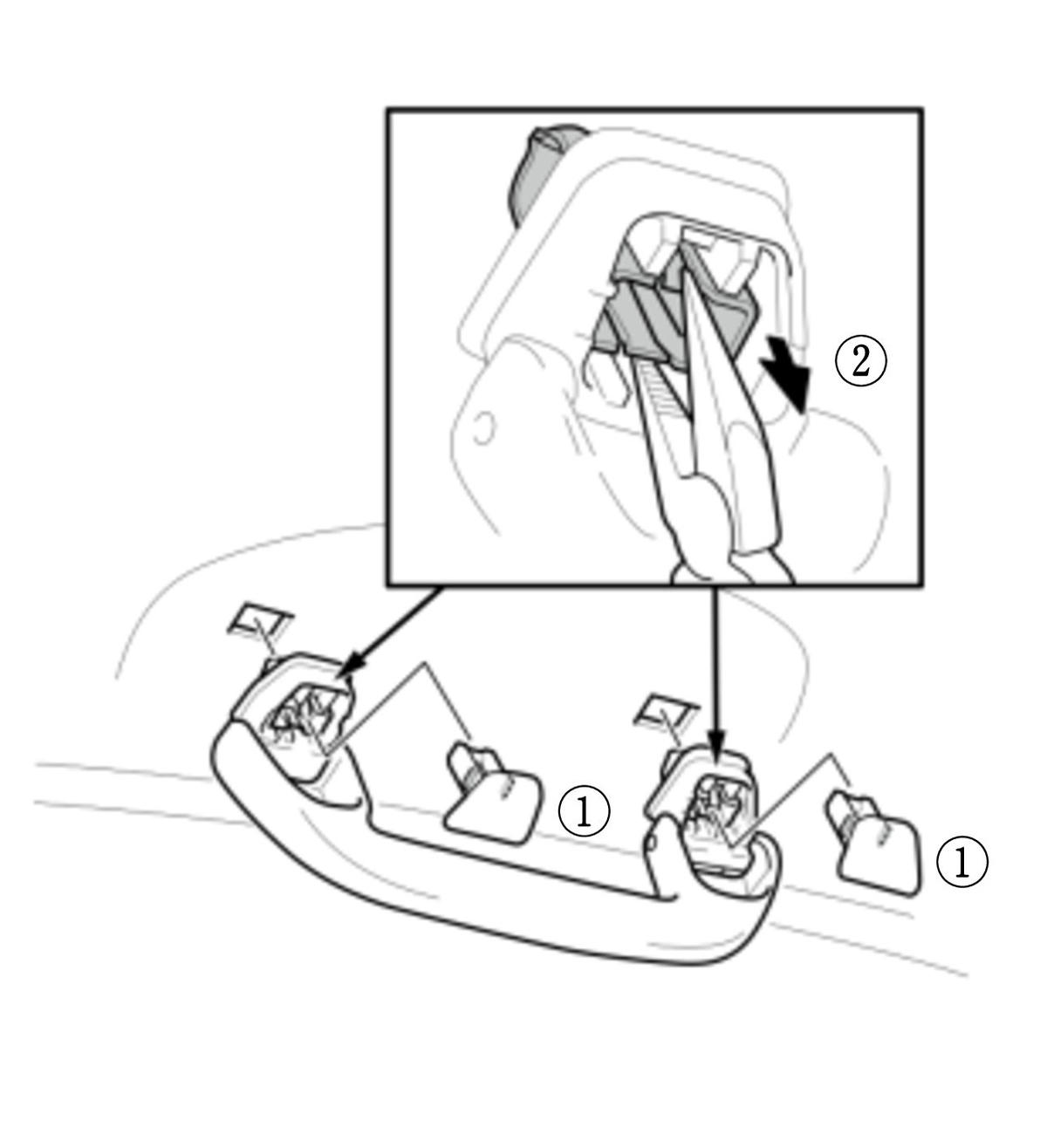

6. F.-

   Sub-Procedure

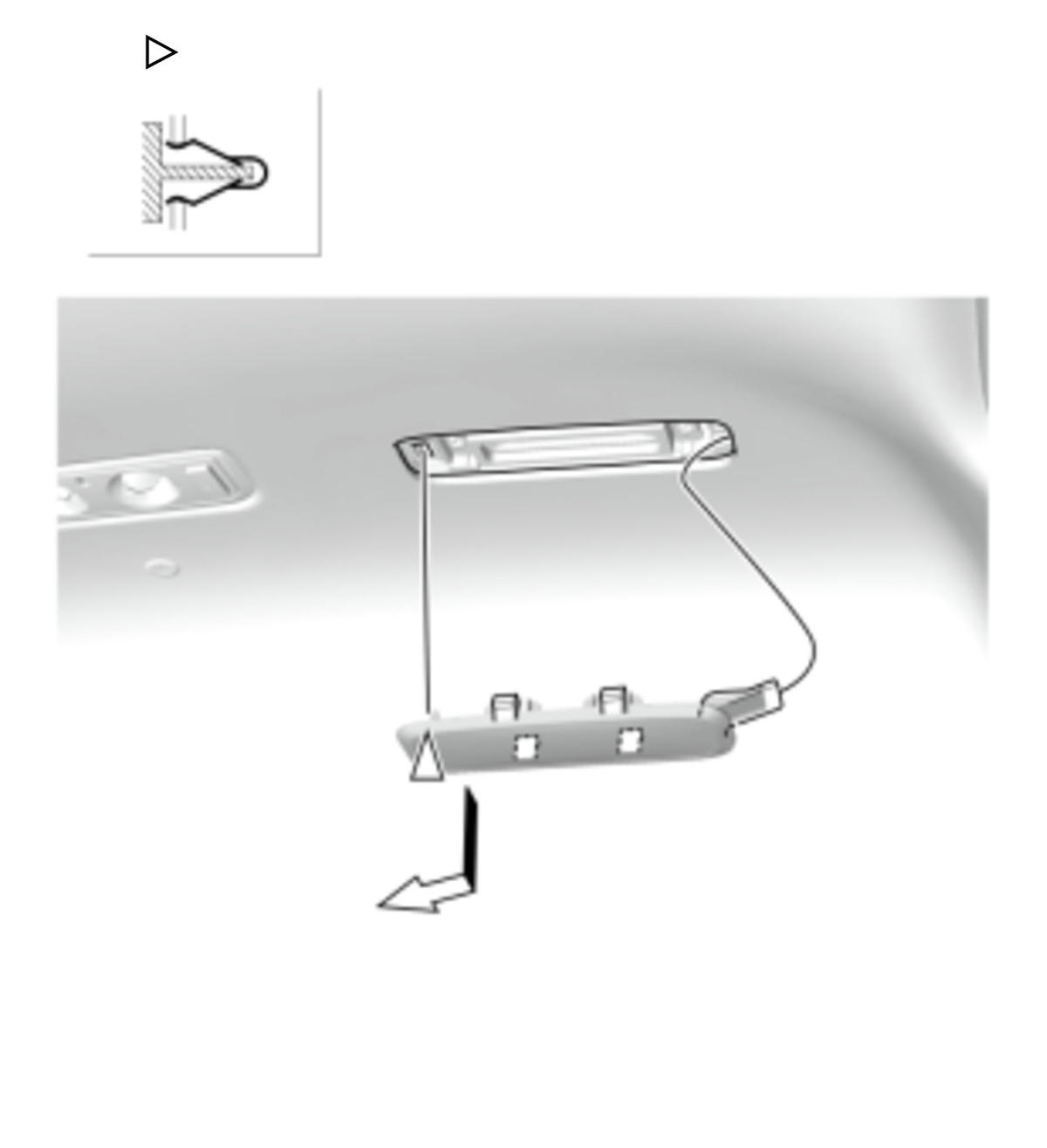

   Courtesy of HONDA, U.S.A., INC.

   Removal

   • Refer to the figure.

   Installation

   • After Inspecting the grab handle, install the grab handle.
7. G.-

   Courtesy of HONDA, U.S.A., INC.

8. H.-

   Courtesy of HONDA, U.S.A., INC.

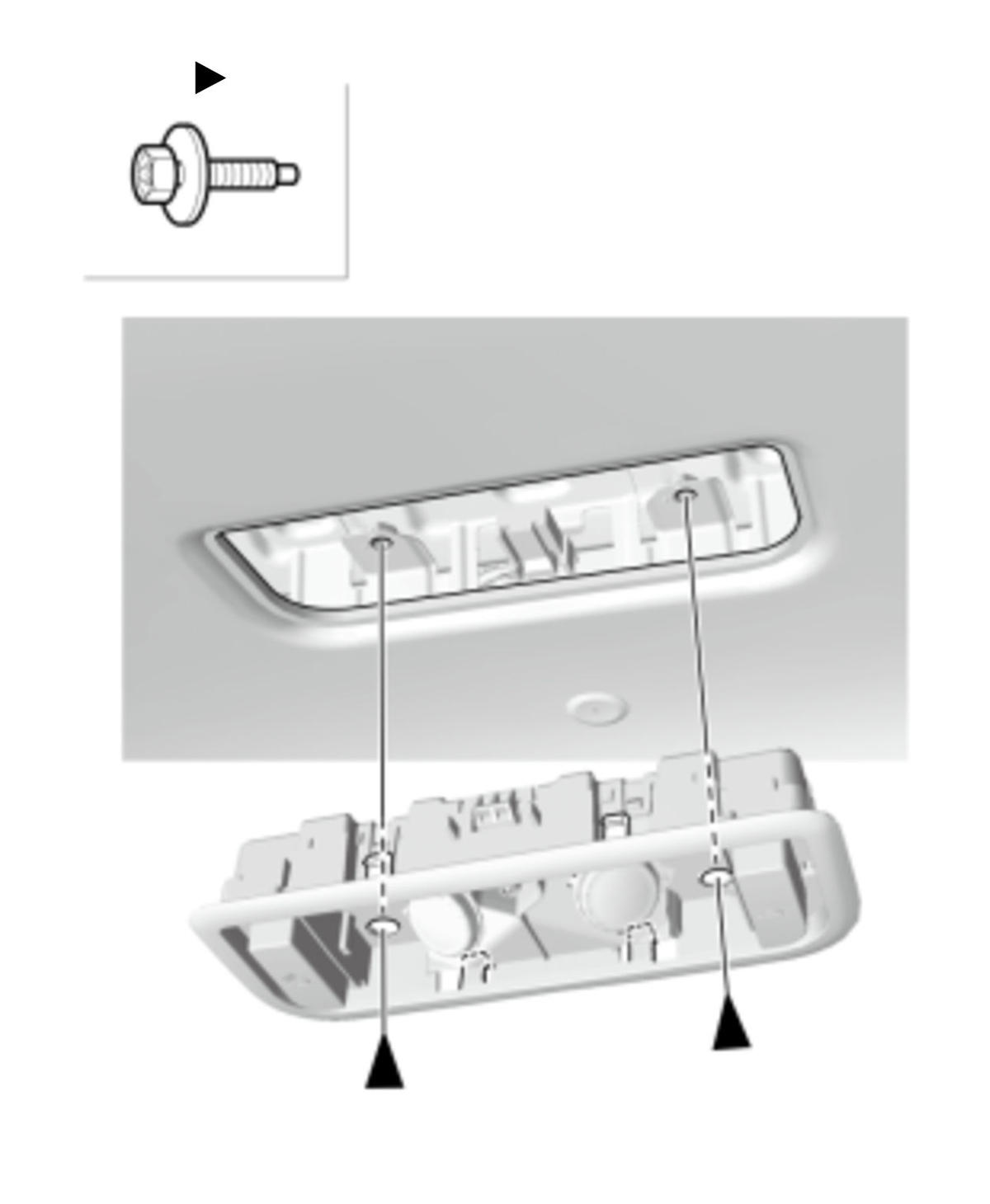

9. I.-

   Sub-Procedure

   Courtesy of HONDA, U.S.A., INC.

   Removal

   • Refer to the figure.
10. J.-
    WARNING:

    • SRS components are located in this area. Before doing repairs or service:
      1. -

         Review the SRS component locations .

      2. -

         Review the precautions and procedures .

    NOTE:  Do not bend the headliner. Bending the headliner will crease and damage it.

    Preconditions

    • 12 Volt Battery Negative Terminal Disconnected

    Key Information

    Do the following before starting your work.

    Remove:

    • Interior Trim Area
      1. -

         Front Door Opening Seal (as needed)

      2. -

         Rear Door Opening Seal (as needed)

      3. -

         A-Pillar Trim

      4. -

         B-Pillar Upper Trim

      5. -

         C-Pillar Upper Trim

    • Driver's Seat Assembly
    • Front Passenger's Seat Assembly
    • Center Console
    • Sensor Front Cover

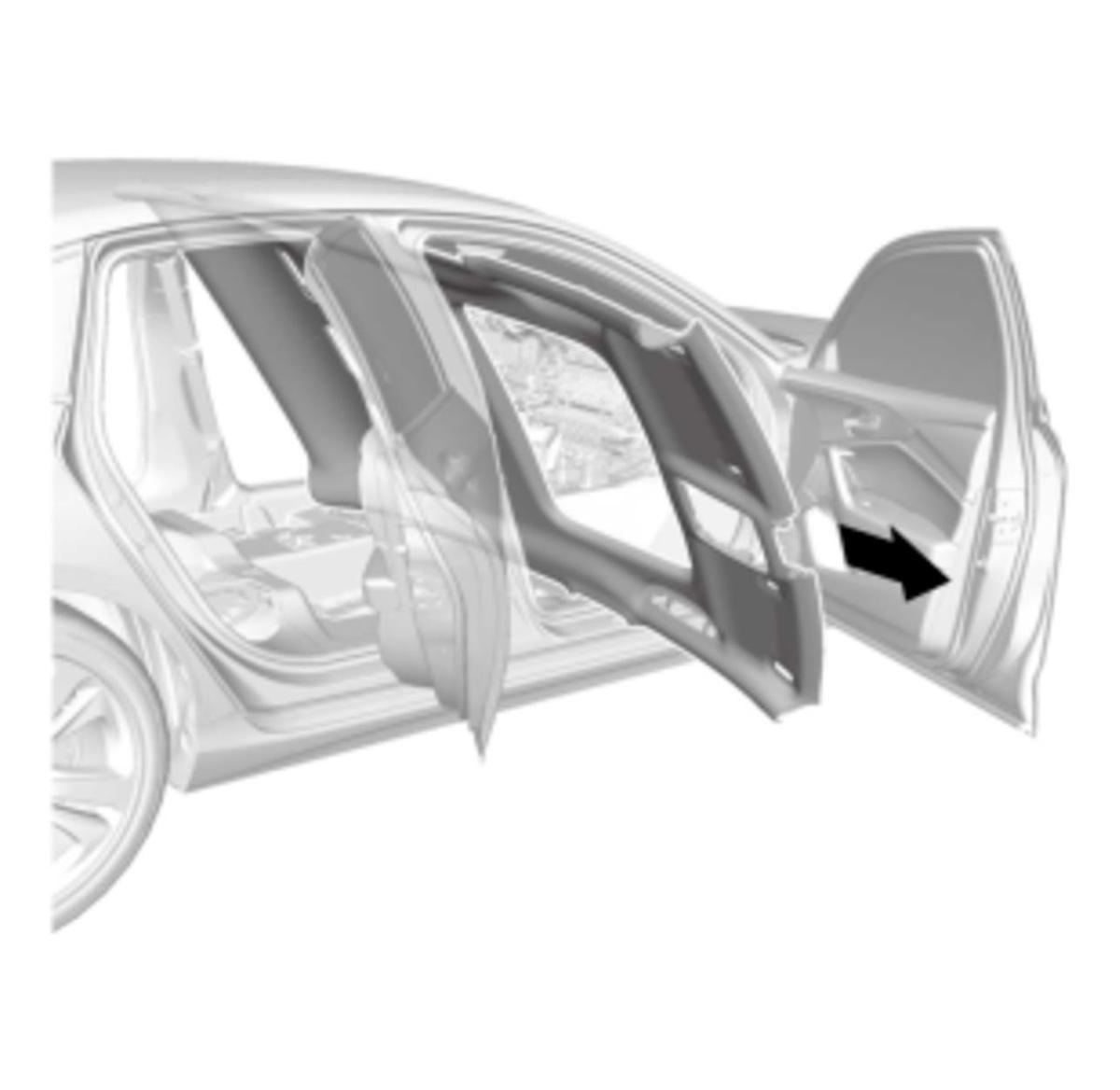

    Sub-Procedure

    Removal

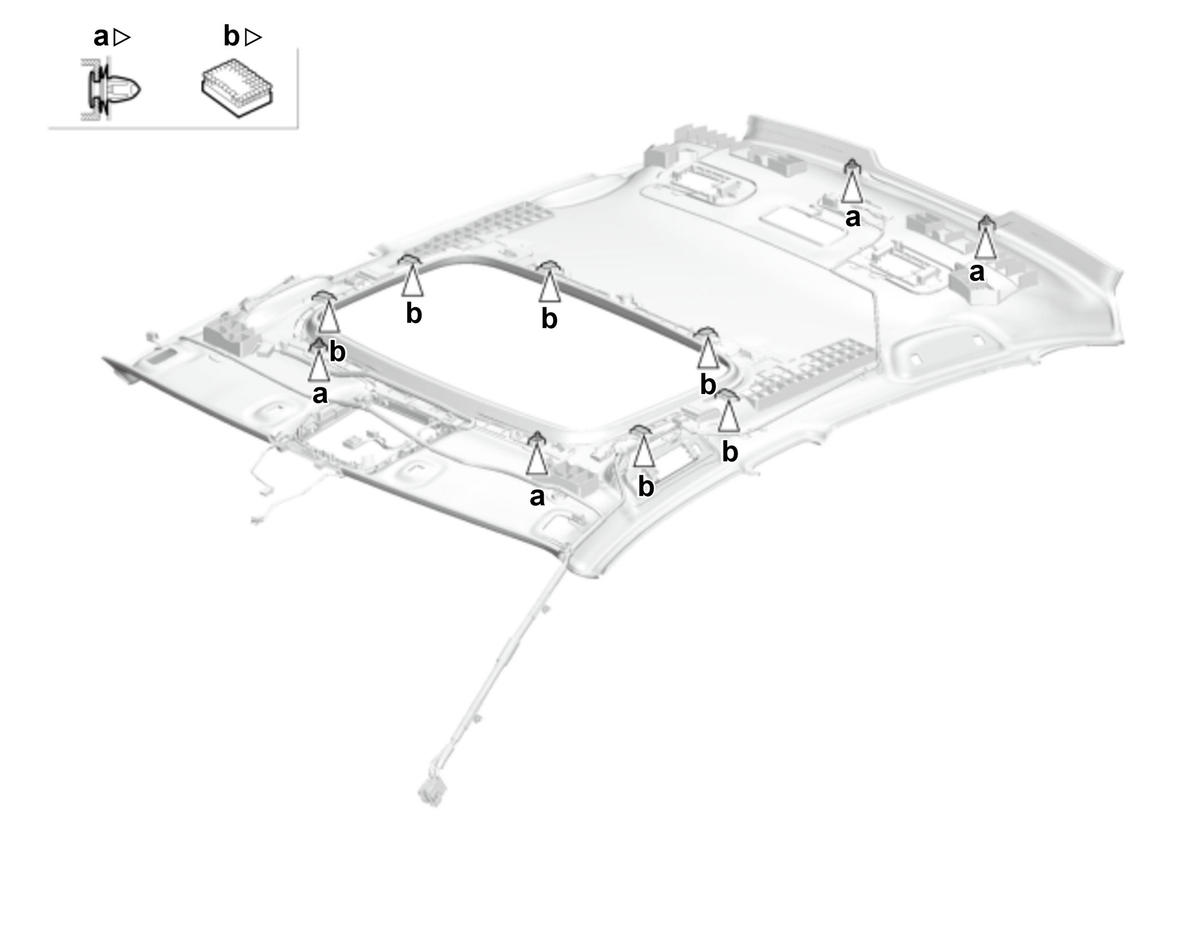

    Figure 1

    1. Refer to the figure 1.

    Courtesy of HONDA, U.S.A., INC.

    Figure 2

    2. Refer to the figure 2.

    Courtesy of HONDA, U.S.A., INC.

    Figure 3

    3. Refer to the figure 3.

    Courtesy of HONDA, U.S.A., INC.

    Installation

    NOTE:

    When using a new headliner, check the headliner and the pillar trim overlap. - Refer to: SRS Component Replacement/Inspection After Deployment or Airbag and Tensioner Disposal

    After Installation

    • 12 Volt Battery Negative Terminal Reconnect

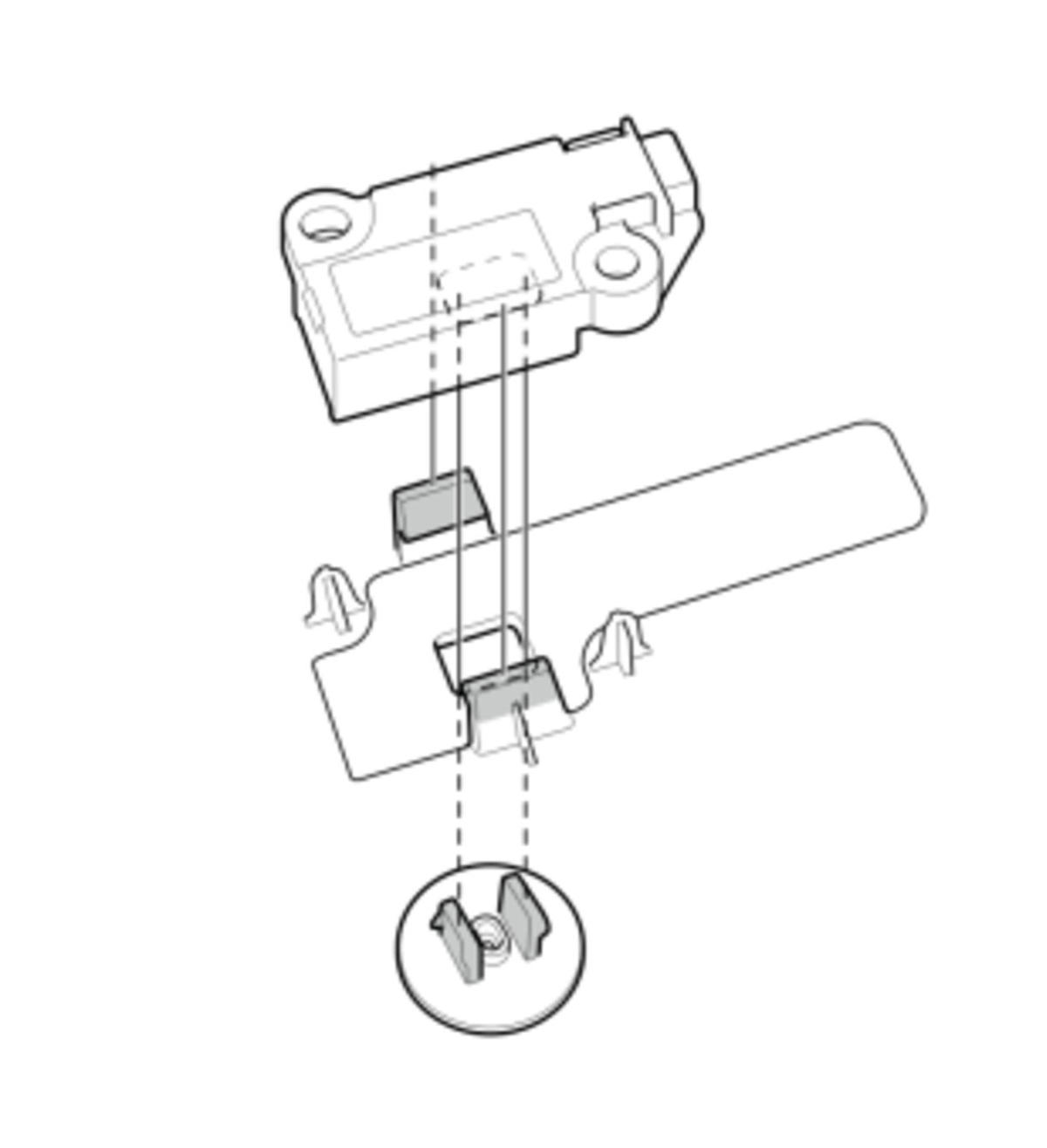

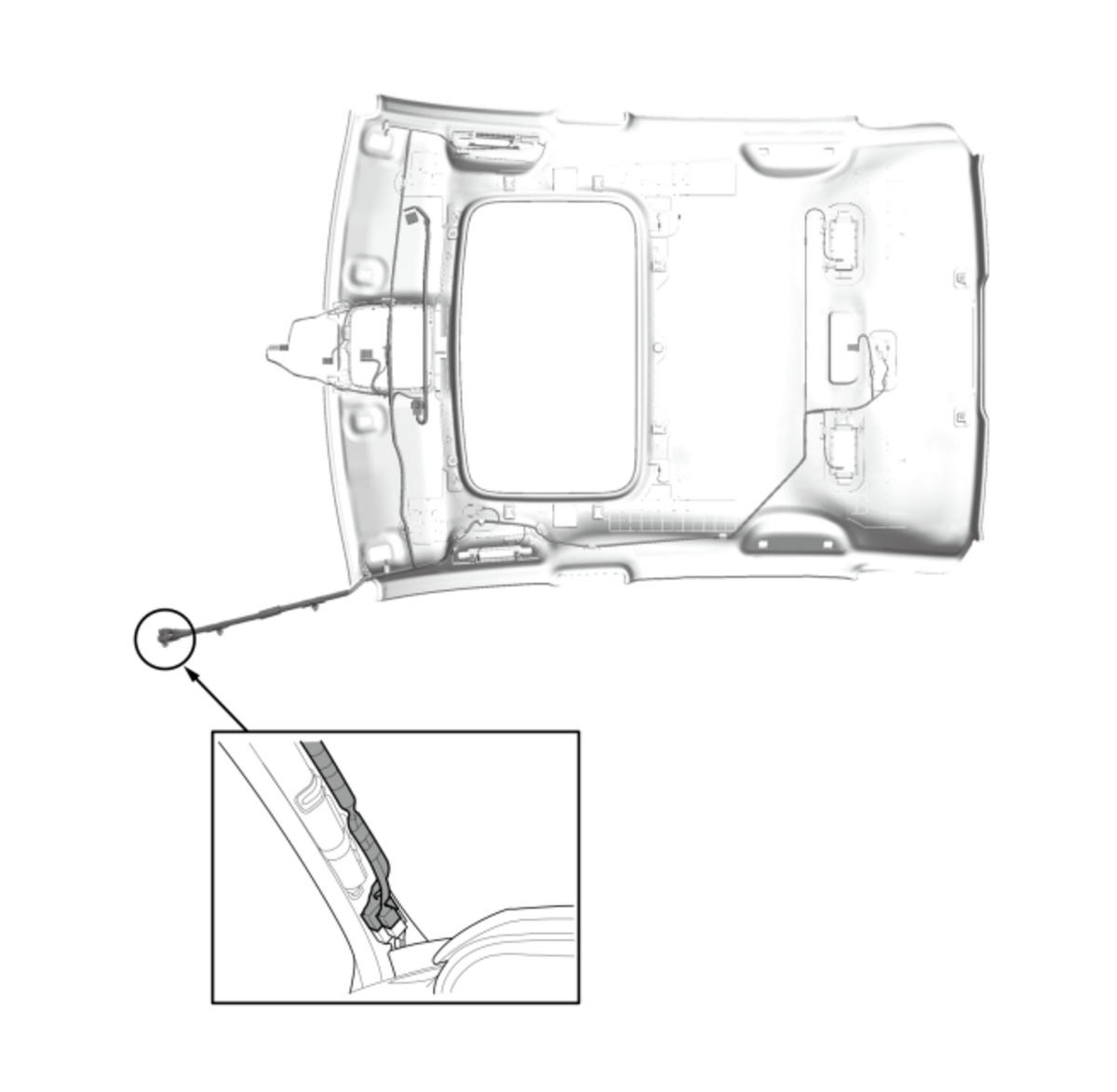

11. K.-

    Sub-Procedure

    Courtesy of HONDA, U.S.A., INC.

    Removal

    • Refer to the figure.
    NOTE:

    Do not bend the headliner. Bending the headliner will crease and damage it.

12. L.-
    WARNING:

    • Review the precautions and procedures before doing repairs or service .
    • Wait at least 3 minutes, after disconnecting the 12 volt battery terminal.
    NOTE:

    If you are replacing the side curtain airbag after a deployment, refer to Component Replacement/Inspection After Deployment - Refer to: SRS Component Replacement/Inspection After Deployment for a complete list of other parts that must also be replaced.

    Preconditions

    • 12 Volt Battery Negative Terminal Disconnected

    Sub-Procedure

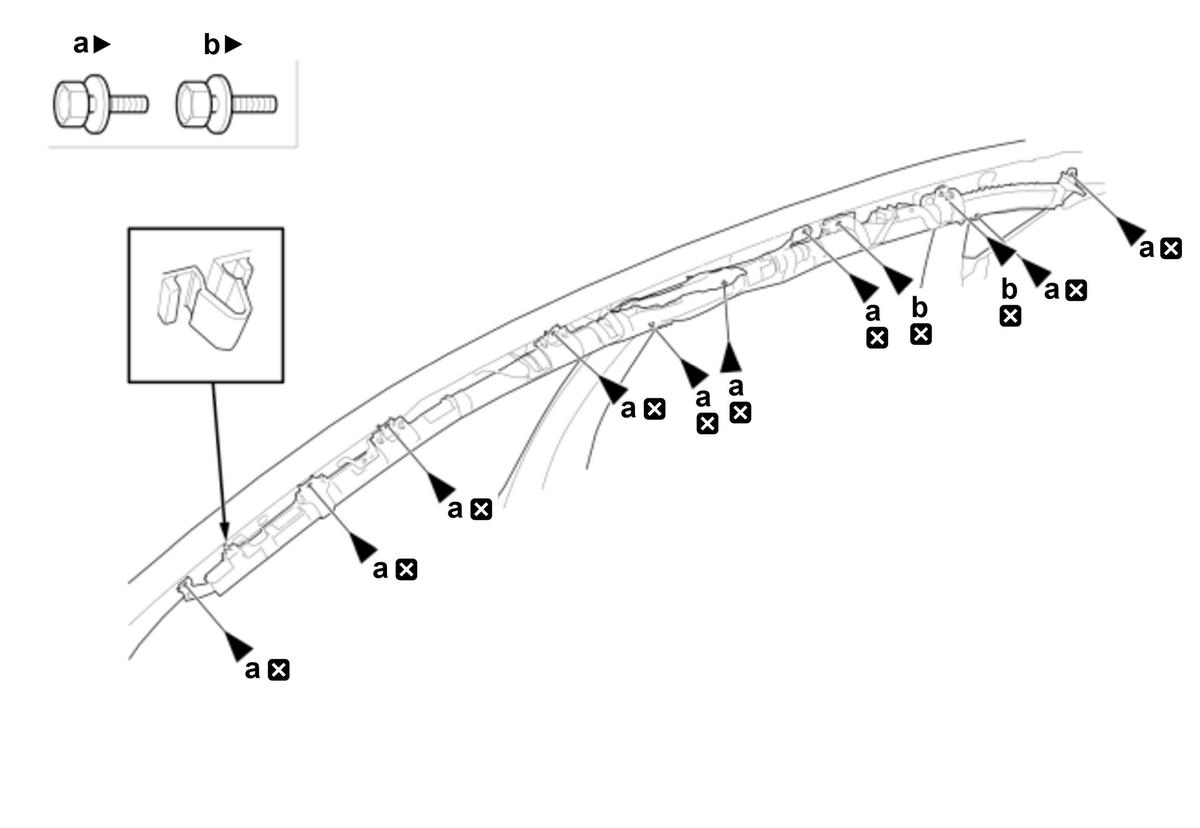

    Removal

    • Refer to the figure.

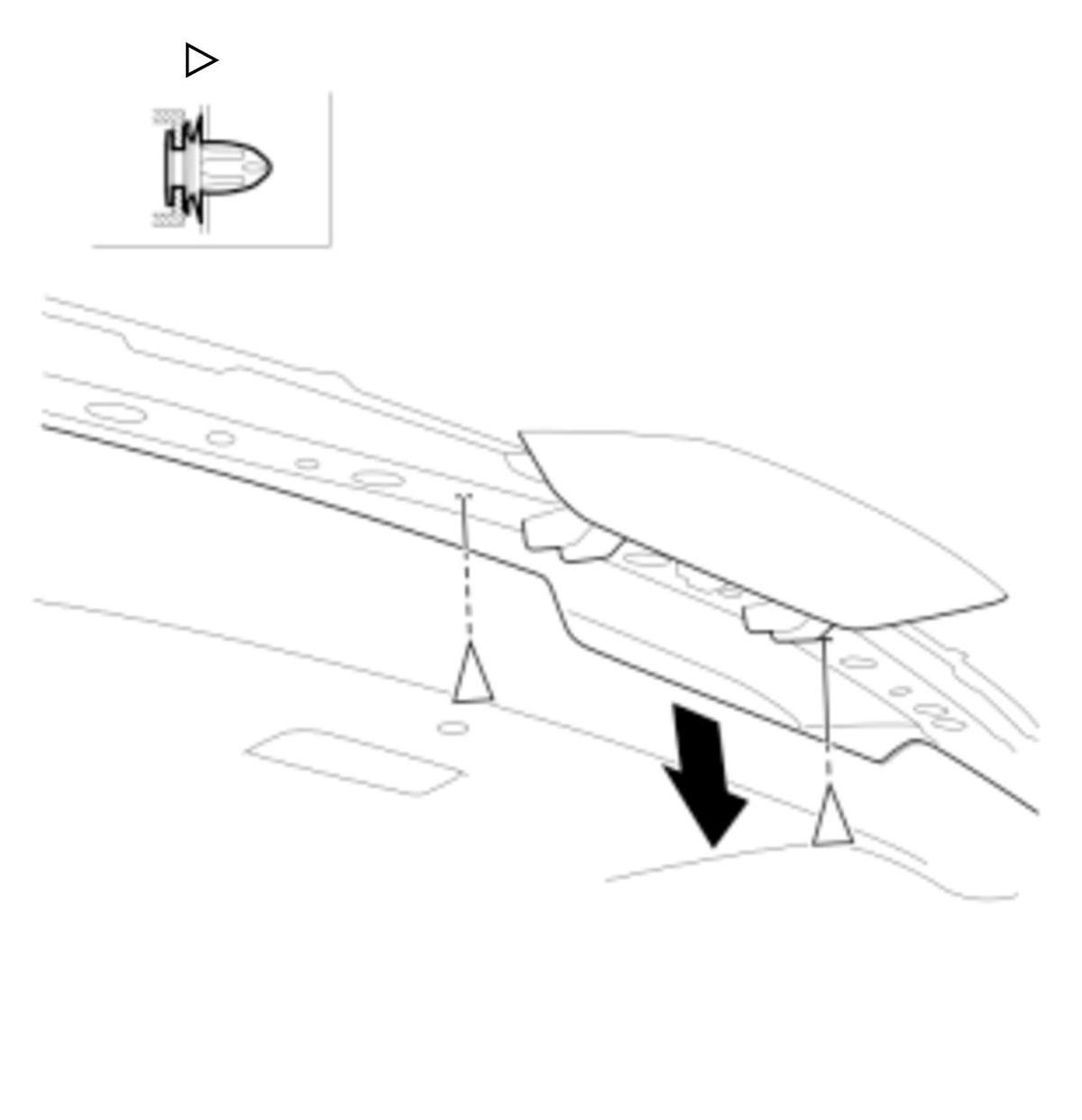

    Courtesy of HONDA, U.S.A., INC.

    Installation

    NOTE:

    • If the side curtain airbag is frayed, or has any other visible damage, replace it. Do not attempt to repair an airbag.
    • When you install the side curtain airbag, make sure it is not twisted, and that it is not caught between the inflator bracket by the bracket bolts.
    • Make sure that the side curtain airbag inflator retainer is installed properly. Otherwise the side curtain airbag could incorrectly deploy and cause damage or injuries.
    • Assemble the wire harness of the side curtain airbag in order not to be caught.
    • Apply light force to the inflator and the adapter pipe to make sure there is no excessive play or looseness.

    NOTE:  Before installing the headliner, make sure the SRS indicator works normally.

    After Installation

    • 12 Volt Battery Negative Terminal Reconnect
    • Turn the vehicle to the ON mode, and check that the SRS indicator comes on for about 6 seconds and then goes off.
13. M.-

    Key Information

    Do the following before starting your work.

    Remove:

    • Headliner

    Sub-Procedure

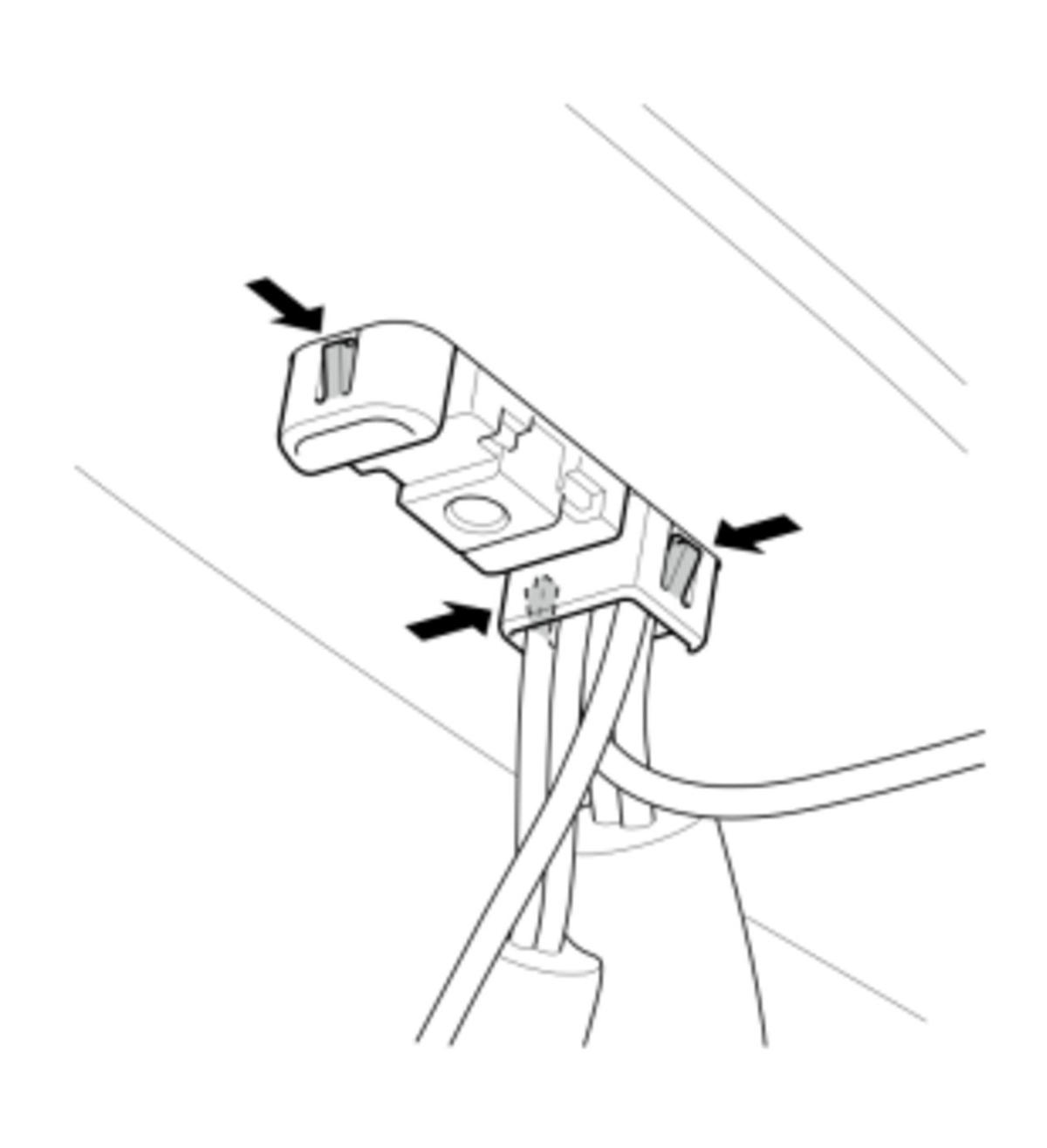

    Courtesy of HONDA, U.S.A., INC.

    Removal

    • Refer to the figure.

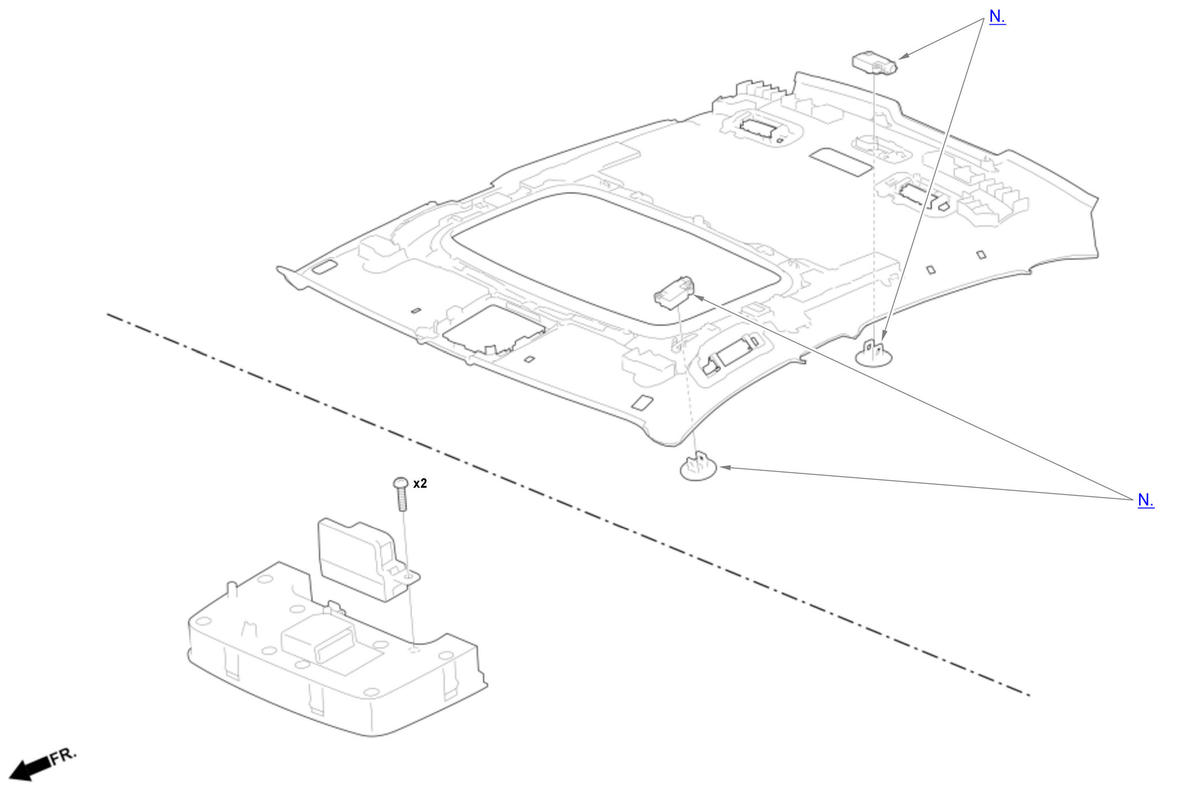

14. N.-

    Courtesy of HONDA, U.S.A., INC.
