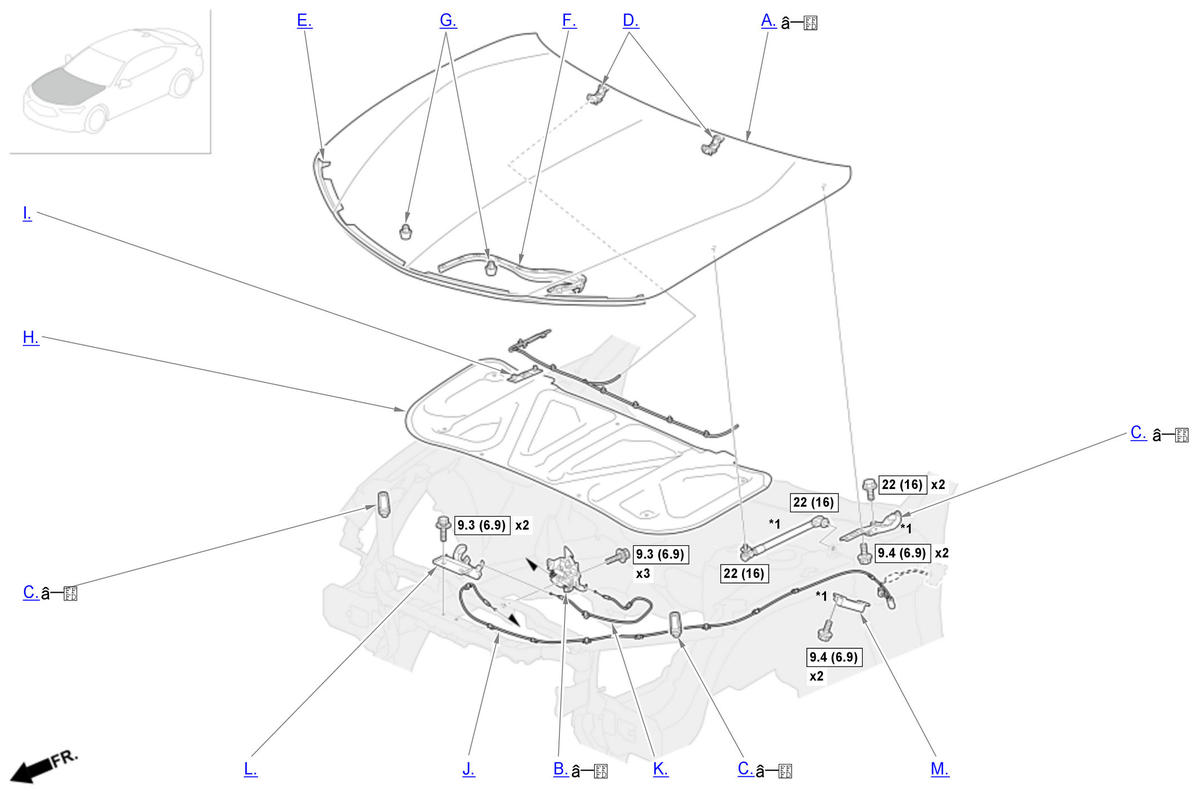

Repair Procedure

How to use this manual .

Courtesy of HONDA, U.S.A., INC.

: Torque, N.m (lbf.ft)

: Replace

: Warning/Caution

: Inspection/Adjustment

*: Learning

■: SPL Tool

: Required Removal

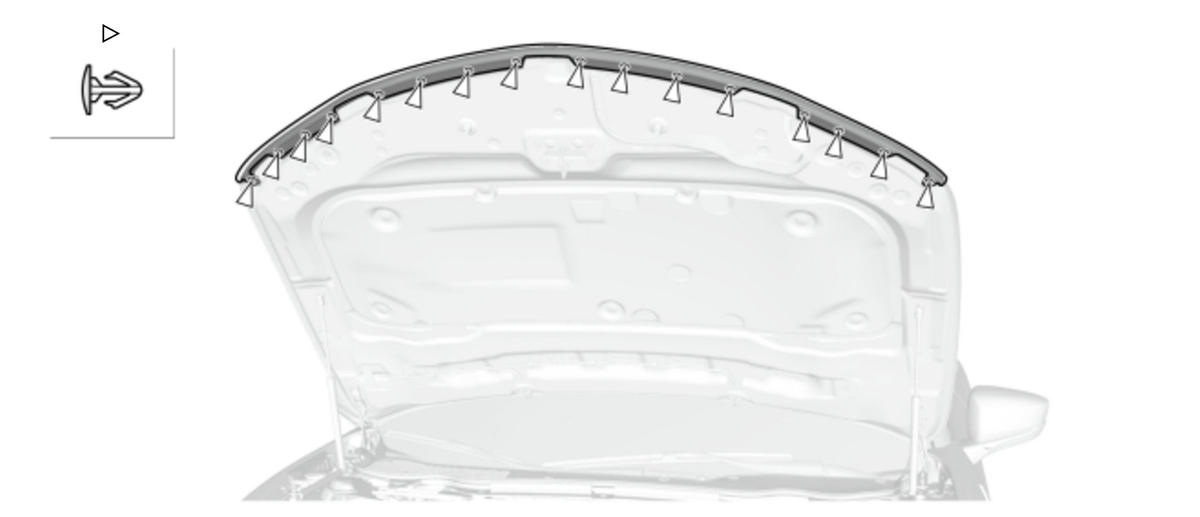

1. A.-

   After Installation

   • Hood Adjustment

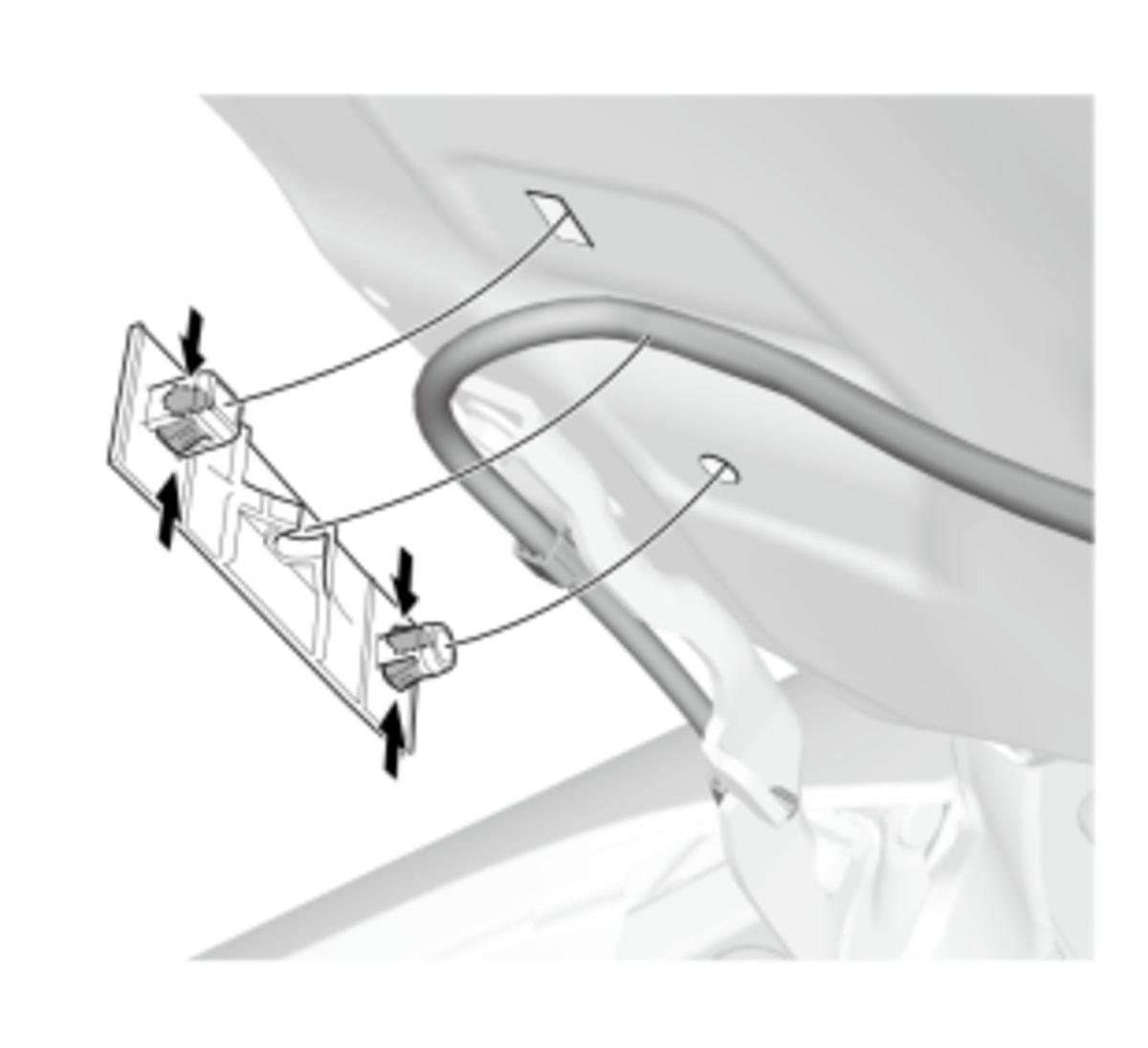

2. B.-

   Sub-Procedure

   Courtesy of HONDA, U.S.A., INC.

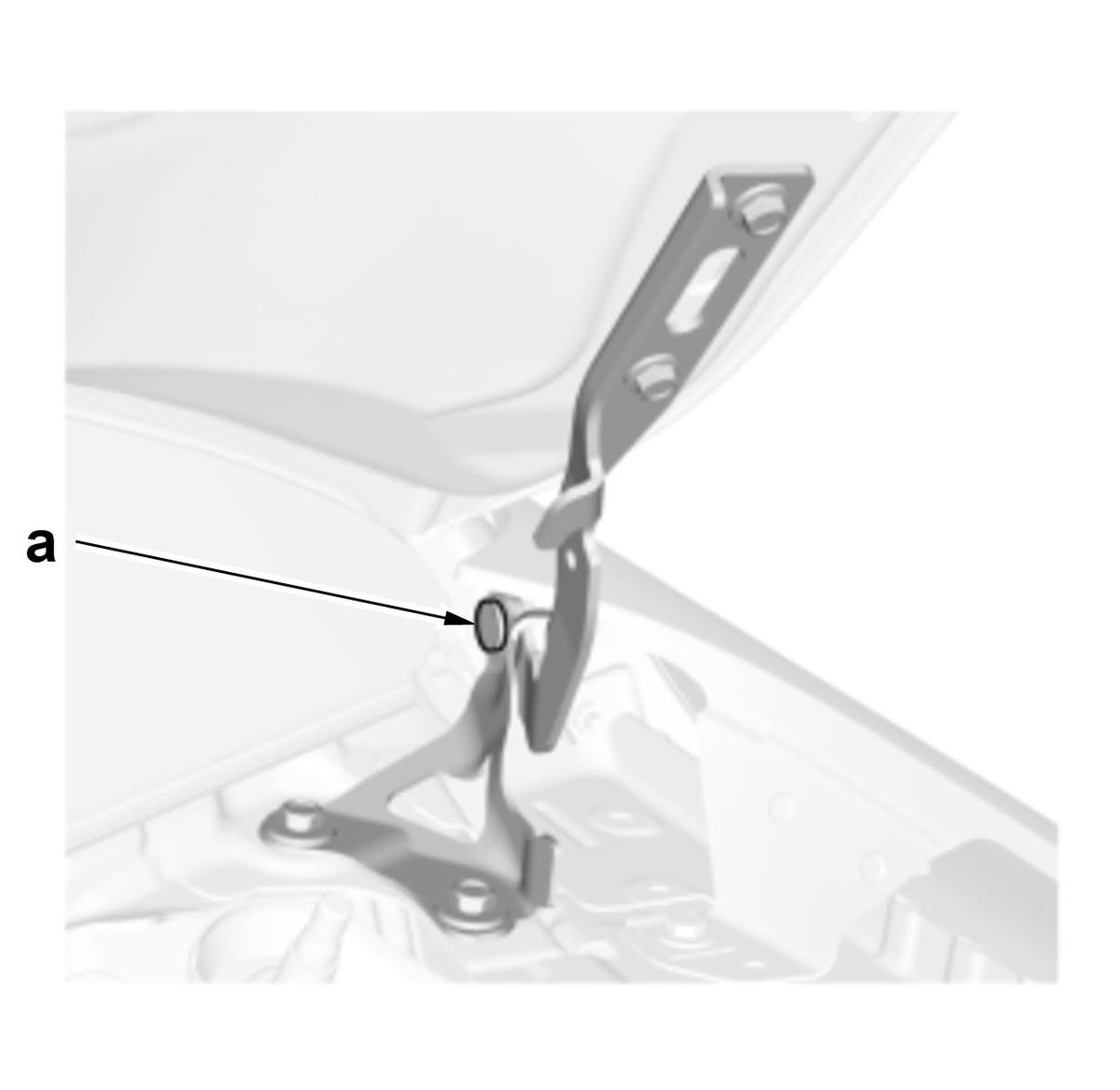

   Installation

   • Refer to the figure.

   Lubricant Specifications

   Position	Type
   a	Multipurpose Grease

   After Installation

   • Hood Adjustment
3. C.-

   Sub-Procedure

   Courtesy of HONDA, U.S.A., INC.

   Installation

   • Refer to the figure.

   Lubricant Specifications

   Position	Type
   a	Multipurpose Grease

   After Installation

   • Hood Adjustment
4. D.-

   Sub-Procedure

   Courtesy of HONDA, U.S.A., INC.

   Removal

   • Refer to the figure.

   After Installation

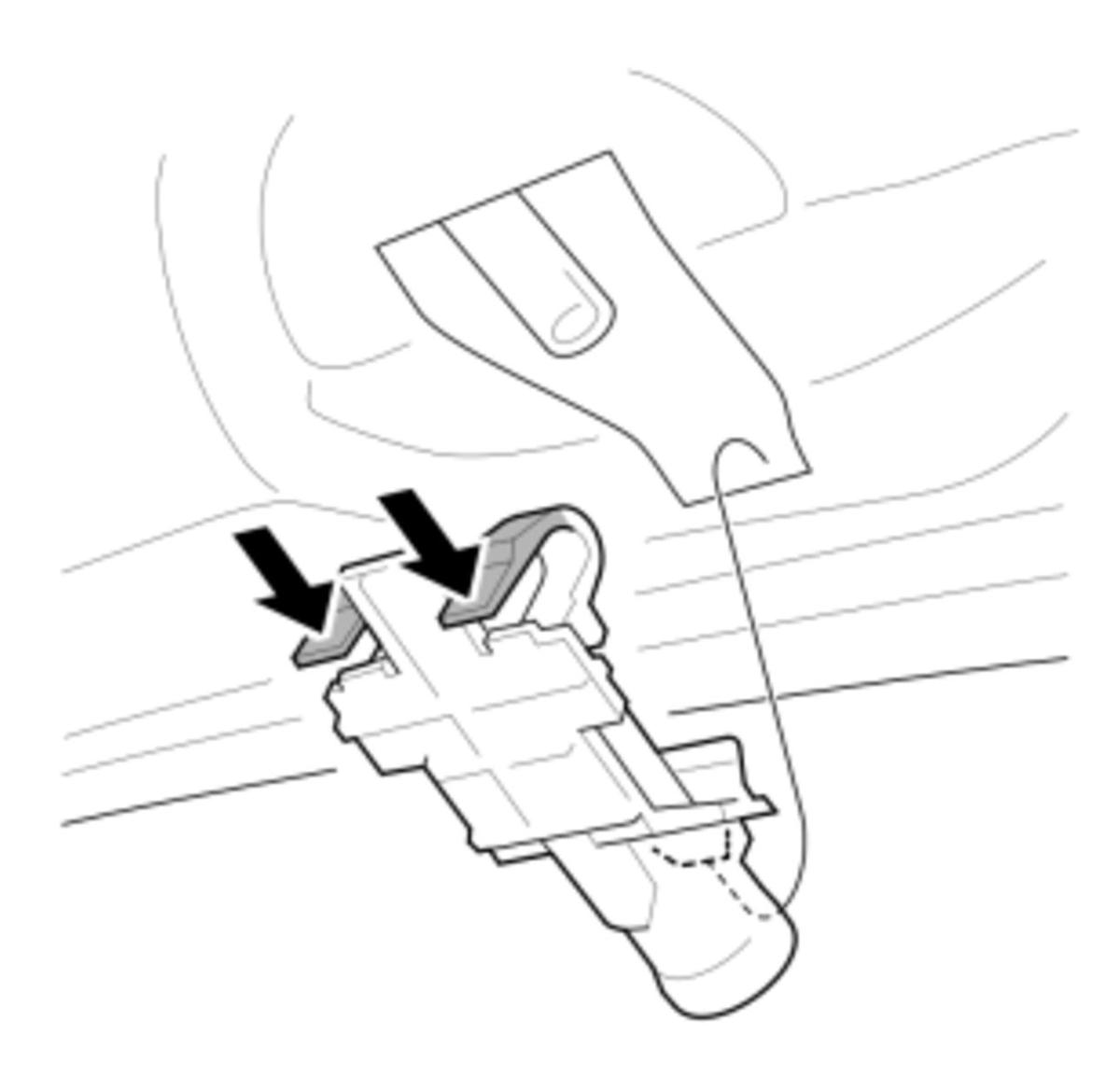

   • Windshield Washer Nozzle Adjustment
5. E.-

   Courtesy of HONDA, U.S.A., INC.

6. F.-

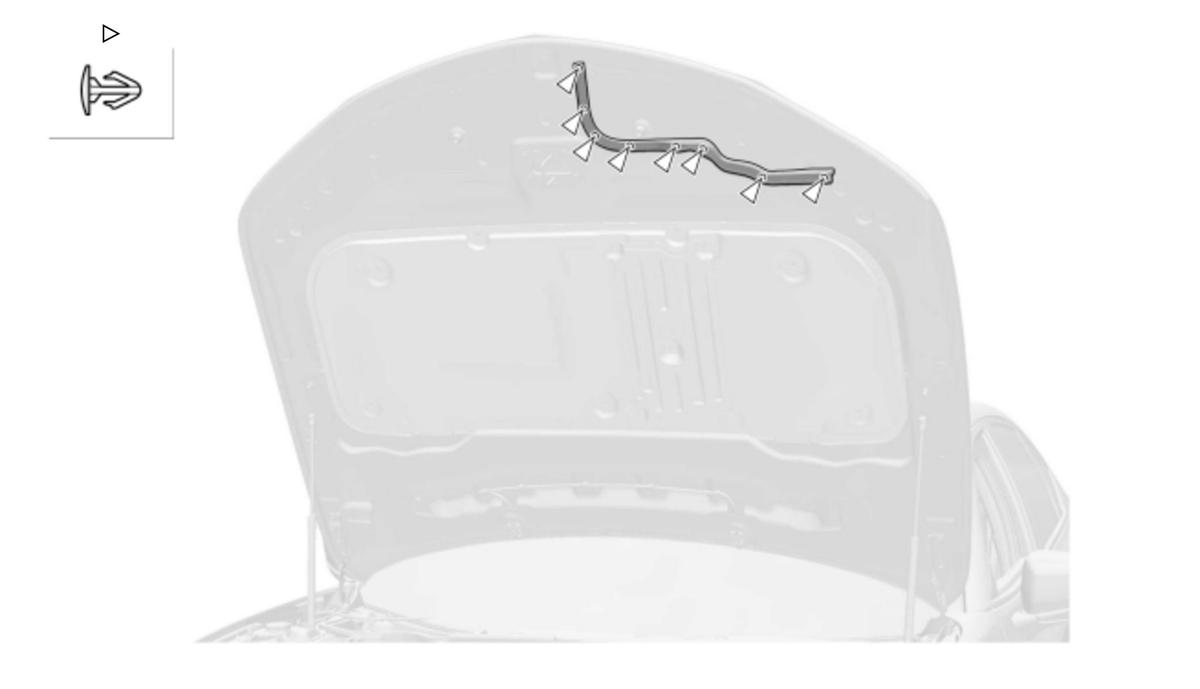

   Figure 1 (Type A)

   Courtesy of HONDA, U.S.A., INC.

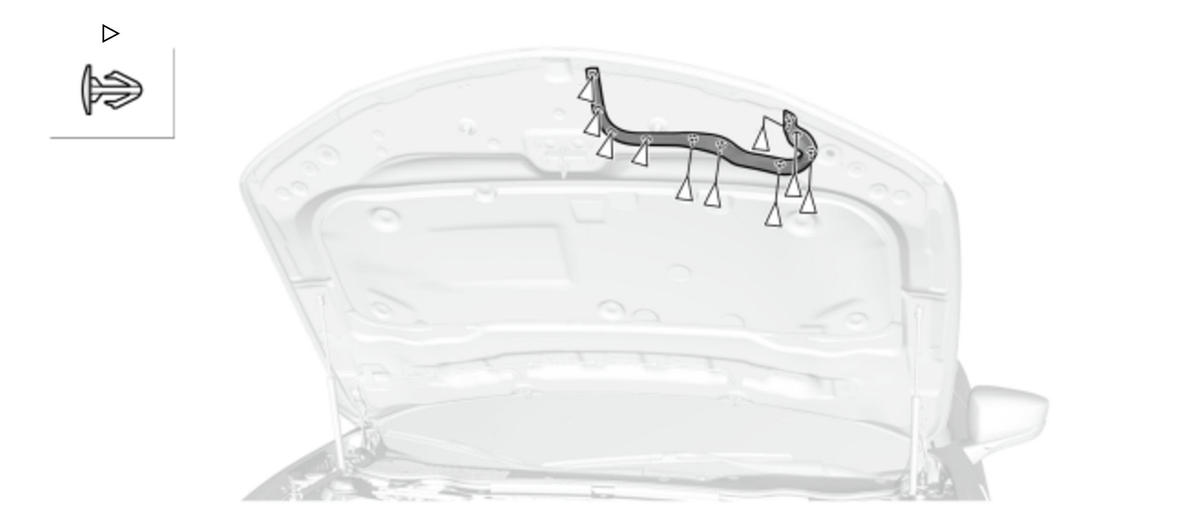

   Figure 2 (Type B)

   Courtesy of HONDA, U.S.A., INC.

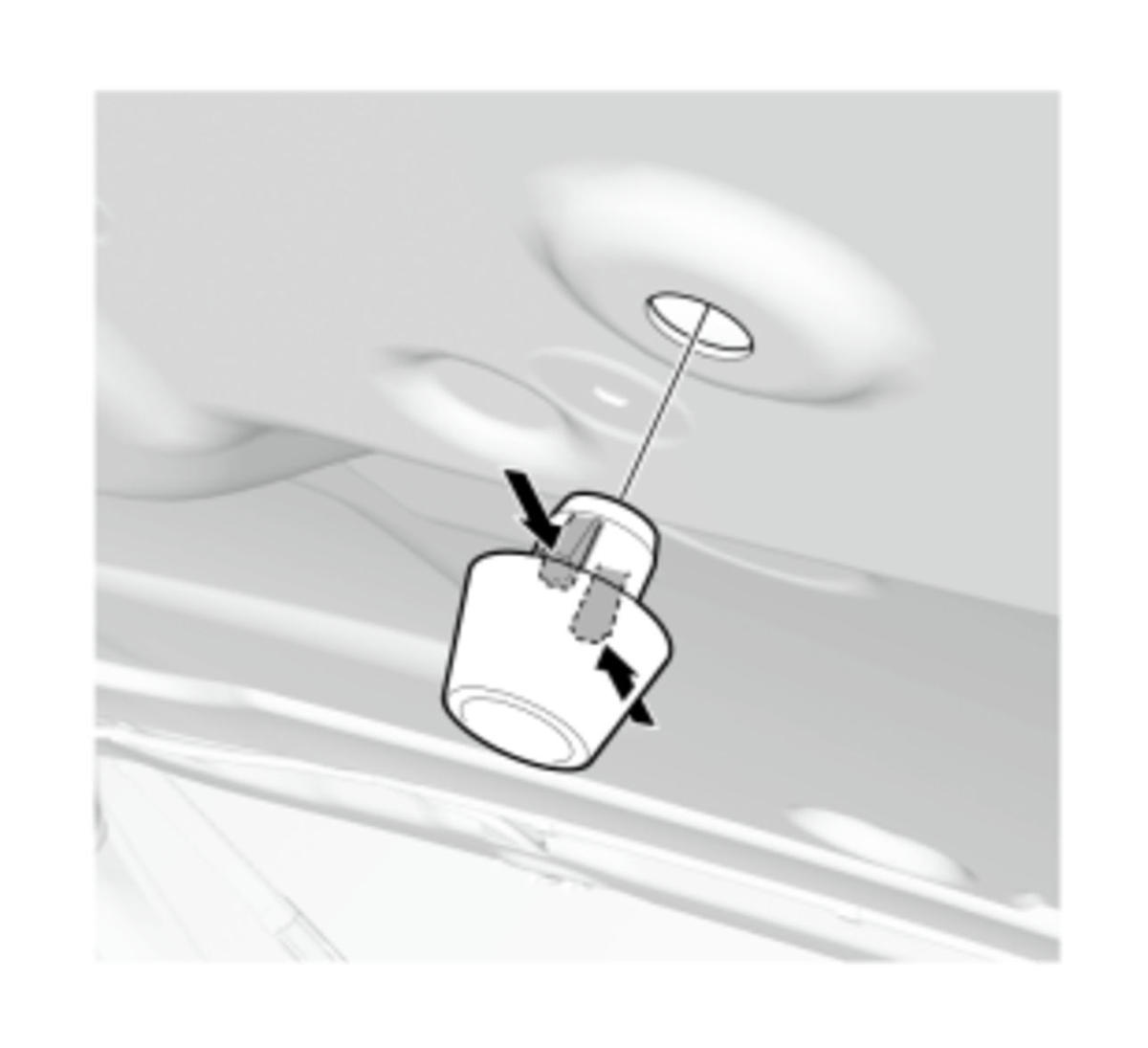

7. G.-

   Sub-Procedure

   Courtesy of HONDA, U.S.A., INC.

   Removal

   • Refer to the figure.

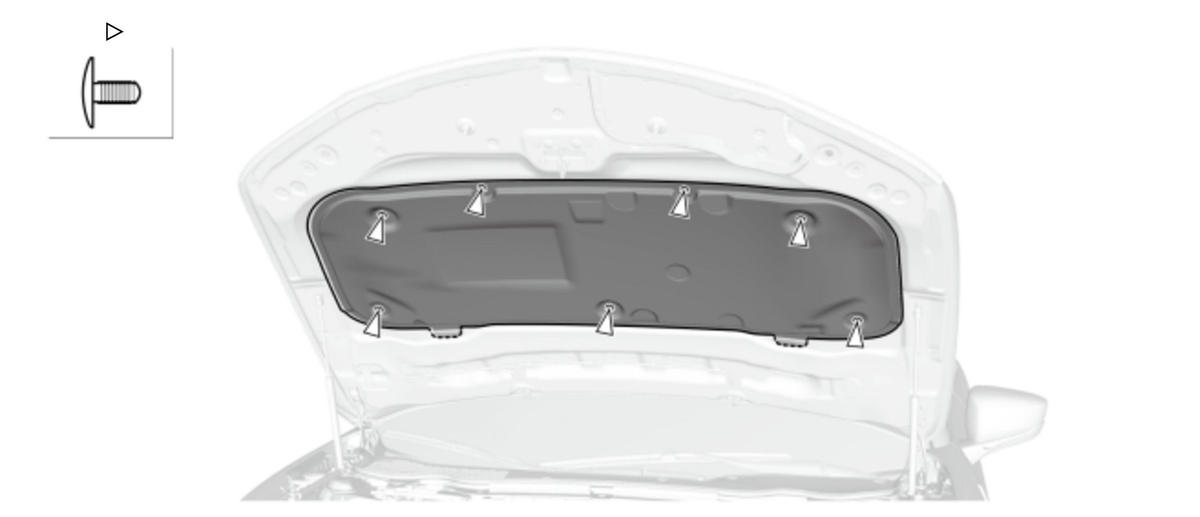

8. H.-

   Courtesy of HONDA, U.S.A., INC.

9. I.-

   Sub-Procedure

   Courtesy of HONDA, U.S.A., INC.

   Removal

   • Refer to the figure.

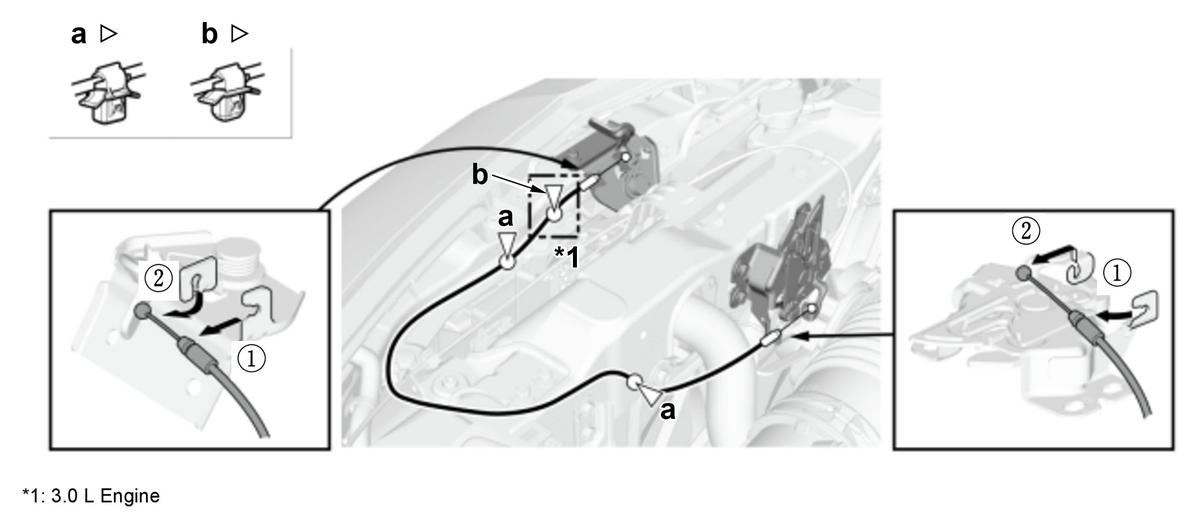

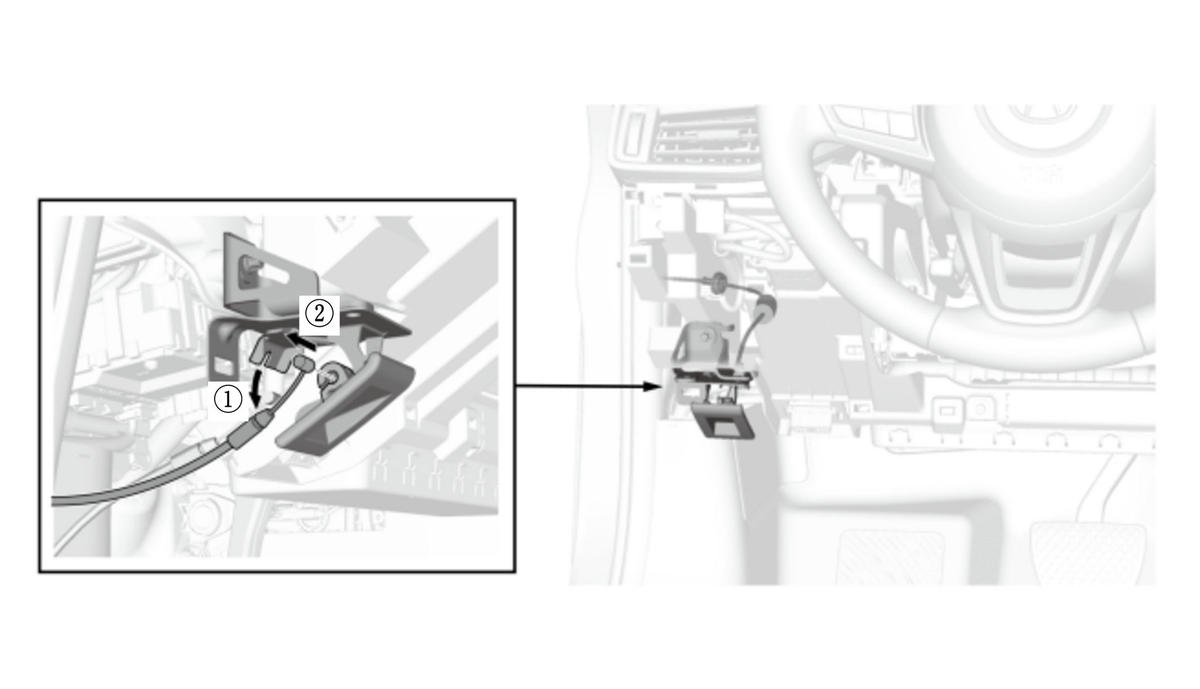

10. J.-

    Sub-Procedure

    Removal

    1. Refer to the figure. (Figure 1, 2, and 3)

    Figure 1

    Courtesy of HONDA, U.S.A., INC.

    Figure 2

    Courtesy of HONDA, U.S.A., INC.

    Figure 3

    Courtesy of HONDA, U.S.A., INC.

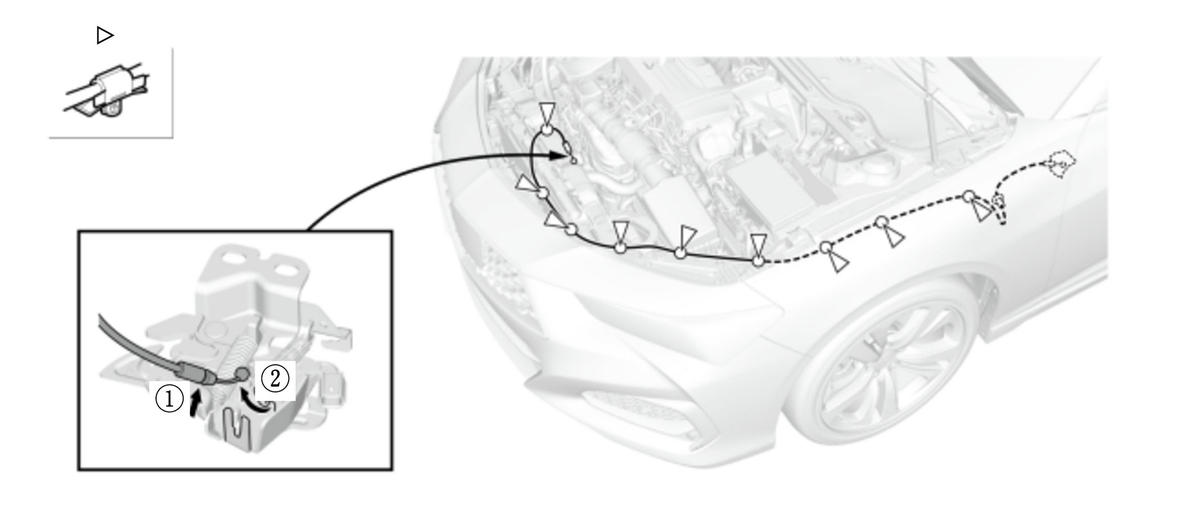

11. K.-

    Key Information

    Do the following before starting your work.

    Remove:

    • Front Grille Cover

    Sub-Procedure

    Removal

    • Refer to the figure.

    Courtesy of HONDA, U.S.A., INC.

12. L.-

    Sub-Procedure

    Courtesy of HONDA, U.S.A., INC.

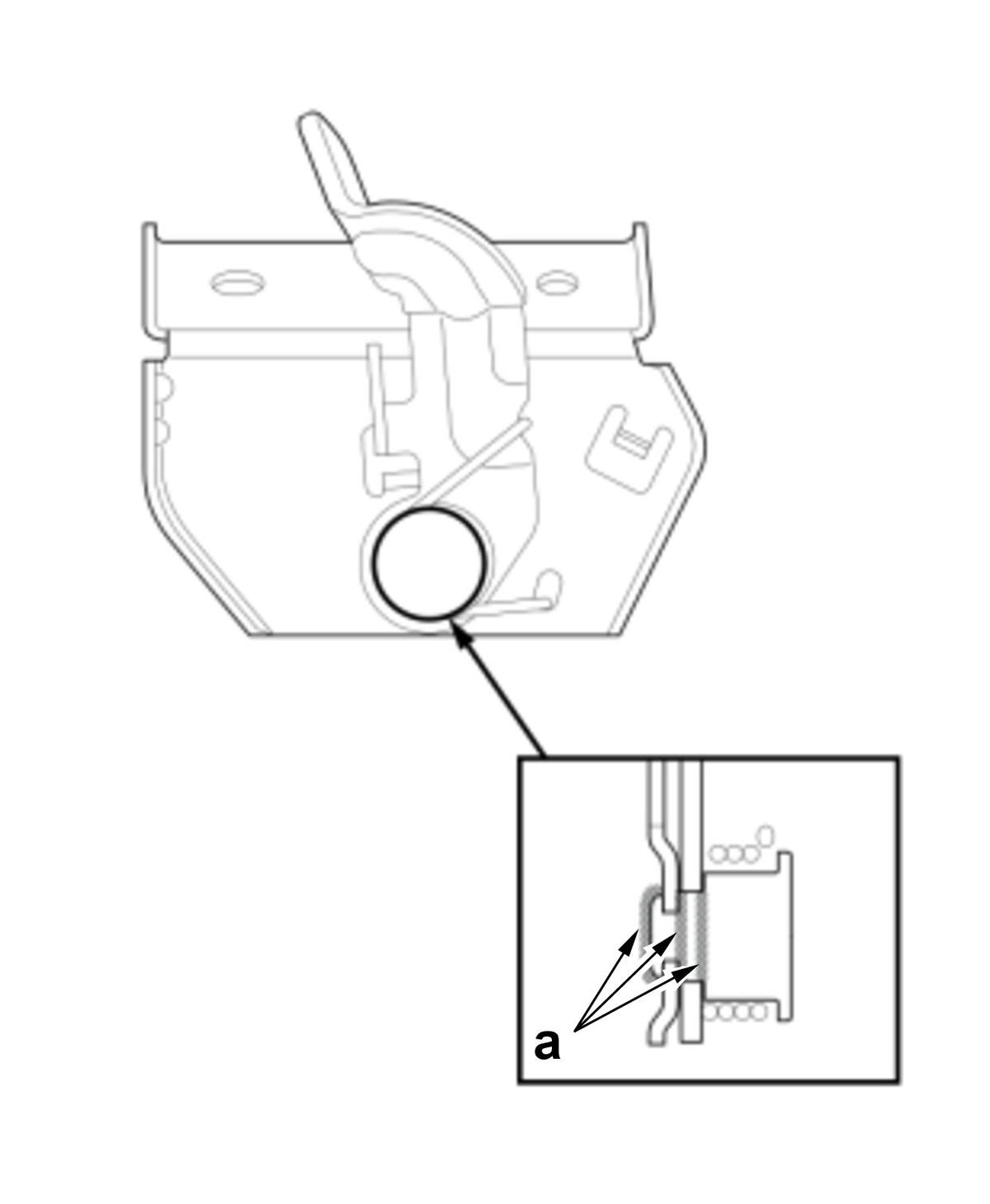

    Installation

    • Refer to the figure.

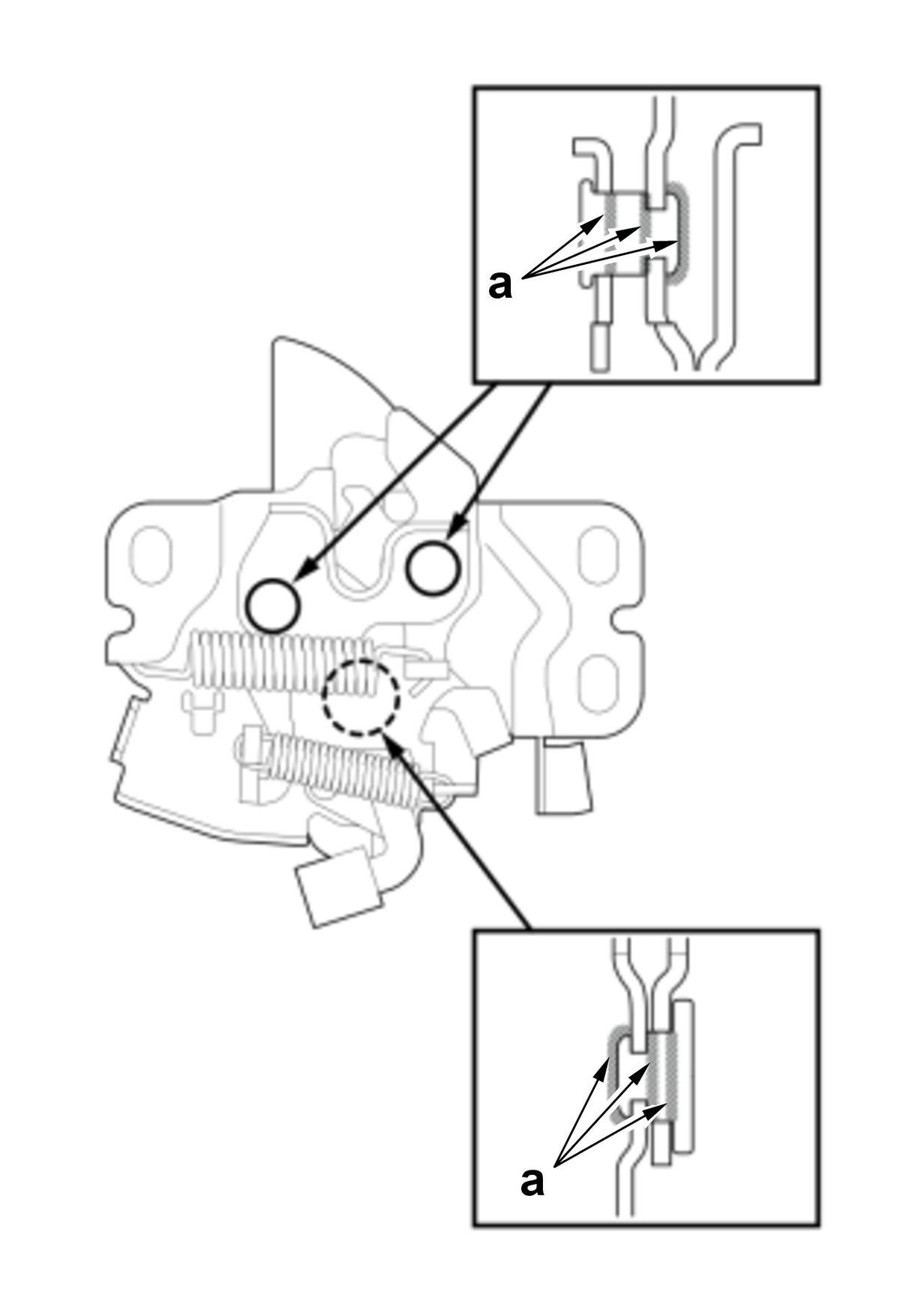

    Lubricant Specifications

    Position	Type
    a	Multipurpose Grease

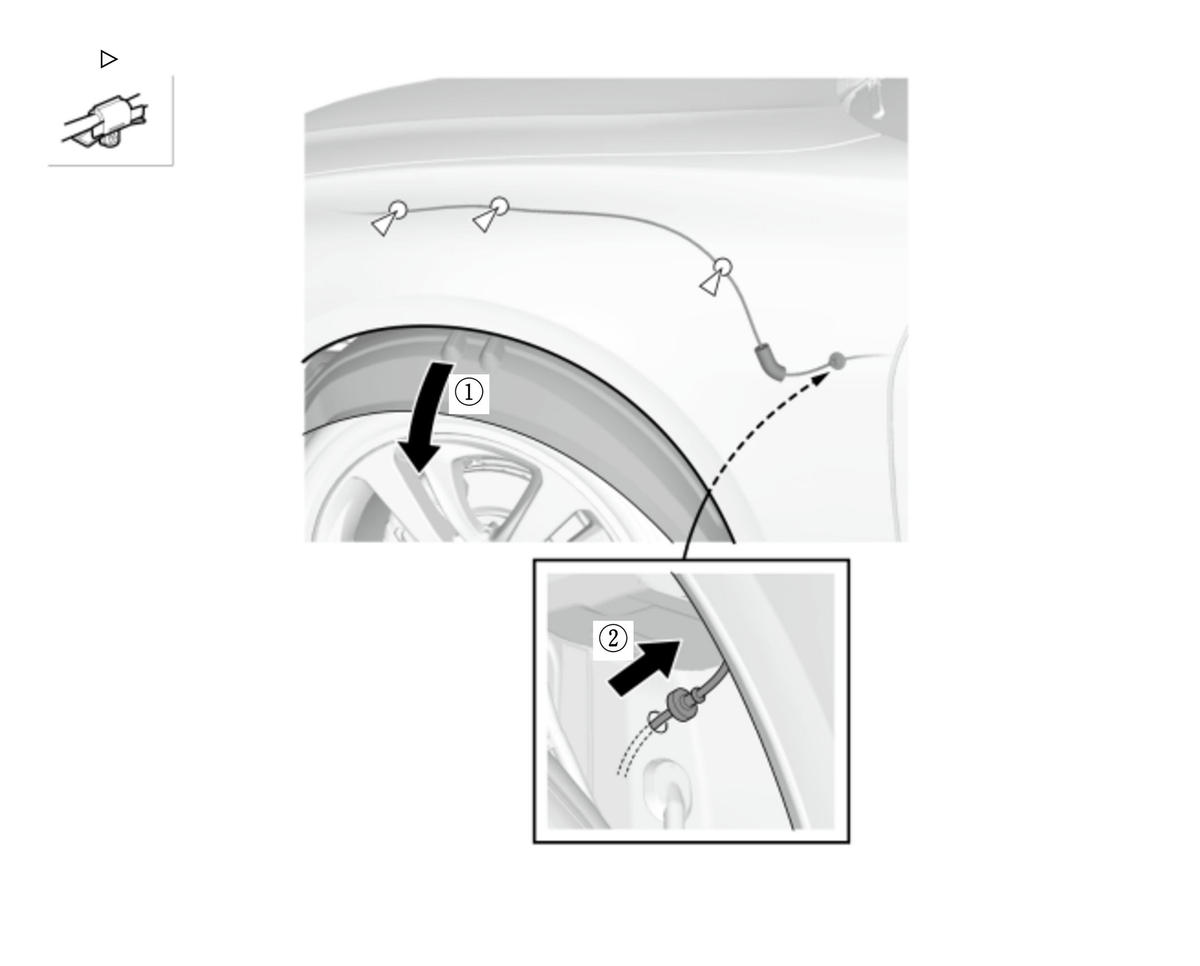

13. M.-

    Key Information

    Do the following before starting your work.

    Remove:

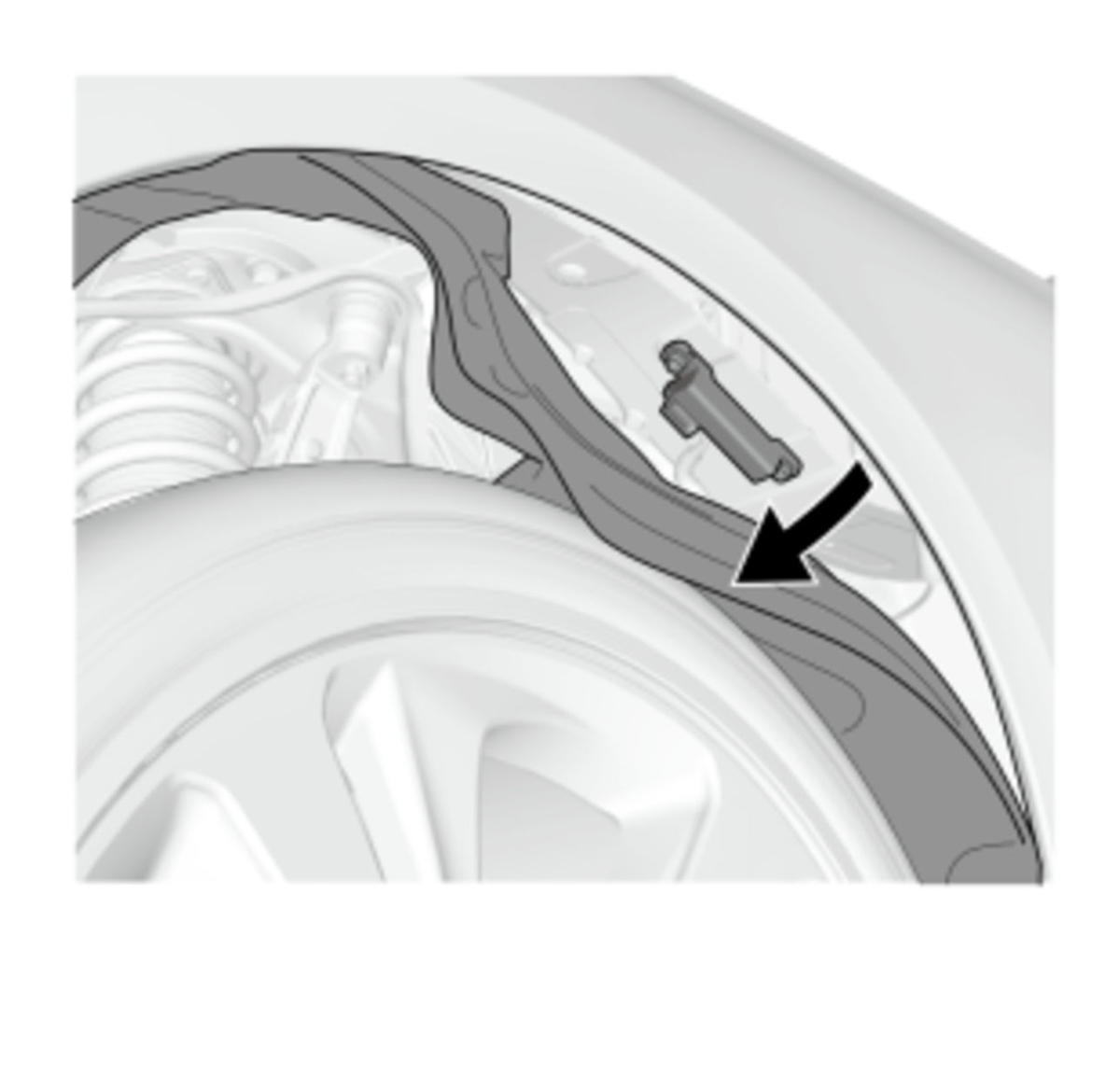

    • Front Inner Fender (as needed)

    Sub-Procedure

    Courtesy of HONDA, U.S.A., INC.

    Removal

    • Refer to the figure.
