Repair Procedure

How to use this manual .

Courtesy of HONDA, U.S.A., INC.

: Torque, N.m (lbf.ft)

: Replace

: Warning/Caution

: Inspection/Adjustment

*: Learning

■: SPL Tool

: Required Removal

Courtesy of HONDA, U.S.A., INC.

: Torque, N.m (lbf.ft)

: Replace

: Warning/Caution

: Inspection/Adjustment

*: Learning

■: SPL Tool

: Required Removal

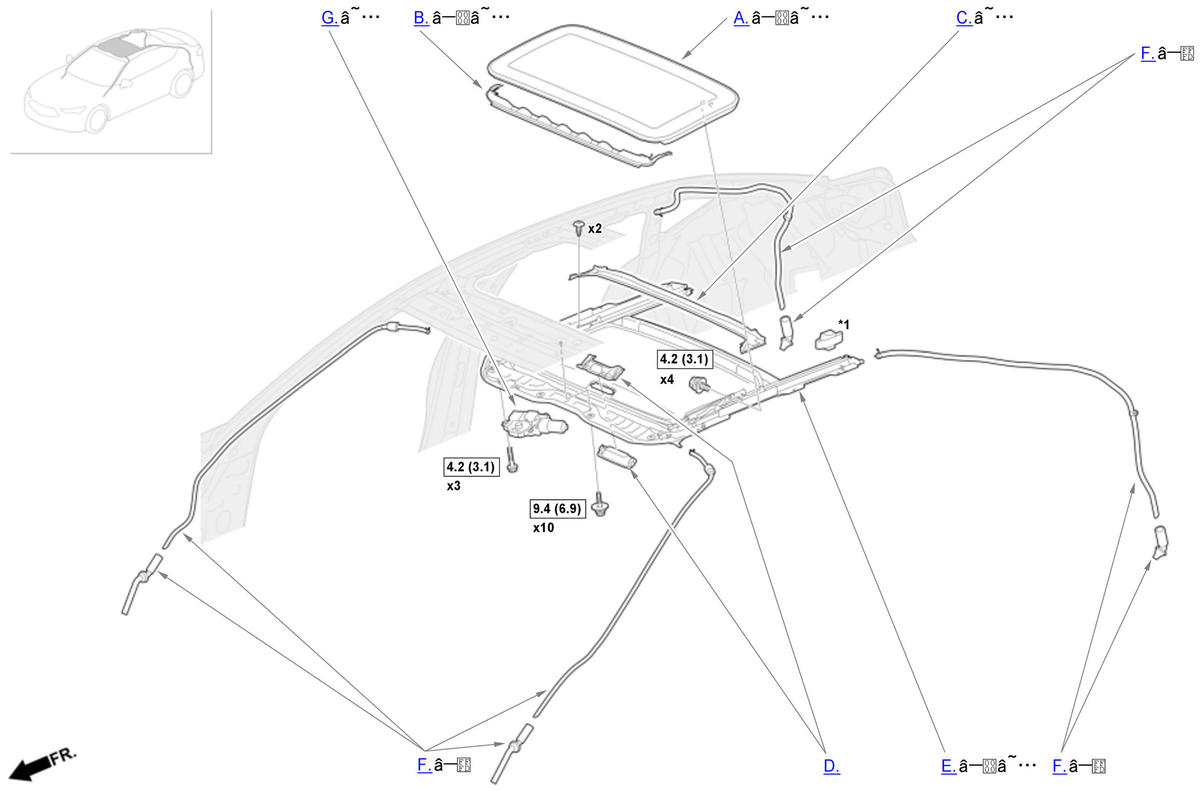

1. A.-

   After Installation

   • Moonroof Glass Position Adjustment
   • Moonroof Motor-Control Unit Reset
   • Water Leaks Check
2. B.-

   Sub-Procedure

   Courtesy of HONDA, U.S.A., INC.

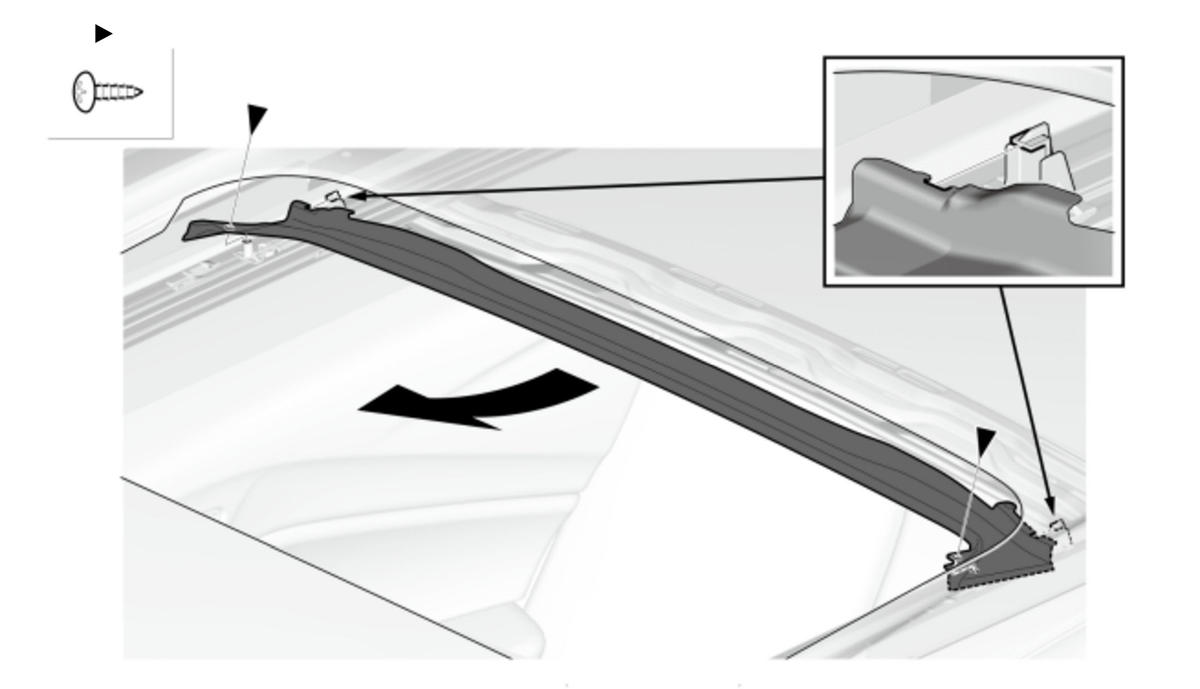

   Removal

   • Refer to the figure.

   After Installation

   • Moonroof Motor-Control Unit Reset
3. C.-

   Sub-Procedure

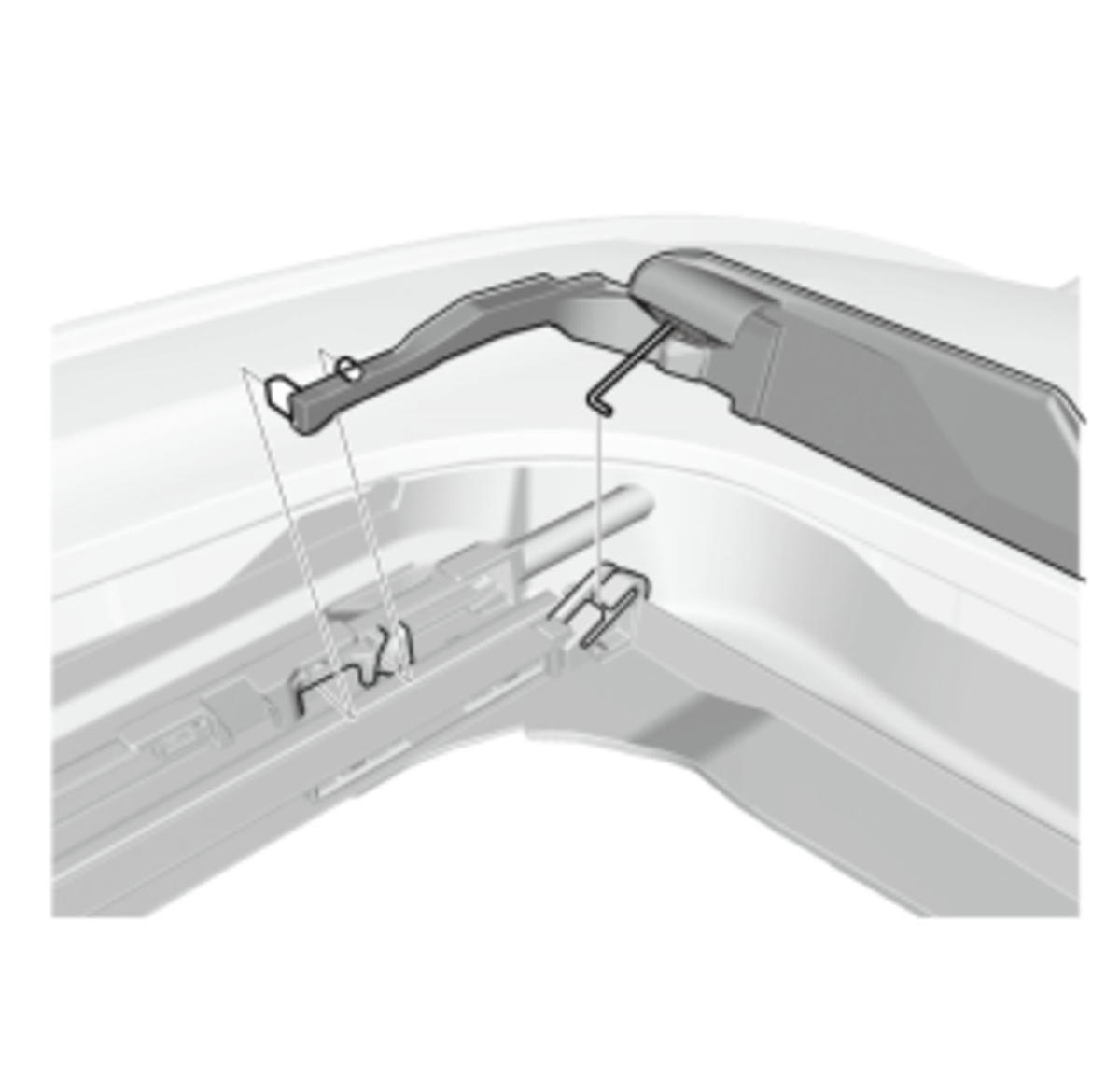

   Removal

   • Refer to the figure.

   Courtesy of HONDA, U.S.A., INC.

   After Installation

   • Moonroof Motor-Control Unit Reset
4. D.-

   Sub-Procedure

   Courtesy of HONDA, U.S.A., INC.

   Removal

   • Refer to the figure.
5. E.-

   Key Information

   Do the following before starting your work.

   Remove:

   • Headliner

   Sub-Procedure

   Removal

   • Refer to the figure.

   Courtesy of HONDA, U.S.A., INC.

   After Installation

   • Moonroof Motor-Control Unit Reset
6. F.-

   Key Information

   Do the following before starting your work.

   Remove:

   • Headliner
   • Under-Dash Fuse/Relay Box (When removing front left side area parts.)
   • Power Distribution Module (When removing front left side area parts.)
   • Passenger's Dashboard Undercover (When removing front right side area parts.)
   • Trunk Rear Side Trim Panel (When removing rear side area parts.)
   • Rear Fuse/Relay Box (When removing left rear side area parts.)

   Sub-Procedure

   Removal

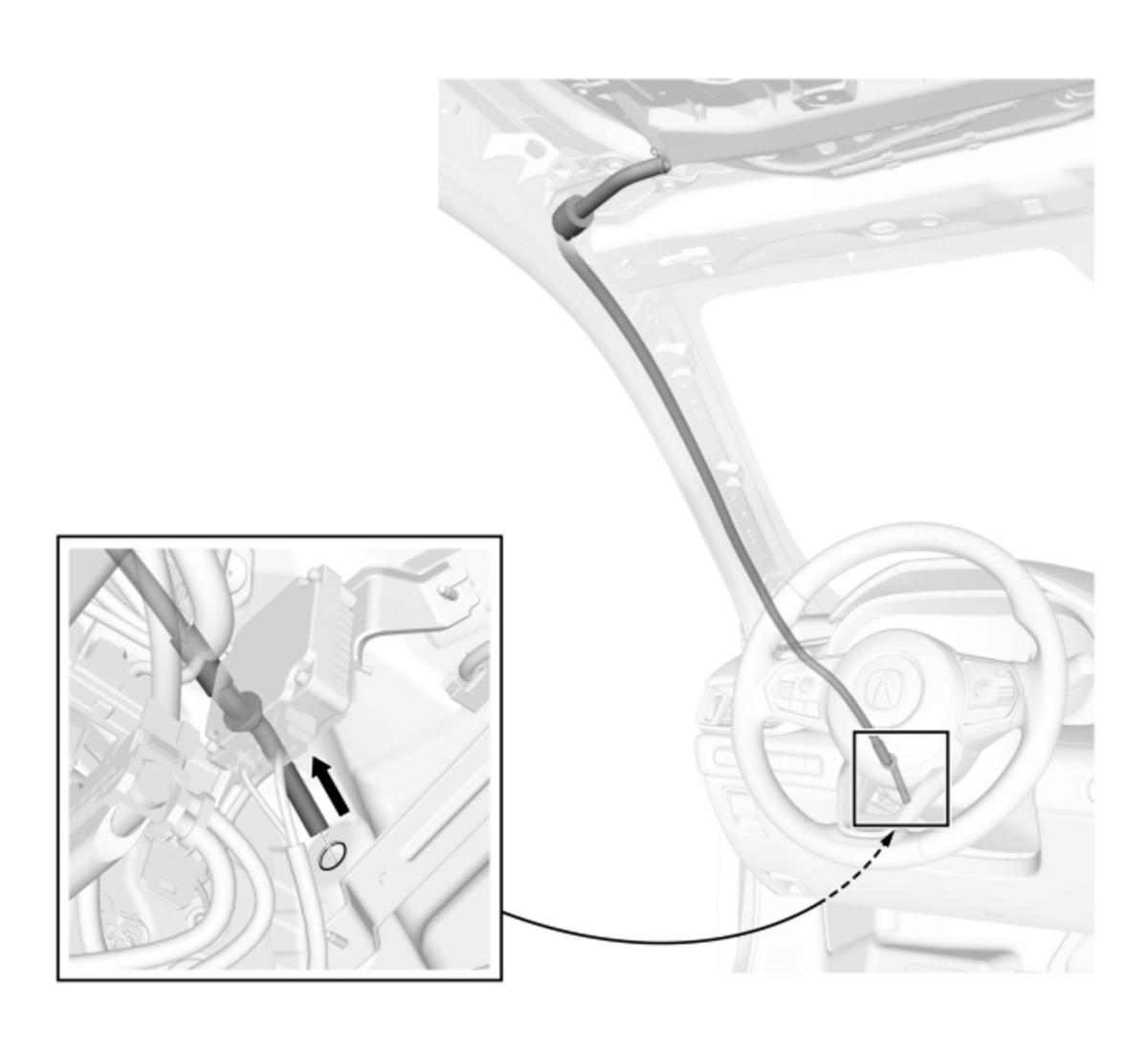

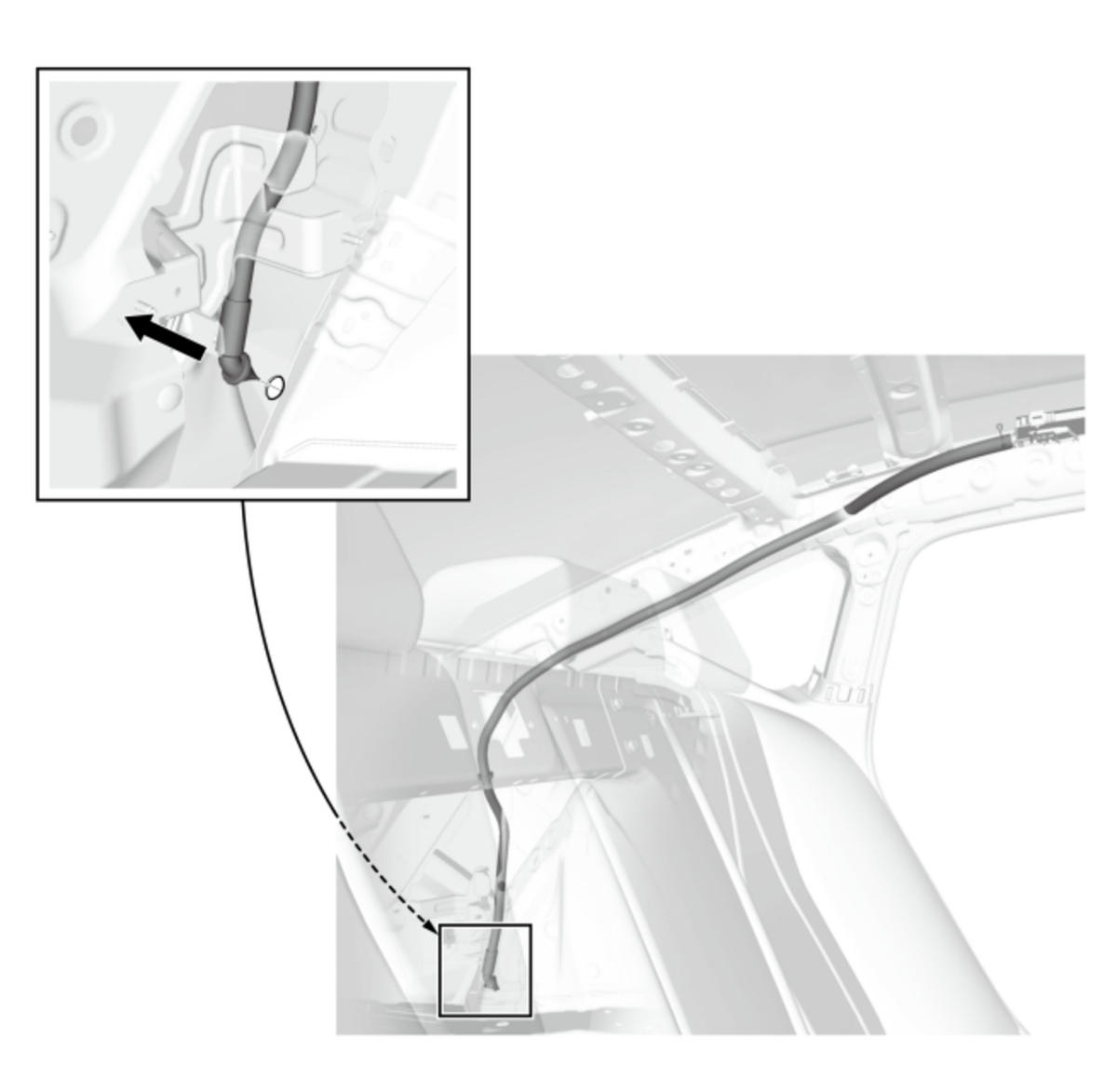

   • Refer to the figure 1 and 2.

   Figure 1 (Front)

   Courtesy of HONDA, U.S.A., INC.

   Figure 2 (Rear)

   Courtesy of HONDA, U.S.A., INC.

   Installation

   • Refer to the figure 3.
   NOTE:

   • Before installing the drain tubes, clear the drain tubes and the drain valves using compressed air.
   • When connecting the drain tubes, slide them over the frame nozzles at least 10 mm (0.39 in).

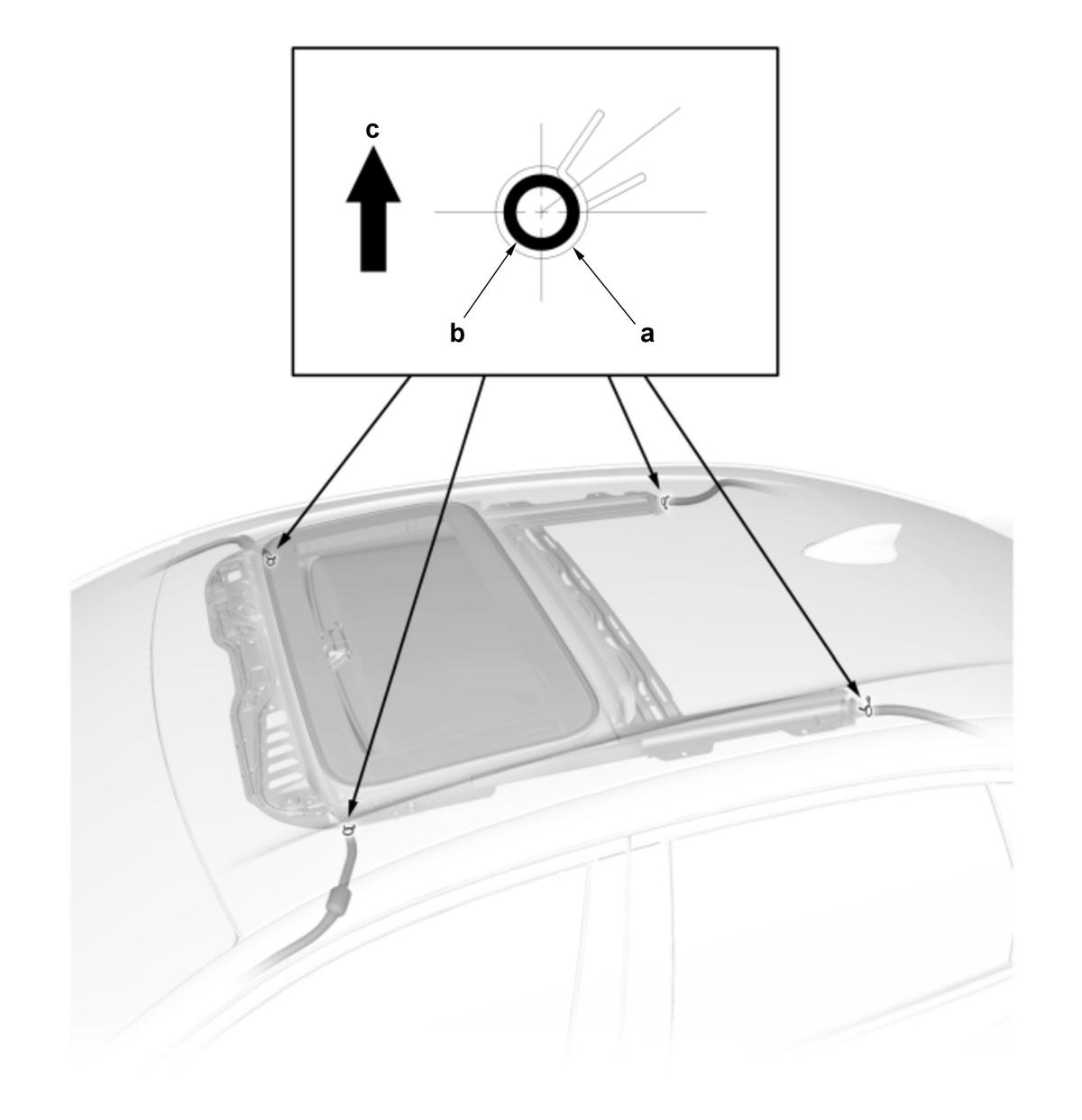

   • Install the tube clips (a) on the drain tubes (b) as shown.

   Installation Directions (Figure 3)

   Position	Direction
   c	Up

   Figure 3

   Courtesy of HONDA, U.S.A., INC.

   After Installation

   • Water Leaks Check

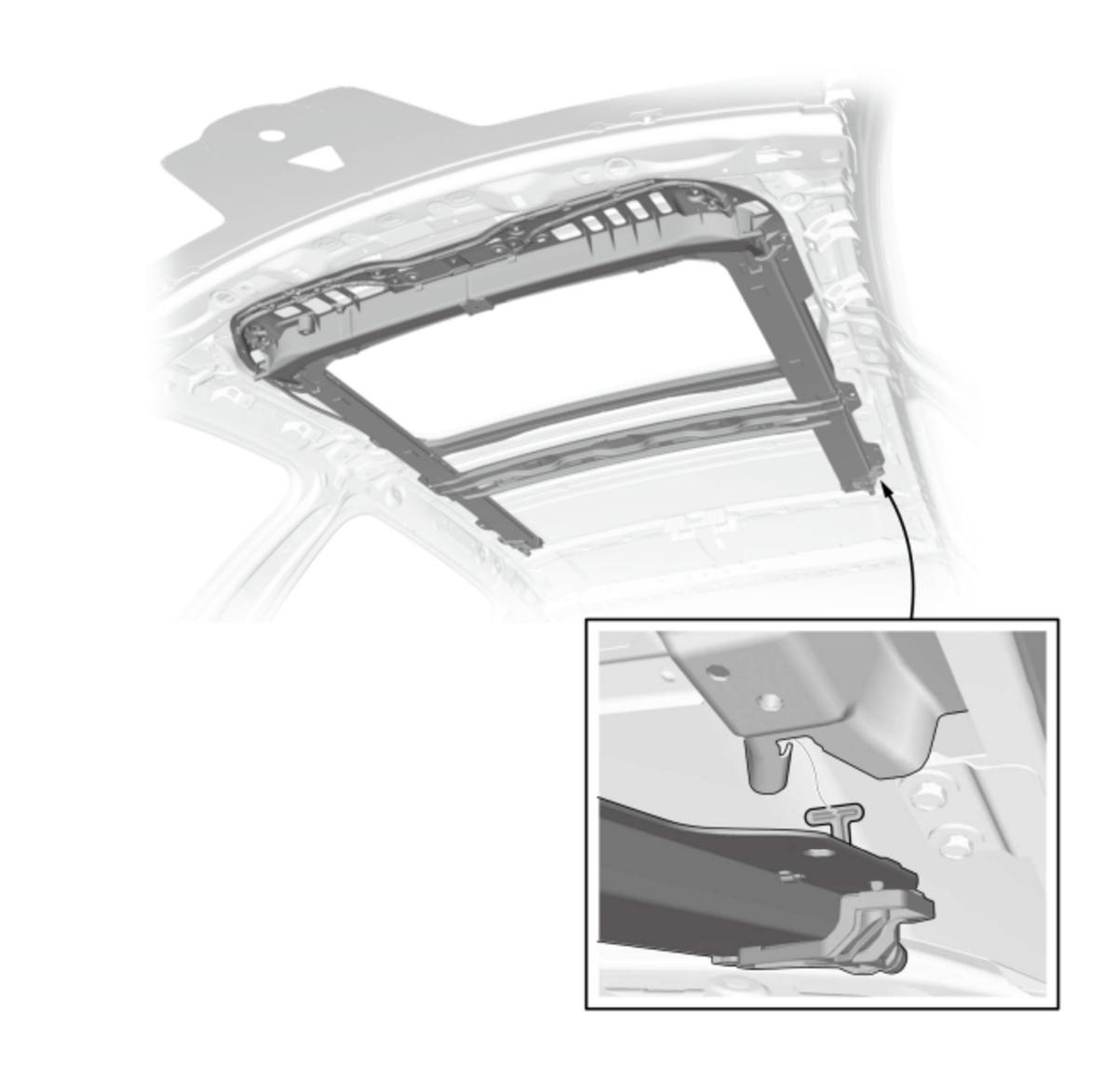

7. G.-

   Key Information

   Do the following before starting your work.

   Remove:

   • Headliner

   After Installation

   • Moonroof Motor-Control Unit Reset

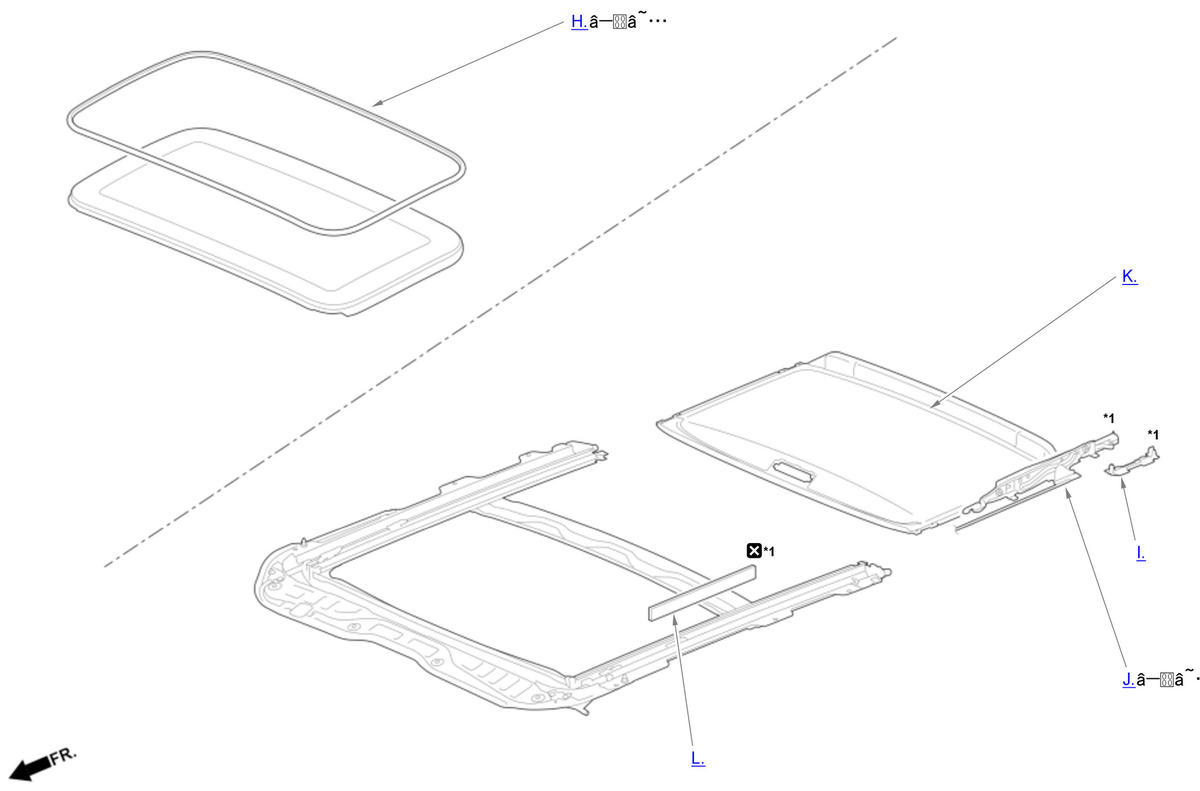

8. H.-

   Sub-Procedure

   Figure 1

   Courtesy of HONDA, U.S.A., INC.

   Removal

   • Refer to the figure 1.
   NOTE:

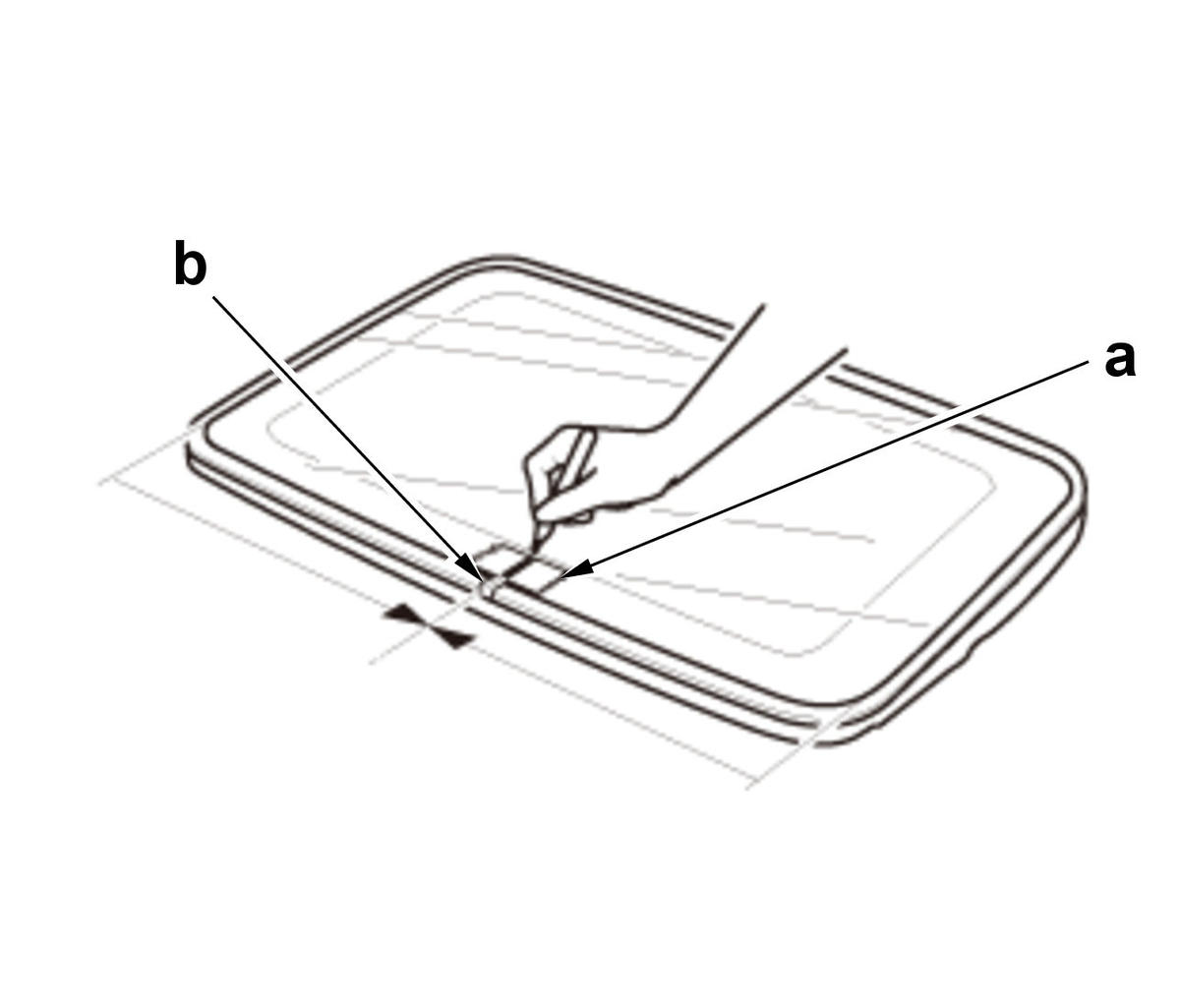

   • Place a mark on the masking tape (a) that aligns with the seam (b) of the glass roof seal.

   Figure 2

   Courtesy of HONDA, U.S.A., INC.

   Installation

   • Refer to the figure 2.
   NOTE:

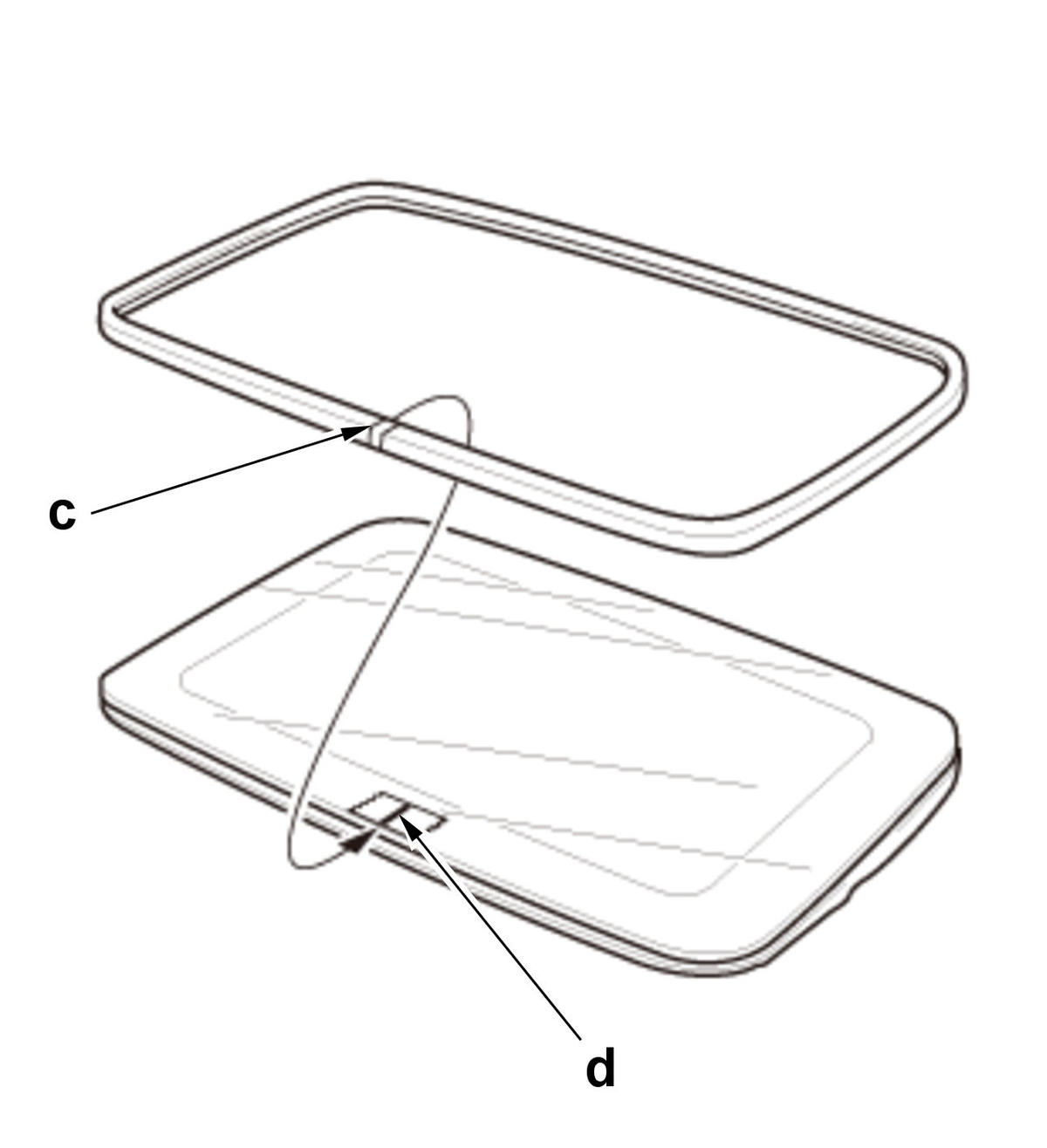

   • Align the seam (c) of the new glass roof seal to the mark (d) on the masking tape.

   After Installation

   • Moonroof Glass Position Adjustment
9. I.-

   Sub-Procedure

   Courtesy of HONDA, U.S.A., INC.

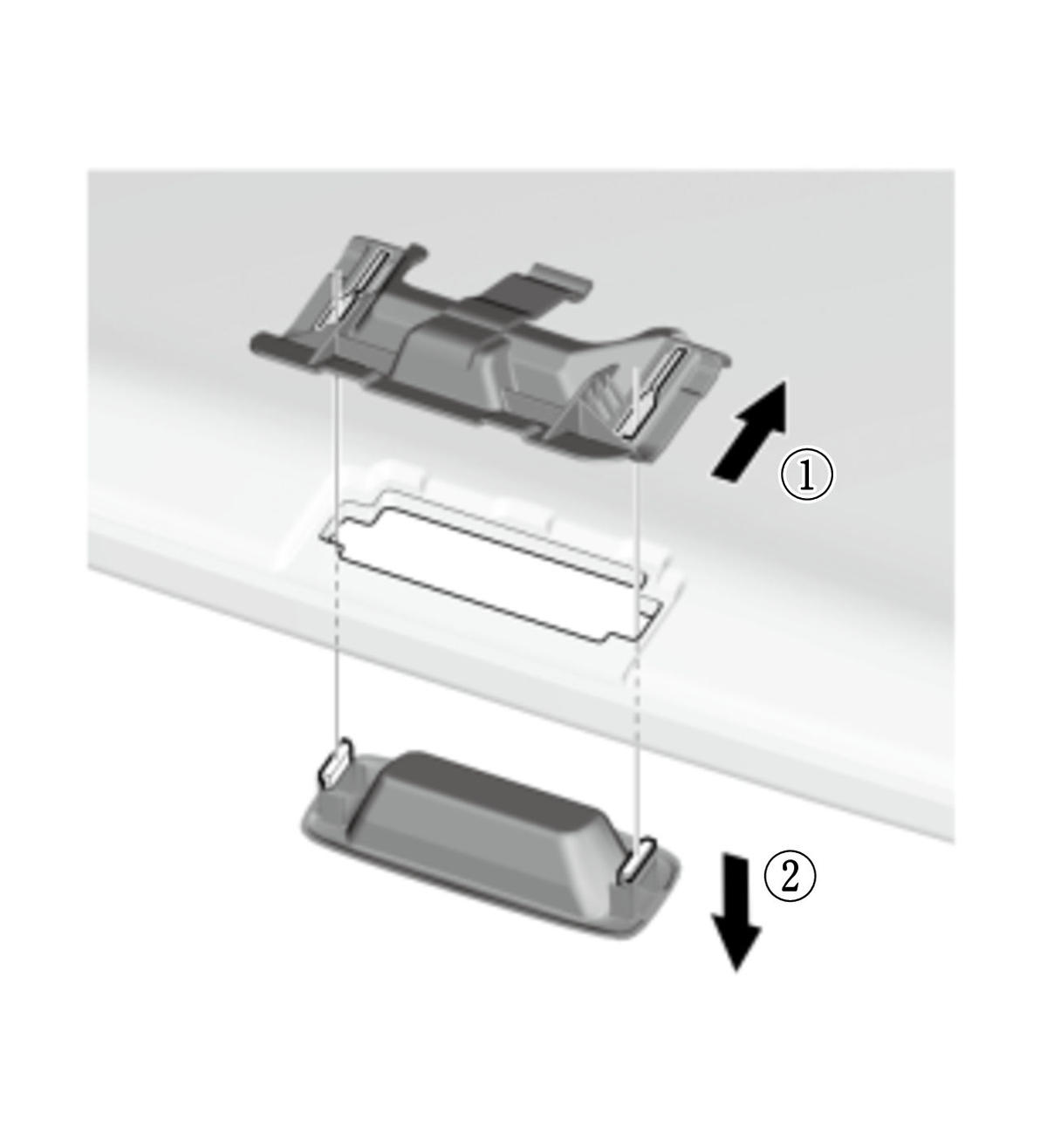

   Removal

   • Refer to the figure.
10. J.-

    Sub-Procedure

    Installation

    • Refer to the figure.

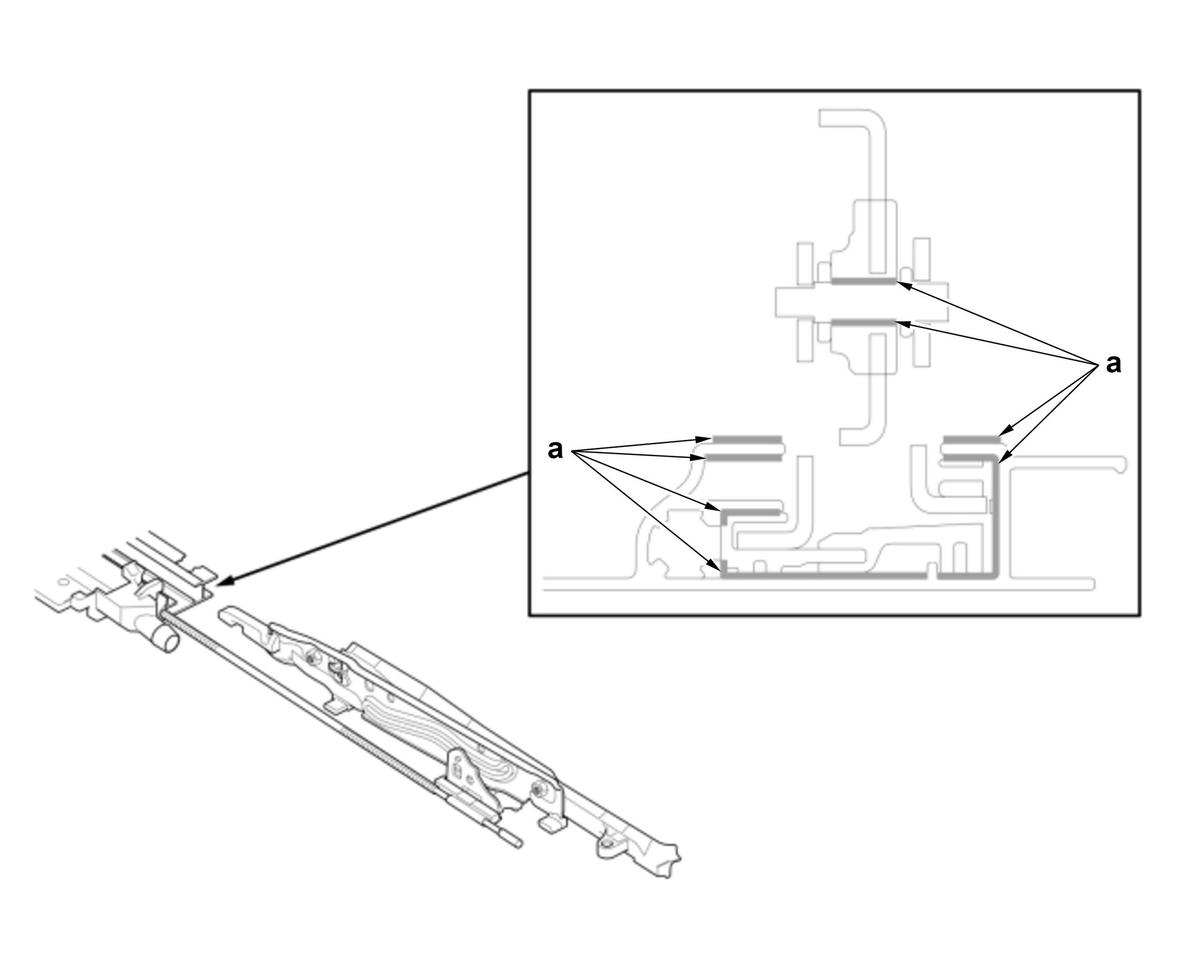

    Lubricant Specifications

    Position	Type
    a	Multipurpose Grease

    Courtesy of HONDA, U.S.A., INC.

    After Installation

    • Moonroof Motor-Control Unit Reset
11. K.-

    Sub-Procedure

    Courtesy of HONDA, U.S.A., INC.

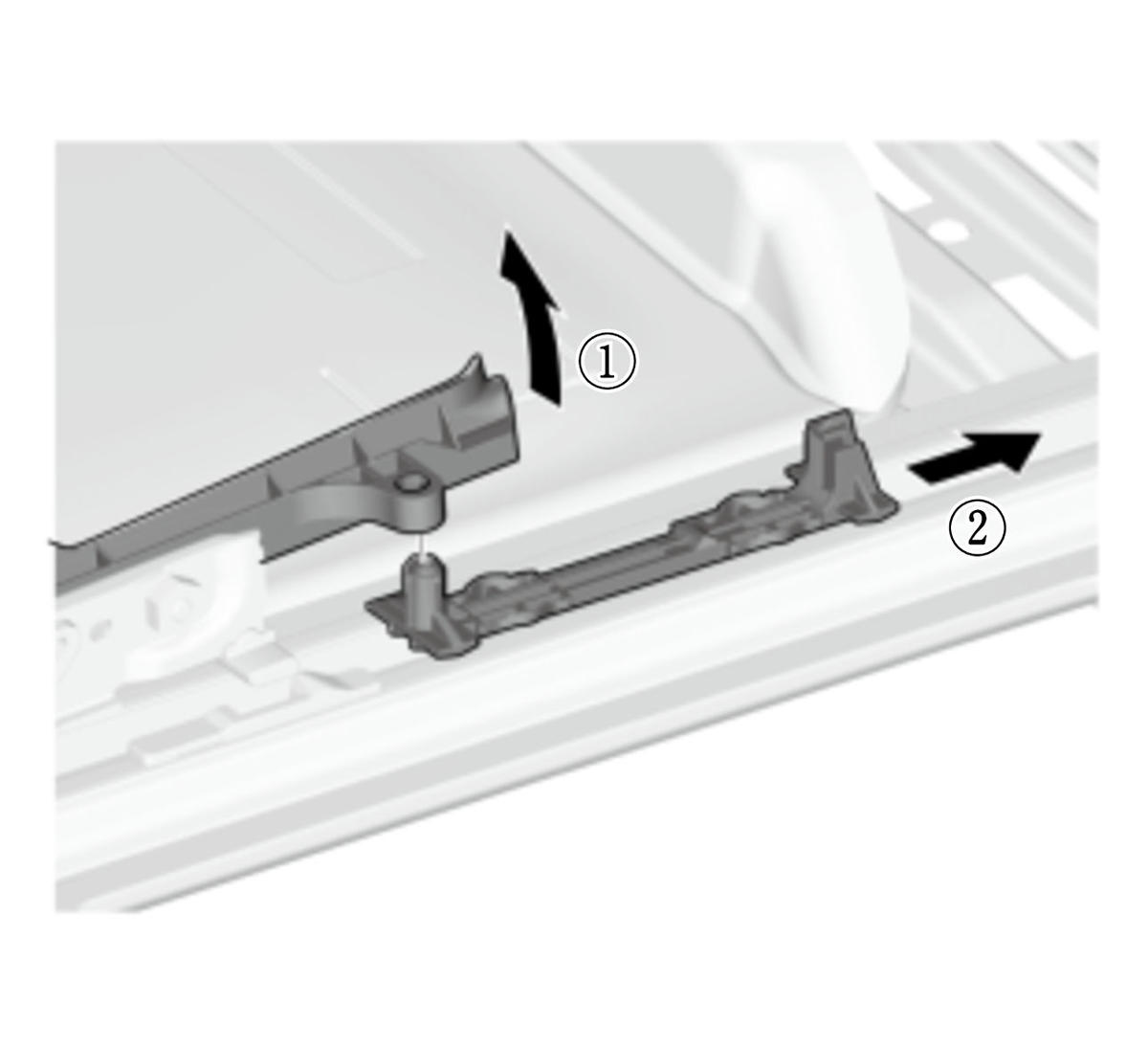

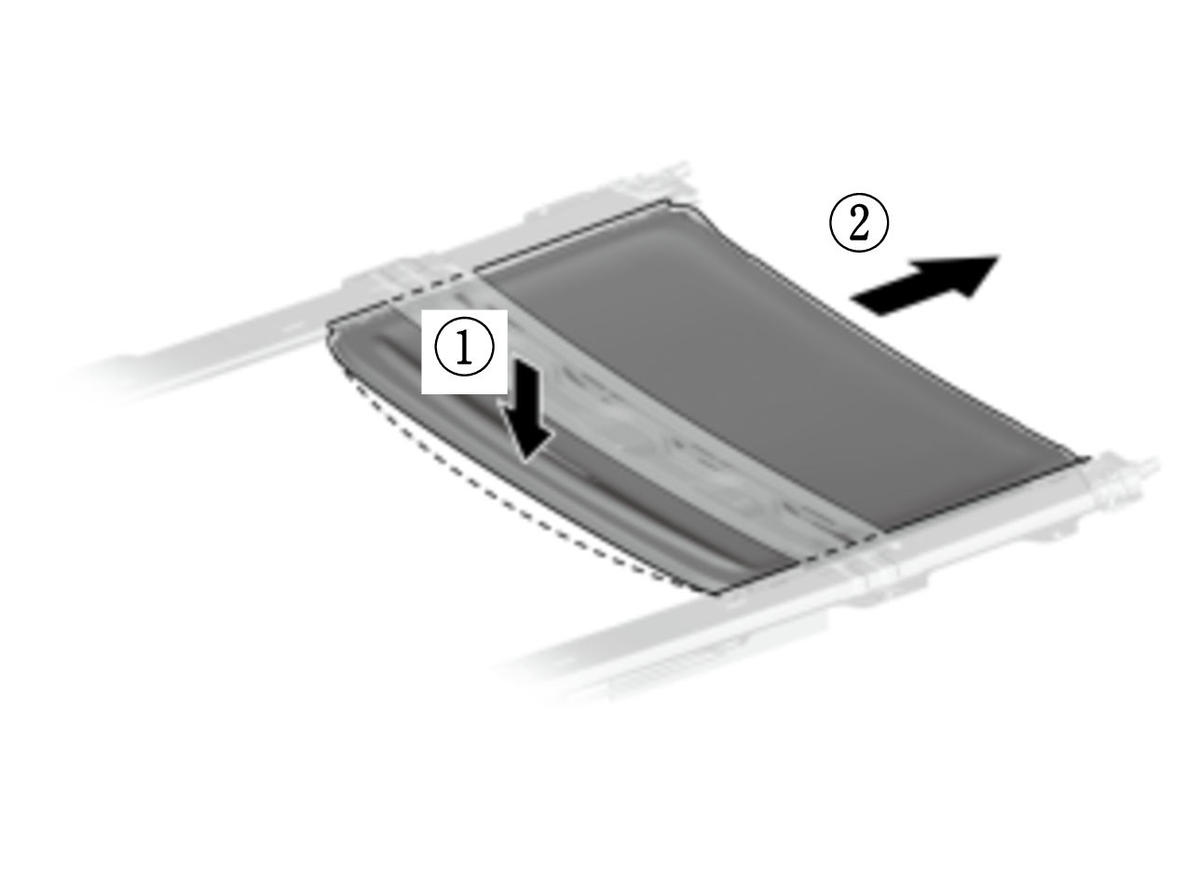

    Removal

    • Refer to the figure.
12. L.-

    Sub-Procedure

    Courtesy of HONDA, U.S.A., INC.

    Installation

    • Refer to the figure.
    NOTE:

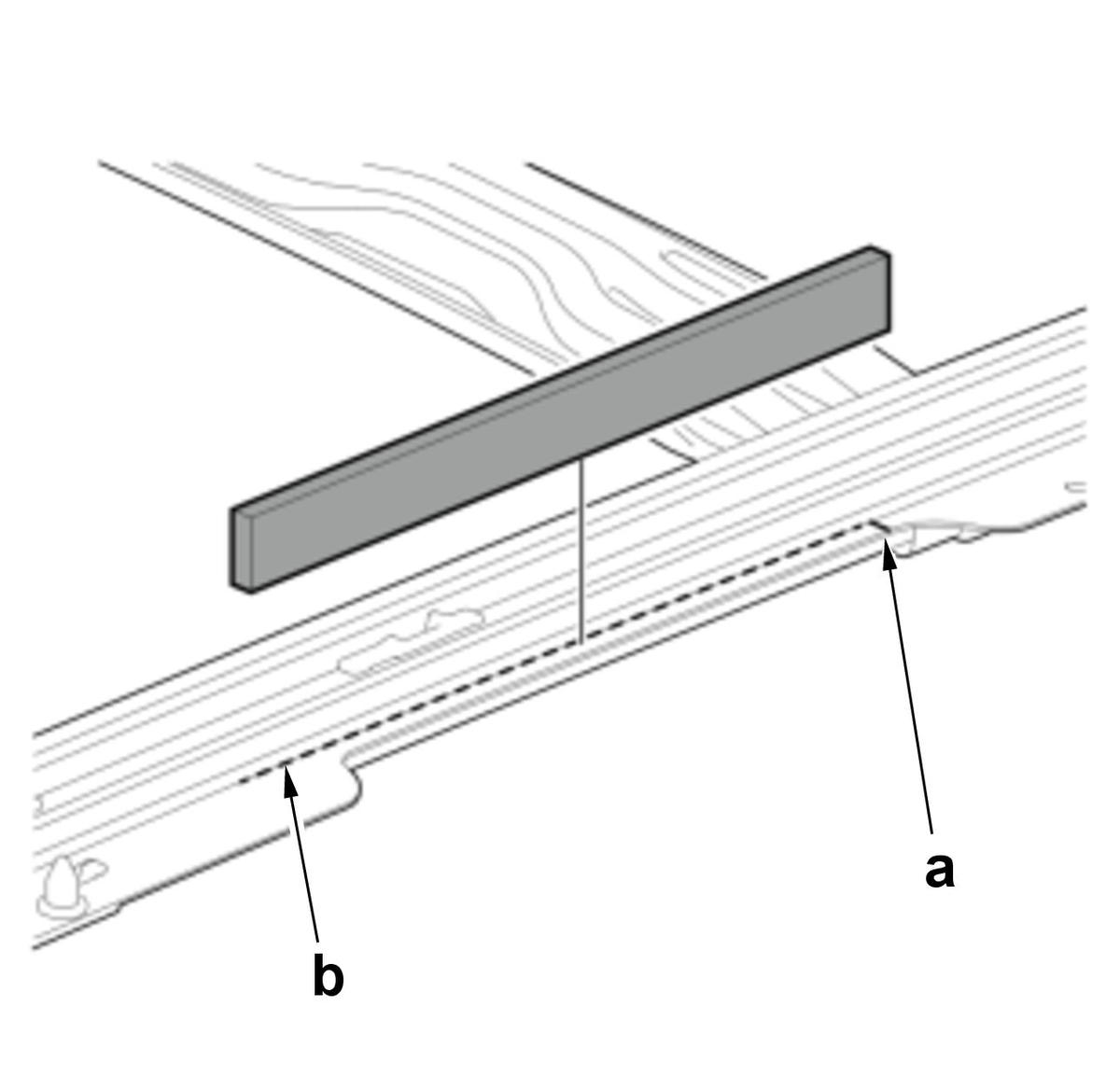

    • Clean the frame surfaces where the frame seals will be applied with a shop towel dampened with isopropyl alcohol. After cleaning, keep oil, grease, and water from getting on the surface.
    • Make sure one side of the frame seal is aligned with the alignment mark (a).
    • The frame seal should be attached along R-TAN (b) without any gap.

    Specifications

    Standard Value
    b	25 mm (0.98 in)
    c	8 mm (0.31 in)
    d	275 mm (10.83 in)
