Starting System - Service, Testing And Troubleshooting
›
Component Location Index
›

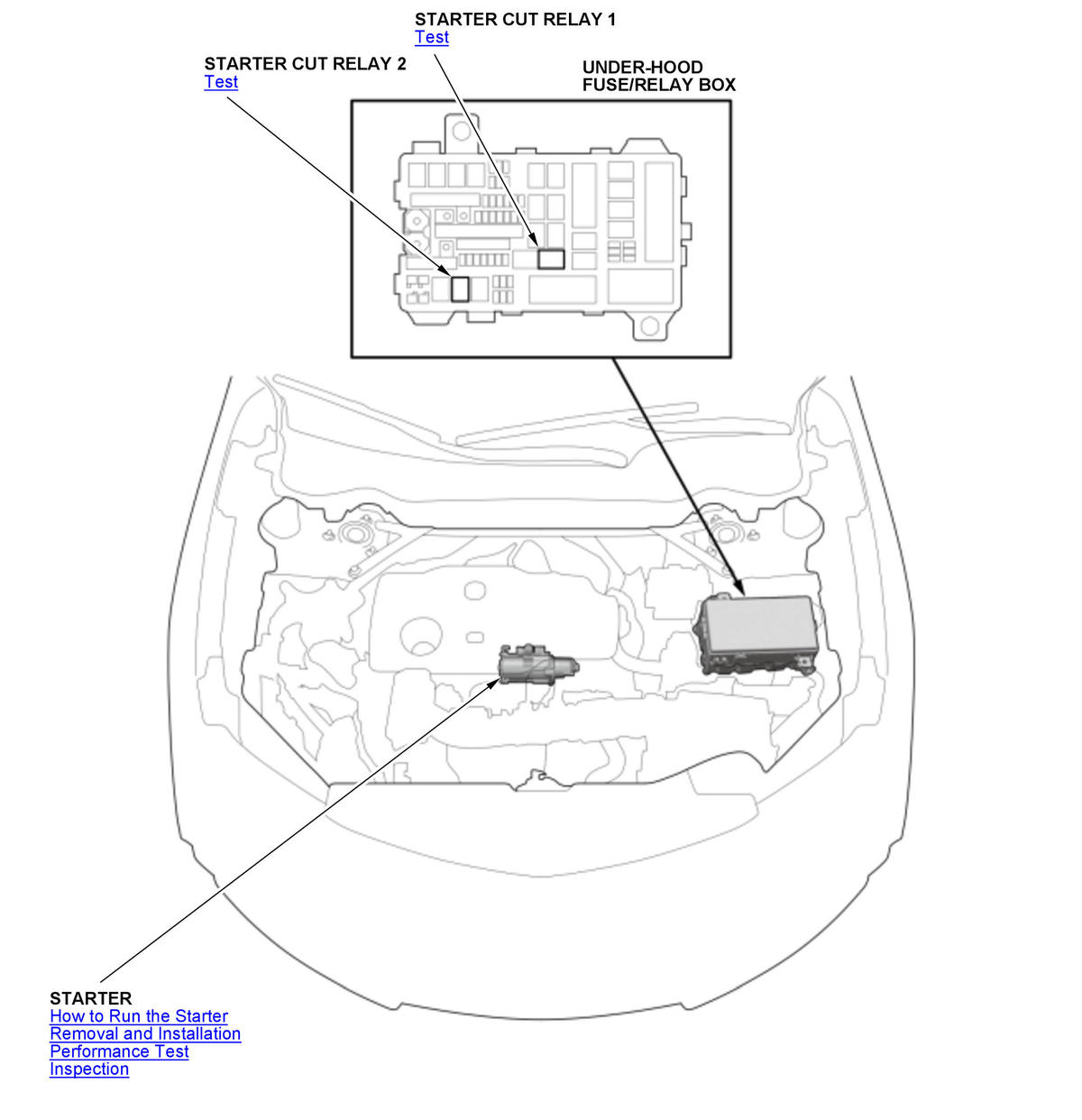

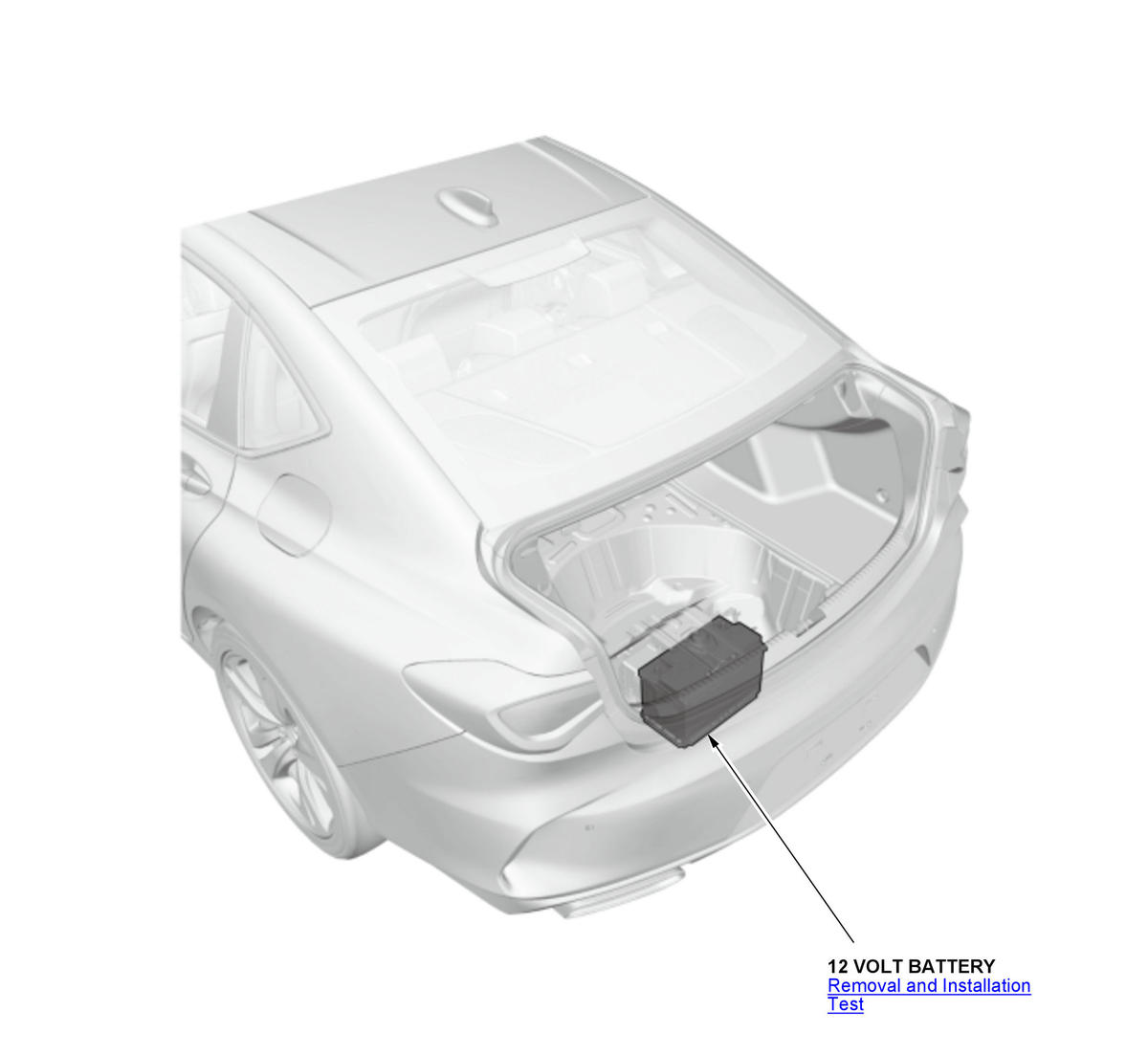

Starting System Component Location Index (2.0L Engine)
Starting System Component Location Index (2.0L Engine)
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
