Fuel Line/Quick-Connect Fitting Installation: Notes

NOTICE:

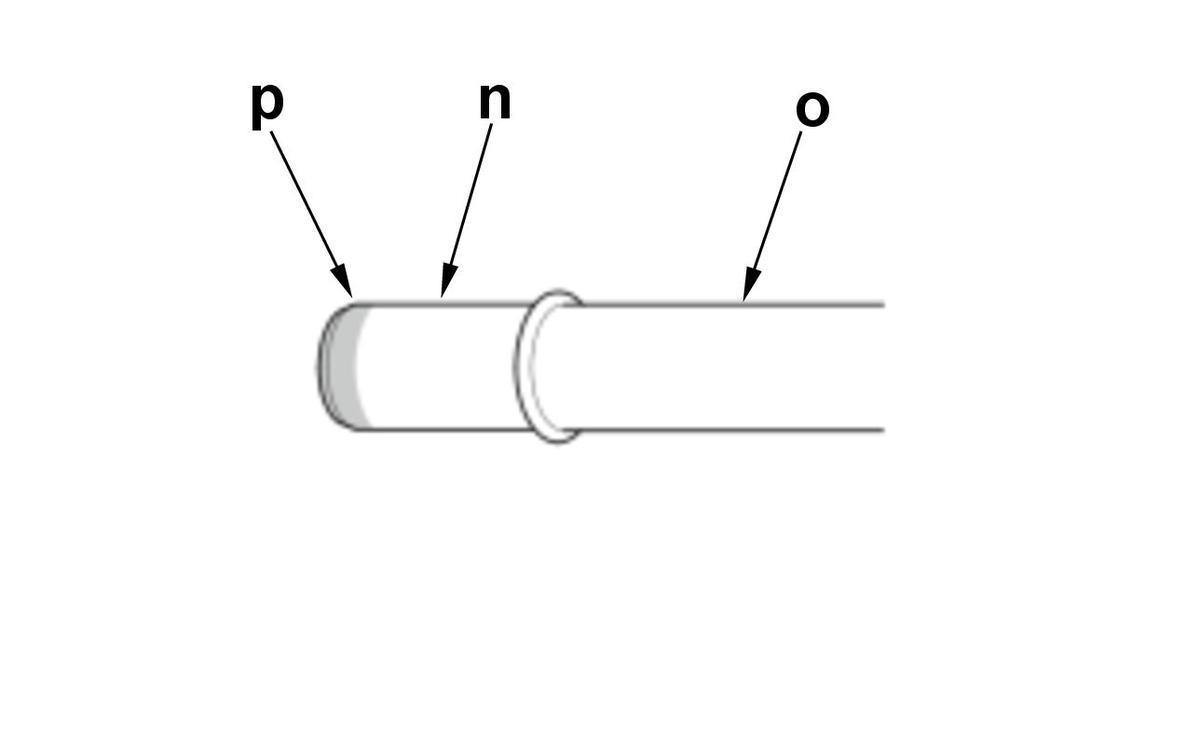

• Check the contact area (n) of the line (o) for dirt, and clean it if needed. (Figure 11)
• If the quick-connect fittings is hard to connect, apply engine oil on the line end (p). (Figure 11)

Lubricant Specification (Figure 11)

Application Position	Type	Amount
p	Engine Oil	Small amount

Figure 11

Courtesy of HONDA, U.S.A., INC.
