Engine Oil Pressure Switch Test (2.0L Engine): Test

How to use this manual .

1. Oil Pressure Switch - Test

   Procedure/Specifications

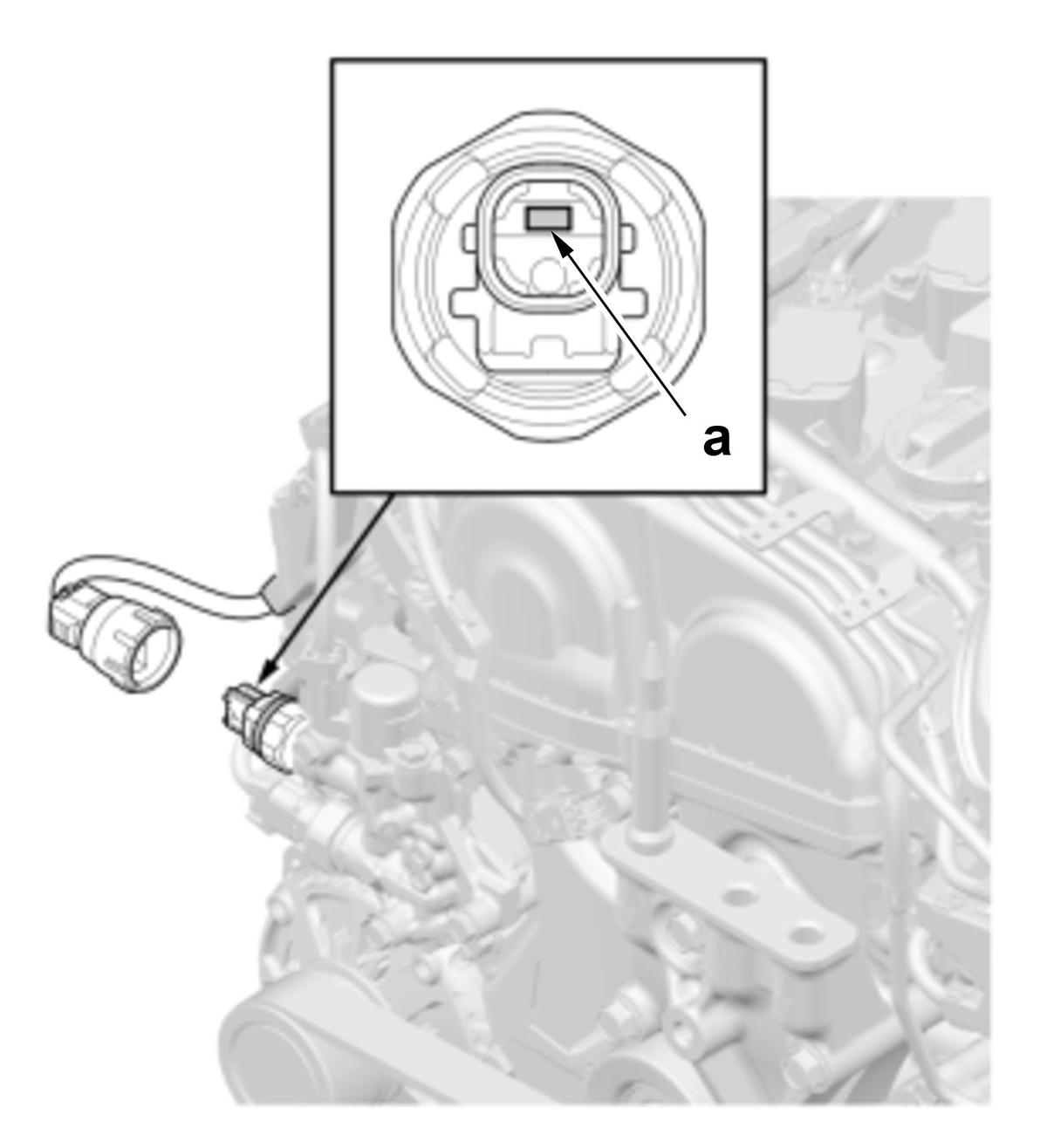

   • Check for continuity between the switch terminal (a) and the engine (ground).

   Specifications

   Specification
   There should be continuity with the engine stopped There should be no continuity with the engine running

   Courtesy of HONDA, U.S.A., INC.

   Result

   • If it is abnormal, replace the oil pressure switch .
