Active Vibration Control Unit Connector for Inputs and Outputs

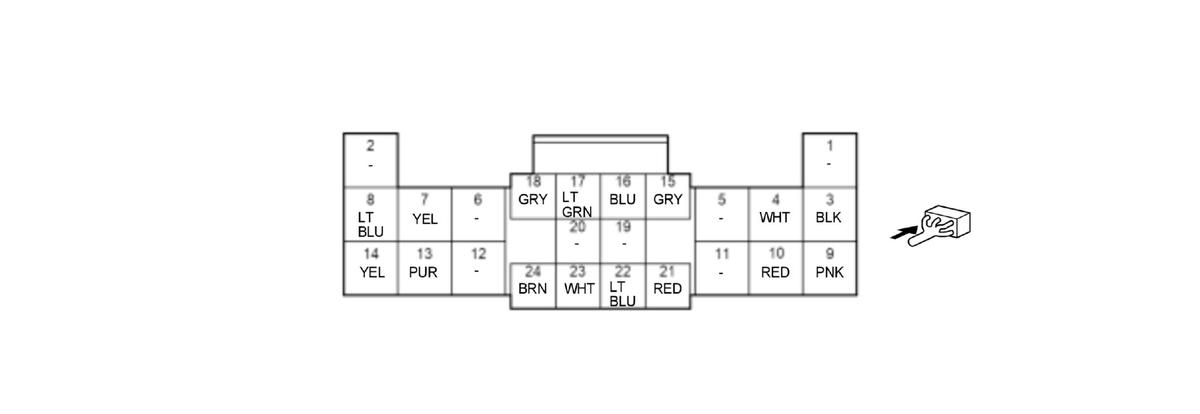

Active Vibration Control Unit 24P Connector (female terminals)

Courtesy of HONDA, U.S.A., INC.

Terminal number	Terminal name	Description
1	Not used	---
2	Not used	---
3	GND	Ground for active vibration control unit
4	AVC_GSNSR_GND	AVC_GSNSR_GND signal
5	Not used	---
6	Not used	---
7	AVC_F_ACT+	Outputs front active dynamic damper
8	AVC_R_ACT+	Outputs rear active dynamic damper
9	+B_AVC	Power source for active vibration control unit
10	AVC_GSNSR_5V	AVC_GSNSR_5V signal
11	Not used	---
12	Not used	---
13	AVC_F_ACT-	Outputs front active dynamic damper
14	AVC_R_ACT-	Outputs rear active dynamic damper
15	SENS_SH_F	SENS_SH_F signal
16	AVC_GSNSR_F+	Detects AVC_GSNSR_F+ signal
17	AVC_GSNSR_R+	Detects AVC_GSNSR_R+ signal
18	SENS_SH_R	SENS_SH_R signal
19	Not used	---
20	Not used	---
21	IG1_VSA/ABS	IG1 power source
22	K-LINE	Communication line
23	PF-CAN A_H	Communication line
24	PF-CAN A_L	Communication line
