Retainer Replacement
A disconnected quick-connect fitting can be reconnected, but replace the retainer (a) (Figure 1) when:
- The retainer is damaged.
- The retainer has been removed from the line.
- Replacing a new part that does not include the retainer. (a fuel line, a fuel tank unit etc.)

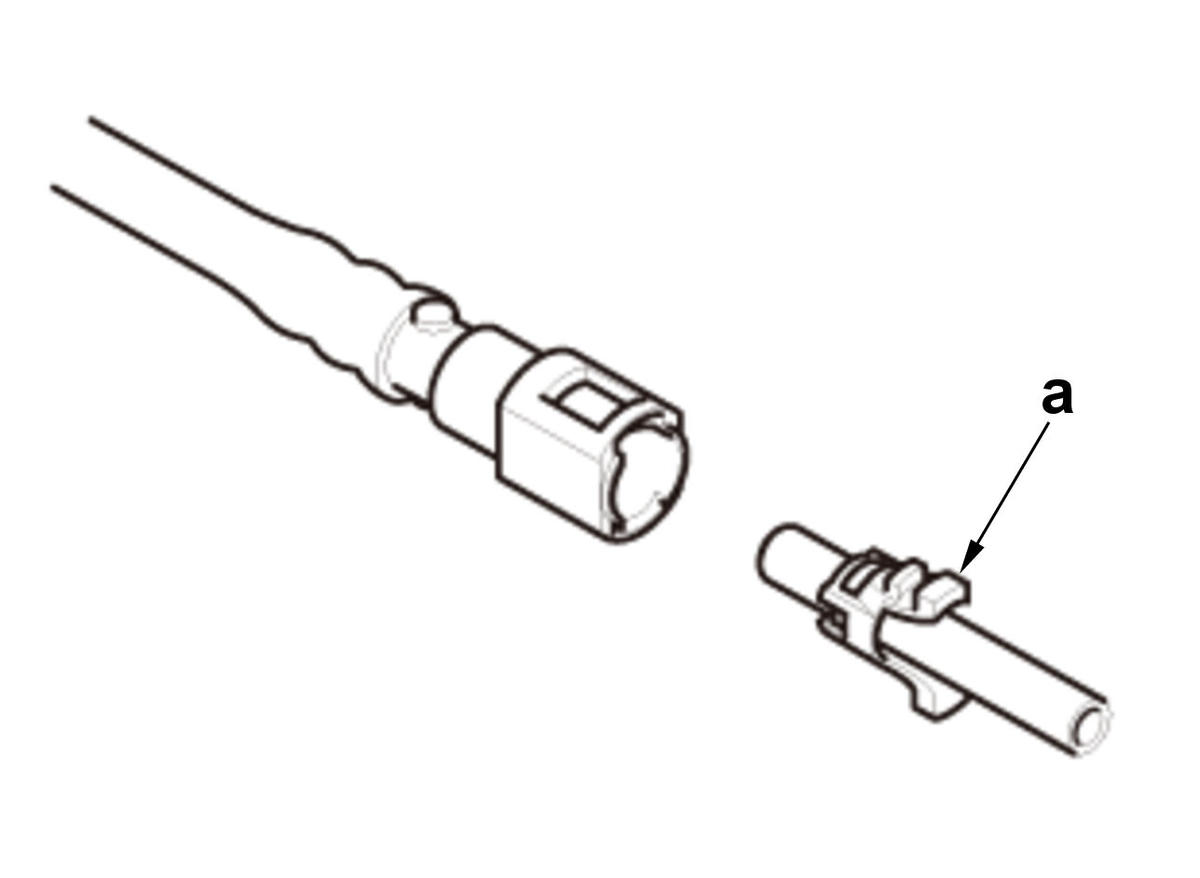

Figure 1
NOTICE:
Use the same manufacturer retainer and the same size retainer when replacing.
Retainer Details (Figure 2, 3, 4, 5, 6, and 7)
| Position | Manufacturer | Retainer Color | Detail | Remarks |
|---|---|---|---|---|
| Fuel Feed Hose (b) | Tokai/Sumitomo Riko | Blue Green | 8.0 mm (0.315 in) | --- |
| Fuel Feed Pipe (c) | Sanoh | White | 9.5 mm (0.374 in) | --- |
| Transfer Tube (d) | Tokai/Sumitomo Riko | Natural | 12 mm (0.47 in) | --- |
| Fuel Purge Pipe (e) | Sanoh | White | 12 mm (0.47 in) | USA and Canada Models |
| Fuel Filler Neck Tube (f) | Tokai/Sumitomo Riko | Green | 28.6 mm (1.126 in) | --- |
| Fuel Tank Vapor Return Tube (g) | Tokai/Sumitomo Riko | Natural | 12 mm (0.47 in) | USA and Canada Models |

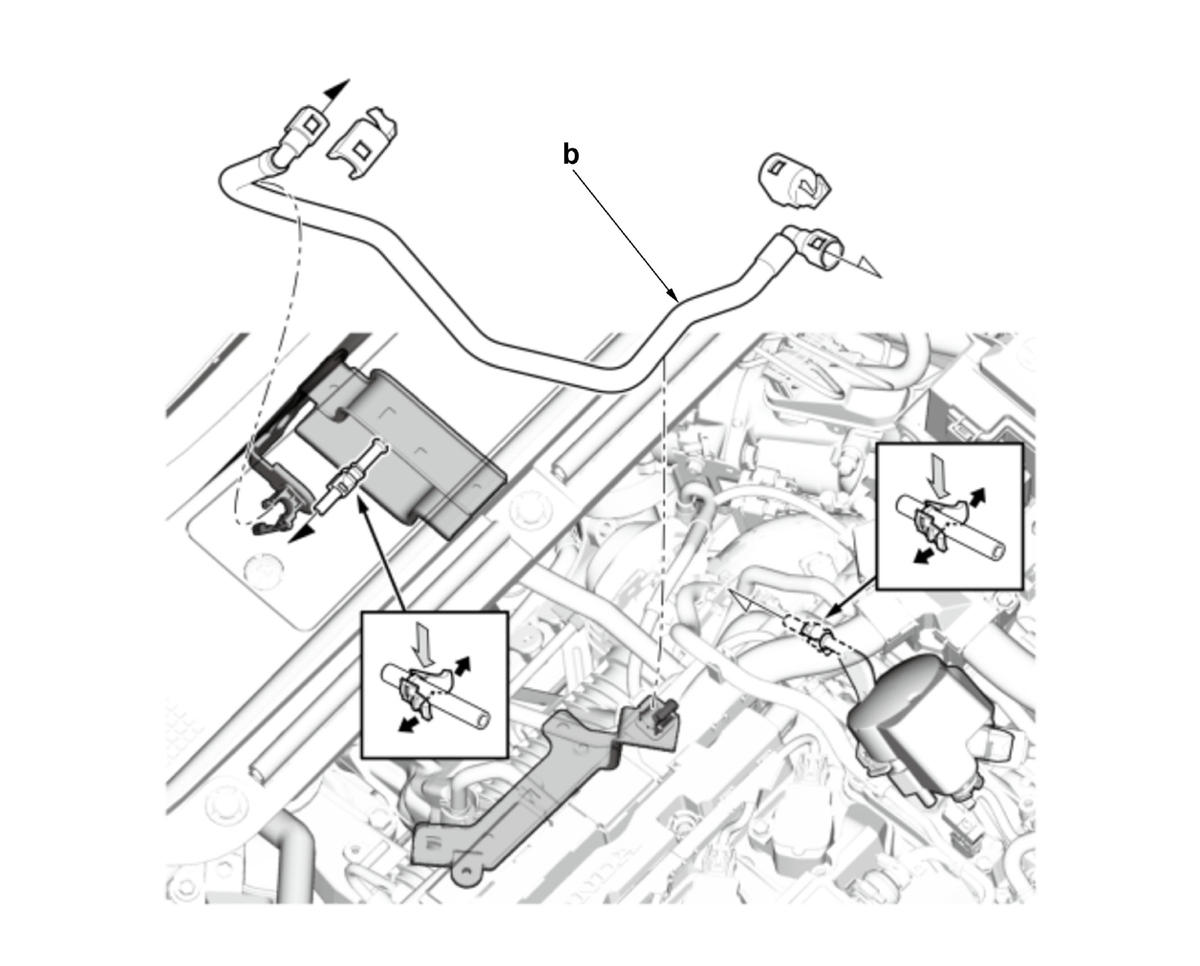

Figure 2 (2.0 L Engine)

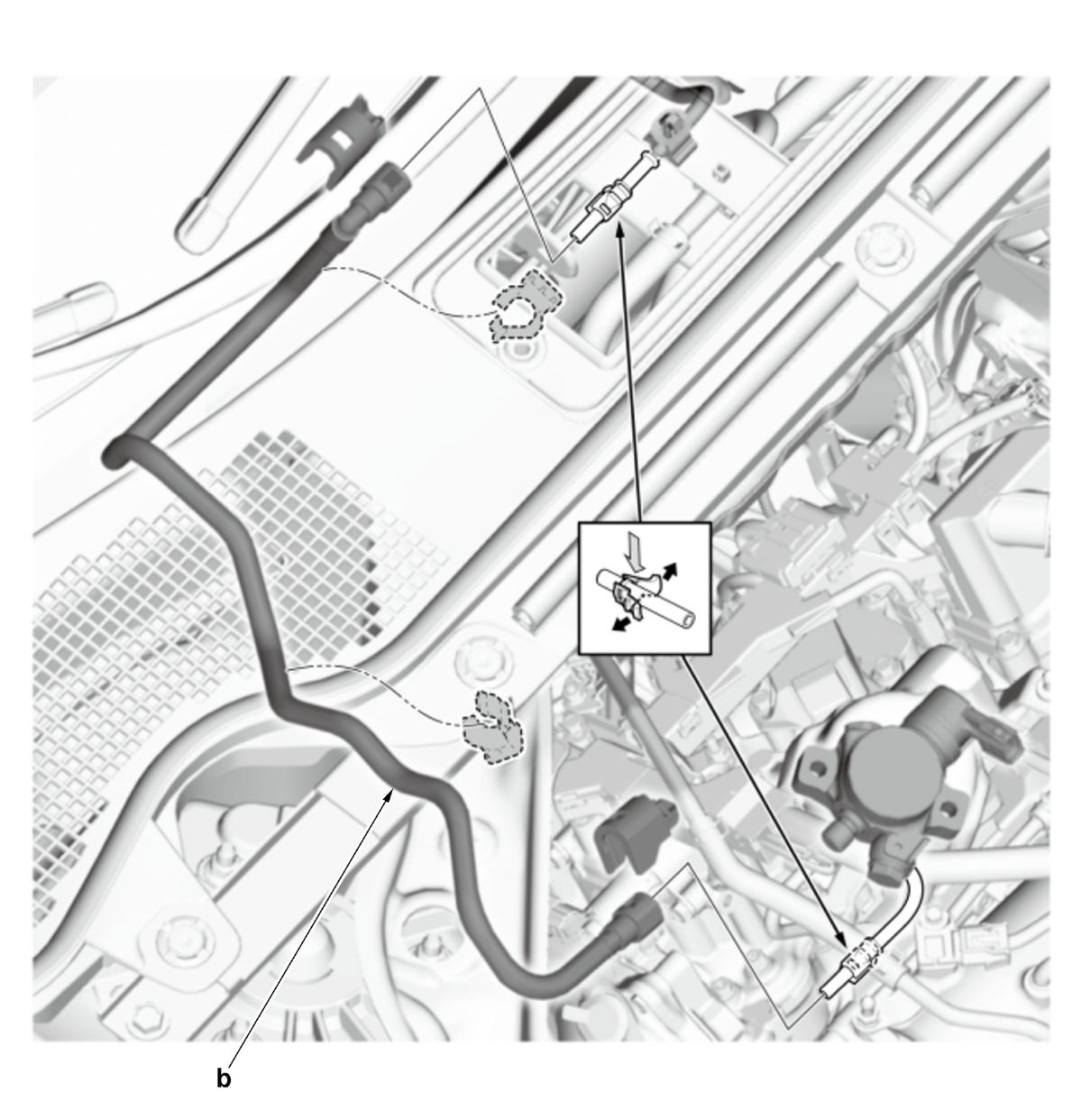

Figure 3 (3.0 L Engine)

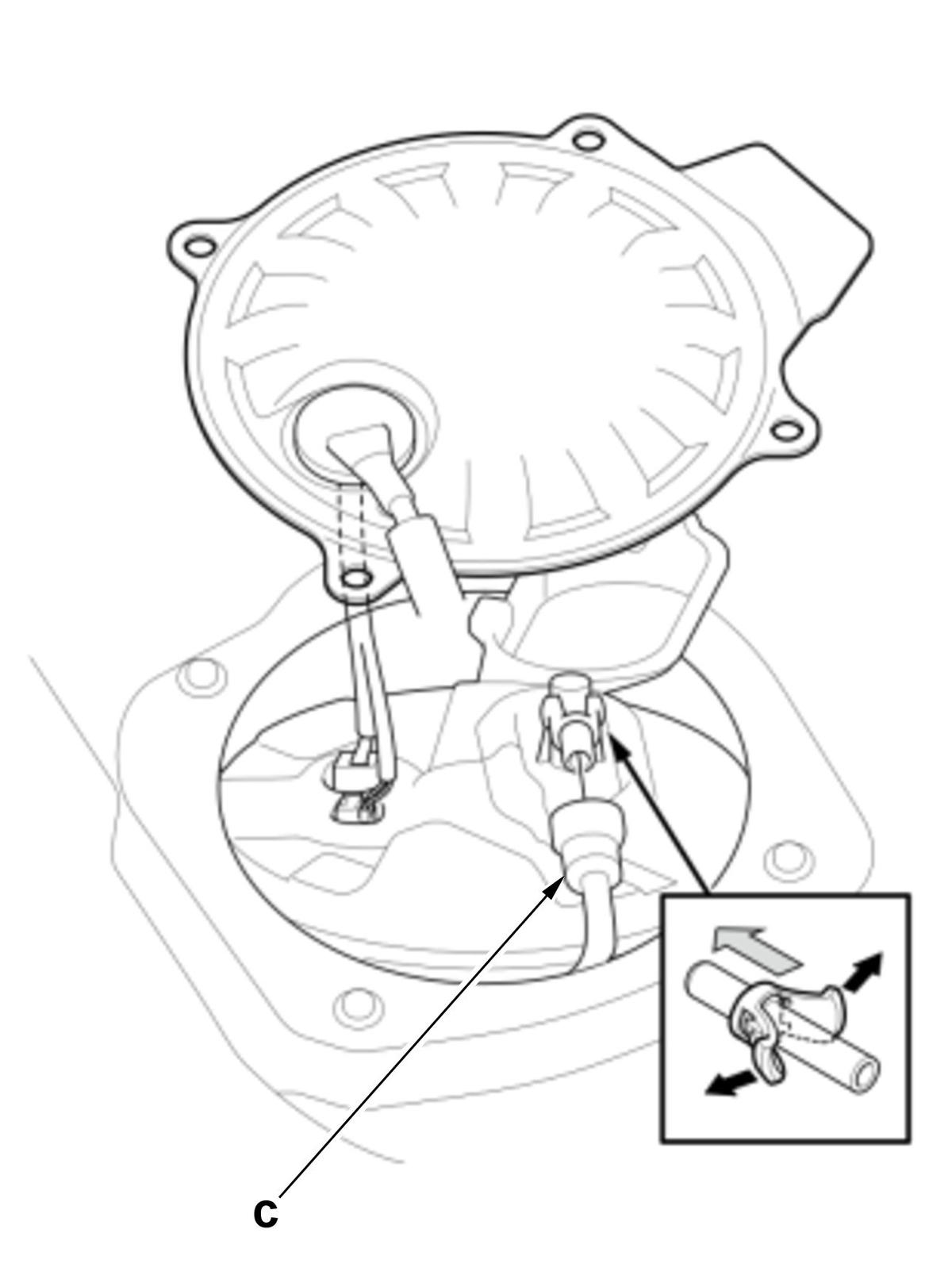

Figure 4

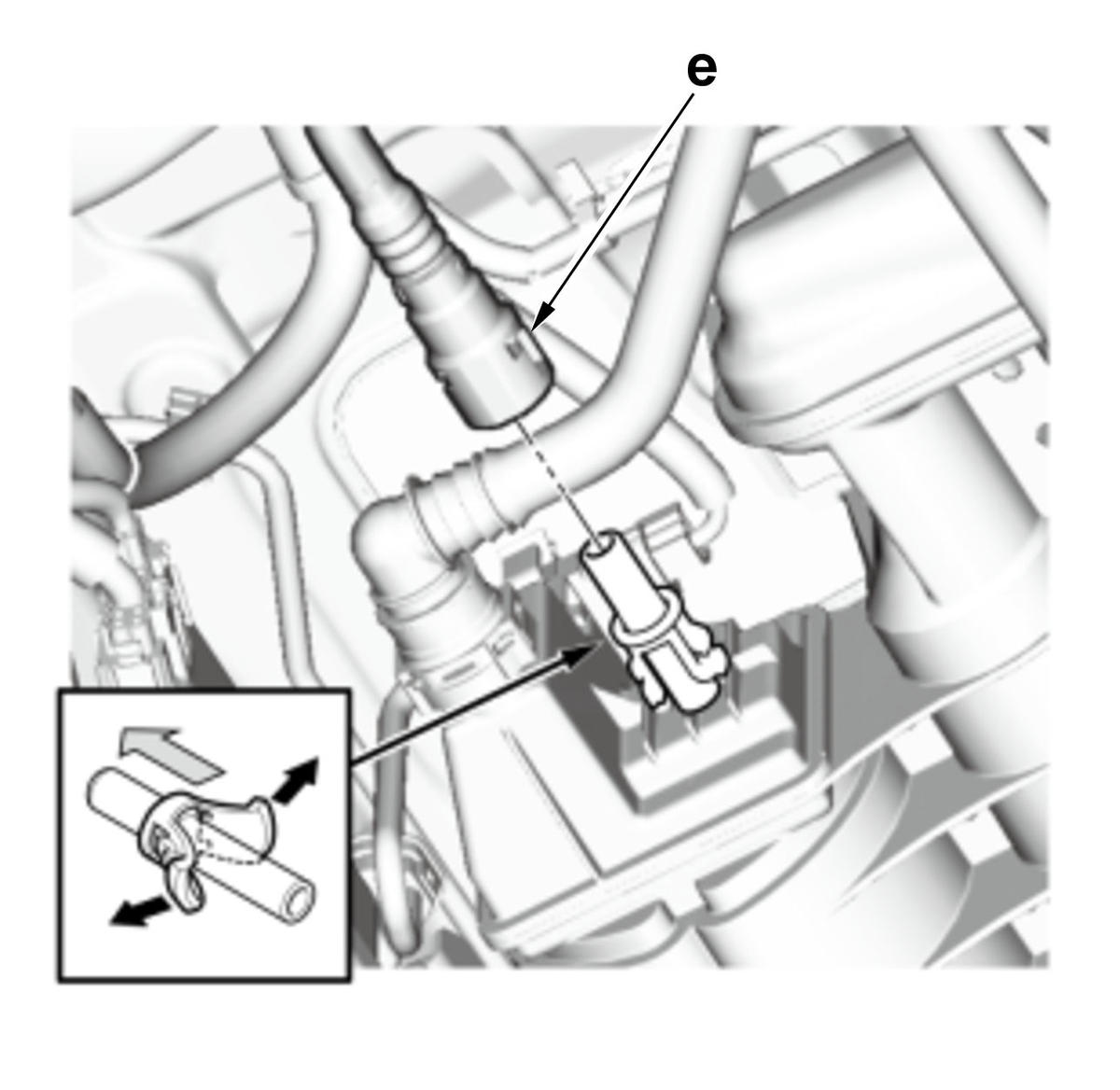

Figure 5

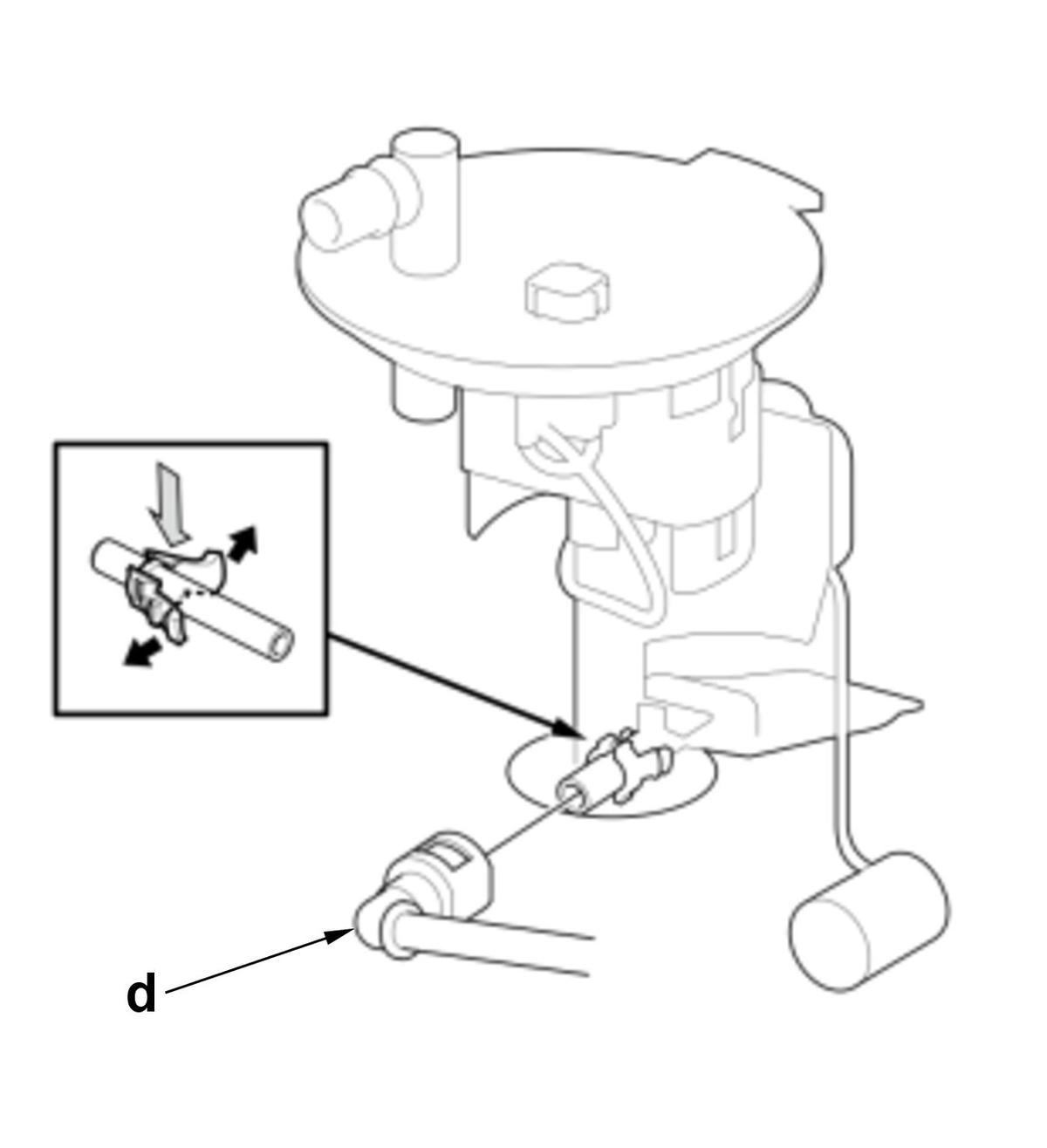

Figure 6

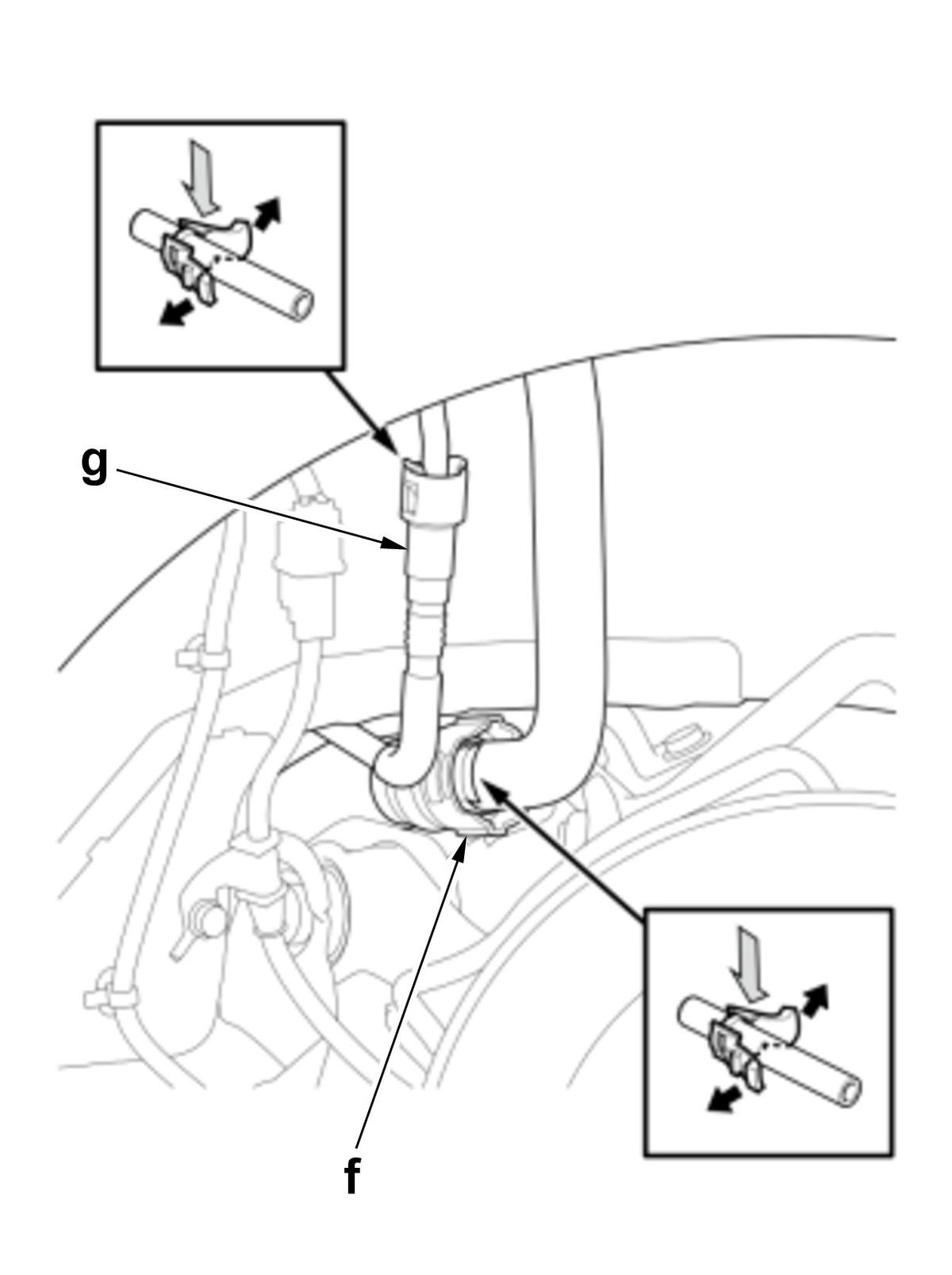

Figure 7
