DTC Troubleshooting: P1684 (2.0L Engine): Inspection

Throttle Body Inspection (Stuck)

Test Procedure

• Preparation
• • -

    Throttle body inlet hose: removed

• Procedure

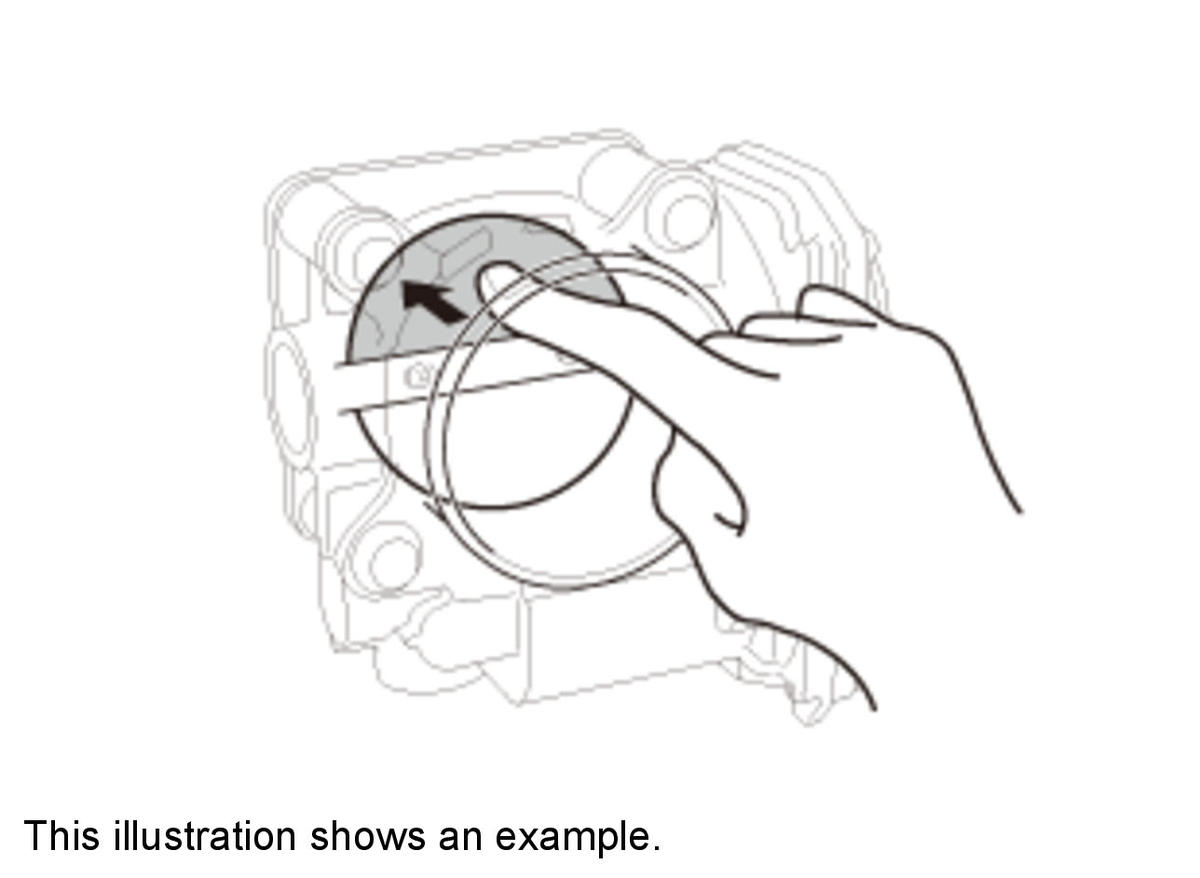

• • Push the throttle valve open as shown.
  • Release the throttle valve.

  • Courtesy of HONDA, U.S.A., INC.

• Normal Conditions
• • -

    Throttle valve returns to the default position.

Results

• If it is abnormal, there is a problem with the throttle body.

Throttle Body Inspection (Cleaning)

Preconditions

• Result of throttle body inspection (stuck) is normal

Test Procedure

• Procedure
• • Do the throttle body cleaning - Refer to: Throttle Body Carbon Accumulation Check or Throttle Body Cleaning .
  • Perform the confirmation procedure.

• Normal Conditions
• • DTC P1684 is not indicated.

Results

• If it is abnormal, there is a problem with the throttle body.
