DTC Troubleshooting: P16F3 (3.0L Engine): Inspection

IG1_START_CUT Circuit Inspection

Test Procedure


		(Disconnected)Starter cut relay 1 4P socketfemale terminals
	IG Mode	Courtesy of HONDA, U.S.A., INC.	Normal Conditions
IG1_START_CUT circuit inspection	ON		12 V battery voltage [circuit type 1]

Results

If abnormal, there is a problem in the circuit.
If the power supply inspection of the above table showed abnormally, do the additional Power Supply Inspection , to locate the failure.

ST_CUT_RLY1_CL- Circuit Inspection

NOTICE:

Before disconnecting the PCM connector, jump the SCS line with the HDS, and wait more than 1 minute.

Test Procedure

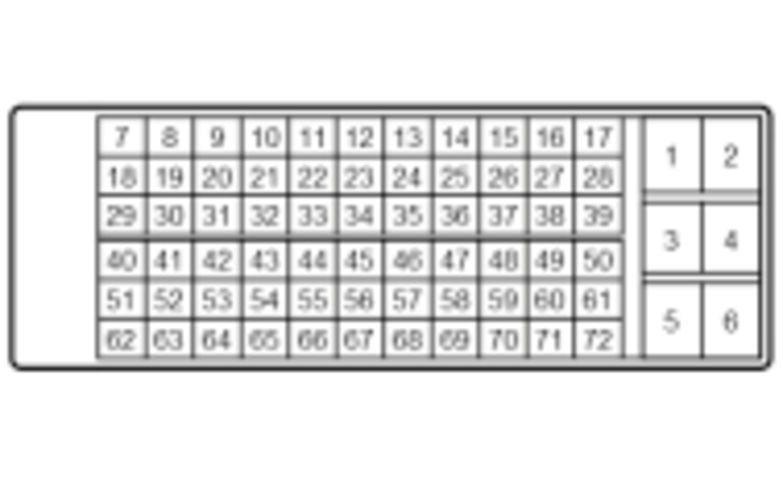

		(Disconnected)Starter cut relay 1 4P socketfemale terminals	(Disconnected) PCM connector B (72P) - Refer to: PCM Connector for Inputs and Outputs (3.0L Engine) or PCM Connector for Inputs and Outputs (2.0L Engine) female terminals
	IG Mode	Courtesy of HONDA, U.S.A., INC.	Courtesy of HONDA, U.S.A., INC.	Normal Conditions
ST_CUT_RLY1_CL- open wire inspection	OFF			There is less than 1 Ohm
Refer to the Open/Shorted Wire Inspection Description for the method to inspect the shorted circuit below, then start to inspect according to circumstances.
ST_CUT_RLY1_CL- shorted to ground inspection	OFF			Not shorted

Results

PCM Inspection

Test Procedure

If the other inspection item (s) indicated a normal condition, then it is determined that the remaining PCM is the cause.

Results
