DTC Troubleshooting: P2118 (3.0L Engine): Inspection

MTR1, MTR2 Open Inspection

NOTICE:

Before disconnecting the PCM connector, jump the SCS line with the HDS, and wait more than 1 minute.

Test Procedure

• Preparation
• • Throttle body 6P connector: disconnected
  • PCM connector E (114P): disconnected
• Procedure
• • Perform the inspection according to the following table.

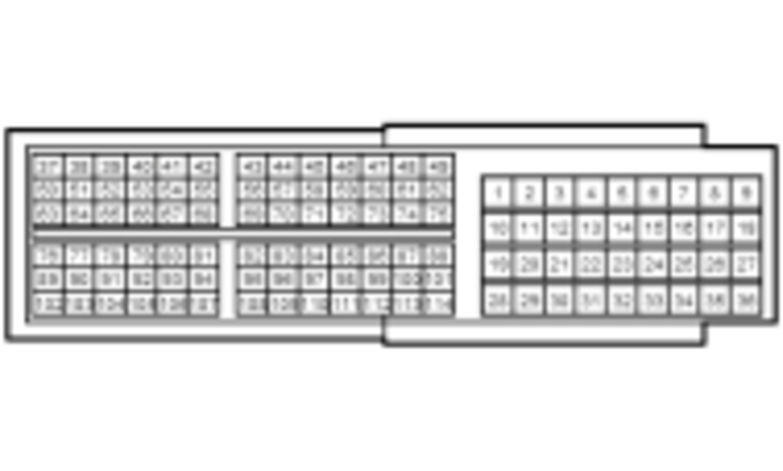

			(Disconnected)Throttle body 6P connectorfemale terminals	(Disconnected) PCM connector E (114P) - Refer to: PCM Connector for Inputs and Outputs (3.0L Engine) or PCM Connector for Inputs and Outputs (2.0L Engine) female terminals
		IG Mode	Courtesy of HONDA, U.S.A., INC.	Courtesy of HONDA, U.S.A., INC.	Normal Conditions
	MTR1 open wire inspection	OFF			There is less than 1 Ohm
	MTR2 open wire inspection	OFF			There is less than 1 Ohm

Results

• If it is abnormal, there is a problem in the circuit.

Throttle Body Component Inspection

Test Procedure

• Preparation
• • Throttle body 6P connector: disconnected
• Procedure
• • Perform the inspection according to the following table.

			(Disconnected)Throttle body 6P connectormale terminals
		IG Mode	Courtesy of HONDA, U.S.A., INC.	Normal Conditions
	Throttle body internal circuit inspection	OFF		Less than about 1.0 kOhm

Results

• If it is abnormal, there is a problem with the throttle body.

PCM Inspection

Test Procedure

• If the other inspection item (s) indicated a normal condition, then it is determined that the remaining PCM is the cause.

Results

• There is a problem with the PCM.
