DTC Troubleshooting: P2127 (3.0L Engine): Inspection

APP Sensor Inspection

Test Procedure

Unit output voltage inspection

• Preparation
• • APP sensor 6P connector: disconnected

• Procedure
• • Jump the APP sensor 6P connector terminals No. 1 and No. 3 with a jumper wire.
  • Turn the vehicle to the ON mode.
  • Confirm the HDS [APP Sensor B Voltage].

	(Disconnected)APP sensor 6P connectorfemale terminals
	Courtesy of HONDA, U.S.A., INC.

• Normal Conditions
• • HDS [APP Sensor B Voltage] value is more than 0.12 V

Results

• If it is normal, there is a problem with the accelerator pedal module.
• If it is abnormal, there is a problem with other related components.

VCC5, APS2 Circuit Inspection

NOTICE:

Before disconnecting the PCM connector, jump the SCS line with the HDS, and wait more than 1 minute.

Test Procedure

• Preparation
• • APP sensor 6P connector: disconnected
  • PCM connector B (72P): disconnected
• Procedure
• • Perform the inspection according to the following table.

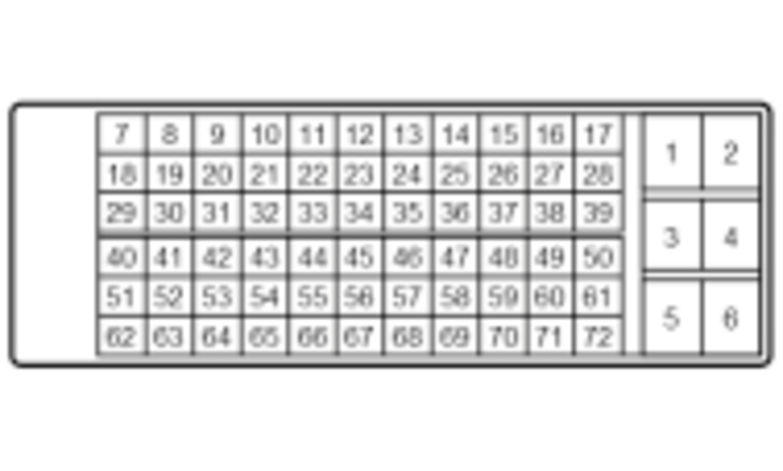

			(Disconnected)APP sensor 6P connectorfemale terminals	(Disconnected) PCM connector B (72P) - Refer to: PCM Connector for Inputs and Outputs (3.0L Engine) or PCM Connector for Inputs and Outputs (2.0L Engine) female terminals
		IG Mode	Courtesy of HONDA, U.S.A., INC.	Courtesy of HONDA, U.S.A., INC.	Normal Conditions
	APS2 open wire inspection	OFF			There is less than 1 Ohm
	VCC5 open wire inspection	OFF			There is less than 1 Ohm
	Refer to the Open/Shorted Wire Inspection Description for the method to inspect the shorted circuit below, then start to inspect according to circumstances.
	APS2 shorted to ground inspection	OFF			Not shorted

Results

• If it is abnormal, there is a problem in the circuit.

PCM Inspection

Test Procedure

• If the other inspection item (s) indicated a normal condition, then it is determined that the remaining PCM is the cause.

Results

• There is a problem with the PCM.
