Heated Steering Wheel Control Unit Connector for Inputs and Outputs

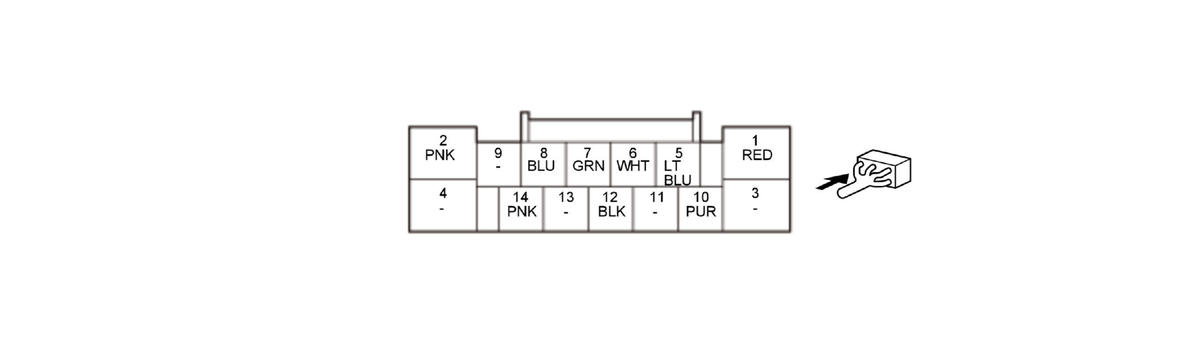

Heated Steering Wheel Control Unit 14P Connector (female terminals)
| Terminal number | Terminal name | Description |
|---|---|---|
| 1 | HEATER | Drives steering heater |
| 2 | HSW_RLY_OUT | Power source for heated steering wheel control unit |
| 3 | Not used | --- |
| 4 | Not used | --- |
| 5 | HSW_SWITCH | Detects HSW_SWITCH signal |
| 6 | NTC+ | Detects NTC+ signal |
| 7 | NTC- | Detects NTC- signal |
| 8 | LIN(METER) | Communication line |
| 9 | Not used | --- |
| 10 | HSW_INDICATOR | Outputs HSW_INDICATOR signal |
| 11 | Not used | --- |
| 12 | SGND | Ground for heated steering wheel control unit |
| 13 | Not used | --- |
| 14 | HSW_SW_+B | Power output terminal for heated steering wheel switch |
