Steering Column Inspection: Inspection

How to use this manual .

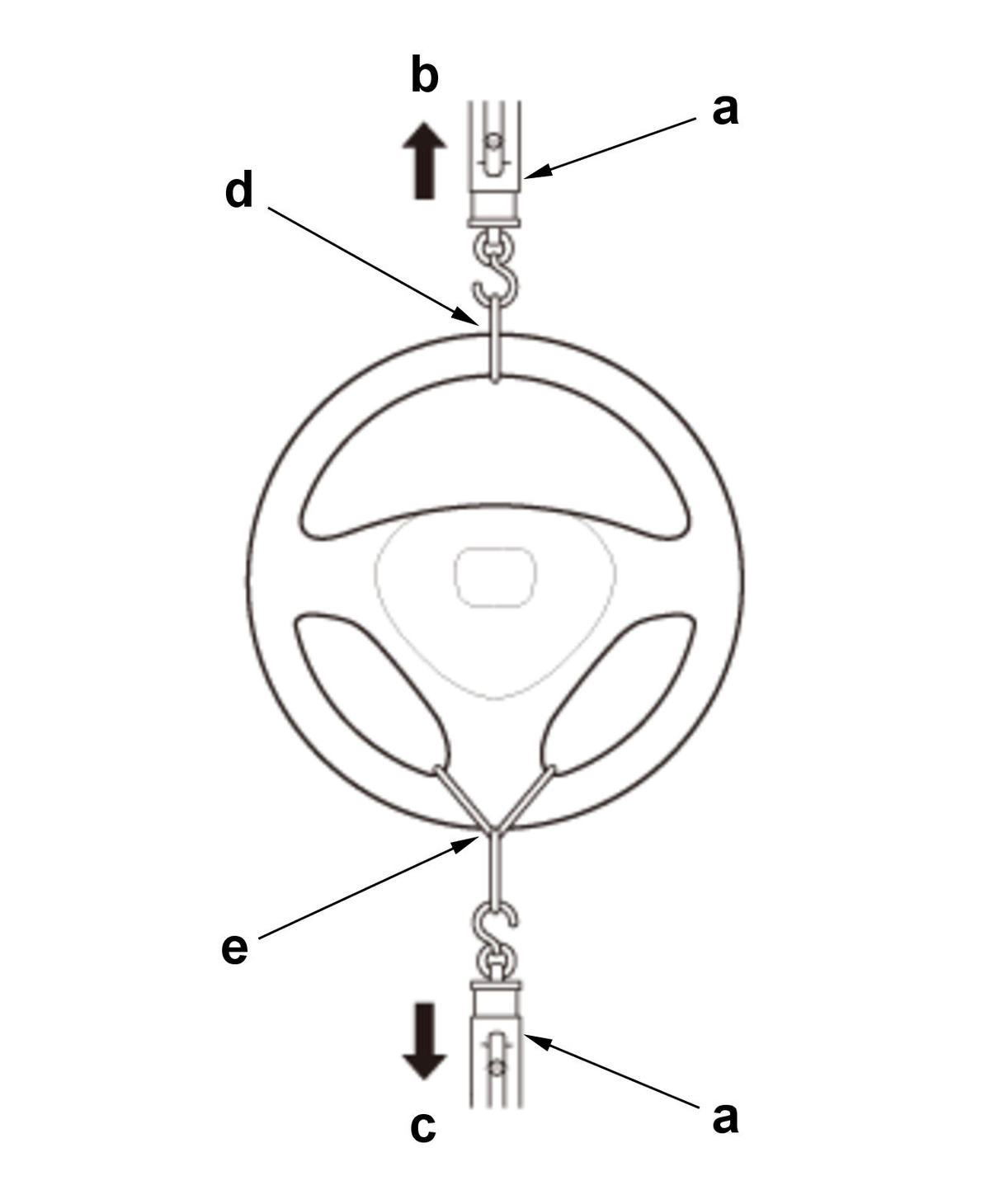

1. Tilting Force - Check

   Courtesy of HONDA, U.S.A., INC.

   Procedure/Specifications

   1. Set the steering wheel in the straight ahead driving position, and loosen the lock lever fully.

   2. Pull the spring scale, and read the force required to move the steering column.

   Tool Details

   Name
   a	Spring Scale

   Measure Directions

   Position	Direction
   b	Upward
   c	Downward

   Specifications

   Position	Standard Value
   d	Highest Point	69 N (15.5 lbf) max.
   e	Lowest Point

   Result

   • If the measurement is not within specifications, replace the steering column as an assembly .

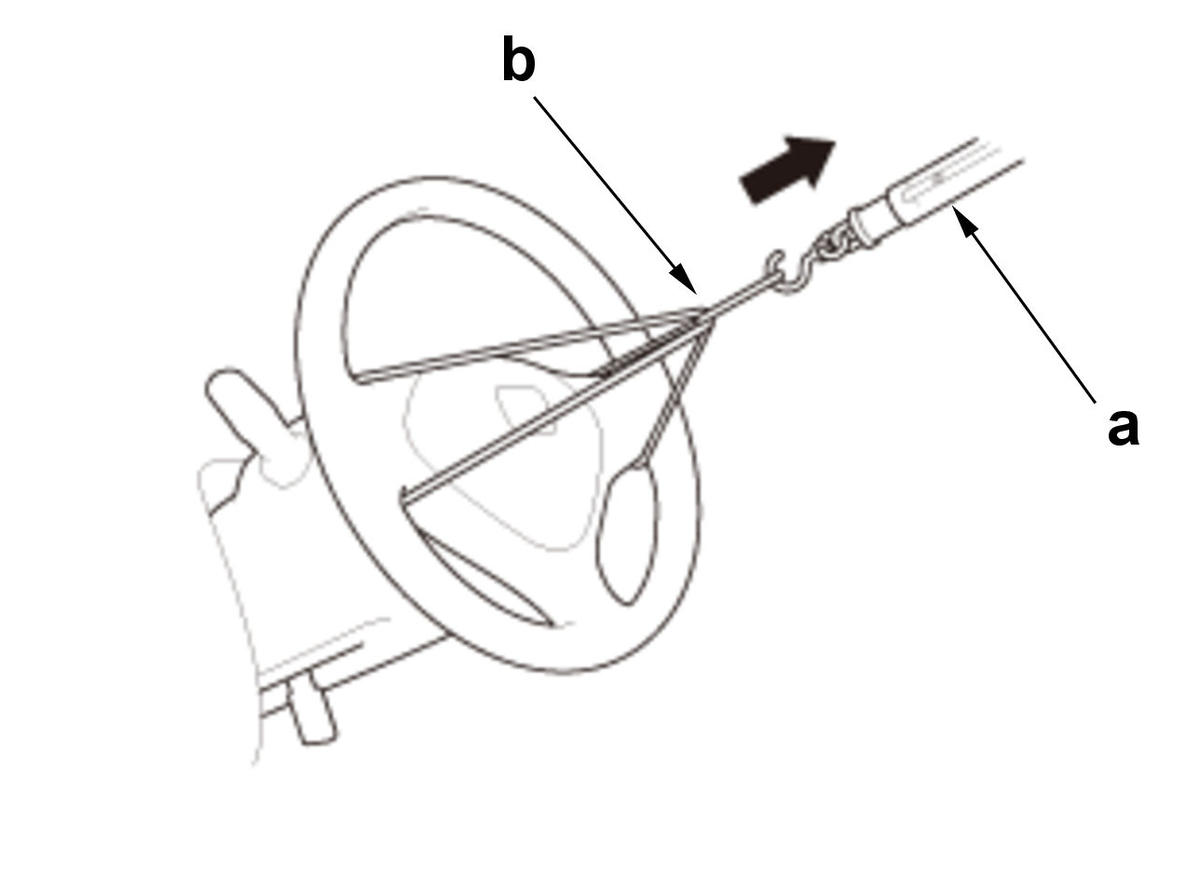

2. Telescoping Force - Check

   Courtesy of HONDA, U.S.A., INC.

   Procedure/Specifications

   1. Set the steering wheel in the straight ahead driving position, and loosen the lock lever fully.

   2. Pull the spring scale, and read the force required to move the steering column during telescoping out.

   Tool Details

   Name
   a	Spring Scale

   Specifications

   Position	Standard Value
   b	Center Point	90 N (20.2 lbf) max.

   Result

   • If the measurement is not within specifications, replace the steering column as an assembly .

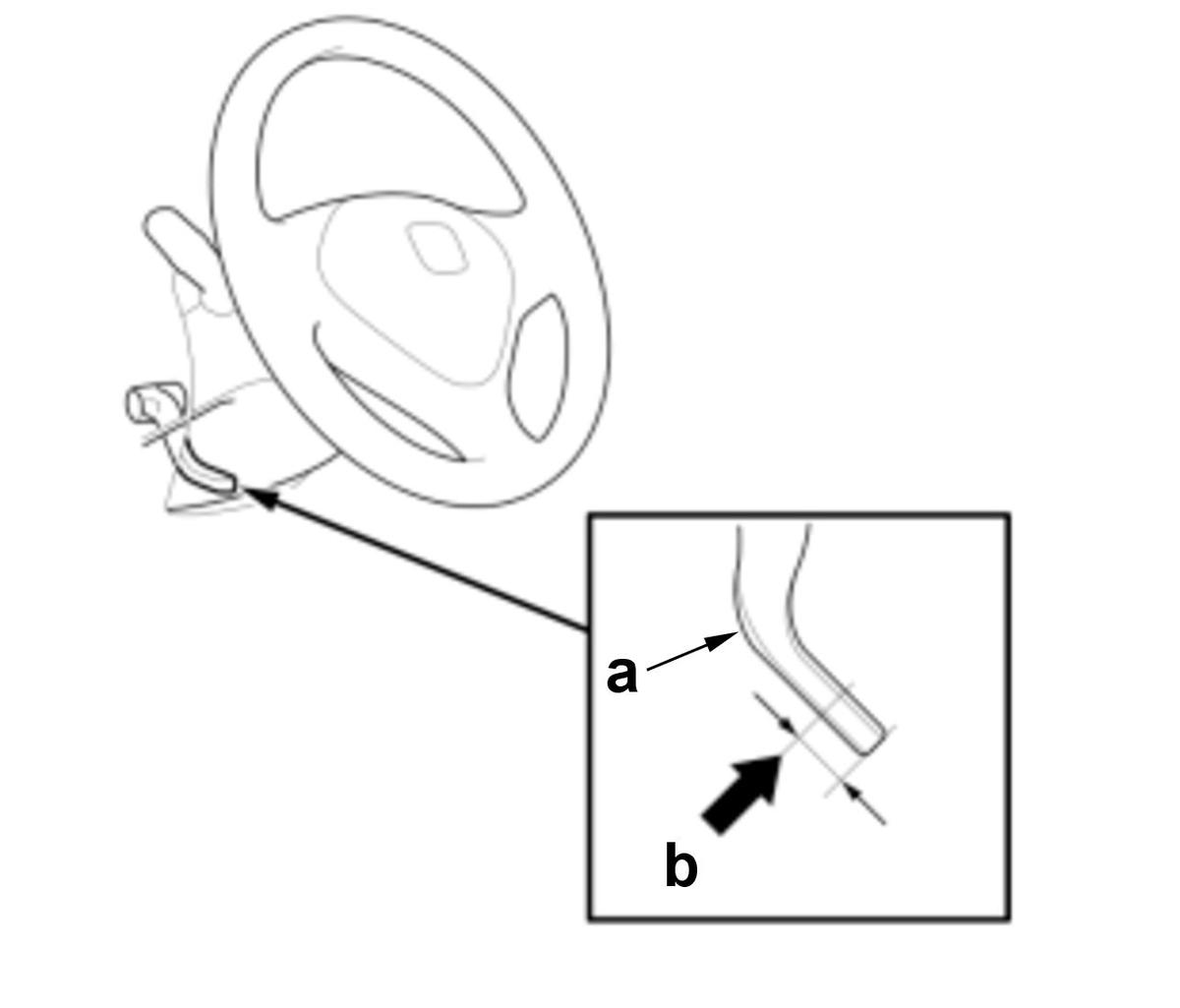

3. Lock Lever Force - Check

   Courtesy of HONDA, U.S.A., INC.

   Procedure/Specifications

   1. Move the lock lever (a) from the loosened position to the locked position three to five times, then release the lock lever. Adjust the steering column to the center tilt position and also to the full telescopic out position, and hold the steering wheel.

   2. Push up the lock lever measure point (b), and measure the force required to move the lock lever.

   Tool Details

   Name
   Push-pull Gauge

   Measure Point

   Position	Specification
   b	20 mm (0.79 in)from the lock lever end

   Specifications

   Standard Value
   65 +/- 5 N (14.6 +/-1.1 lbf) max.

   Result

   • If the measurement is not within specifications, replace the steering column as an assembly .

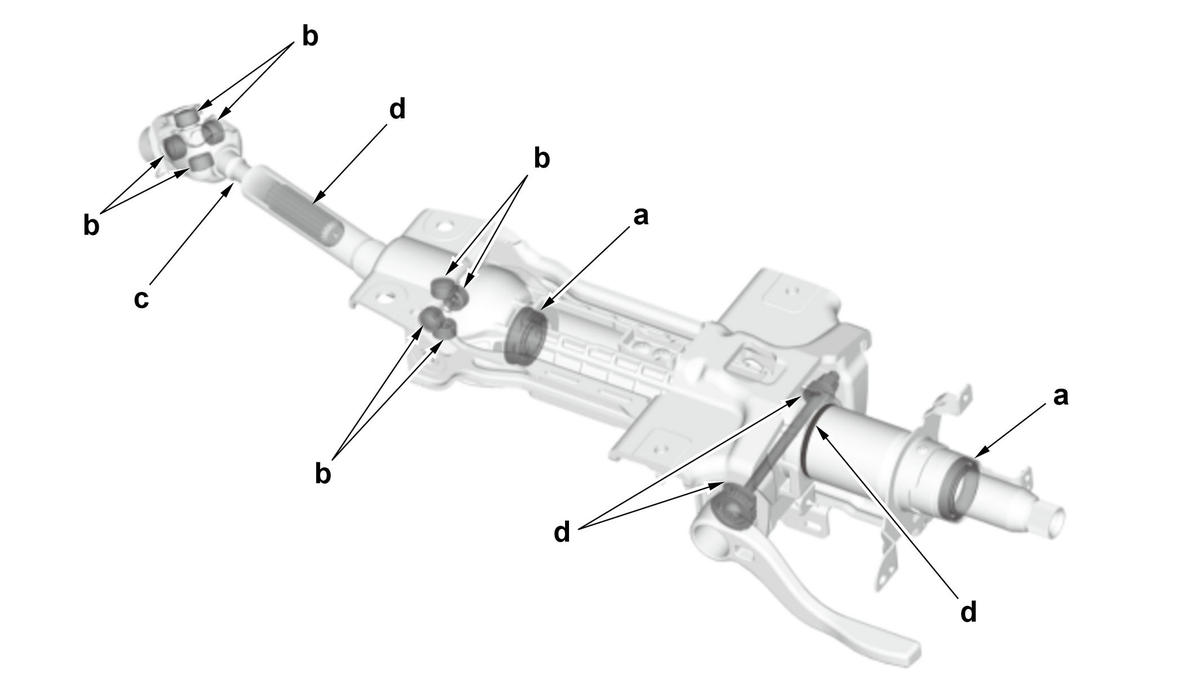

4. Steering Column - Inspect

   Preconditions

   • Steering Column Removed

   Procedure/Specifications

   • Check these items:
   • • Check the tilt and telescopic mechanism for movement and damage.
     • Check the following parts.

   Steering Column Check Items

   Check Location	Component	Normal Conditions
   a	Column Shaft Bearing	No excessive play Smooth movement No abnormal noise
   b	Steering Joint Bearing	No clearance Smooth movement No abnormal noise
   c	Slide Shaft	Smooth movement in and out

   • Apply grease to the steering column.

     NOTICE:

     Do not use silicone grease.

   Lubricant Specifications

   Position	Type
   d	Multipurpose Grease

   Courtesy of HONDA, U.S.A., INC.

   Result

   • If it is abnormal, replace the steering column .
