DTC P0741  : Torque Converter Clutch Circuit Performance or Stuck OFF

General Description

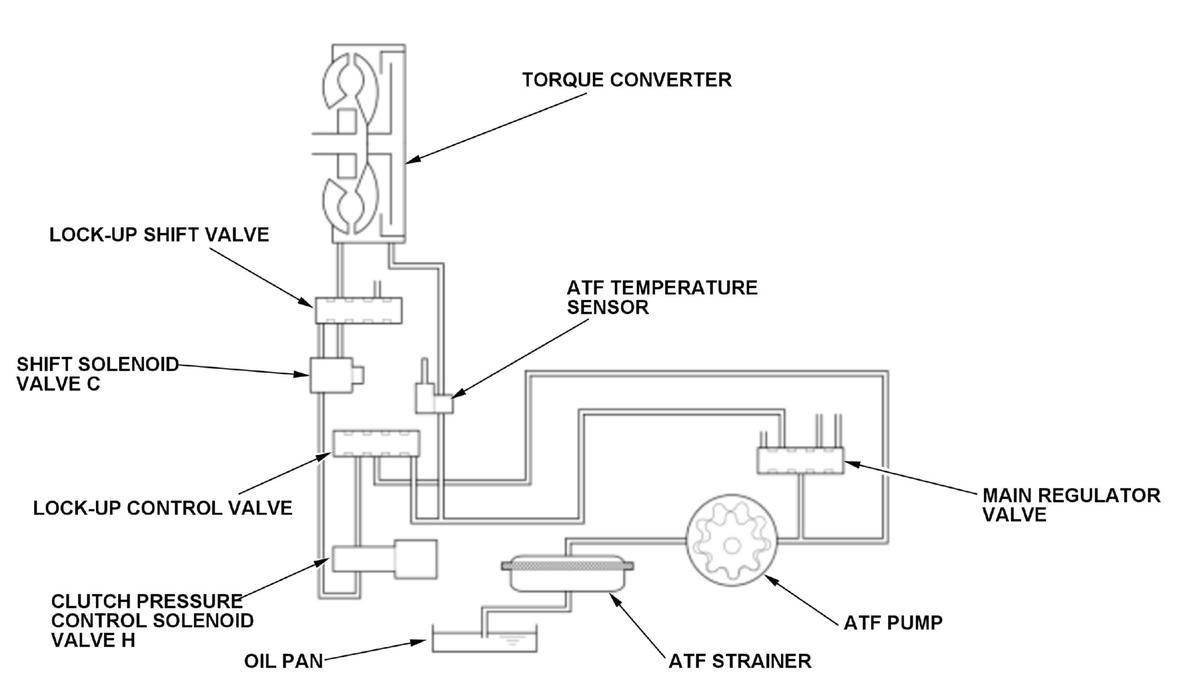

GHH477504Courtesy of HONDA, U.S.A., INC.
Torque converter clutch operation  Clutch pressure control solenoid valve H
ON (100 %)  OFF (0 %)
Shift solenoid valve C  ON (12 V)  Torque converter clutch: maximum duty Torque converter clutch: minimum duty
OFF (0 V)  Torque converter clutch OFF Torque converter clutch OFF

The power transfer capacity of the torque converter clutch is controlled by the balance of automatic transmission fluid (ATF) supplied to and discharged from the torque converter clutch and the torque converter. When hydraulic pressure supplied to the torque converter clutch is less than the torque converter internal pressure, lock-up is OFF. When hydraulic pressure supplied to the torque converter clutch is greater than the torque converter internal pressure, lock-up is ON. As the hydraulic pressure supplied to the torque converter clutch increases, the power transfer capacity of the torque converter clutch increases. The supply of hydraulic pressure is switched by shift solenoid valve C and the lock-up shift valve. When the transmission control module (TCM) turns on shift solenoid valve C, the hydraulic pressure is supplied to the torque converter clutch. When the TCM turns off shift solenoid valve C, the hydraulic pressure is not supplied to the torque converter clutch. The balance of hydraulic pressure supplied to the torque converter clutch and the torque converter is controlled by clutch pressure control solenoid valve H and the lock-up control valve. If the difference between the target engine speed and the actual engine speed is a specified value for a specified time when the torque converter clutch is ON commanded (shift solenoid valve C is ON and clutch pressure control solenoid valve H is ON), the TCM detects a malfunction and stores a DTC.

Monitor Execution, Sequence, Duration, DTC Type

Execution Continuous
Sequence None
Duration 22 seconds or more
DTC Type Two drive cycles, MIL on, shift position indicator blinks

Enable Conditions

Condition Minimum Maximum
Engine speed [Engine Speed] 1, 000 rpm 6, 000 rpm
12 volt battery voltage [Battery Voltage] 10 V -
Shift status 1st to 10th gear
Torque converter clutch During lock-up operation
Other Torque converter clutch is in a stable condition for at least 2 seconds
Lock-up must not be in transition condition (not in condition while actual engine speed is converging to target engine speed)
Engine torque must be value shown in table or more depending on engine speed with accelerator pedal is pressed

[ ]:HDS Parameter

Engine speed [Engine Speed] (rpm)  1, 000 1, 250 1, 500 1, 750 2, 000 3, 000 5, 000 7, 000
Engine torque (N.m (kgf.m, lbf.ft))  42 (4.3, 31.0) 42 (4.3, 31.0) 50 (5.1, 36.9) 55 (5.6, 40.6) 59 (6.0, 43.5) 73 (7.4, 53.8) 98 (10.0, 72.3) 123 (12.5, 90.7)

Malfunction Threshold

The difference between the target engine speed and the actual engine speed exceeds the value for at least 22 seconds shown in the table which depends on the relation of the mainshaft speed sensor value and the engine torque value.

  Mainshaft speed sensor value (rpm)
1, 000 1, 250 1, 500 1, 750 2, 000 2, 250 2, 500 3, 000 5, 000 7, 000
Engine torque (N.m (kgf.m, lbf.ft))  0 (0, 0) 350 350 350 350 350 350 350 350 350 350
35 (3.6, 25.8) 50 60 55 50 50 55 60 70 50 35
50 (5.1, 36.9) 105 90 75 70 65 70 75 85 65 45
75 (7.6, 55.3) 205 160 120 100 90 95 100 100 85 65
100 (10.2, 73.8) 320 230 175 130 120 120 120 120 100 85
125 (12.7, 92.2) 420 320 235 185 145 145 140 135 120 100
150 (15.3, 110.6) 505 405 290 235 185 175 165 155 135 120
200 (20.4, 147.5) 695 565 430 340 280 250 225 190 170 155
250 (25.5, 184.4) 850 720 580 470 380 335 290 225 205 190

Possible Cause

NOTE: The causes shown may not be a complete list of all potential problems, and it is possible that there may be other causes.

Confirmation Procedure

Operating Condition

Diagnosis Details

Conditions for setting the DTC

When a malfunction is detected during the first drive cycle, a Pending DTC is stored in the TCM memory. If the malfunction returns in the next (second) drive cycle, the MIL comes on, the shift position indicator blinks, and a Confirmed DTC and the freeze data are stored.

Conditions for clearing the DTC

The shift position indicator comes off by turning the vehicle to the OFF (LOCK) mode. The MIL is cleared if the malfunction does not return in three consecutive trips in which the diagnostic runs. The MIL, the Pending DTC, the Confirmed DTC, and the freeze data can be cleared with the scan tool clear command.
