Adaptive Damper Control Unit Connector For Inputs and Outputs

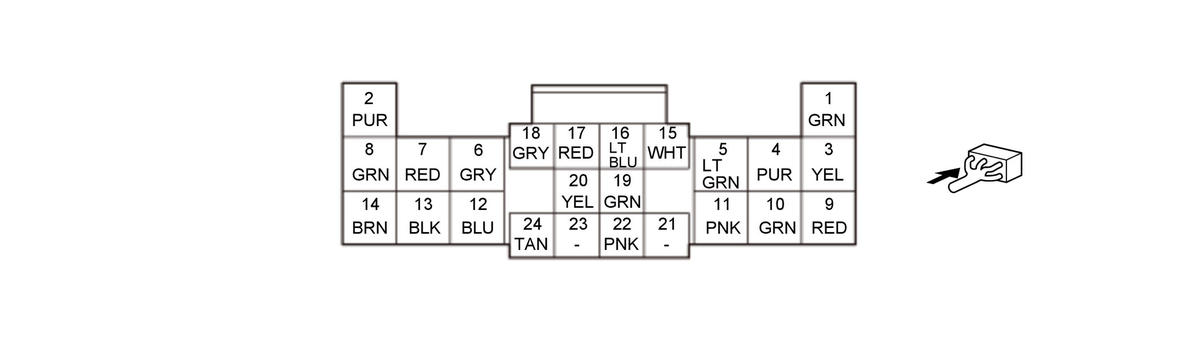

Adaptive Damper Control Unit 24P Connector (female terminals)
| Terminal Number | Terminal sign | Description |
|---|---|---|
| 1 | ADS_RR_L_G | Detects left-rear acceleration sensor signal |
| 2 | IG1_OPTION | Power source for the adaptive damper control unit |
| 3 | SOL_FL+ | Drives left-front damper coil |
| 4 | SOL_FL- | Ground for the left-front damper coil |
| 5 | SOL_RL+ | Drives left-rear damper coil |
| 6 | SOL_RR- | Ground for the right-rear damper coil |
| 7 | SOL_RR+ | Drives right-rear damper coil |
| 8 | +B_ADS | Power source for the fail-safe relay |
| 9 | SOL_FR- | Ground for the right-front damper coil |
| 10 | SOL_FR+ | Drives right-front damper coil |
| 11 | SOL_RL- | Ground for the left-rear damper coil |
| 12 | RLST | Detects left-rear suspension stroke sensor signal |
| 13 | GND | Ground for the adaptive damper control unit |
| 14 | ADS_FR_L_G | Detects front acceleration sensor signal |
| 15 | ADS_SG | Ground for the sensors |
| 16 | ADS_RR_R_STROKE | Detects right-rear suspension stroke sensor signal |
| 17 | ADS_SVCC | Power source for the sensors |
| 18 | ADS_FR_R_STROKE | Detects right-front suspension stroke sensor signal |
| 19 | VF-CAN B_H | F-CAN communication circuit |
| 20 | VF-CAN B_L | F-CAN communication circuit |
| 21 | Not used | --- |
| 22 | ADS_FR_R_G | Detects lright-rear acceleration sensor signal |
| 23 | Not used | --- |
| 24 | FLST | Detects left-front suspension stroke sensor signal |
