Body Electrical System - System Description - DTC Troubleshooting Index
›
Description & Operation
›

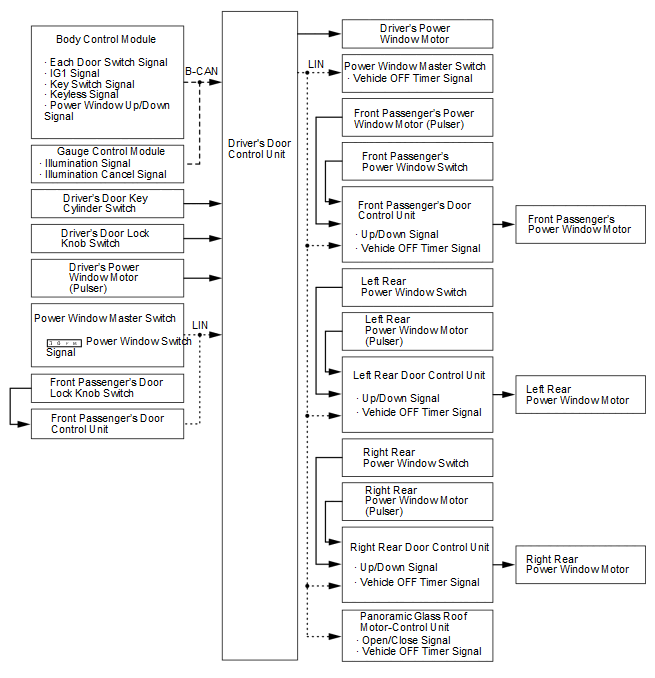

Power Windows System Description - System Diagram
Power Windows System Description - System Diagram
For locations of each component on vehicle, refer to Component Location Index
Courtesy of HONDA, U.S.A., INC.
