Massage Seats Component Location Index

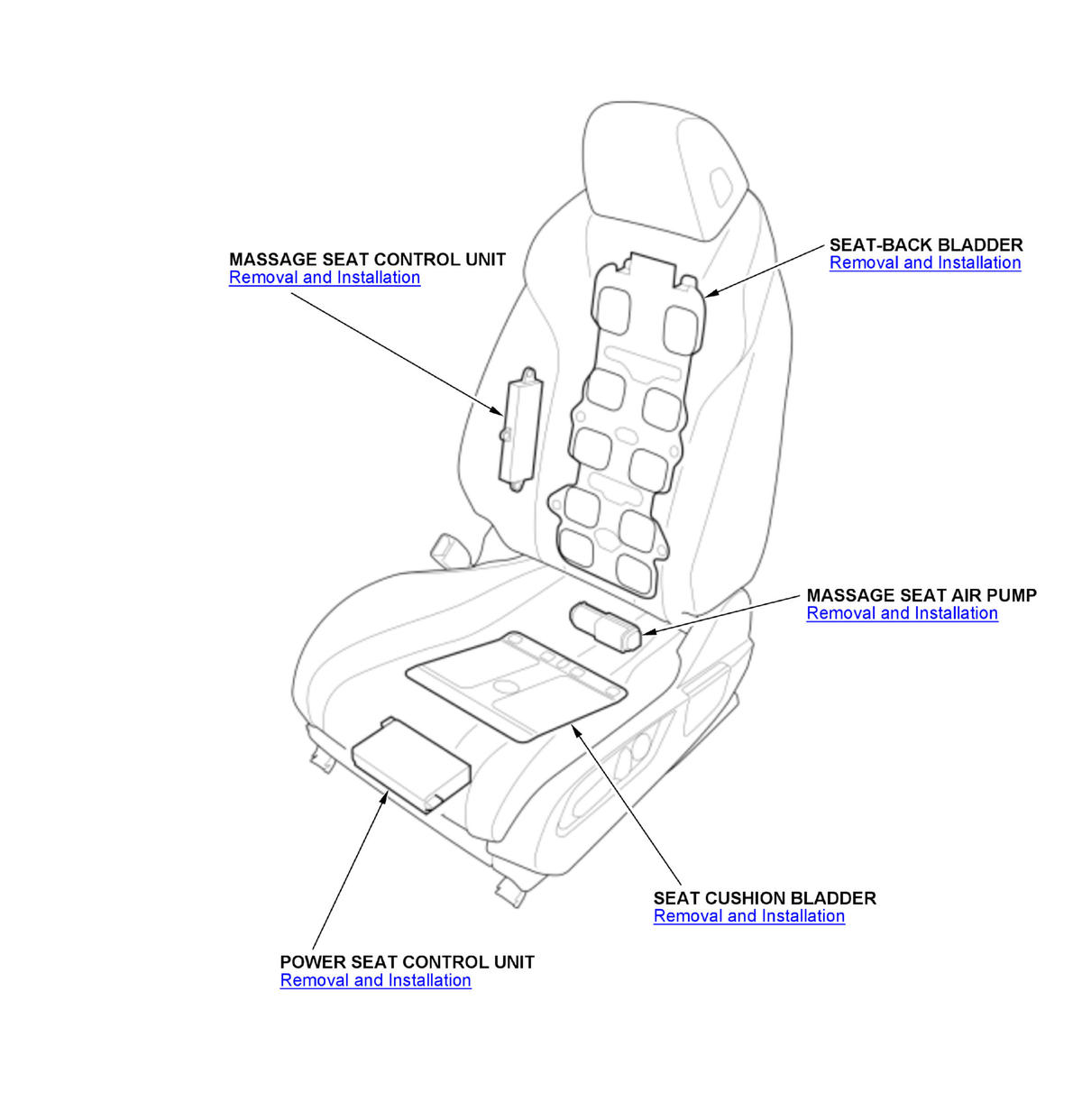

Driver's Seat

GHH524485

Courtesy of HONDA, U.S.A., INC.

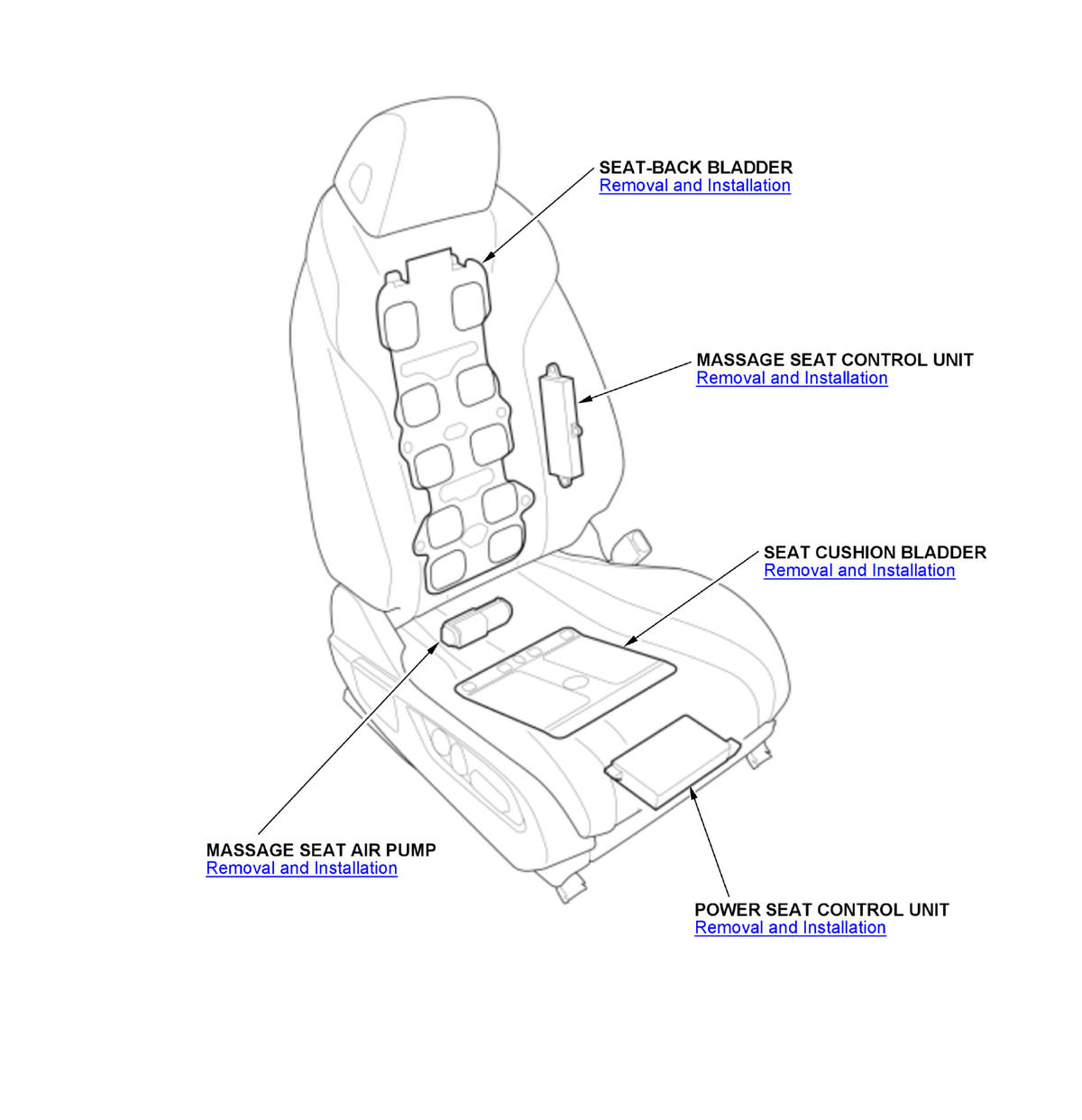

Front Passenger's Seat

GHH524486

Courtesy of HONDA, U.S.A., INC.

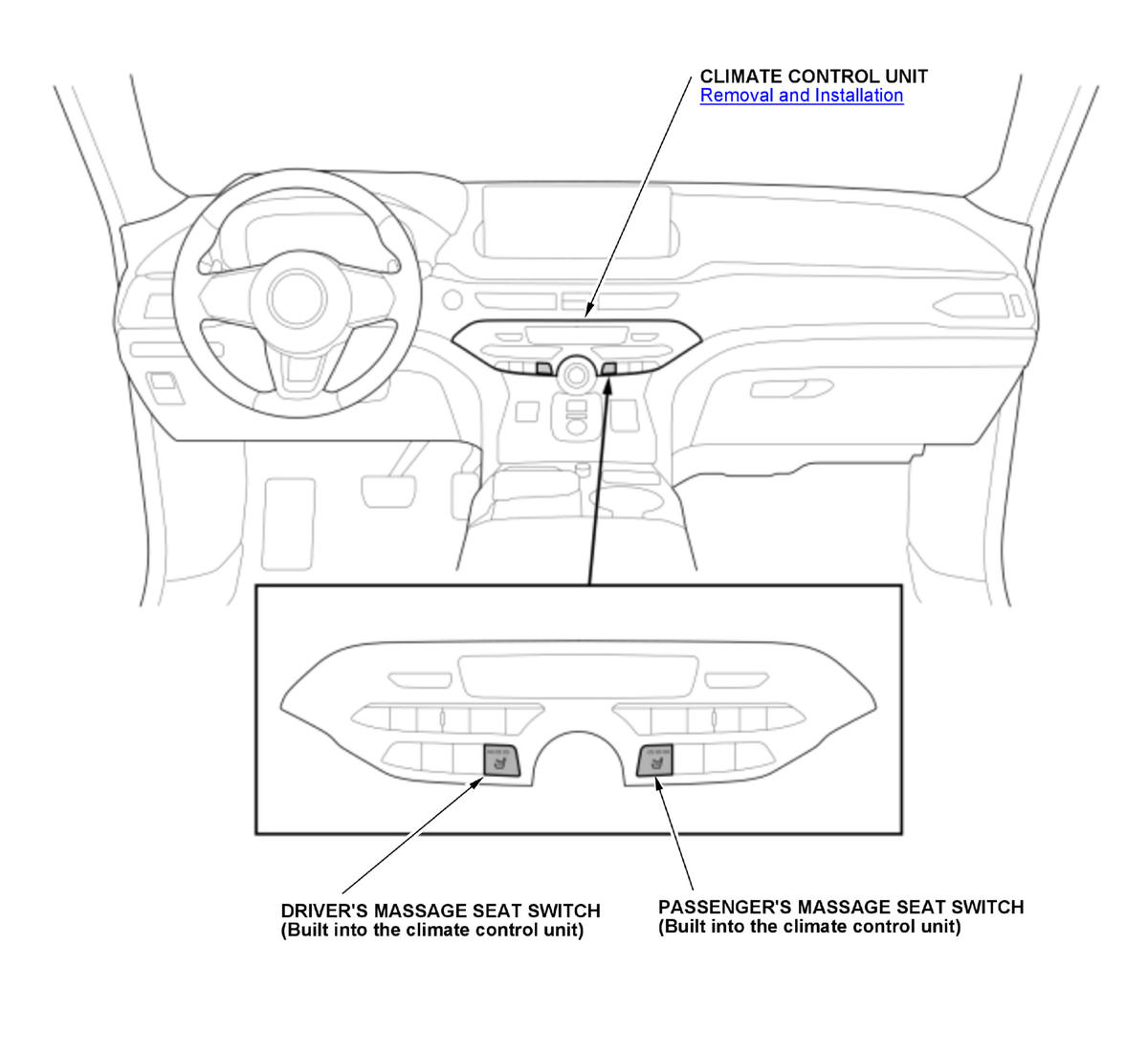

GHH524487

Courtesy of HONDA, U.S.A., INC.
