Parking and Back-Up Sensor System Component Location Index

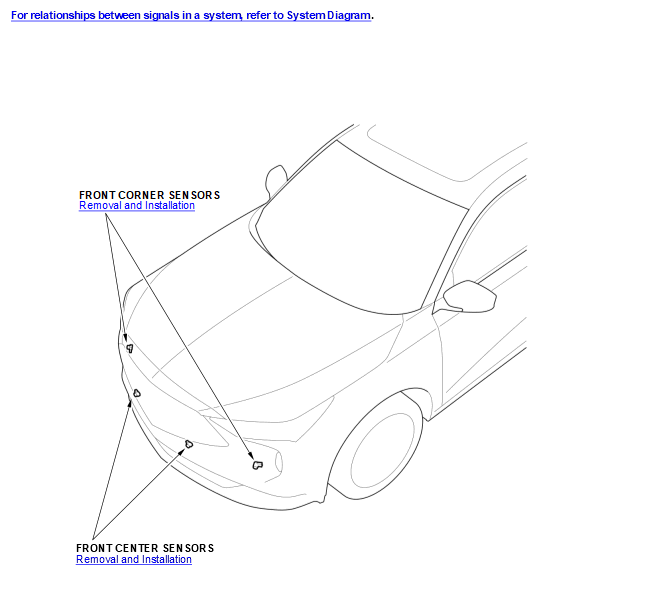

GHH659689

Courtesy of HONDA, U.S.A., INC.

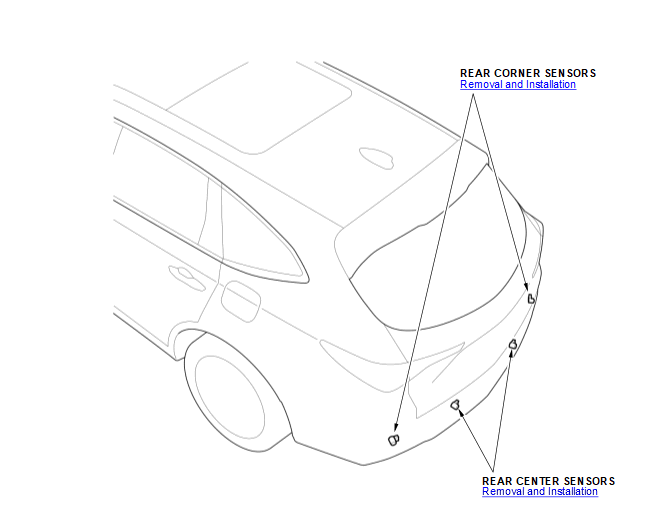

GHH659690

Courtesy of HONDA, U.S.A., INC.

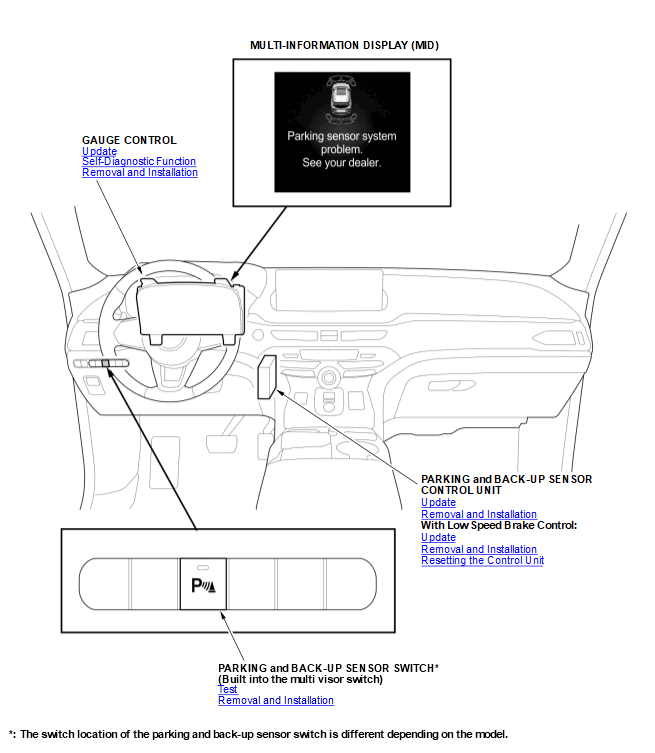

GHH659691

Courtesy of HONDA, U.S.A., INC.
