Seats Component Location Index

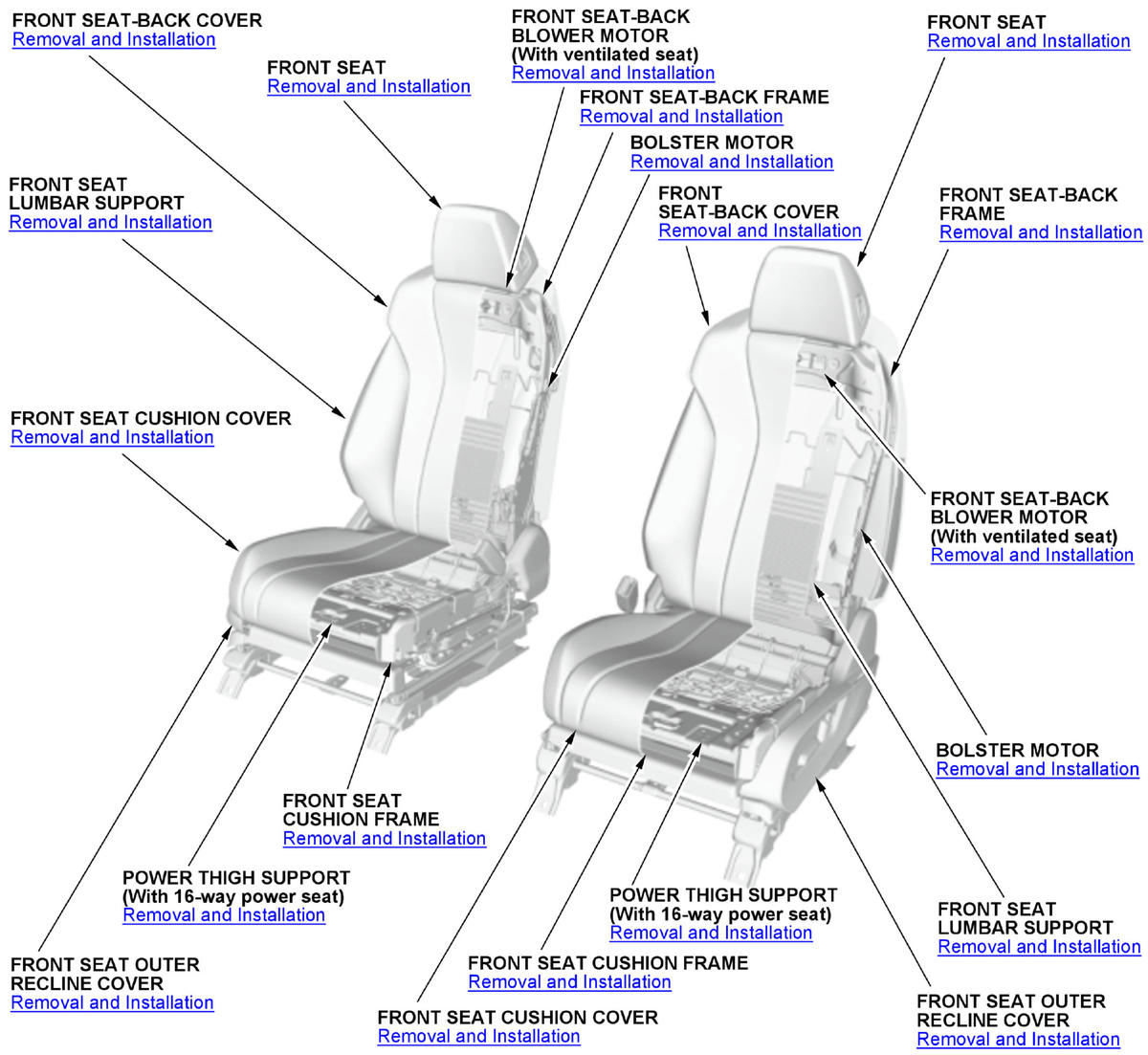

Front

GHH524505

Courtesy of HONDA, U.S.A., INC.

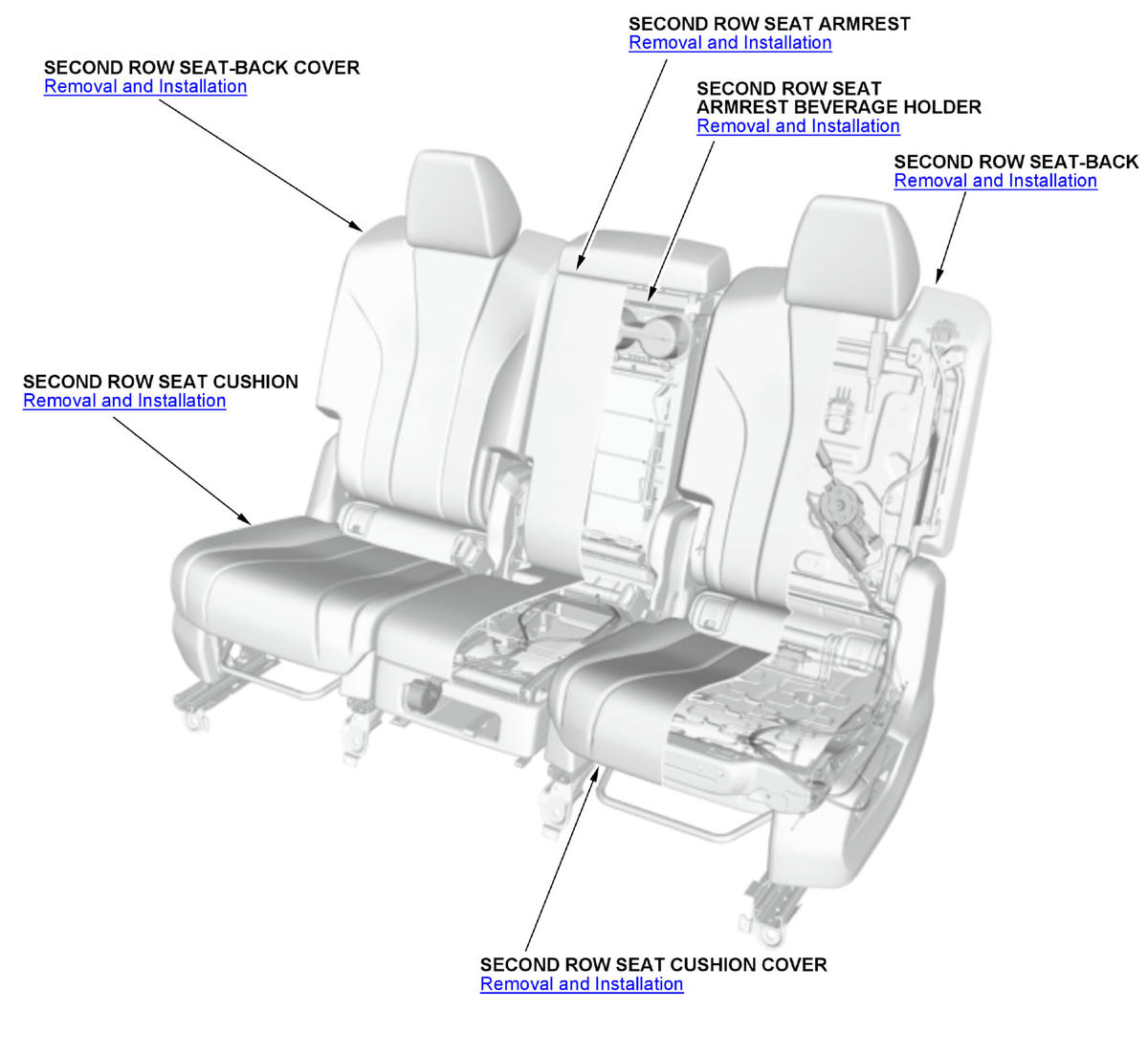

Second Row

GHH524506

Courtesy of HONDA, U.S.A., INC.

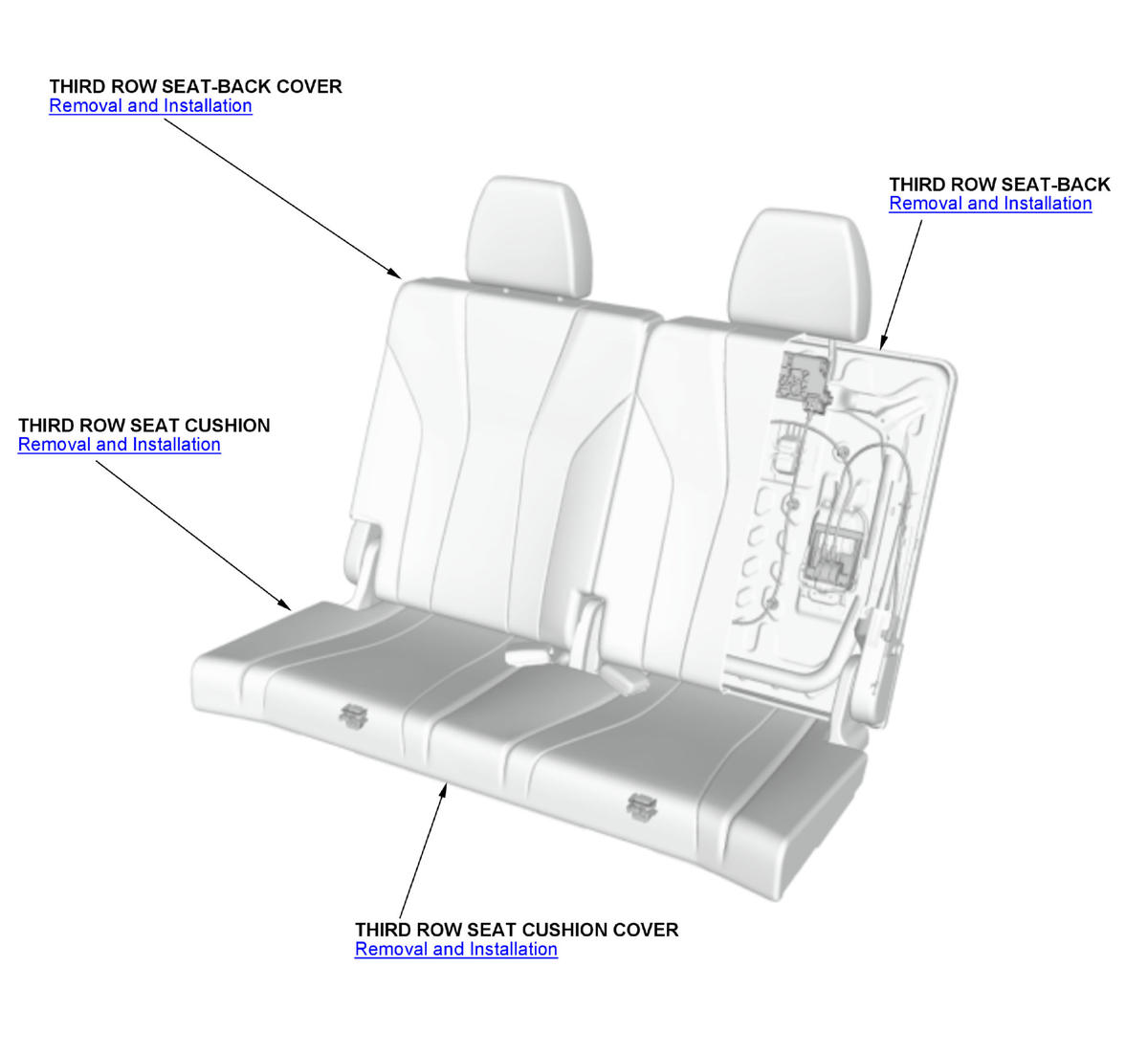

Third Row

GHH524507

Courtesy of HONDA, U.S.A., INC.
