Ventilated Seats Component Location Index

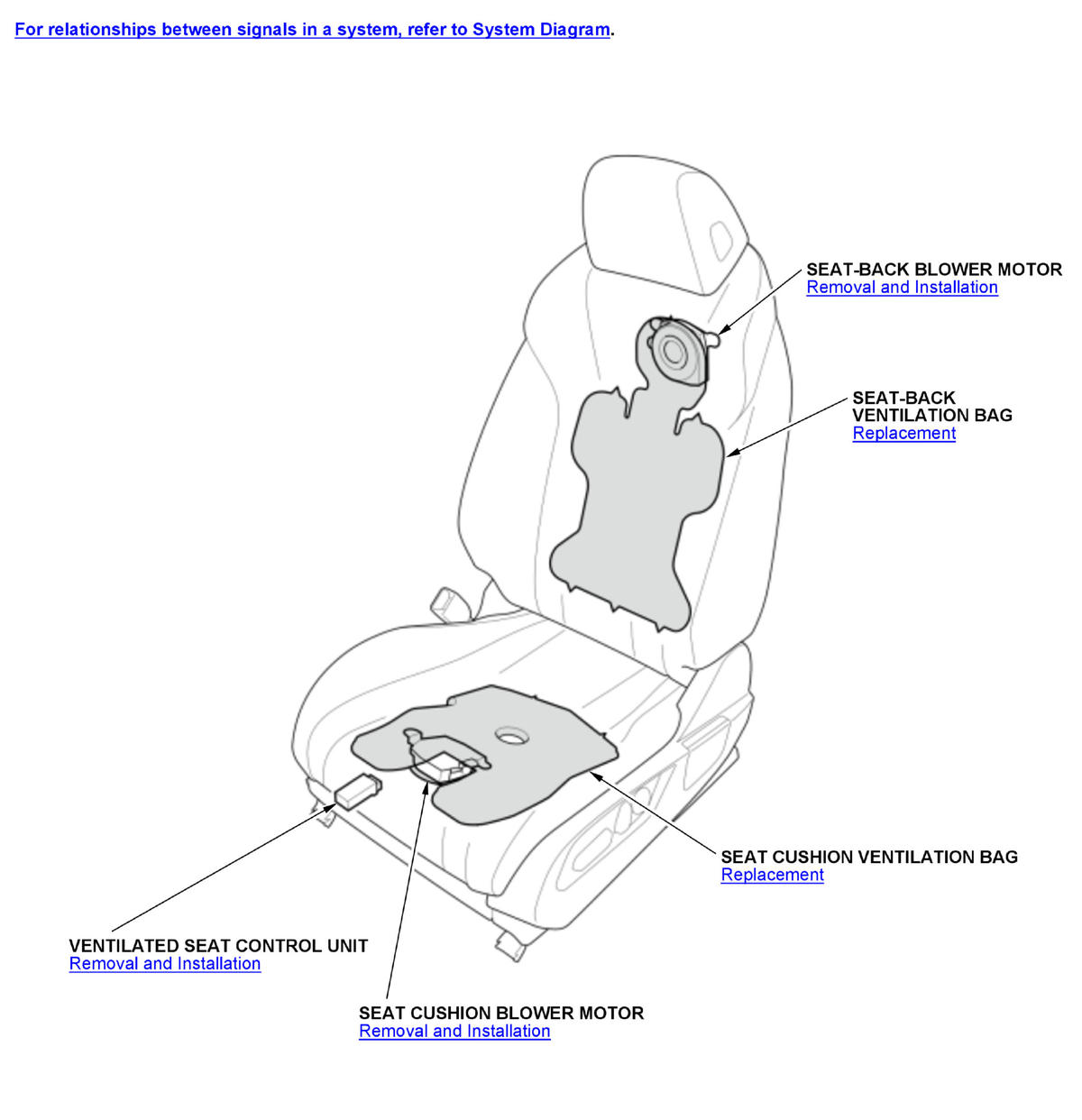

Driver's Seat

GHH524511

Courtesy of HONDA, U.S.A., INC.

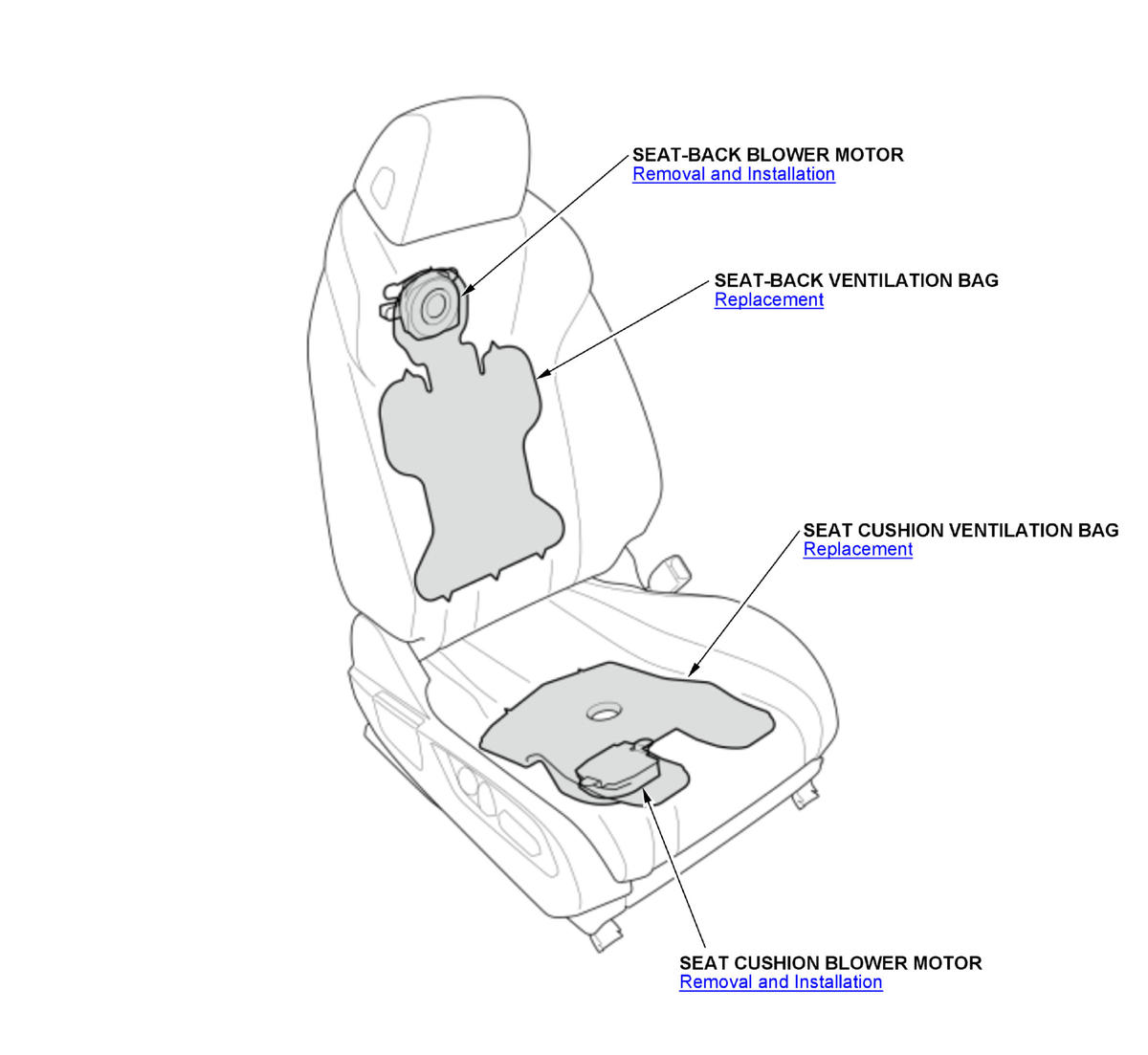

Front Passenger's Seat

GHH524512

Courtesy of HONDA, U.S.A., INC.

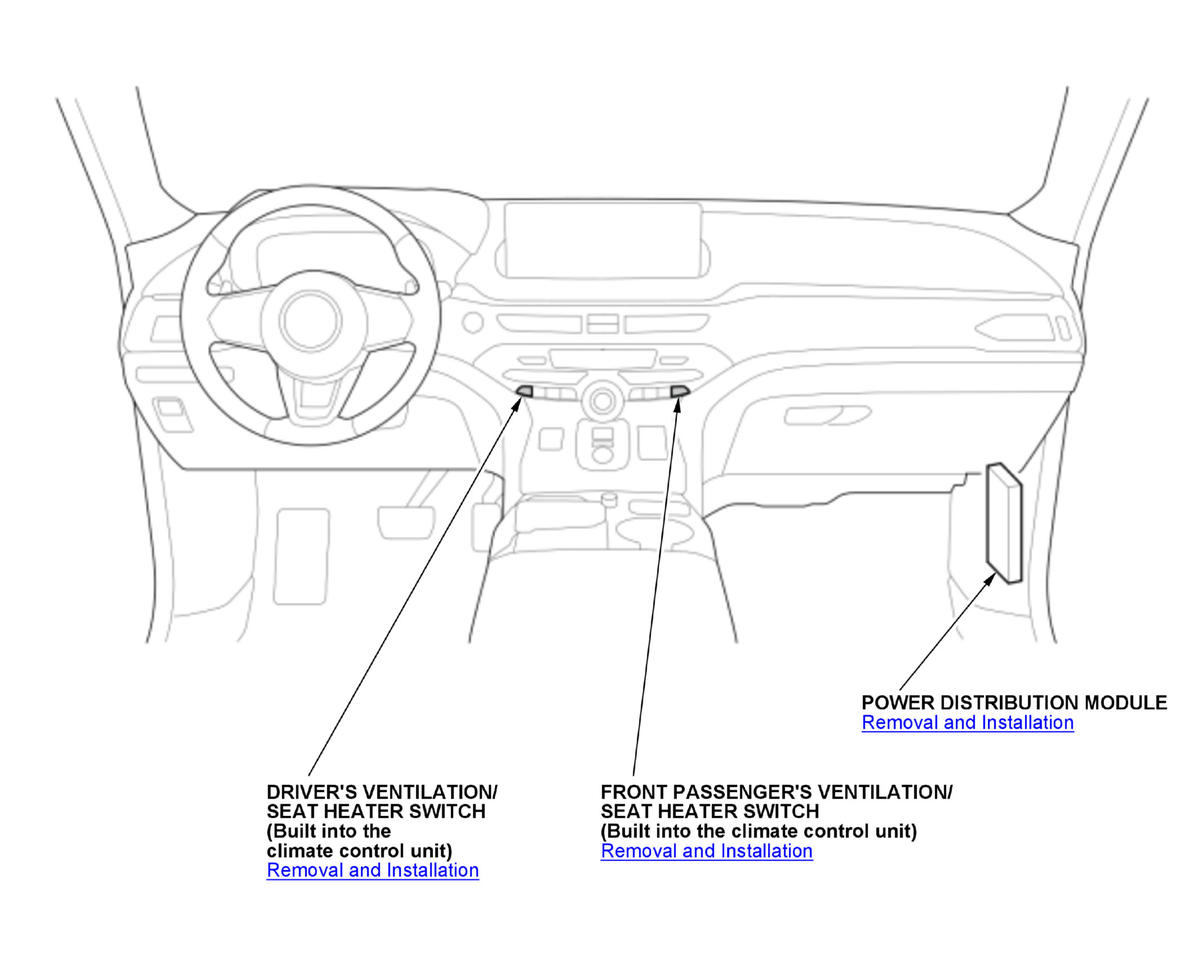

GHH524513

Courtesy of HONDA, U.S.A., INC.
