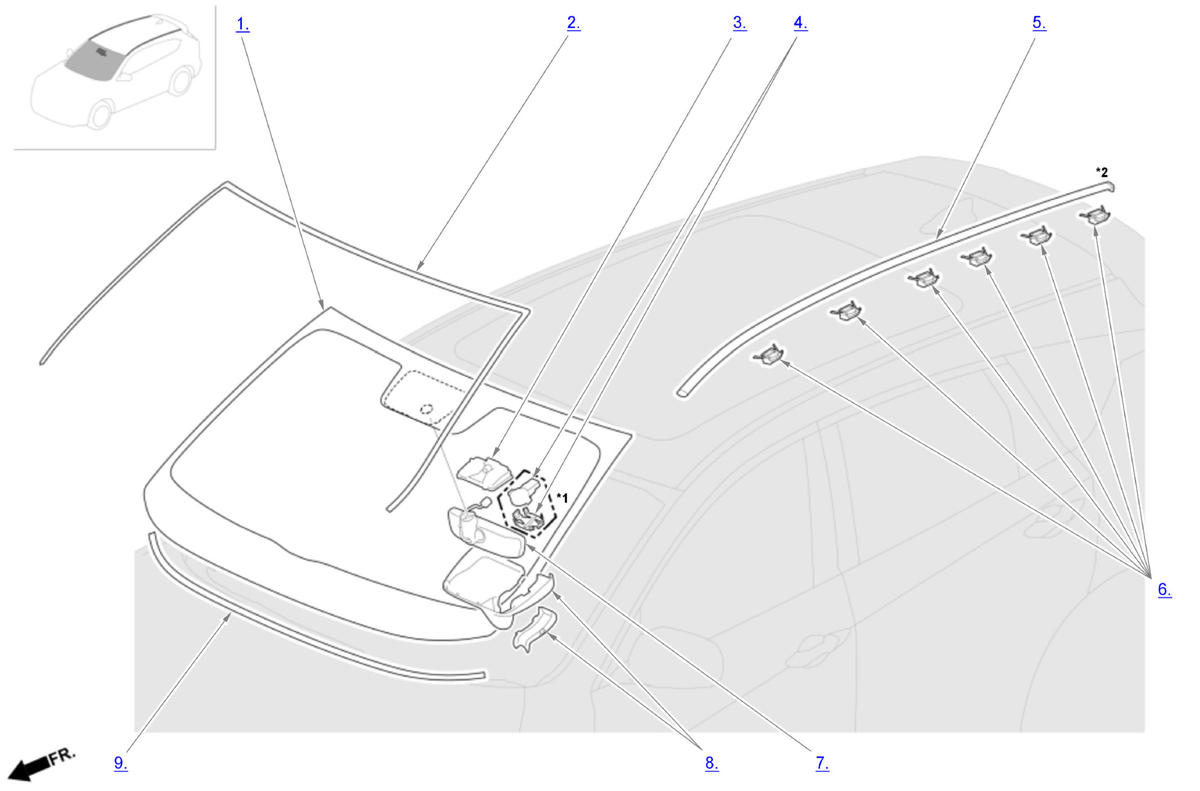

Exploded View
For replacement of components listed below, see Repair Procedure .
| *1: With Rain sensor *2: Part(s) are shown for one side only as the procedure is the same for both sides. |
Windshield Area Components
| Component Name | Callout |
|---|---|
| Windshield | 1 |
| Windshield Molding | 2 |
| Multipurpose Camera Unit | 3 |
| Automatic Lighting/Rain Sensor | 4 |
| Roof Molding | 5 |
| Retainer | 6 |
| Rearview Mirror | 7 |
| Camera Cover | 8 |
| Windshield Lower Molding | 9 |
