Body Electrical System - Troubleshooting - System Description
›
Circuit Diagram
›

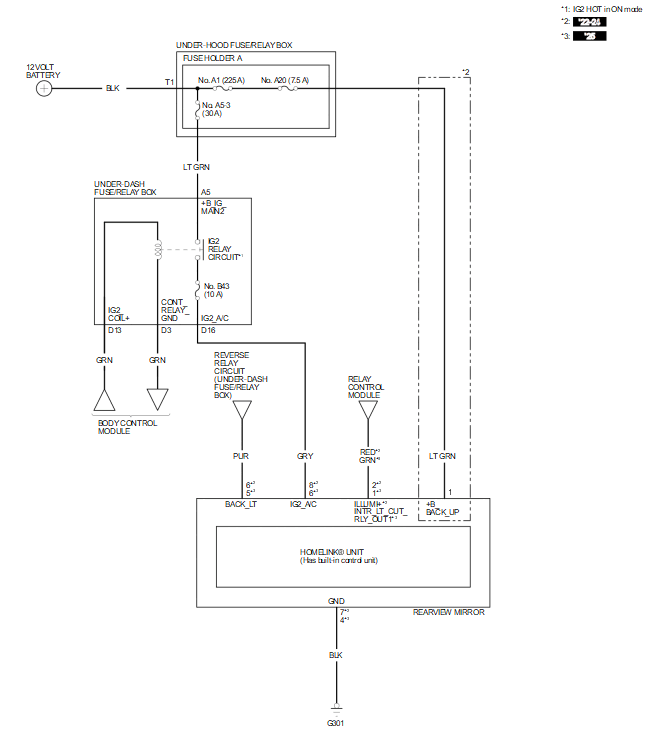

HomeLink Remote Control System Circuit Diagram (3.5L Engine)
HomeLink Remote Control System Circuit Diagram (3.5L Engine)
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
