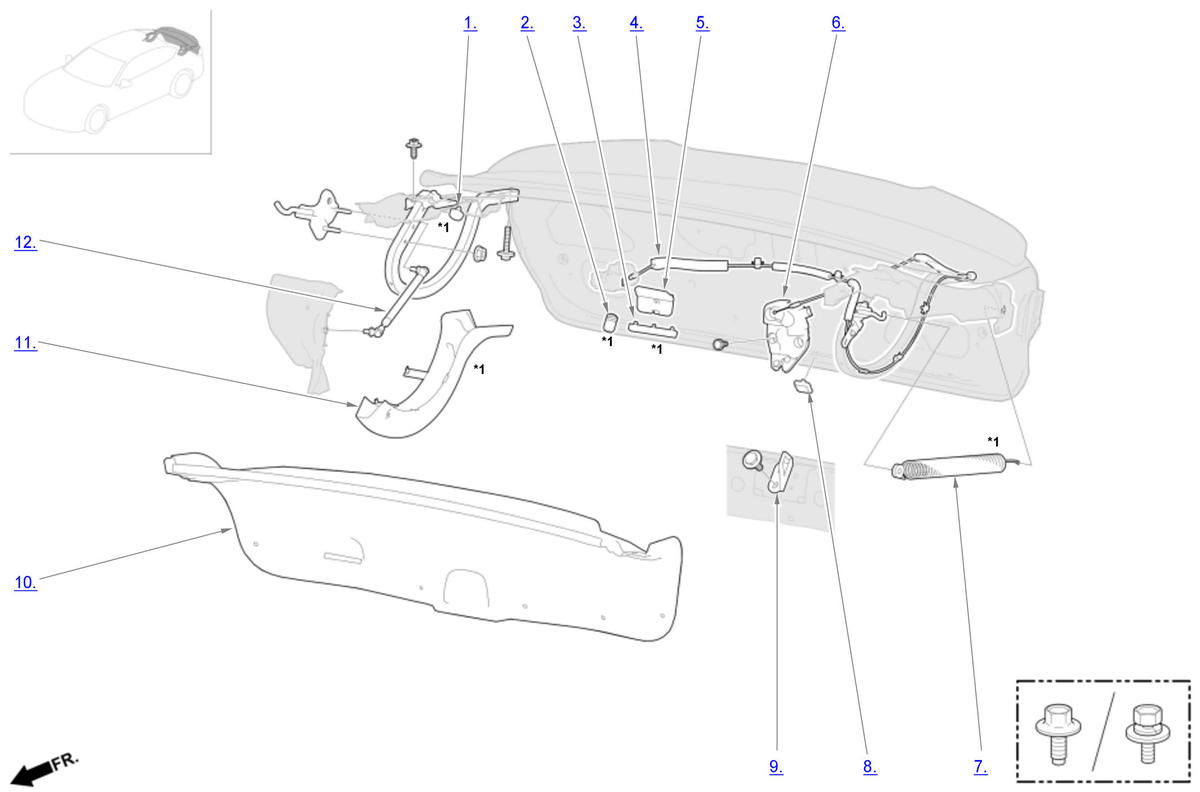

Exploded View Legend
For Replacement of components listed below, see Repair Procedure
| *1: Part(s) are shown for one side only as the procedure is the same for both sides. |
Trunk Lid
| Component Name | Callout |
|---|---|
| Trunk Lid Hinge Stopper | 1 |
| Trunk Lid Edge Cushion | 2 |
| Trunk Lid Cushion | 3 |
| Trunk Lid Opener Cable | 4 |
| Trunk Lid Handle | 5 |
| Trunk Lid Latch | 6 |
| Trunk Open Coil Spring | 7 |
| Drain Plug | 8 |
| Trunk Lid Striker | 9 |
| Trunk Lid Lining | 10 |
| Trunk Lid Hinge Cover | 11 |
| Trunk Lid Support Strut | 12 |
