Exploded View Legend

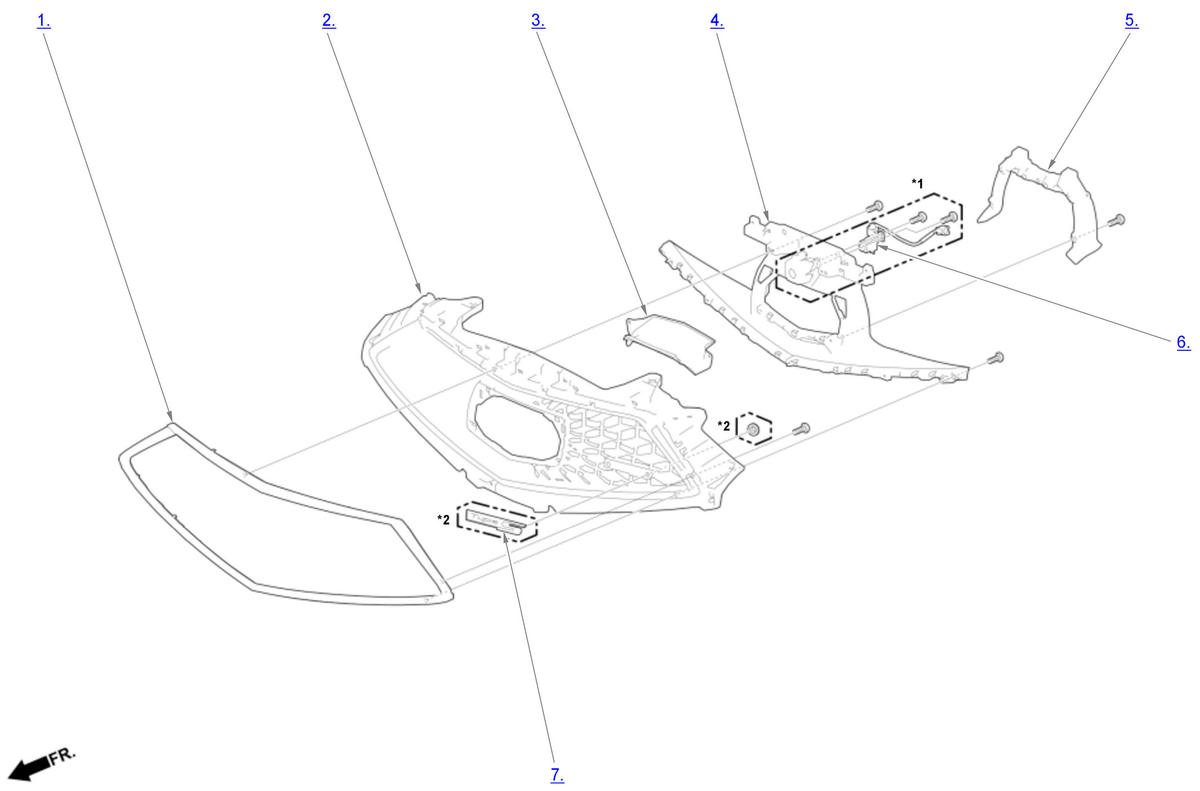

GHH561371Courtesy of HONDA, U.S.A., INC.
*1: With multi view camera system

*2: For some models

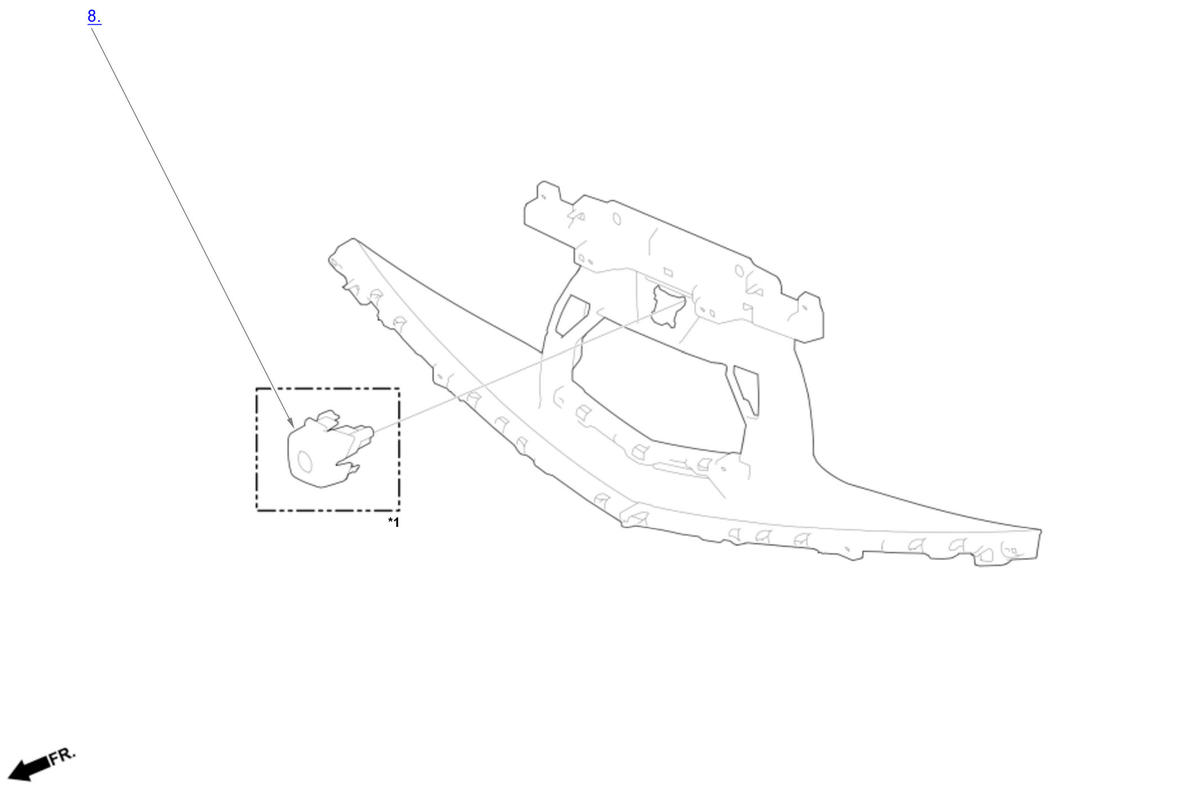

GHH561372Courtesy of HONDA, U.S.A., INC.
*1: With multi view camera system
  1. Front Grille Molding
  2. Front Grille Base
  3. Front Grille Radar Shroud
  4. Front Grille Blocker
  5. Front Grille Support
  6. Multi View Front Camera
  7. Front Type S Emblem
  8. Multi View Front Camera Cover
