Fuel Line/Quick-Connect Fitting Installation: Notes
NOTICE:
- Check the contact area (i) of the line (k) for dirt, and clean it if needed. (Figure 9)
- If the quick-connect fittings is hard to connect, apply engine oil on the line end (m). (Figure 9)
Lubricant Specification (Figure 9)
| Application Position |
Type |
Amount |
| m |
Engine Oil |
Small amount |

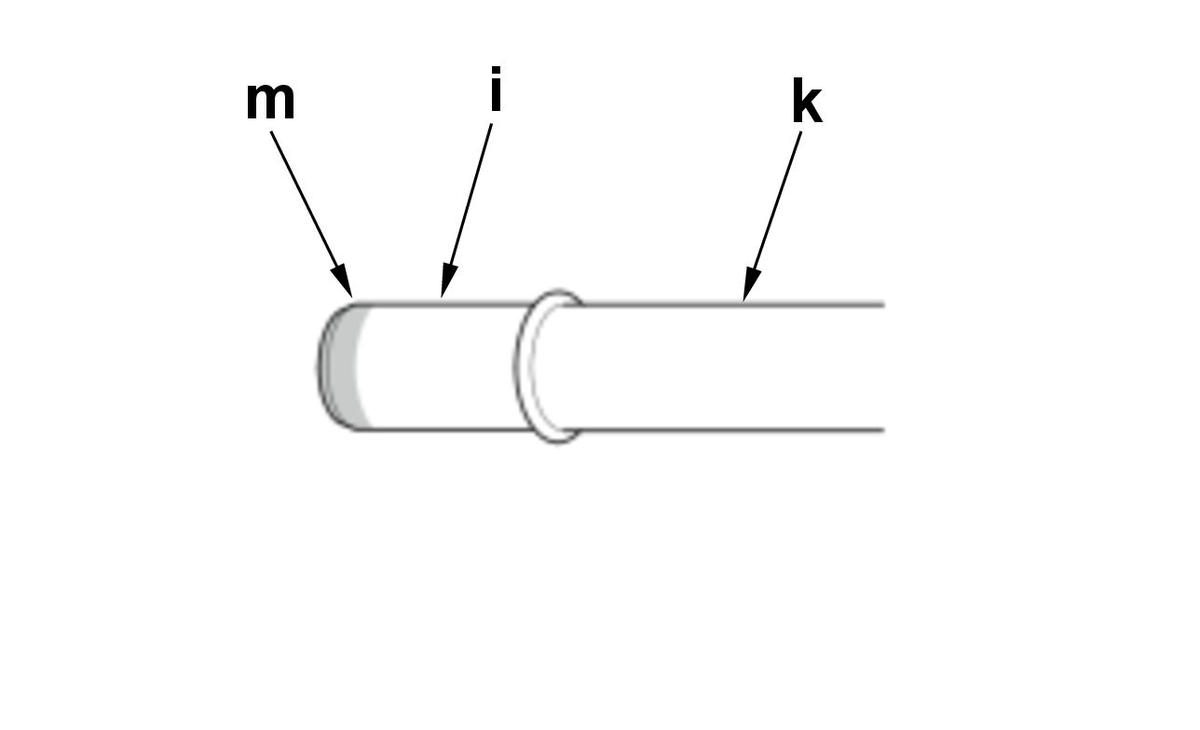

Figure 9
 Courtesy of HONDA, U.S.A., INC.
|
