Engine Configuration (1.5L Engine)
Engine Configuration (1.5L Engine)

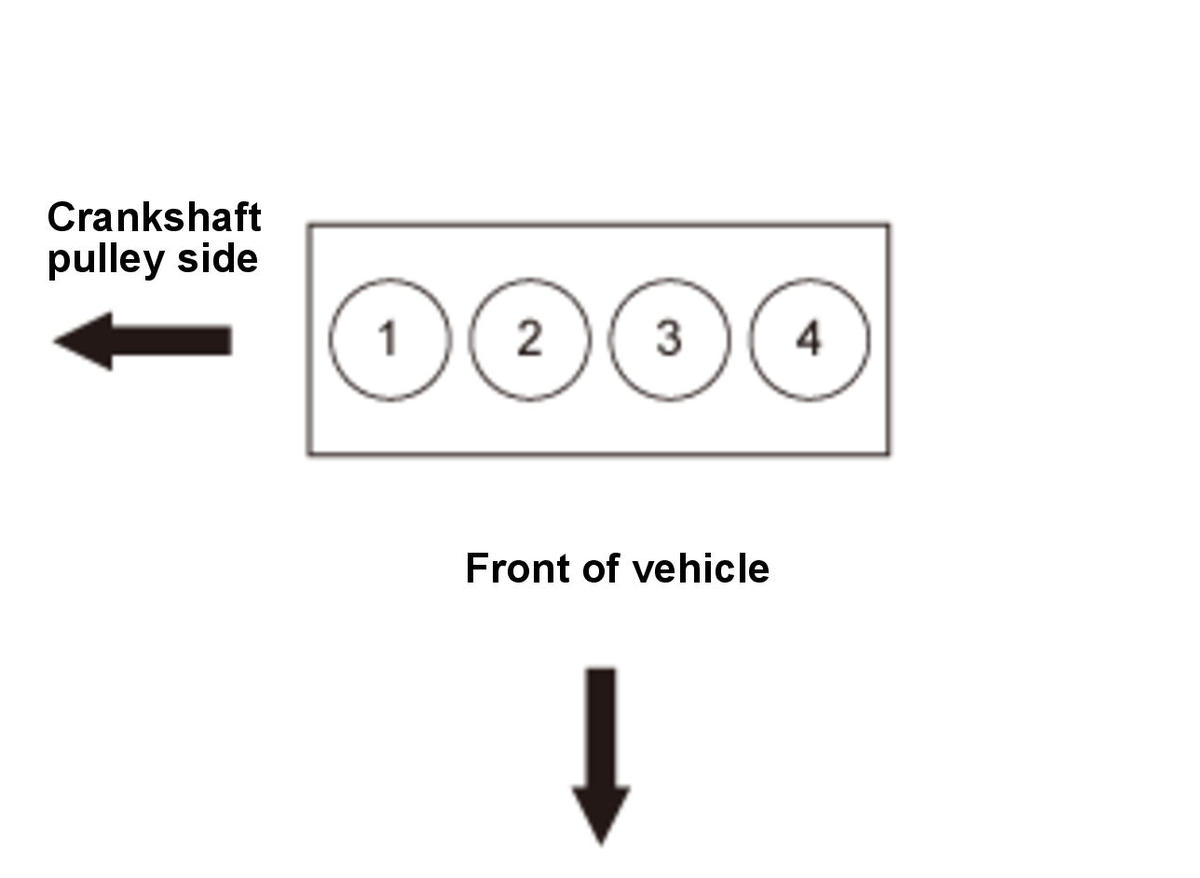

Cylinder Arrangement/Firing Order: 1-3-4-2
Courtesy of HONDA, U.S.A., INC.

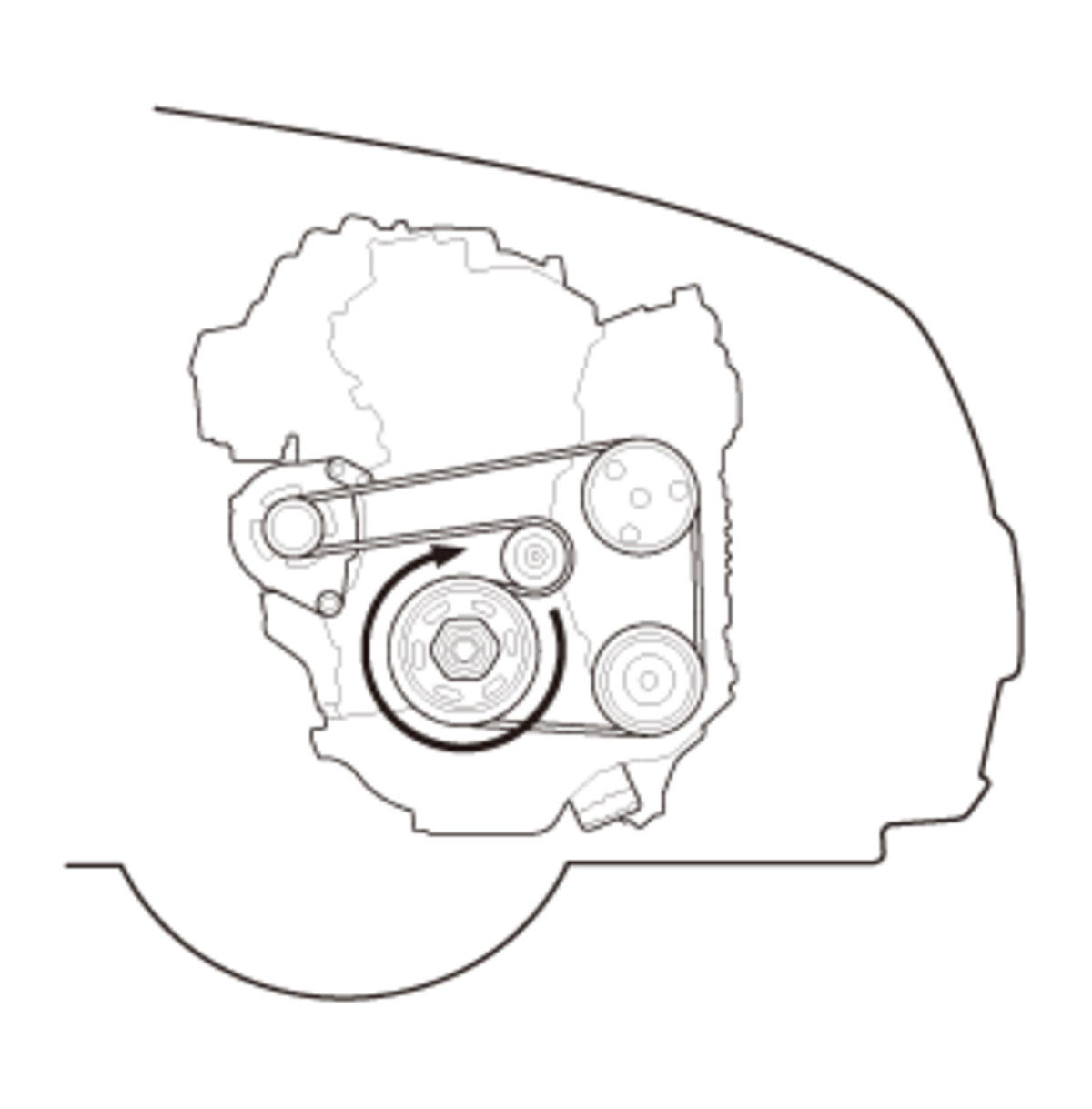

Engine Rotation: Clockwise
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
