Exploded View

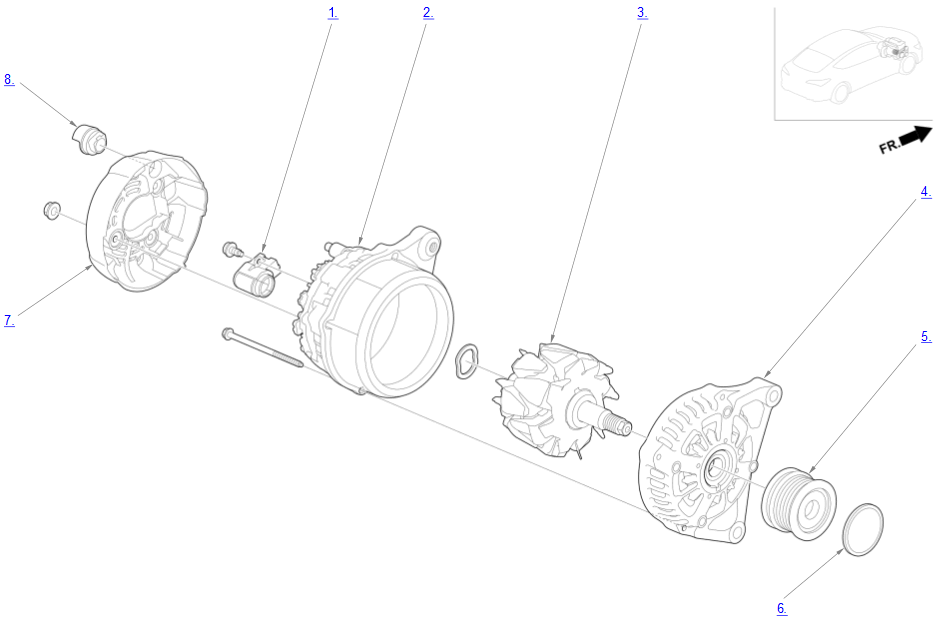

GHH651316Courtesy of HONDA, U.S.A., INC.

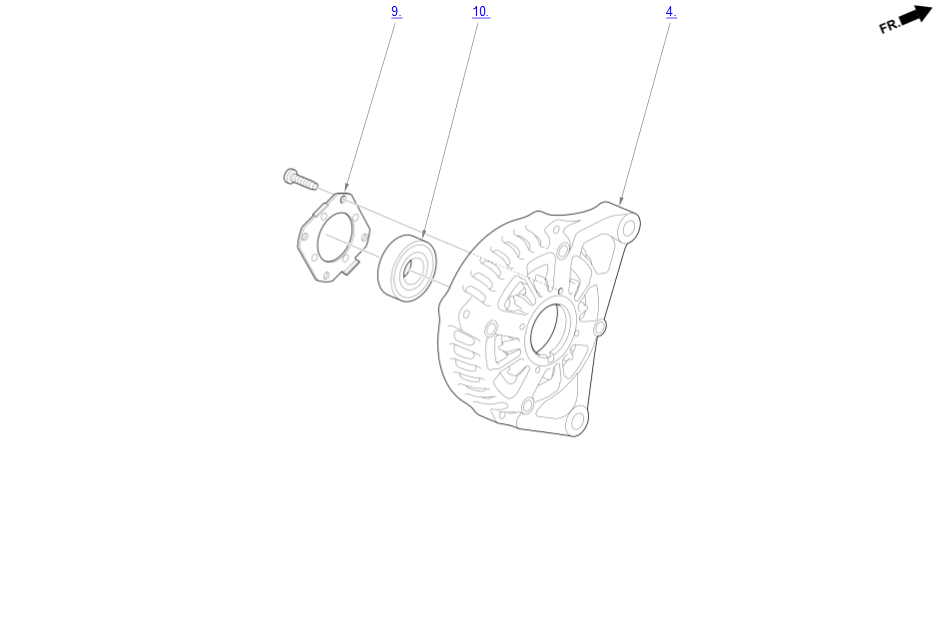

GHH651317Courtesy of HONDA, U.S.A., INC.
  1. Brush Holder
  2. Stator Assembly
  3. Rotor
  4. Drive-End Housing
  5. Over-Run Alternator Decoupler (OAD) Pulley
  6. OAD Pulley Seal Cap
  7. End Cover
  8. Terminal Insulator
  9. Front Bearing Retainer
  10. Front Bearing
