Wheel Alignment: Adjustment

NOTE:

The suspension can be adjusted for front toe and rear toe.
After adjusting the wheel alignment, do the VSA sensor neutral position memorization - Refer to: VSA Modulator-Control Unit Update or VSA Sensor Neutral Position Memorization .

Rear Toe - Adjust
NOTE: Do the rear toe adjustment before the front toe adjustment.

Preconditions
- Vehicle Lifted Up
Courtesy of HONDA, U.S.A., INC.

Procedure/Specifications

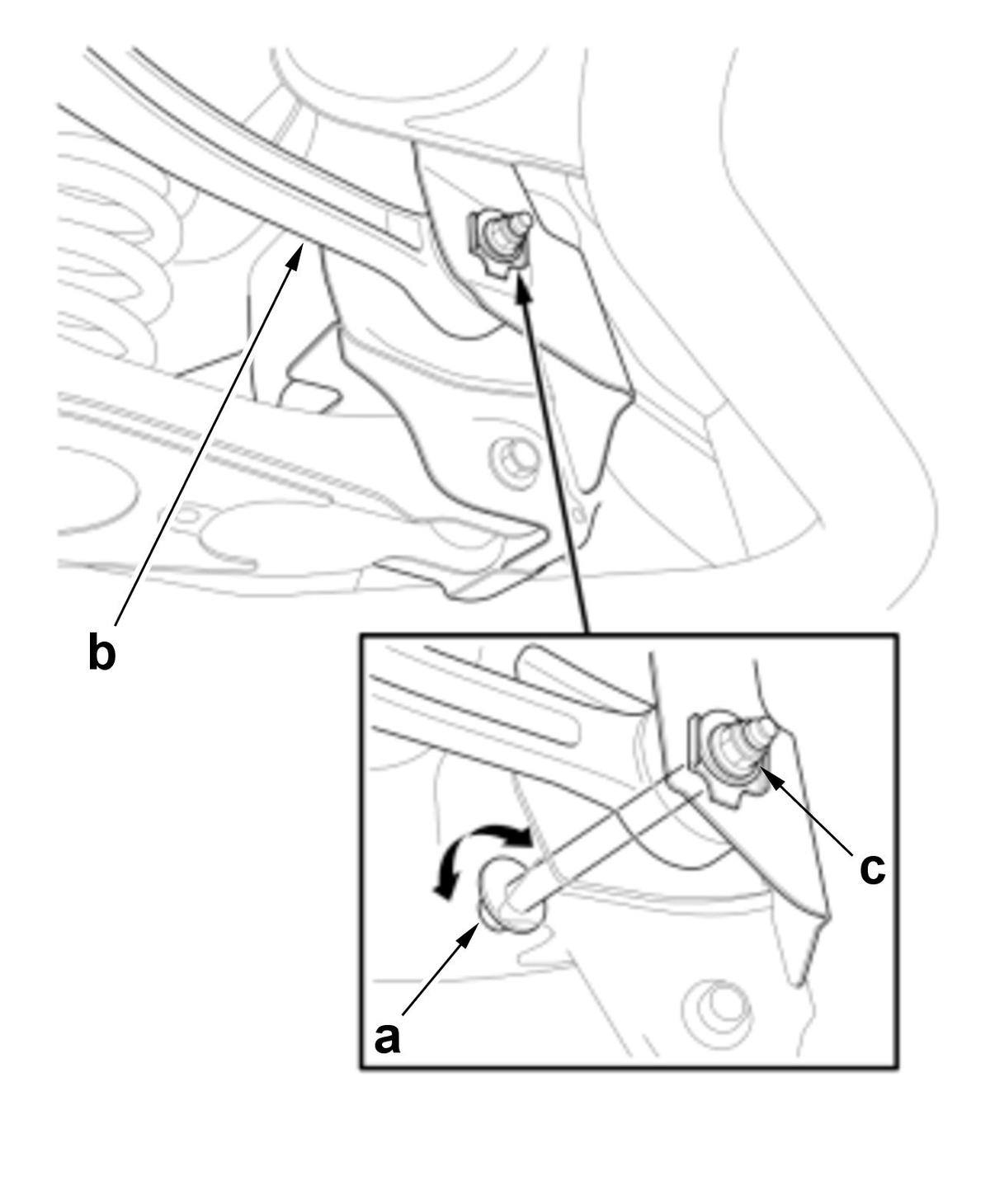

1. Hold the adjusting bolt (a) on the control arm (b), and remove the nut (c).

2. Replace the nut with a new one, and lightly tighten it.
NOTE:
- Always use a new nut whenever it has been loosened.
- Reassemble the bolt and the adjusting cam plate with the eccentric facing up.
3. Adjust the rear toe by turning the adjusting bolt until the toe is correct.

4. Tighten the nut to the specified torque

while holding the bolt.

After Adjustment
- VSA Sensor Neutral Position Memorization - Refer to: VSA Modulator-Control Unit Update or VSA Sensor Neutral Position Memorization
Front Toe - Adjust
Preconditions
- Vehicle Lifted Up (As needed)
Courtesy of HONDA, U.S.A., INC.

Procedure/Specifications

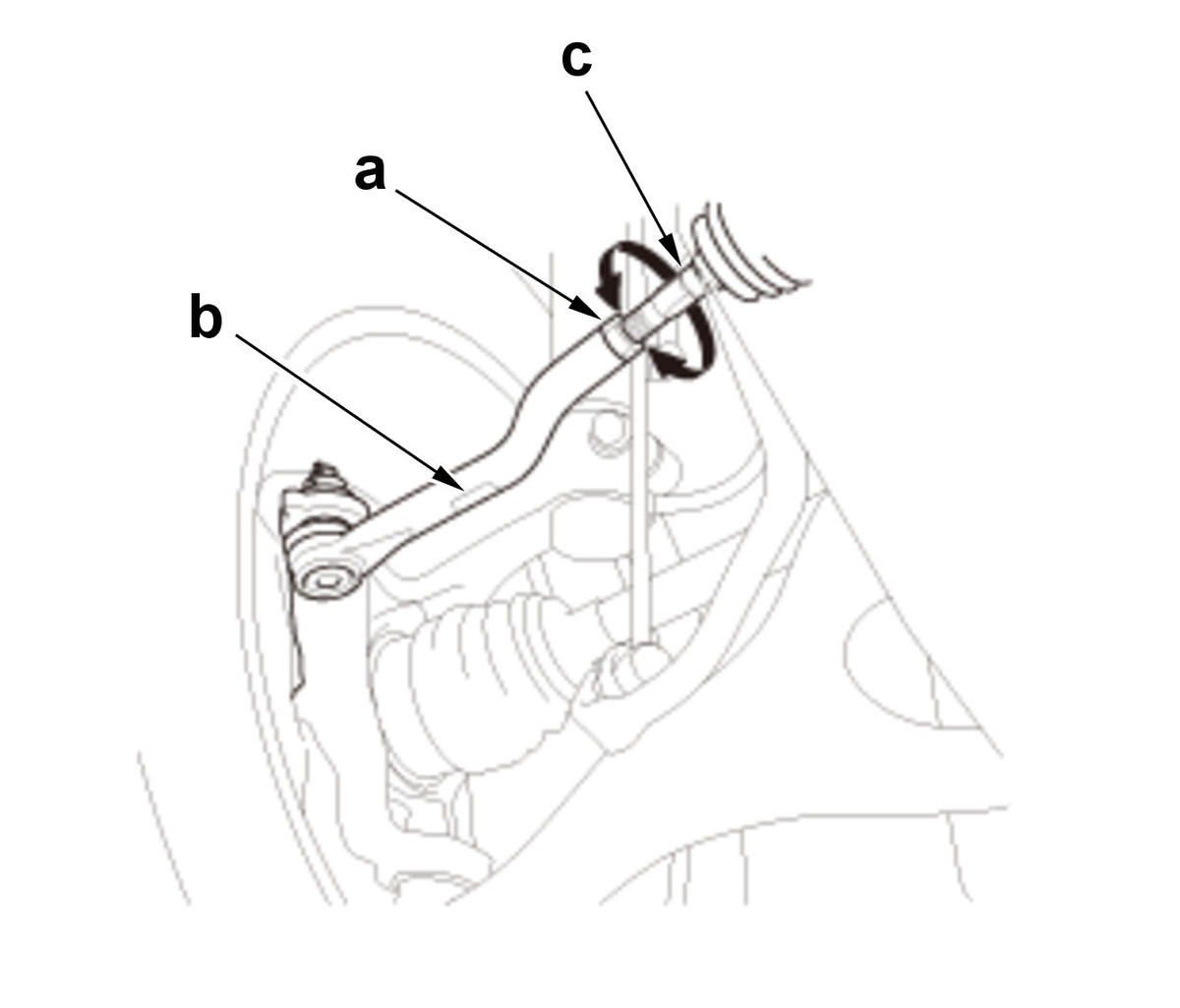

1. Loosen the nuts (a) while holding the flat surface (b) of the tie-rod end with a wrench, and turn both tie-rods (c) until the front toe is within specifications.

2. After adjusting, tighten the nuts to the specified torque

NOTE: Reposition the boot if it is twisted or displaced.

After Adjustment
- VSA Sensor Neutral Position Memorization - Refer to: VSA Modulator-Control Unit Update or VSA Sensor Neutral Position Memorization
