Exploded View Legend

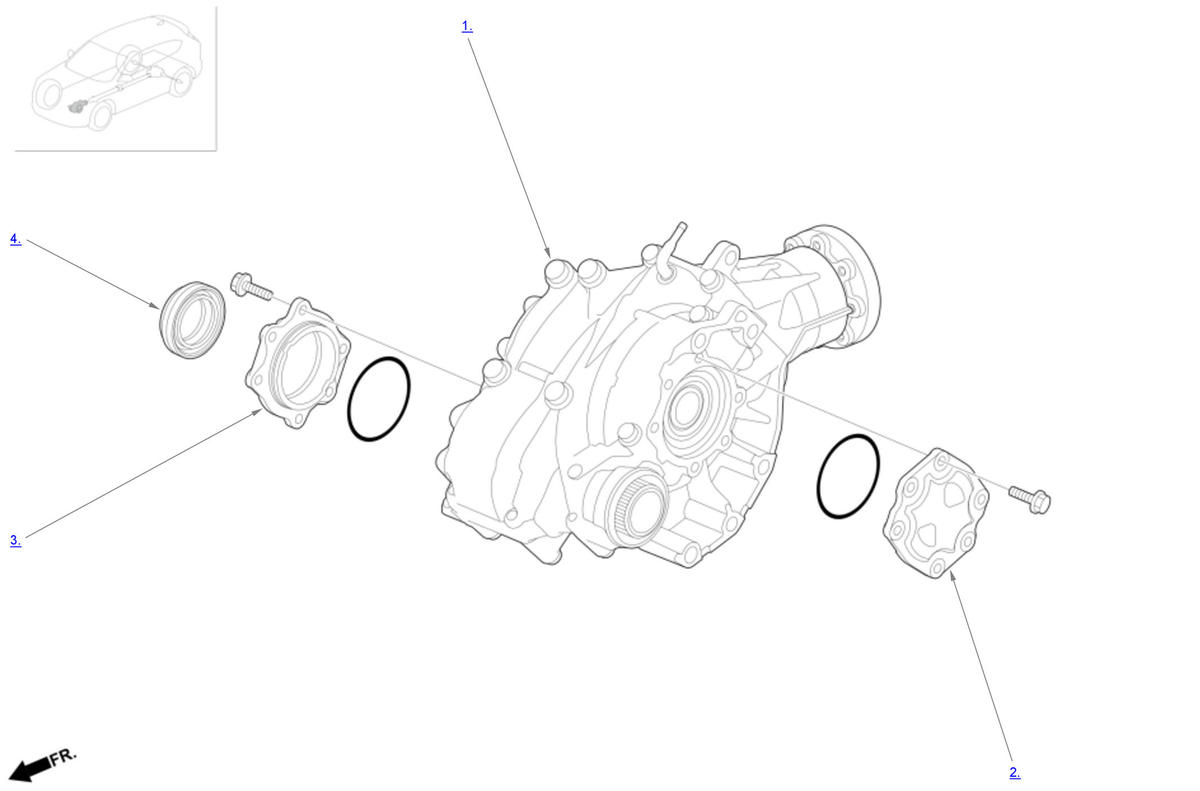

GHH563281Courtesy of HONDA, U.S.A., INC.
  1. Transfer Assembly
  2. Left Side Cap
  3. Right Side Cap
  4. Transfer Oil Seal
