Engine Block Assembly Component Location Index (1.5L Engine)

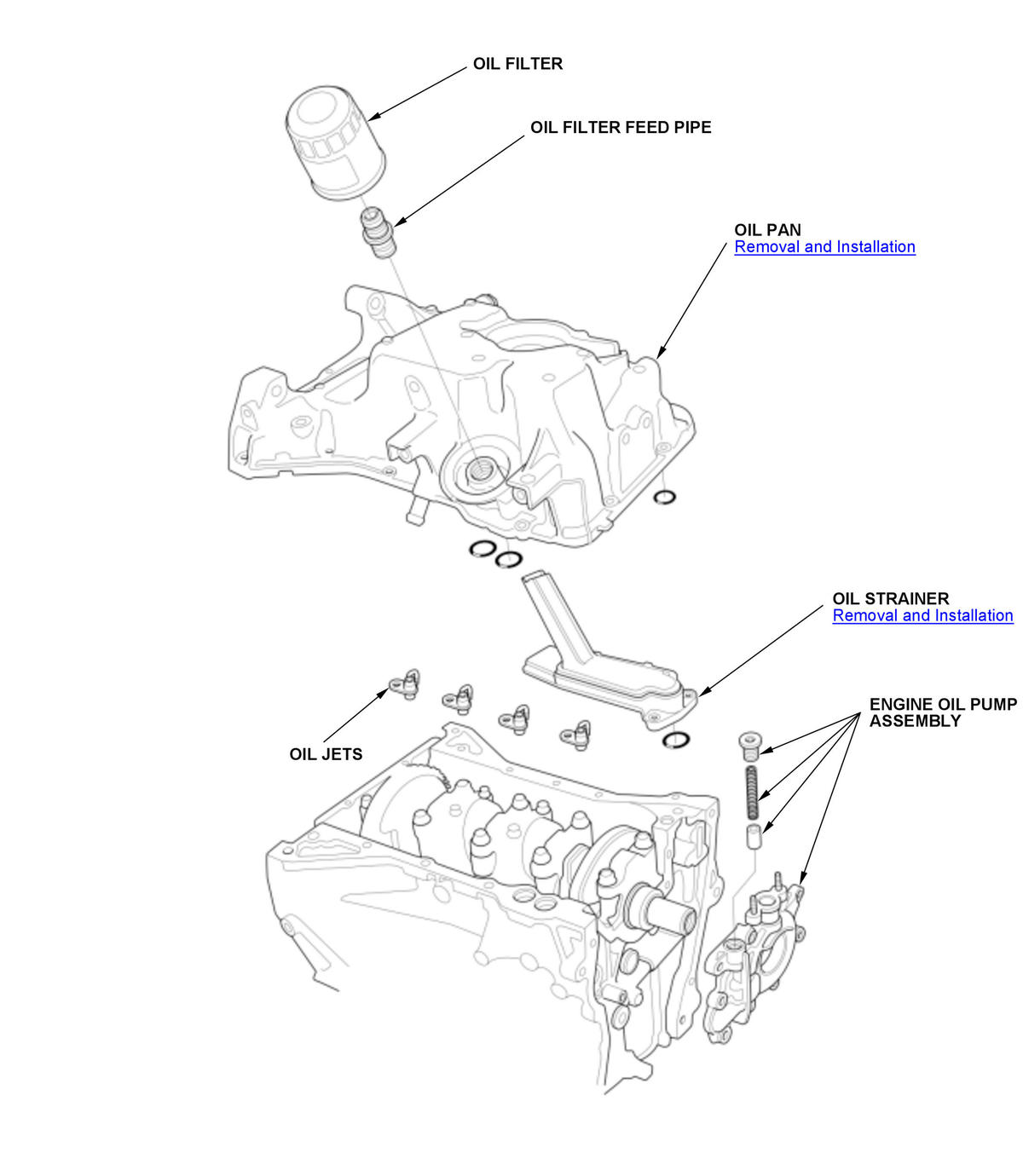

GHH530969

Courtesy of HONDA, U.S.A., INC.

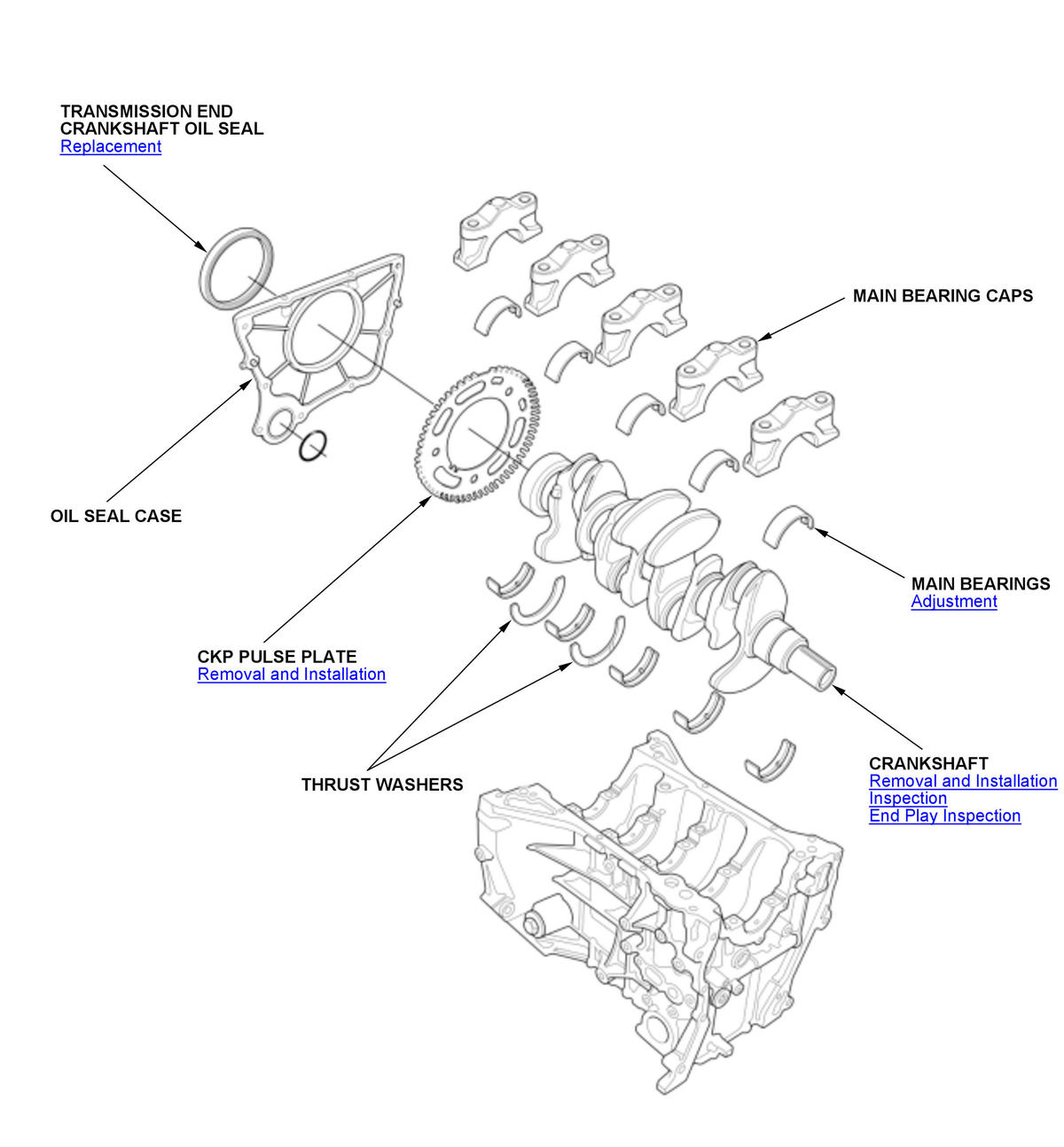

GHH530970

Courtesy of HONDA, U.S.A., INC.

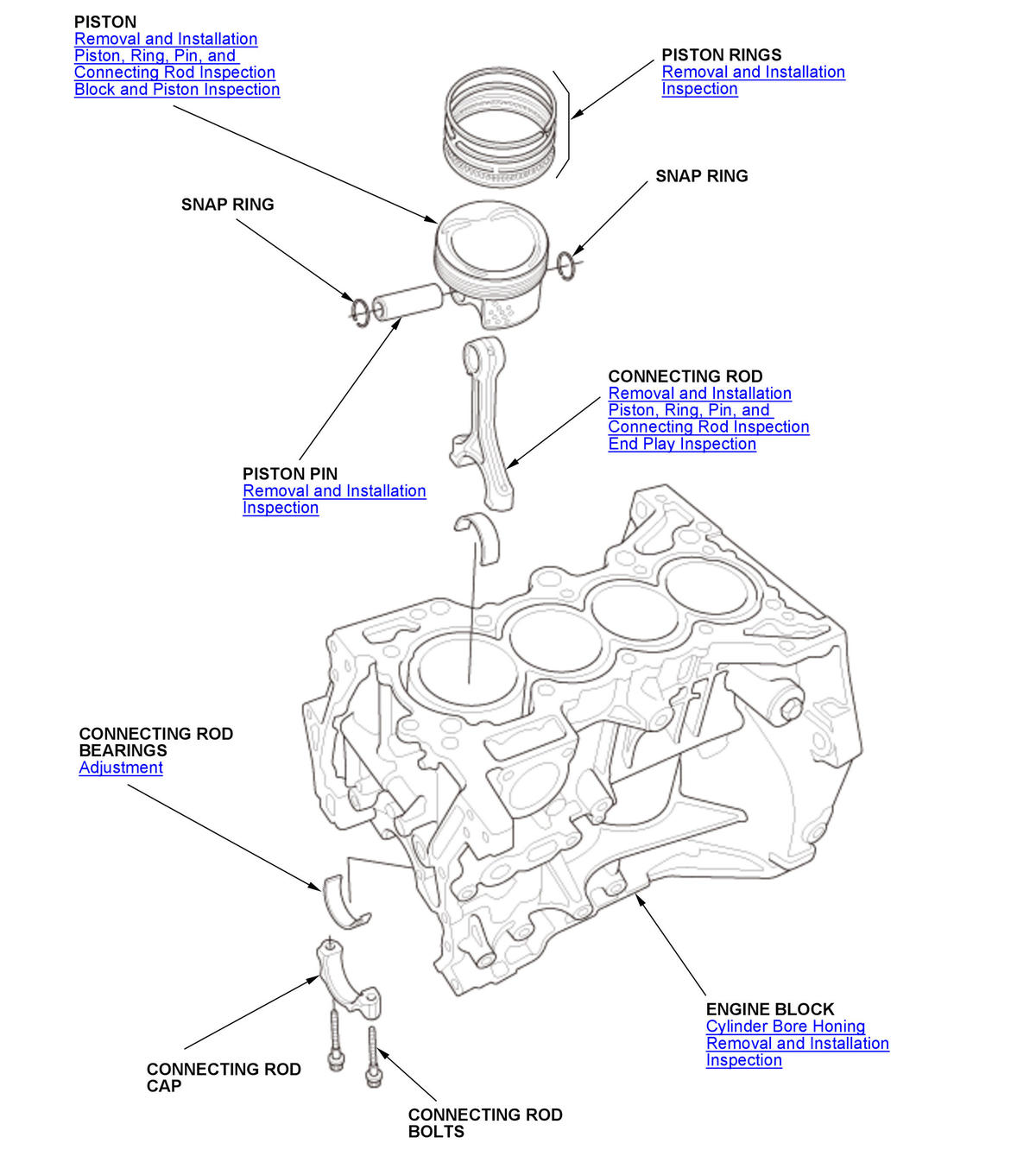

GHH530971

Courtesy of HONDA, U.S.A., INC.
