Turbocharger Bypass Control Line Visual Inspection

Test Procedure

• Procedure
• • -

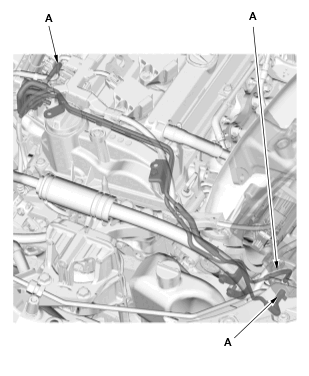

    Visually inspect each of the components below (A) for disconnected hoses, blockages, or damages.

Courtesy of HONDA, U.S.A., INC.

• Normal Conditions
• • -

    There is no disconnected hoses, blockages, or damages.

Results

• If it is abnormal, there is a problem with the parts on the turbocharger bypass control line.
