DTC Advanced Diagnostics: P0712, P0713
DTC P0712 : Transmission Fluid Temperature Sensor Circuit Low DTC P0713 : Transmission Fluid Temperature Sensor Circuit High
General Description

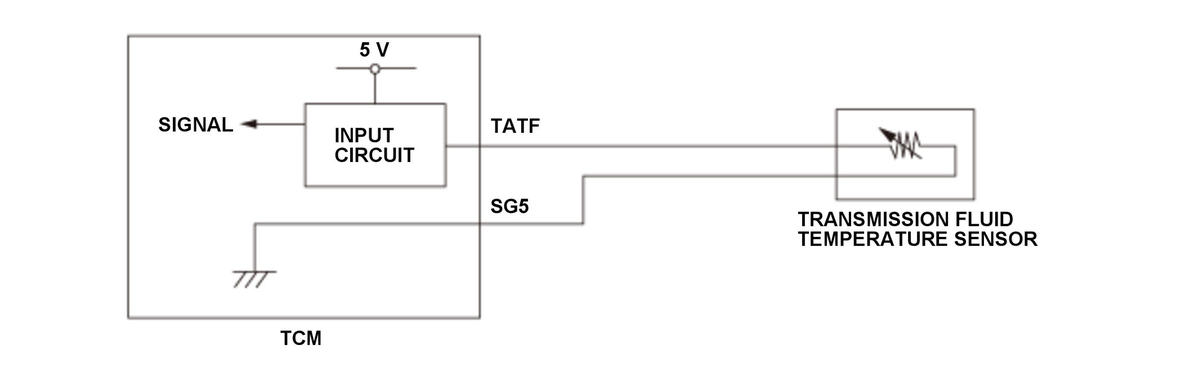

The transmission fluid temperature sensor is a thermistor type sensor that changes resistance according to the change in transmission fluid temperature. The transmission control module (TCM) sends a 5 V reference signal to the sensor through a pull-up resistor. When the transmission fluid temperature is low, the sensor resistance increases and the TCM detects a high signal voltage. As the transmission fluid temperature rises, the sensor resistance decreases and the TCM detects a low signal voltage. When the transmission fluid temperature sensor signal voltage to the TCM is below specification or above specification, indicating that the temperature is above specification (a short to ground) or below specification (open), the TCM detects a malfunction and stores a DTC.
Monitor Execution, Sequence, Duration, DTC Type
| Execution | Continuous |
| Sequence | None |
| Duration | 10 seconds or more |
| DTC Type | Two drive cycles, MIL on, Shift position indicator blinks |
Enable Conditions
| Condition | Minimum | Maximum |
|---|---|---|
| 12 volt battery voltage [Battery Voltage] | 11 V | - |
[ ]: HDS Parameter
Malfunction Threshold
DTC: P0712
The transmission fluid temperature sensor output voltage [CVTF Temp Sensor (V)] is less than 0.07 V for at least 10 seconds.
DTC: P0713
The transmission fluid temperature sensor output voltage [CVTF Temp Sensor (V)] is more than 4.93 V for at least 10 seconds.
Possible Cause
The causes shown may not be a complete list of all potential problems, and it is possible that there may be other causes.
DTC: P0712
- Transmission fluid temperature sensor TATF line short to ground
DTC: P0713
- Transmission fluid temperature sensor TATF line open (includes a loose or disconnected connector)
- Transmission fluid temperature sensor SG5 line open (includes a loose or disconnected connector)
Common
- Transmission fluid temperature sensor failure
- TCM internal circuit failure
Confirmation Procedure
Operating Condition
- Start the engine.
- Shift to P position/mode, and wait for at least 10 seconds.
Diagnosis Details
Conditions for setting the DTC
When a malfunction is detected during the first drive cycle, a Pending DTC is stored in the TCM memory. If the malfunction returns in the next (second) drive cycle, the MIL comes on, the shift position indicator blinks, and a Confirmed DTC and the freeze data are stored.
Conditions for clearing the DTC
The shift position indicator comes off by turning the vehicle to the OFF (LOCK) mode. The MIL is cleared if the malfunction does not return in three consecutive trips in which the diagnostic runs. The MIL, the Pending DTC, the Confirmed DTC, and the freeze data can be cleared with the scan tool clear command.
