Panoramic Glass Roof Glass Position Adjustment: Adjustment

How to use this service information .

NOTICE:

When working with a vehicle equipped with the electronic air suspension, be sure to set it to the leveling off mode to prevent unexpected operation. Refer to the Electronic Air Suspension System Service Precautions - Refer to: Electronic Air Suspension System Connector Fitting Precautions or Electronic Air Suspension System Service Precautions for the procedure.

Front Glass

  1. Panoramic Front Glass Position - Check

    Procedure/Specifications

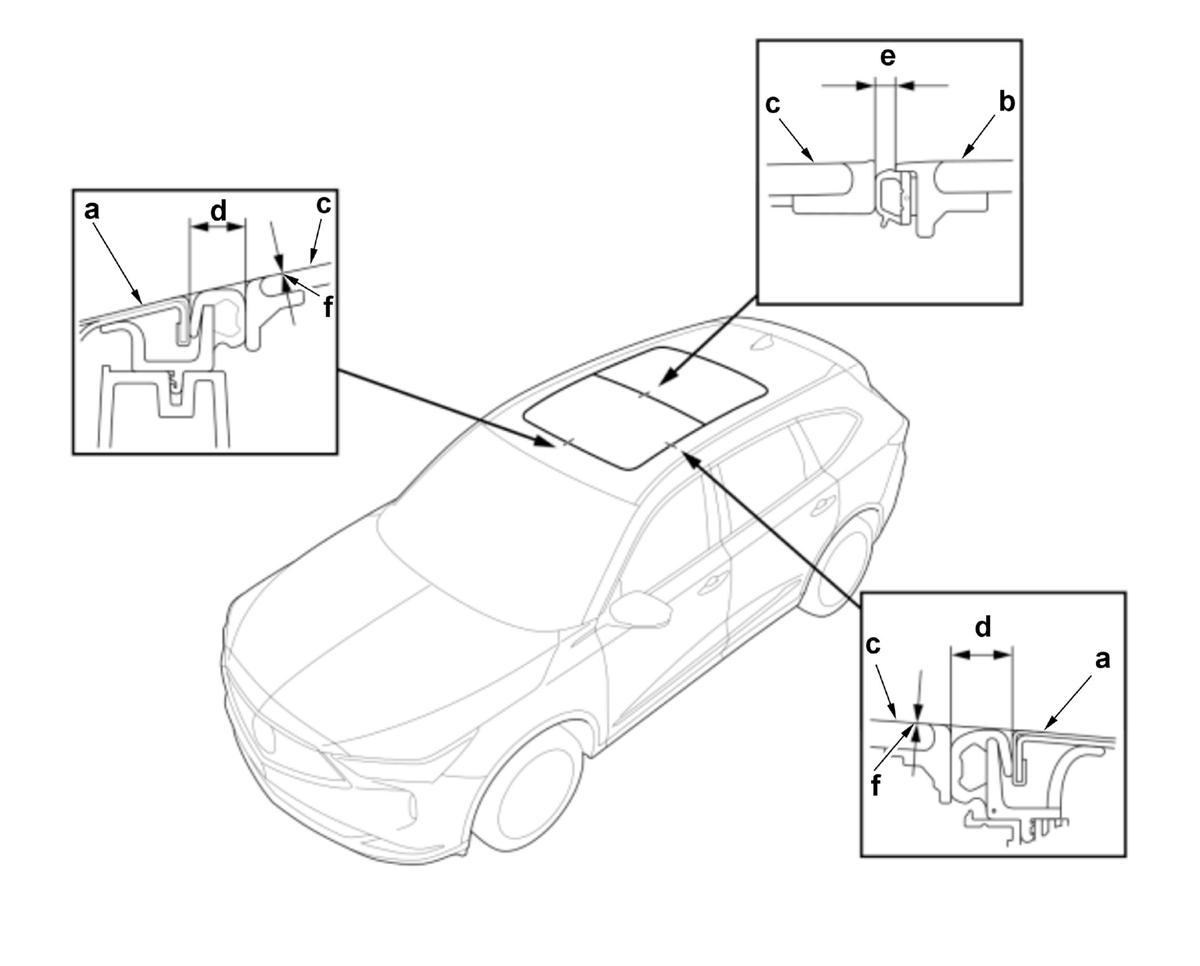

    1. The roof panel (a) and the rear glass (b) should be even with the front glass (c) within the range shown. If not, make the following adjustment.

    Fitting Specifications

    Position Specifications
    d 11.5 +/-1 mm (0.453 +/-0.04 in)
    e 3 +/-0.5 mm (0.12 +/-0.020 in)
    f*1 0 +/-1.2 mm (0 +/-0.047 in)

    *1: The flushness of the surface of the front glass to the roof panel.

    GHH522499Courtesy of HONDA, U.S.A., INC.
  2. Panoramic Front Glass Position - Adjust

    Procedure/Specifications

    1. Remove the acoustic seal (a) as needed.

    Vehicle Directions

    Position Direction
    c Front

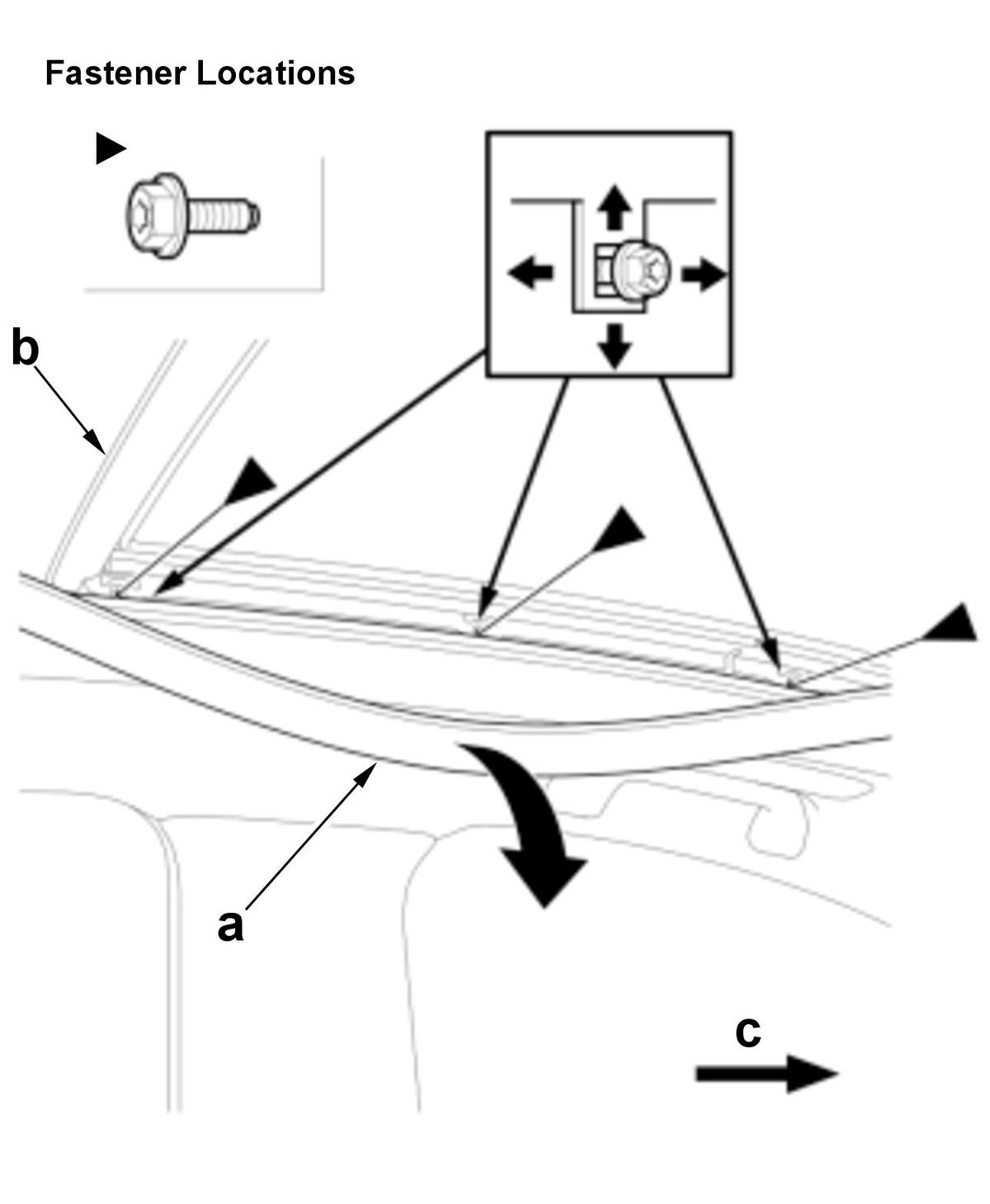

    GHH522500Courtesy of HONDA, U.S.A., INC.

    2. Slightly loosen the bolts.

    3. Adjust the front glass (b) up or down, and forward or rearward.

    4. Tighten all bolts securely .

    5. If necessary, repeat for the opposite side.

    After Adjustment

    Rear Glass

  3. Panoramic Rear Glass Position - Check

    Procedure/Specifications

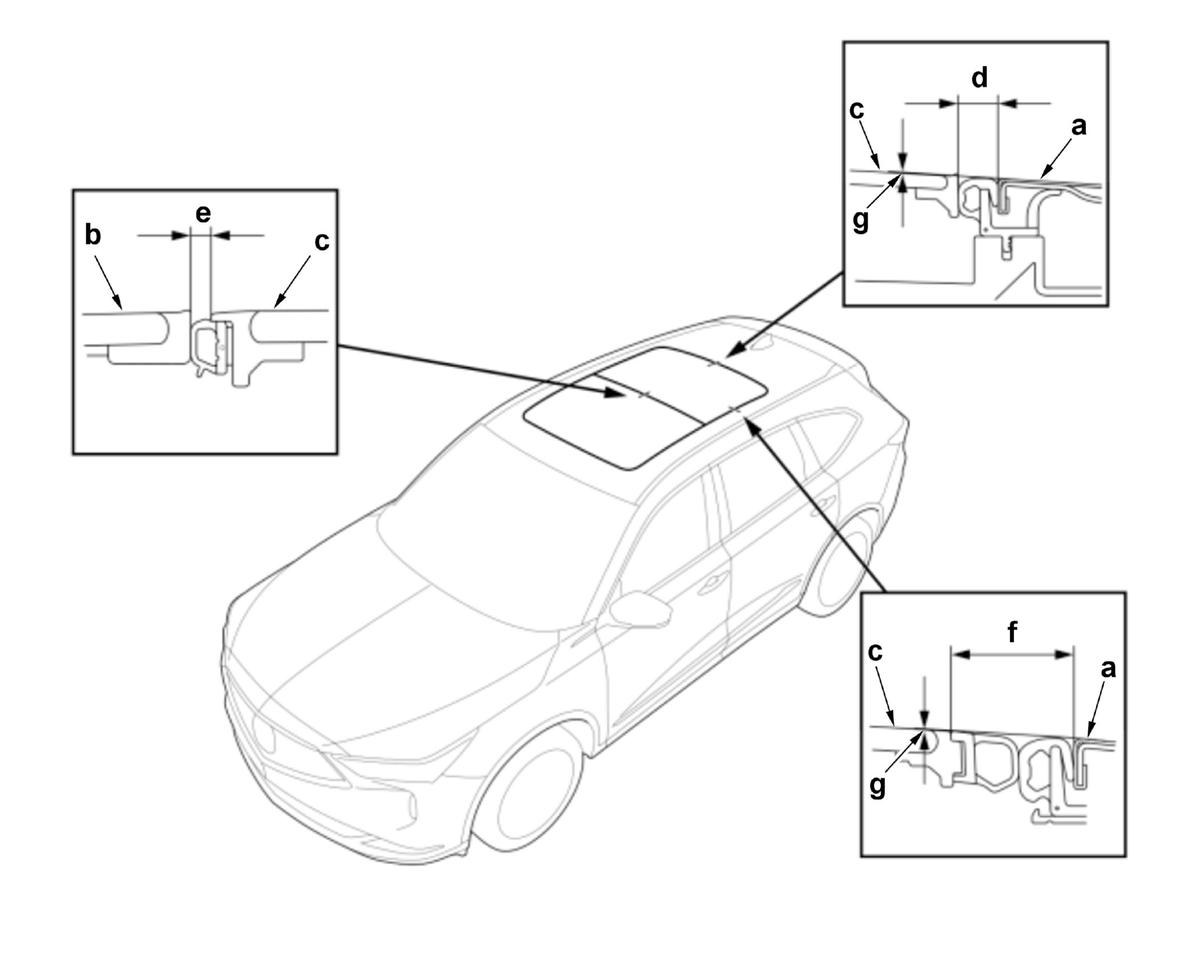

    1. The roof panel (a) and the front glass (b) should be even with the rear glass (c) within the range shown. If not, make the following adjustment.

    Fitting Specifications

    Position Specifications
    d 11.5 +/-1 mm (0.453 +/-0.04 in)
    e 3 +/-0.5 mm (0.12 +/-0.020 in)
    f 26.3 +/-0.9 mm (1.035 +/-0.035 in)
    g*1 0 +/-1.2 mm (0 +/-0.047 in)

    *1: The flushness of the surface of the rear glass to the roof panel.

    GHH522501Courtesy of HONDA, U.S.A., INC.
  4. Panoramic Rear Glass Position - Adjust

    Procedure/Specifications

    1. Remove the acoustic seal (a) as needed.

    Vehicle Directions

    Position Direction
    c Front

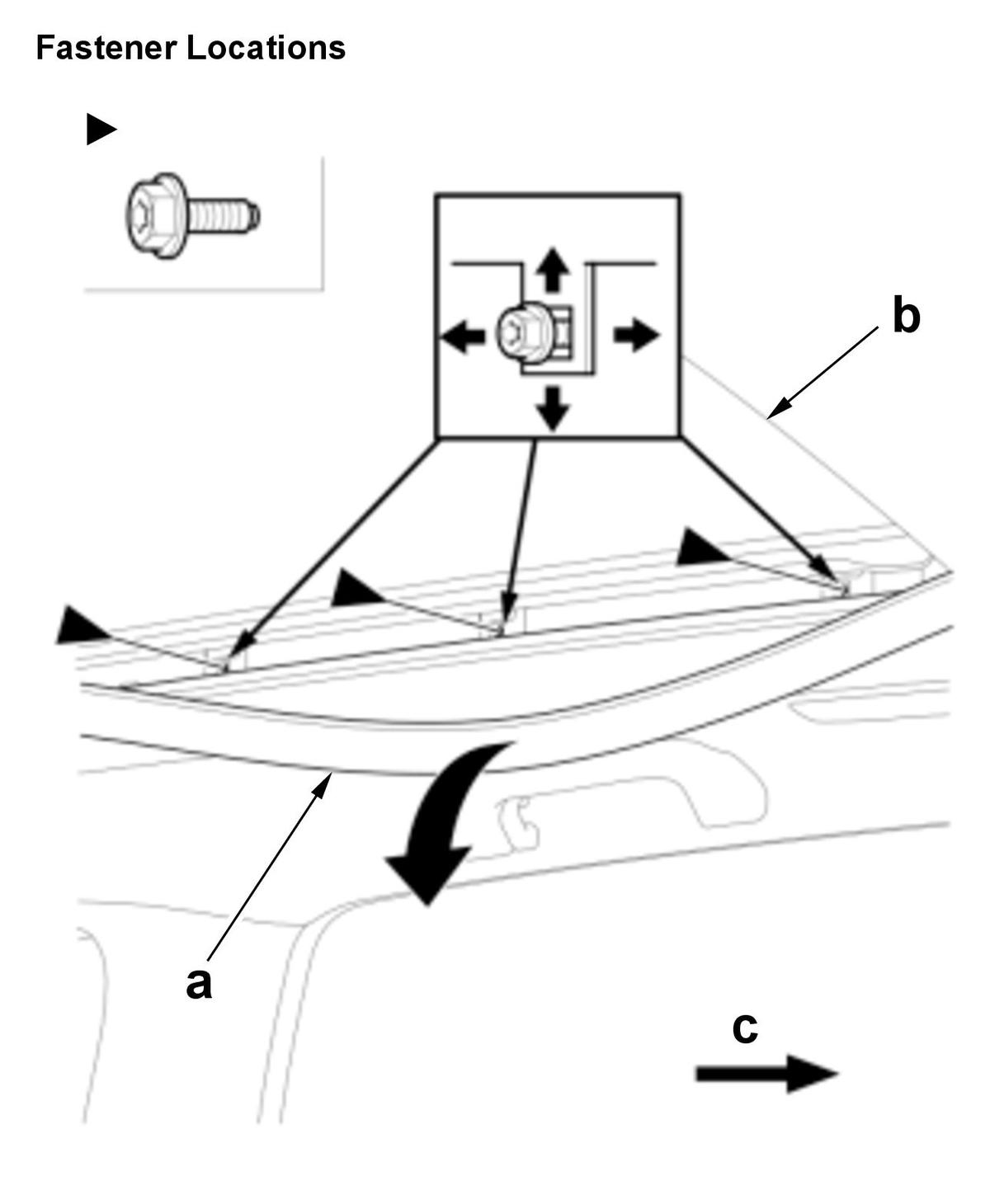

    GHH522502Courtesy of HONDA, U.S.A., INC.

    2. Slightly loosen the bolts.

    3. Adjust the rear glass (b) up or down, and forward or rearward.

    4. Tighten all bolts securely .

    5. If necessary, repeat for the opposite side.

    After Adjustment
