Power Tailgate Component Location Index

GHH659692

Courtesy of HONDA, U.S.A., INC.

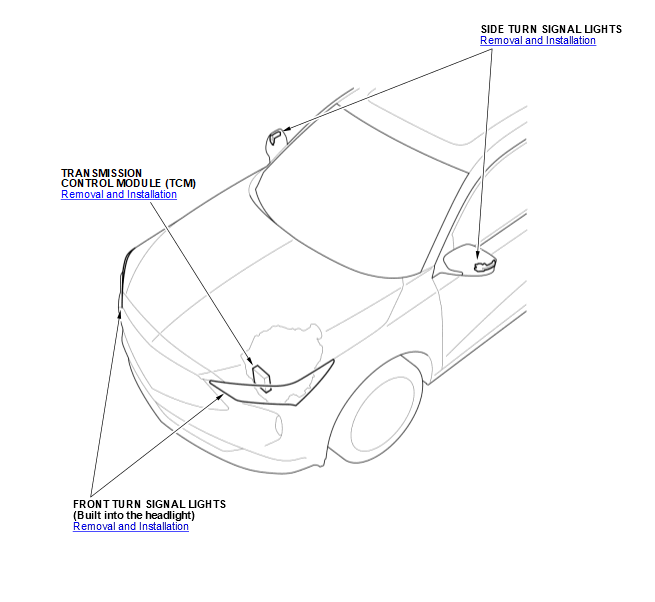

GHH659693

Courtesy of HONDA, U.S.A., INC.

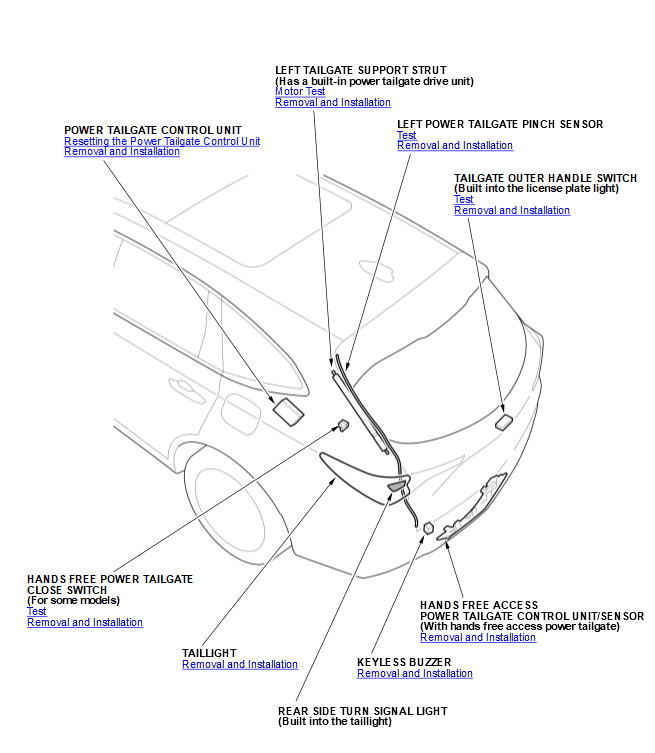

GHH659694

Courtesy of HONDA, U.S.A., INC.

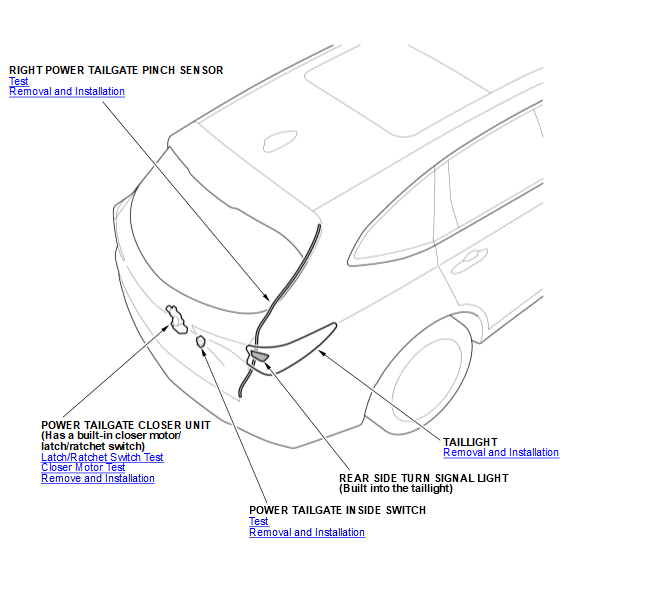

GHH659695

Courtesy of HONDA, U.S.A., INC.

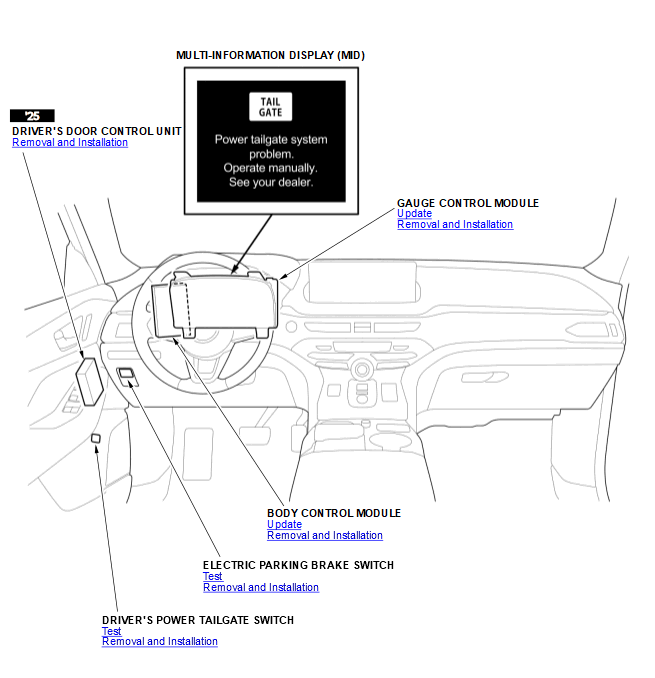

GHH659696

Courtesy of HONDA, U.S.A., INC.
