Turn Signal/Hazard Warning Lights Component Location Index

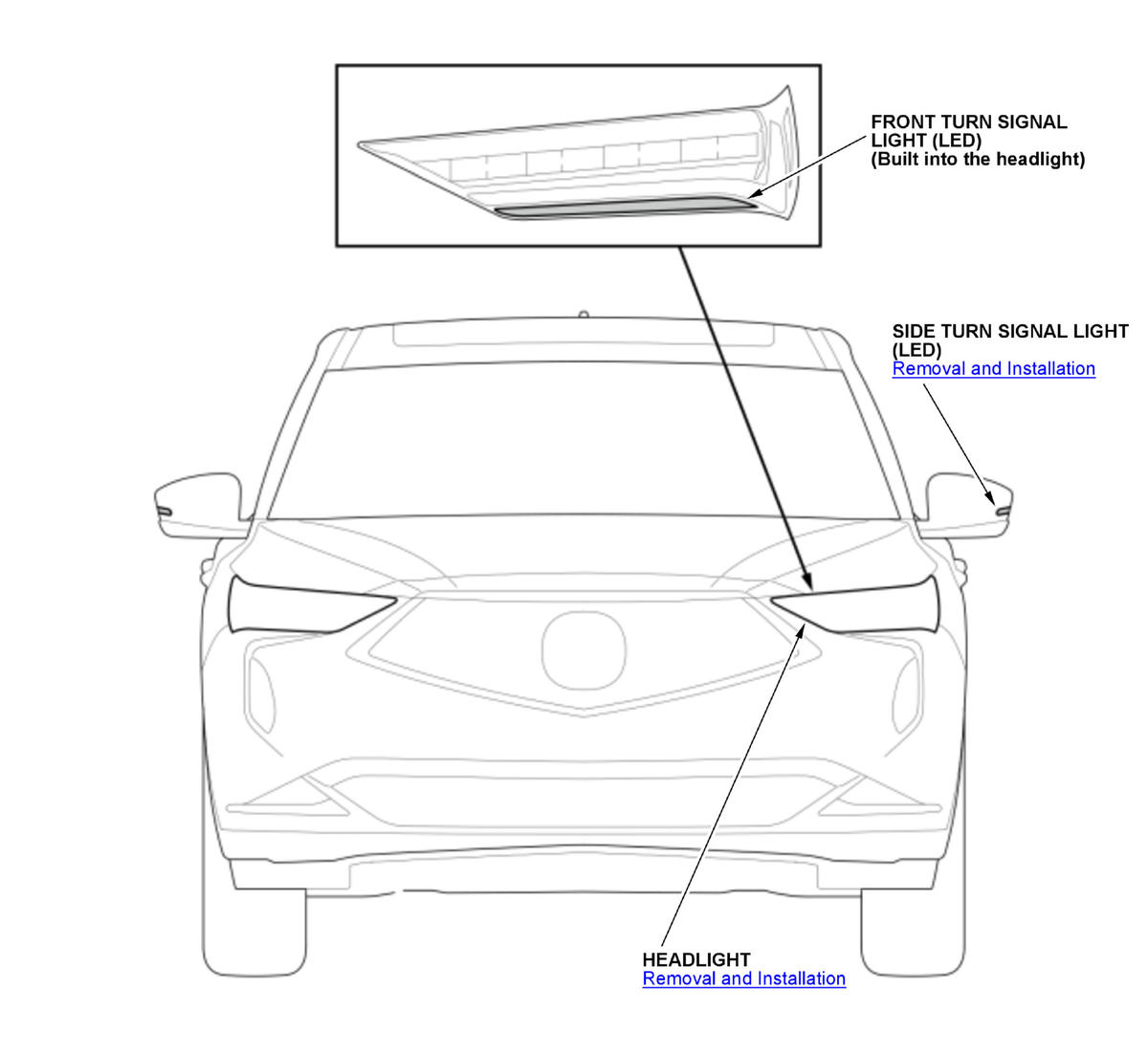

GHH519059

Courtesy of HONDA, U.S.A., INC.

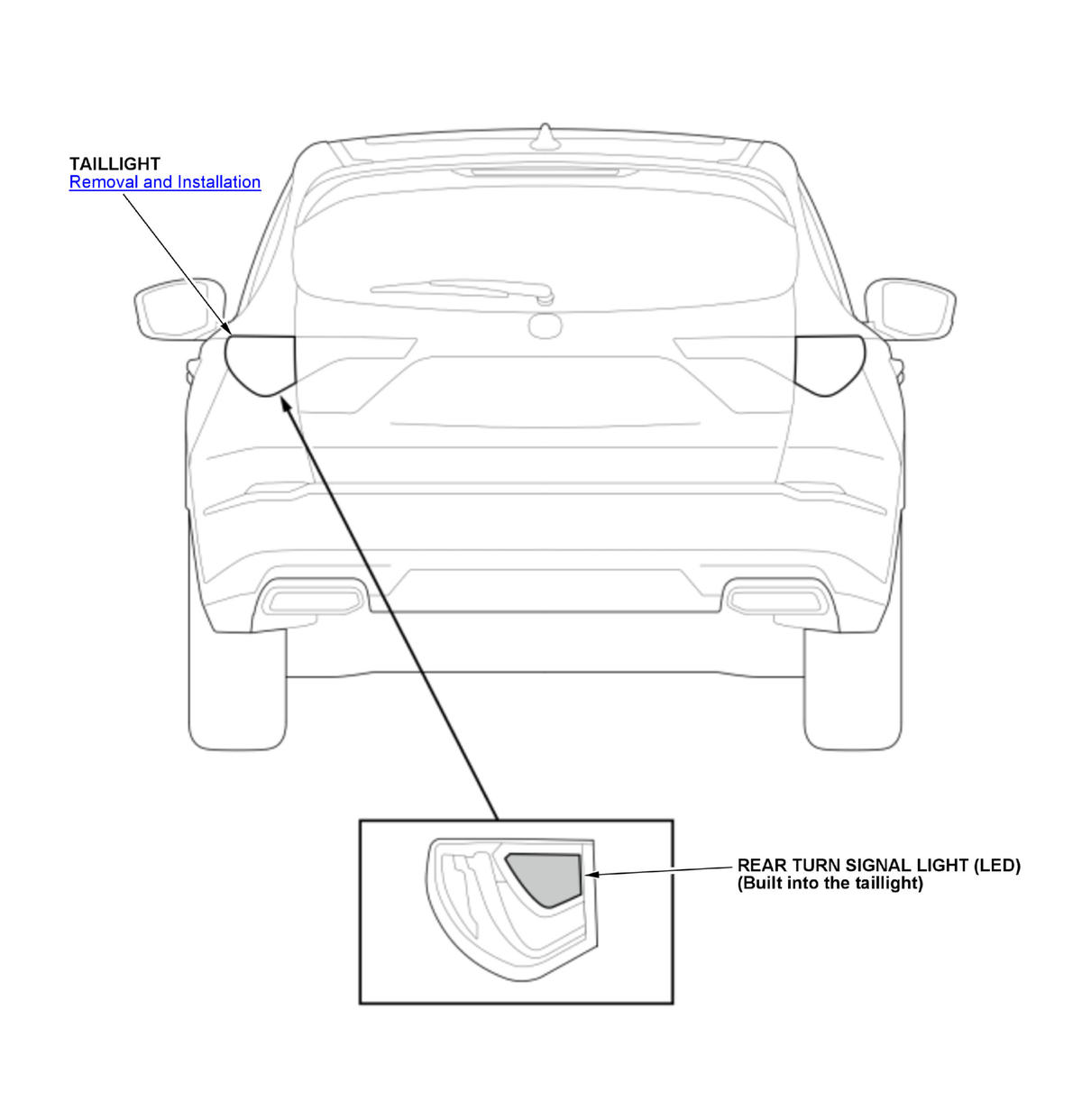

GHH519060

Courtesy of HONDA, U.S.A., INC.

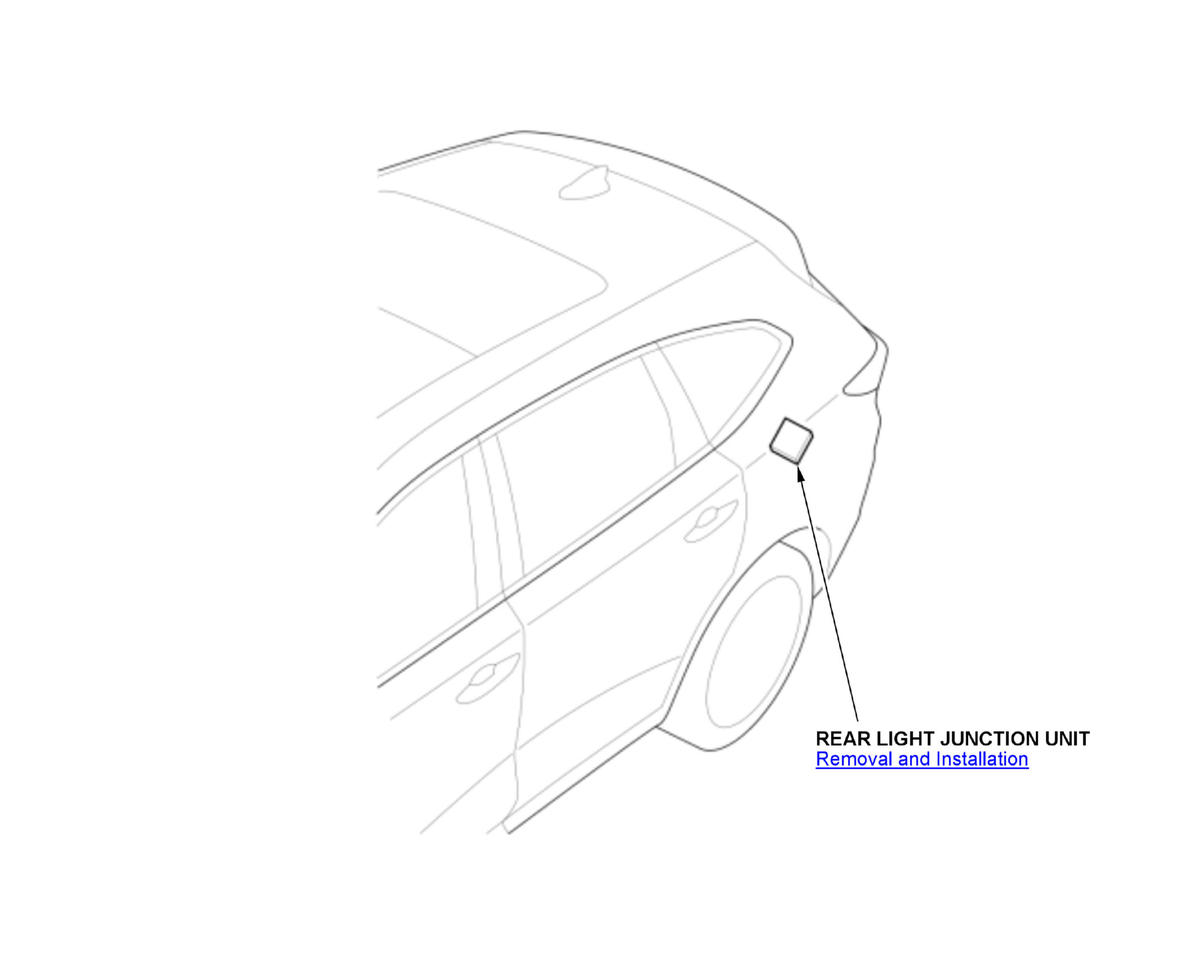

GHH519061

Courtesy of HONDA, U.S.A., INC.

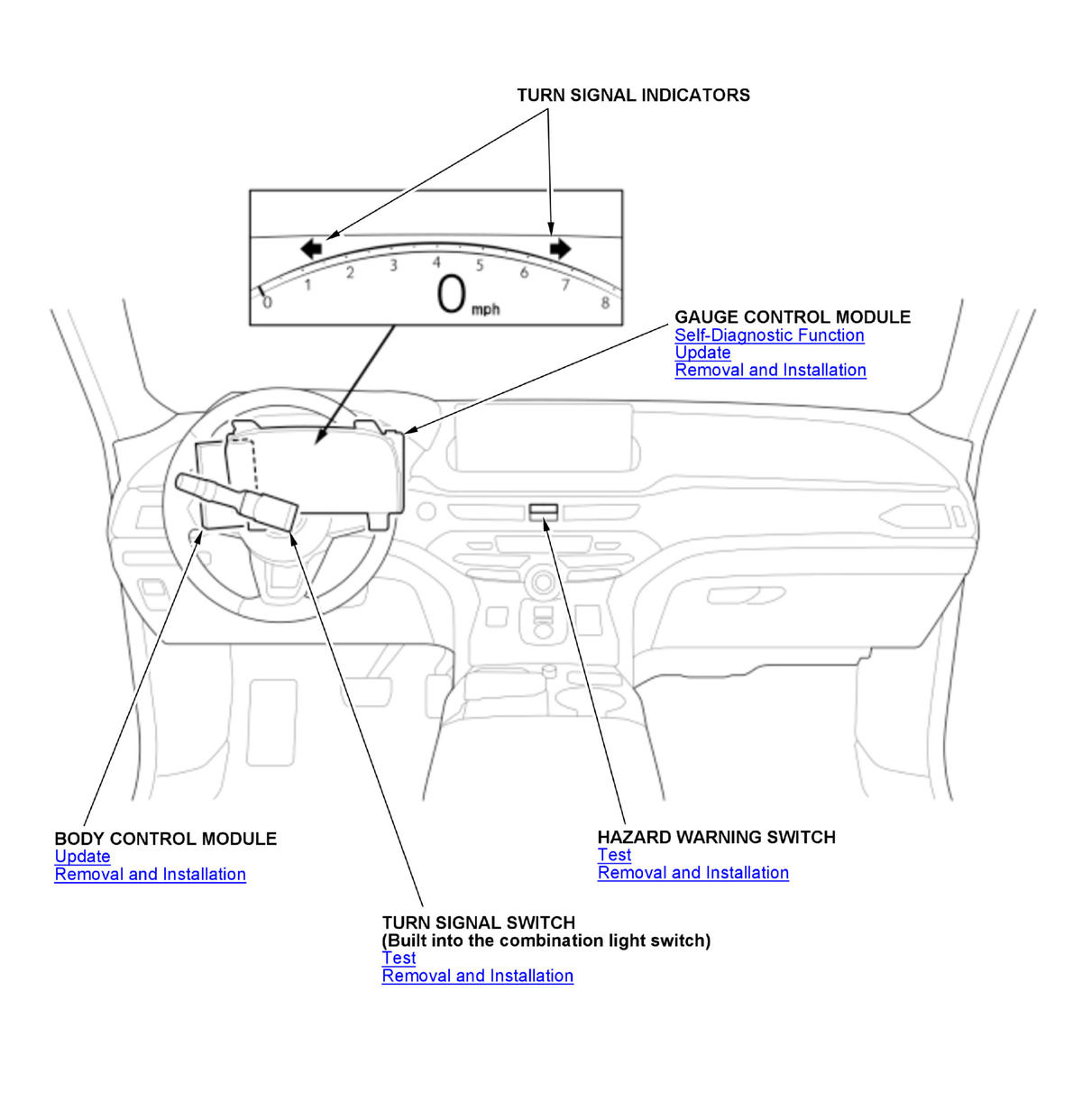

GHH519062

Courtesy of HONDA, U.S.A., INC.
