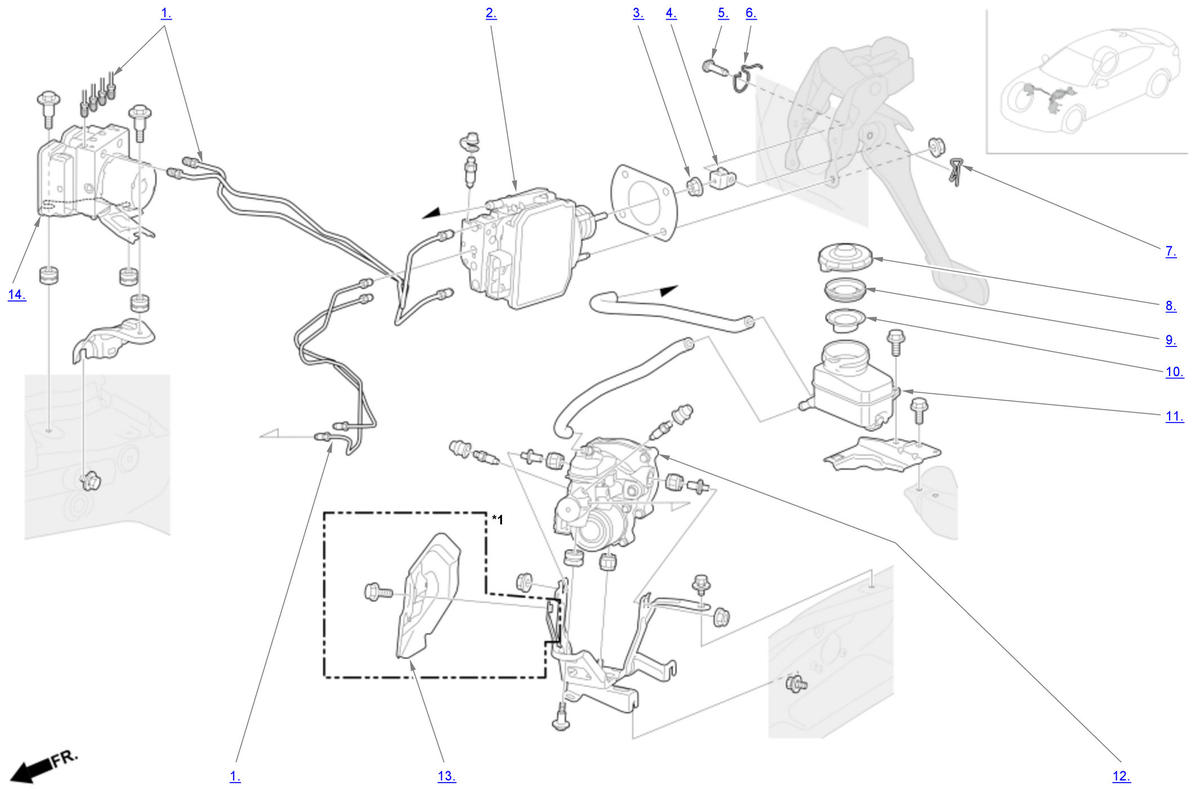

Exploded View
For replacement of components listed below, see Repair Procedure .
| *1: 3.0 L engine |

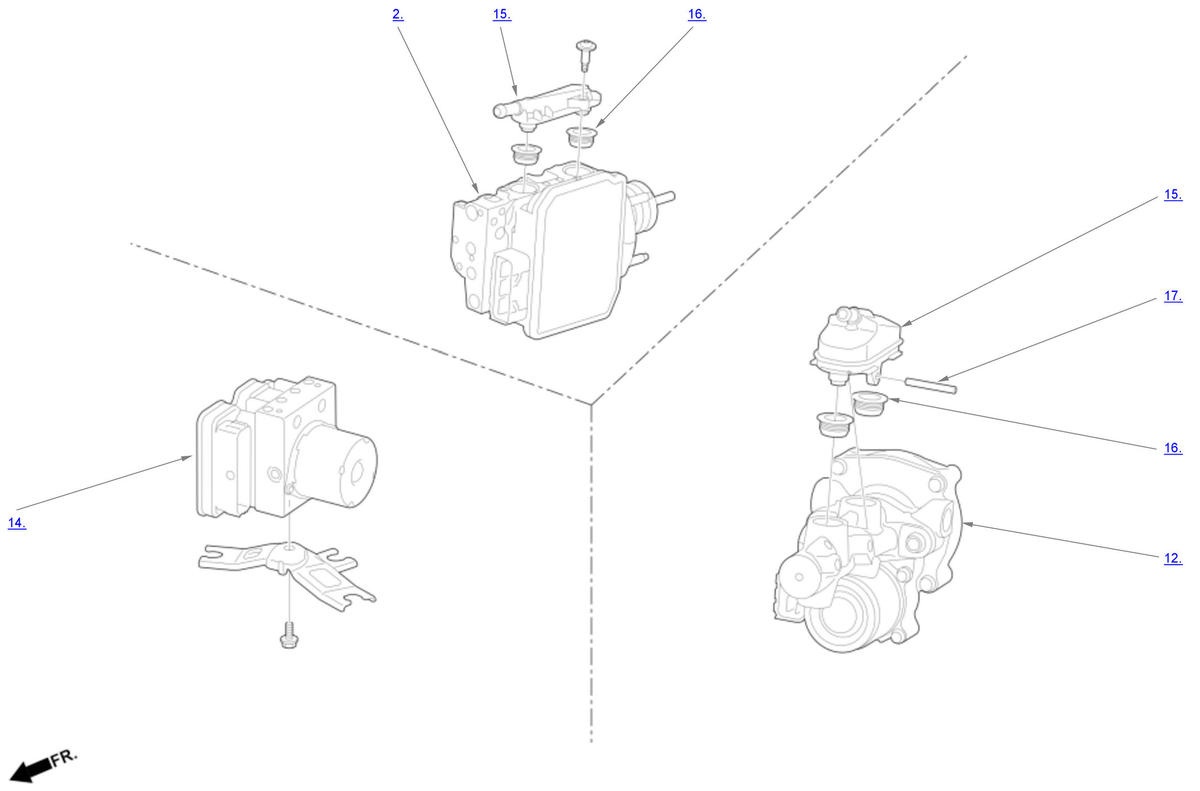

Master Cylinder Area Components
| Component Name | Callout |
|---|---|
| Brake Line | 1 |
| Pedal Feel Simulator | 2 |
| Yoke Locknut | 3 |
| Yoke | 4 |
| Clevis Pin | 5 |
| Yoke Spring | 6 |
| Lock Pin | 7 |
| Reservoir Cap | 8 |
| Reservoir Seal | 9 |
| Strainer | 10 |
| Reservoir | 11 |
| Tandem Motor Cylinder | 12 |
| Tandem Motor Cylinder Heat Baffle | 13 |
| VSA Modulator-Control Unit | 14 |
| Reservoir Union | 15 |
| Grommet | 16 |
| Pin | 17 |
