Component Location Index
›

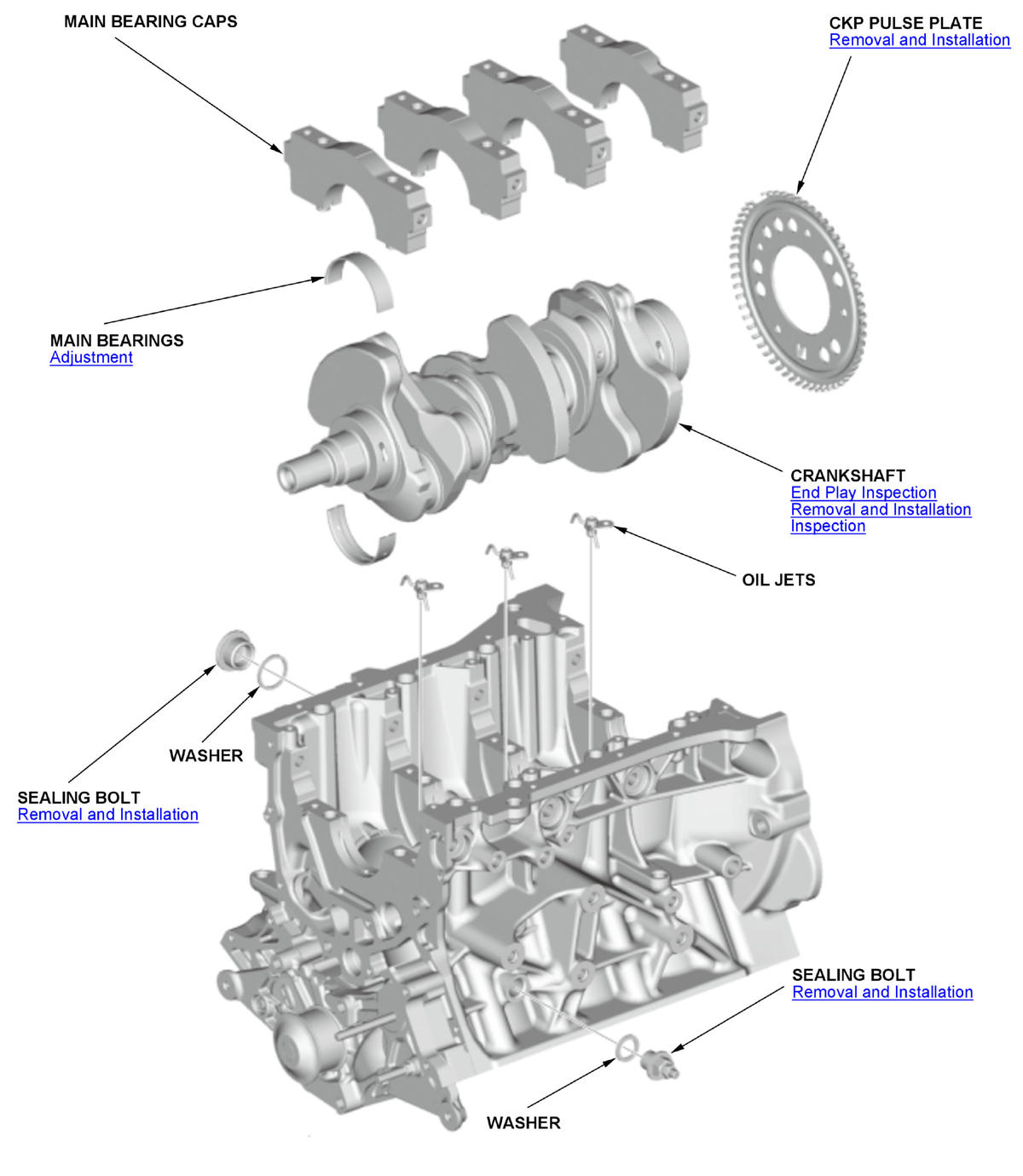

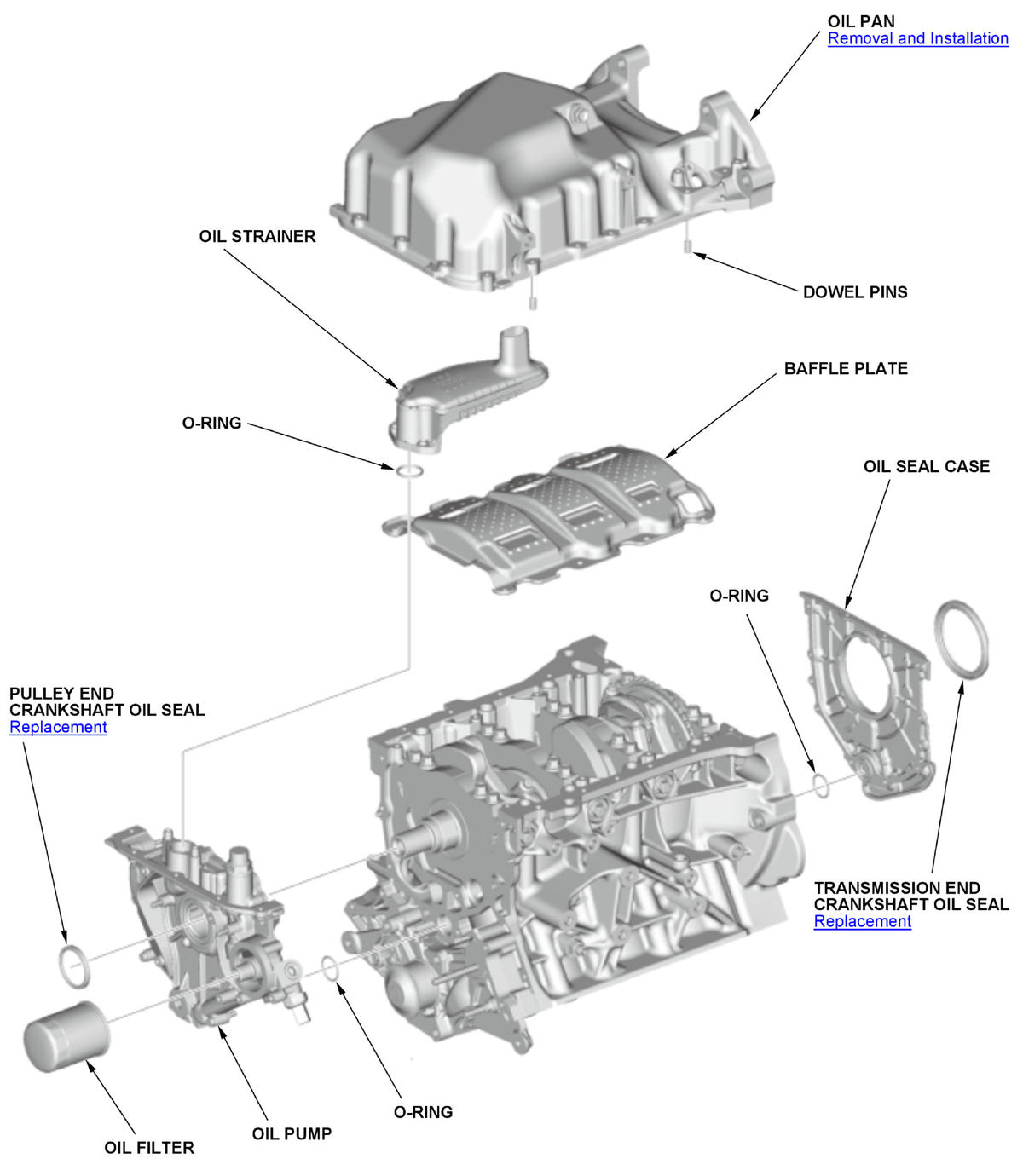

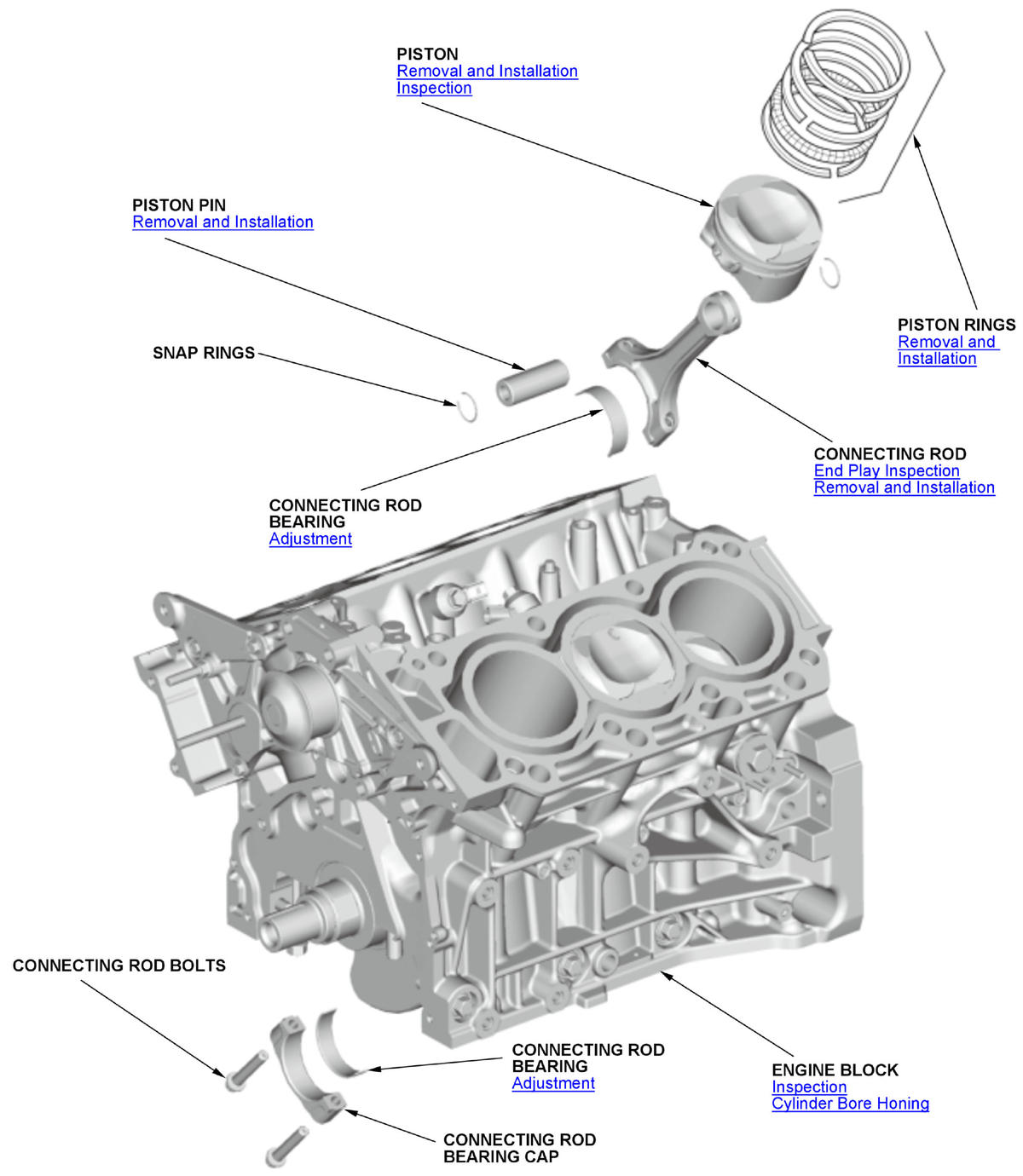

Engine Block Assembly Component Location Index (3.0L Engine)
Engine Block Assembly Component Location Index (3.0L Engine)
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
