Repair and Diagnosis
›
Engine Performance
›
System
›
Fuel Injection System - BOSCH AFC
›
Wiring Diagrams
Wiring Diagrams

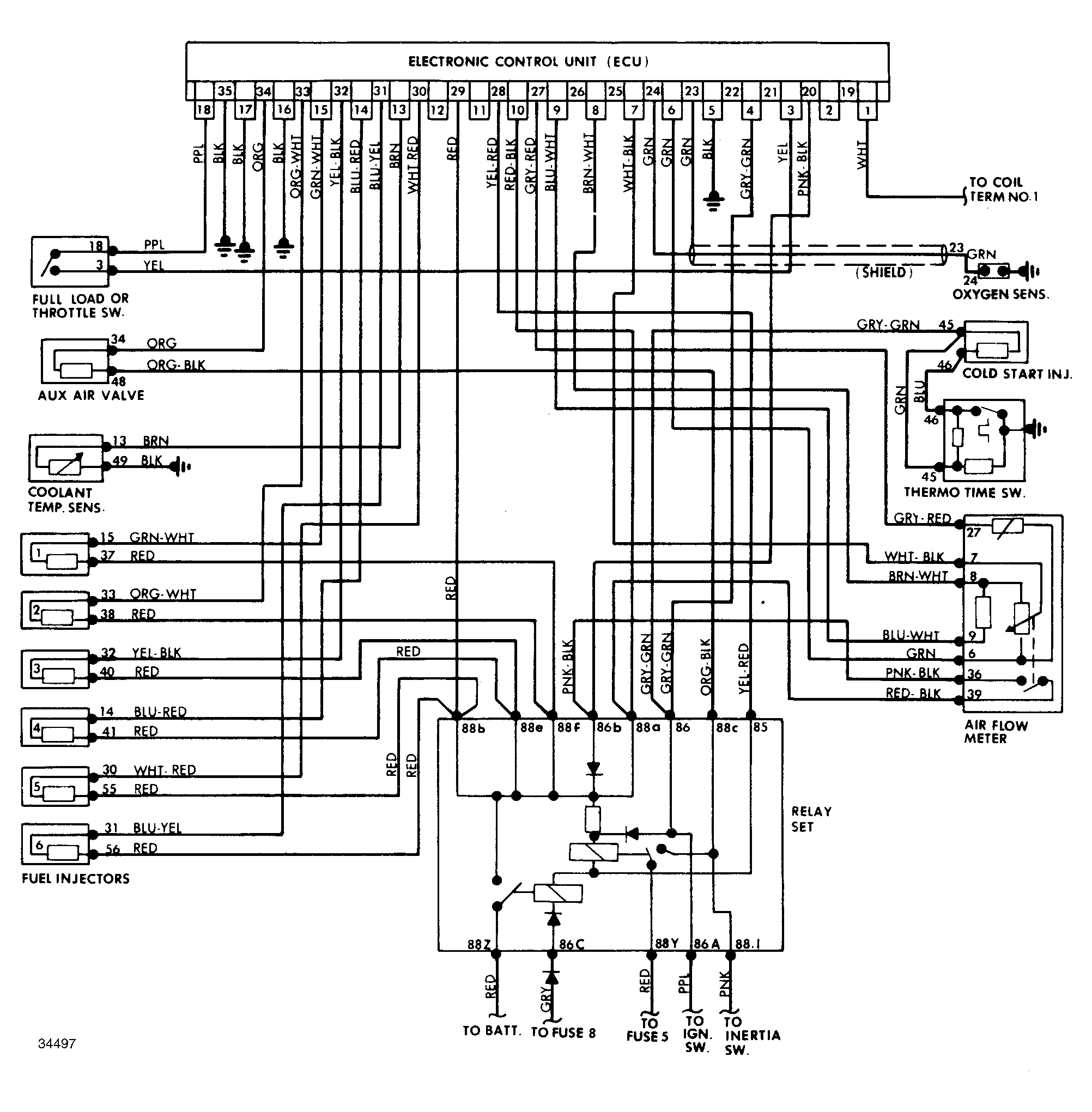

Fig 1: AFC Fuel Injection Wiring Diagram (GTV-6 2.5)
