Wiring Diagrams

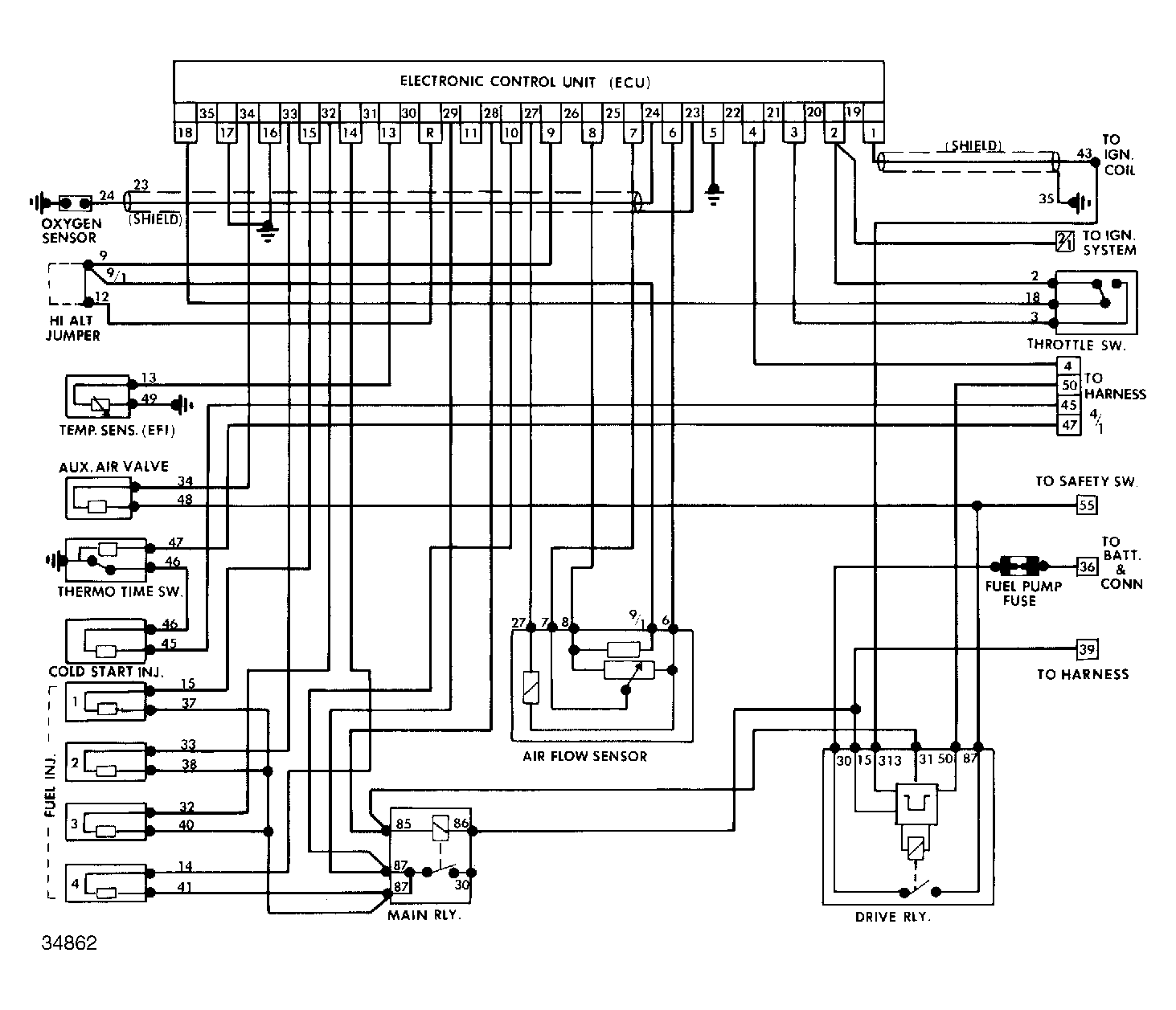

Fig 1: AFC Fuel Injection Wiring Diagram (Spider 2.0)

G34862

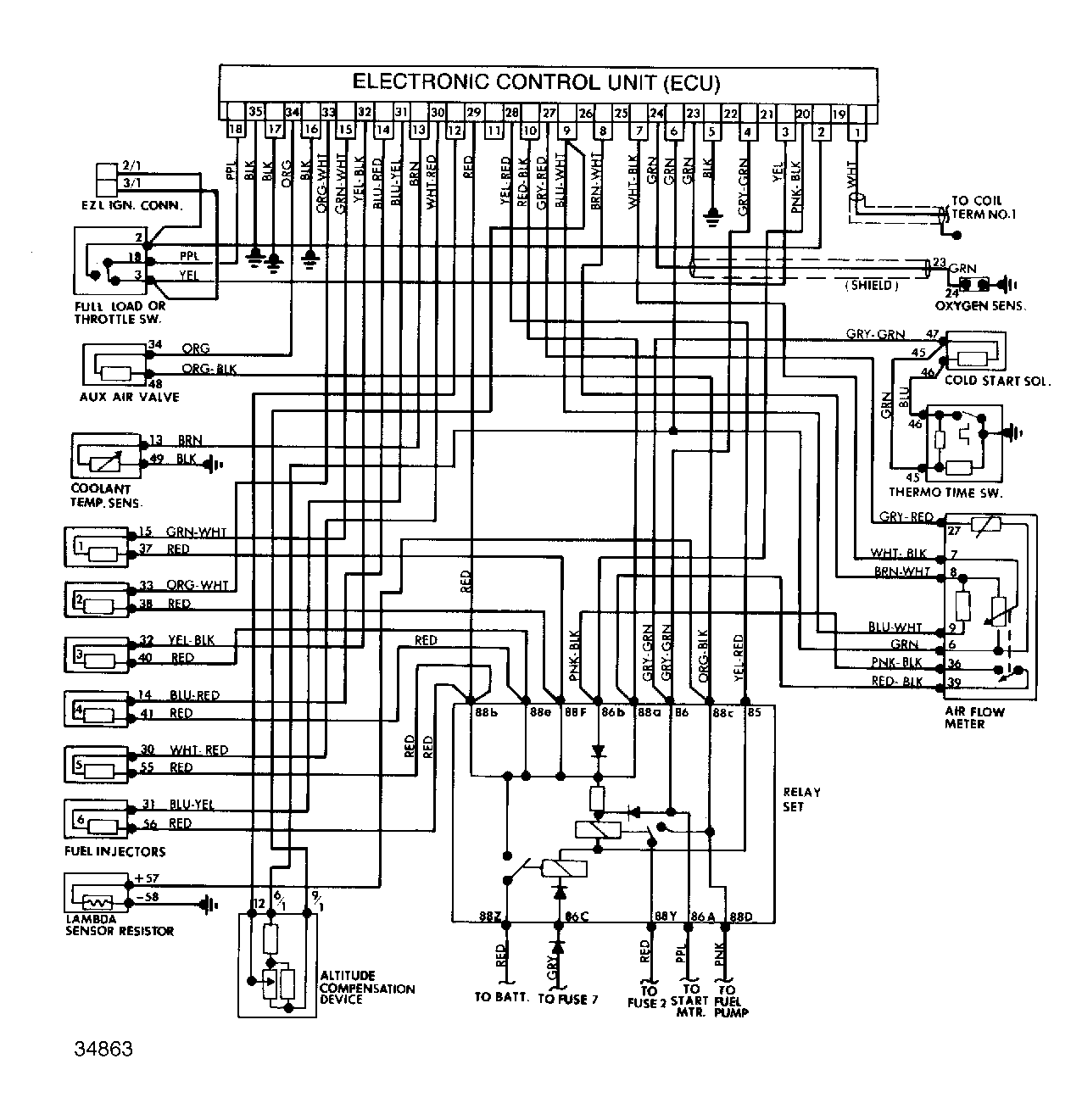

Fig 2: AFC Fuel Injection Wiring Diagram (GTV-6 2.5)

G34863
