Service Indicator & Warning Lights
›
Service Indicator & Warning Lights
›
Notes
Service Indicator & Warning Lights: Notes

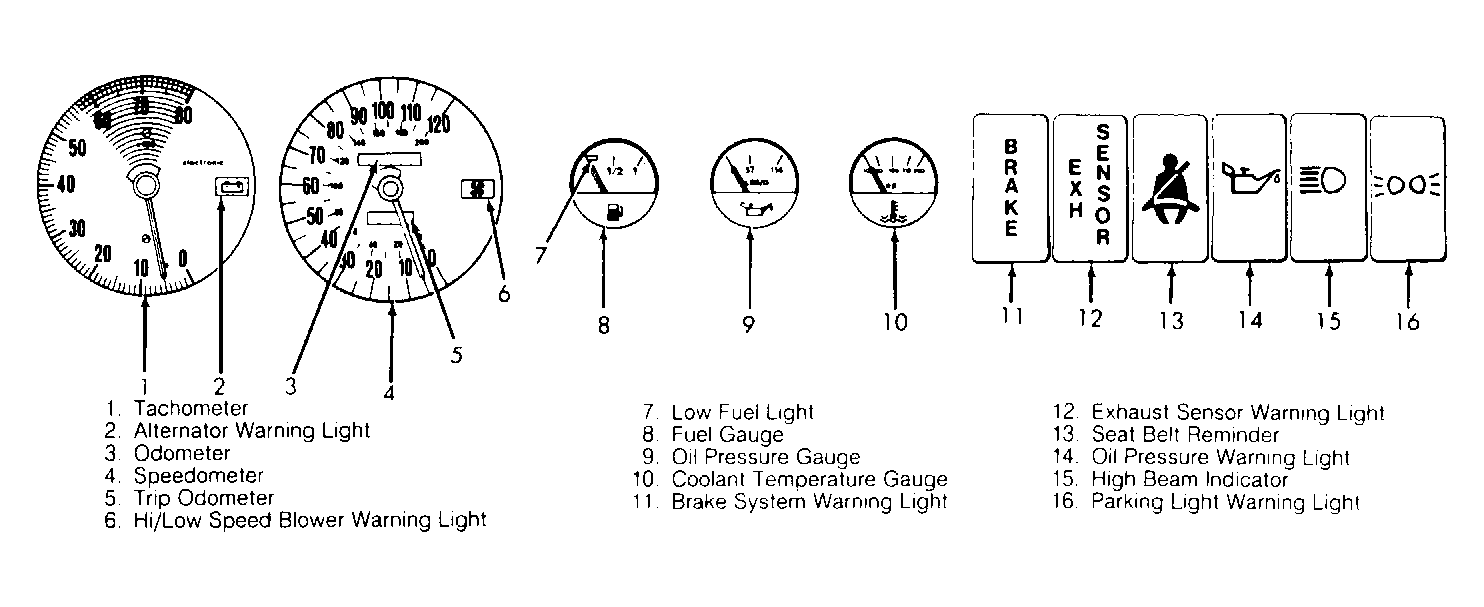

Fig 1: 1983-85 Dash Gauges & Warning Lights
Courtesy of ALFA ROMEO AUTO S.P.A.

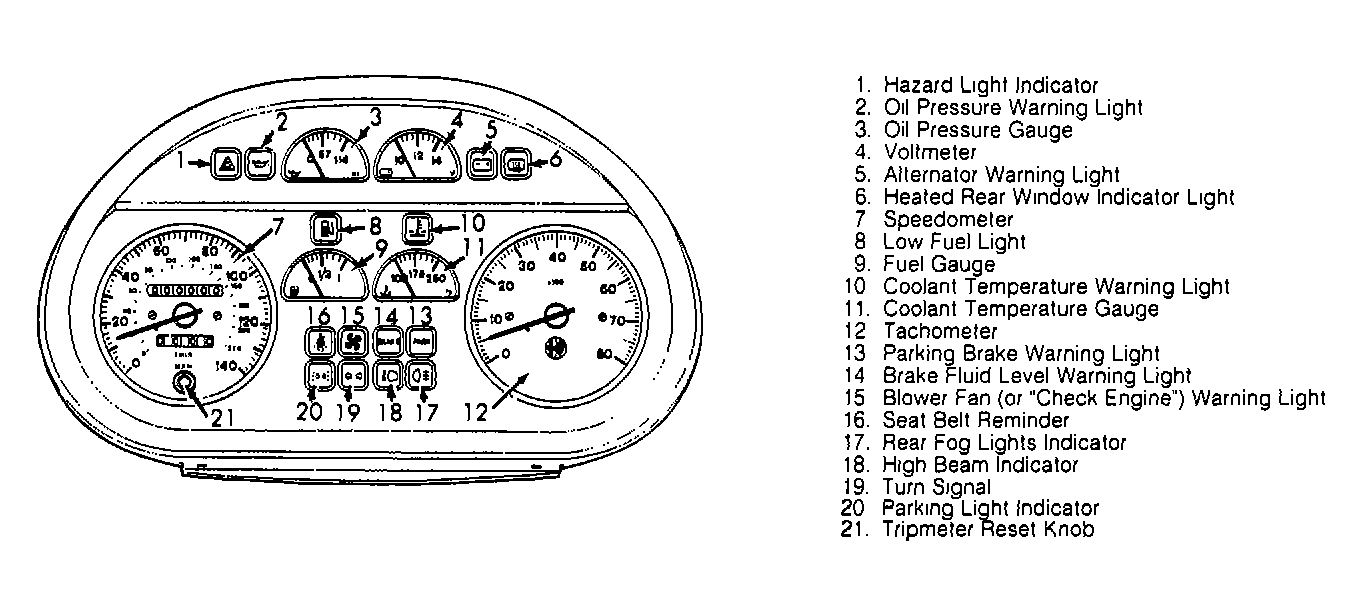

Fig 2: 1986-92 Dash Gauges & Warning Lights
Courtesy of ALFA ROMEO AUTO S.P.A.
Courtesy of ALFA ROMEO AUTO S.P.A.
Courtesy of ALFA ROMEO AUTO S.P.A.
