Engine Starting

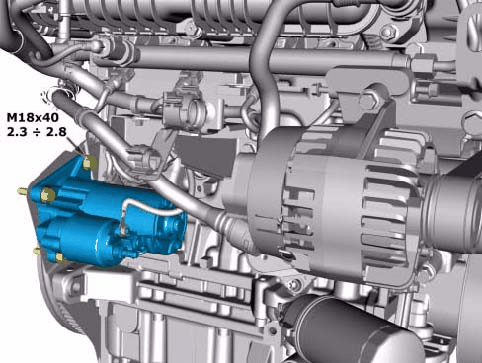

GC0167134Courtesy of CHRYSLER GROUP, LLC

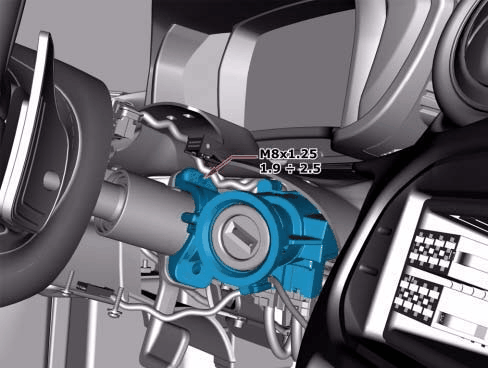

GC0166915Courtesy of CHRYSLER GROUP, LLC
Component Fixing dia Value (daNm) Validity
Ignition Switch Screw to be sheared M8x1.25 1.9 ÷ 2.5 1750 Turbo Petrol
Starter Screw M8x40 2.3 ÷ 2.8 1750 Turbo Petrol
