Torque Specifications

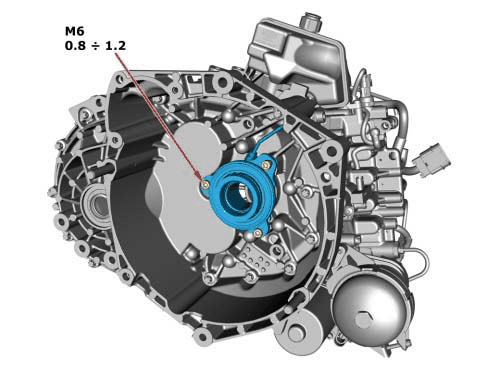

GC0167777Courtesy of CHRYSLER GROUP, LLC

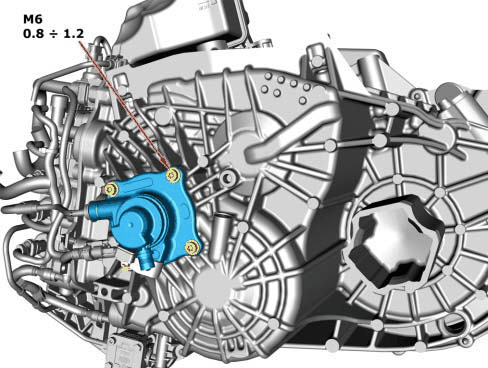

GC0166952Courtesy of CHRYSLER GROUP, LLC
Component Fixing Size Value (Nm)
Even speed clutch control hydraulic coaxial actuator Screw M6 10
Odd speed clutch control hydraulic actuator Screw M6 10

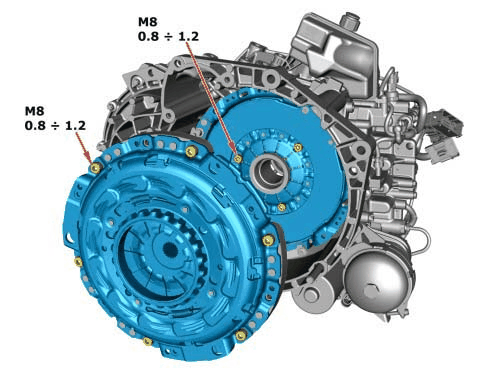

GC0167030Courtesy of CHRYSLER GROUP, LLC
Component Fixing Size Value (Nm)
Even speed clutch mechanism Screw M8 25
Odd speed clutch mechanism Screw M8 25
